MACHINE Prinzing Motor driven 160-200

MACHINE Prinzing Motor driven 160-200

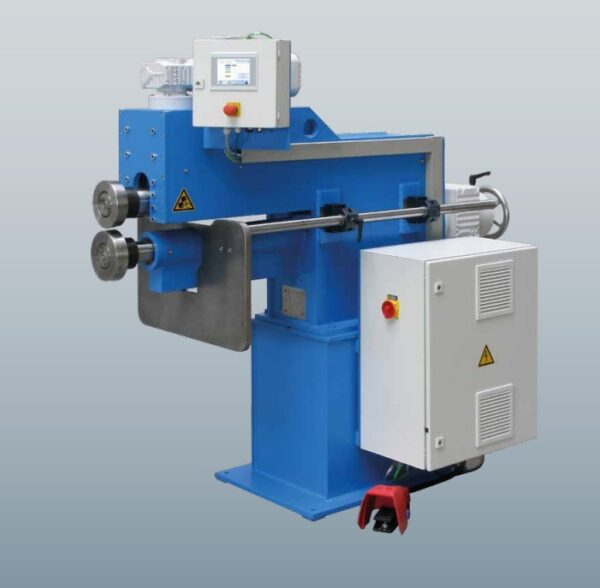

MACHINE Prinzing Motor driven 160-200 – the beading and flanging machines are used for the professional working in the industry. The machines are out of a sturdy welded steel structure and placed on a sub frame. The drive of the upper roll happens by a double foot switch for left-handed and right-handed motion. Parallel and motor driven infeed of the upper roll. The hardened stop plate respectively the screw on plate improves the repeatability of repeating workpieces. The hardened and grinded output shafts are mounted on a anti-friction bearing.

Example sizes SME 160/P-200/P
Model
SME 160/P
SME 200/P
Roller distance [mm]
160
200
Throat [mm]
750
750
Sheet thickness*  [mm]
5,0
8,0
*The sheet thickness refers to the material with a tensile strength of about 400N/mm² and an elastic limit of 250 N/mm²!
