Prinzing Machine Manual / Motor driven 50-63

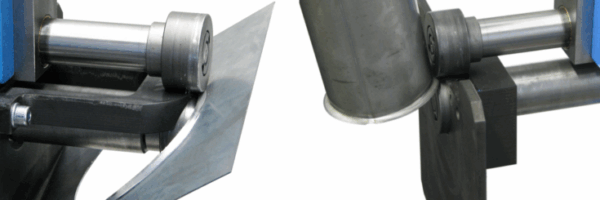

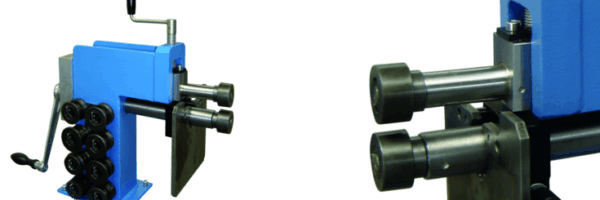

Prinzing Machine Manual / Motor driven 50-63 – the beading and flanging machines SM and SME 50-63 are light-weight, transportable machines and are available with manual or a motor driven drive. The adjustable and hardened stop plate improves the repeatability of repeating workpieces. The SME has an infinite variable drive with two speed modes and right – / left – hand motion.

Type	SM 50	SME 50	SM 63	SME 63
Distance between center of the rolls [mm]	50 mm	50 mm	63 mm	63 mm
Infeed [mm]	200 mm	200 mm	250 mm	250 mm
Sheet thickness*	1,25 mm	1,25 mm	1,75 mm	1,75 mm

* The sheet thickness refers to the material with a tensile strength of about 400N/mm² and an elastic limit of 250 N/mm²!
