Advantages and Features

• Hydraulic Upper Shaft Adjustment: Provides rapid and precise setting of the working height during production runs; this enhances repeatability and significantly reduces setup time.

• Rigid Frame and Low-Wear Design: Minimizes deflection and component wear, which is critical for maintaining accuracy under serial production loads.

• Multiple Drive and Speed Options: Features standard variable speed control from 3–15 m/min. An optional high-speed range of 8–40 m/min is available .

• Versatility of Working Rollers: Schröder-FASTI manufactures high-precision hardened Rollers (flanging, swaging, wiring, complex folding rollers, etc.). Dimensions and inter-roller spacing comply with DIN 55211, simplifying tool selection and replacement.

• Industrial Grade for Mass Production: The combination of electric drive, hydraulic adjustment, and ergonomic control (standard double foot pedal) allows the machine to be integrated into production lines or used as a high-output autonomous unit.

Standard Equipment

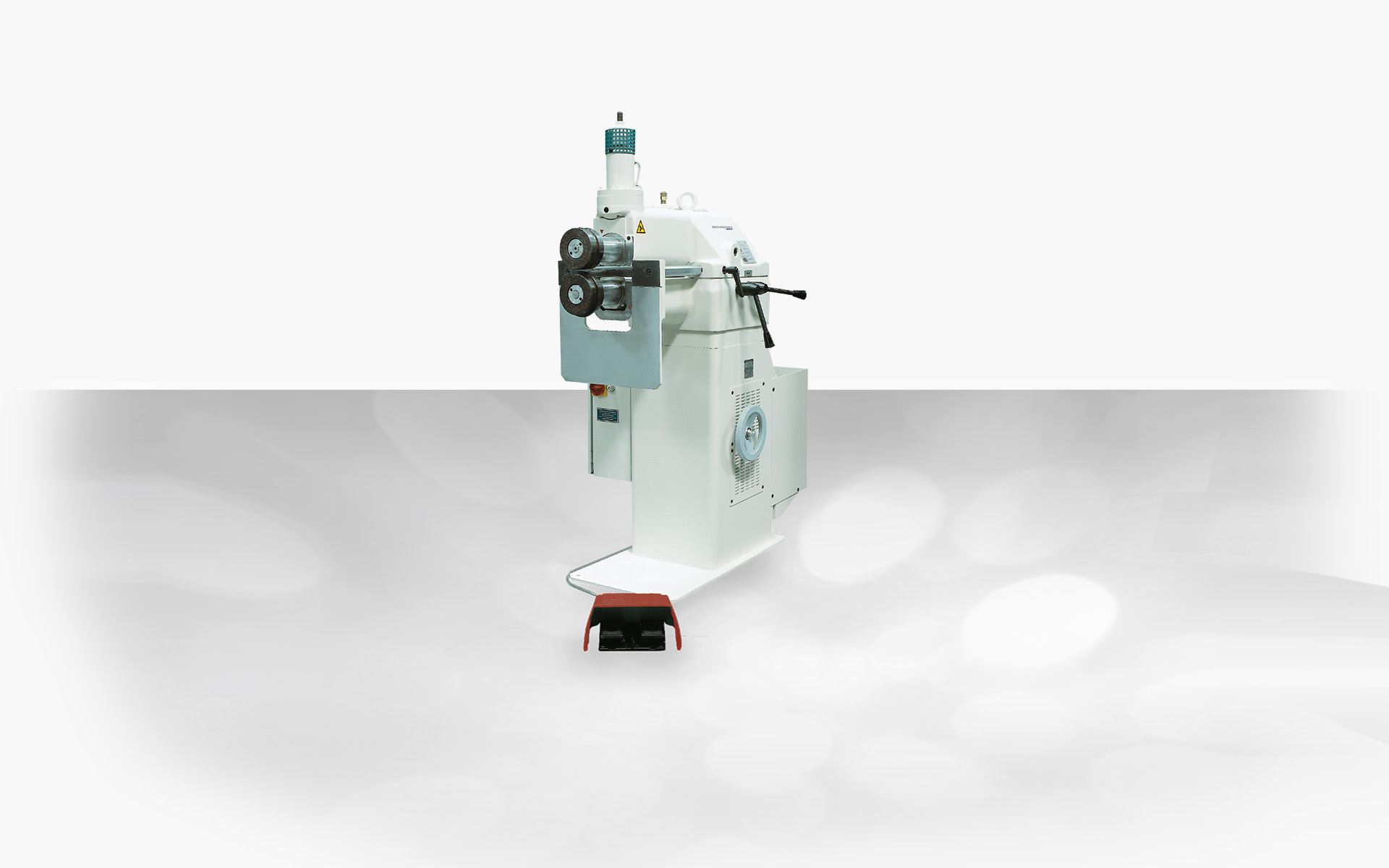

• Beading machine Schröder 417, version 100/2, with hydraulic upper shaft adjustment and electromotive drive.

• Double foot pedal (forward/reverse) or control with a combined machine start, depending on the configuration.

• Basic universal roller set recommended by the manufacturer (Starter kit: 6 pairs of rollers).

• Tools for rapid roller replacement and a standard single-part or sectional stop included.

Options and Additional Modules

• Expanded Roller Sets: Additional or custom-made rollers for specific profiles (available by individual order).

• Sectional Stop: Recommended for processing complex contours or non-standard workpiece shapes (ideal for irregular profiles).

• Extended Speed Range (8–40 m/min): Optional drive for high-speed serial work (requires shafts to be mounted in needle bearings).

• Hydraulic or Specialized Drive: High-power/high-durability variants; the hydraulic drive is available as a distinct option.
