Advantages and Features

• Compact yet Productive Design: The 250 mm throat depth provides optimal workspace for typical operations without requiring a large installation area.

• Standard Set of 7 Roller Pairs: Various roller profiles enable folding, grooving, flanging, and crimping without needing additional machinery.

• Suitable for Thin to Medium Sheets: Rated for mild steel up to 1.7 mm thick, covering most HVAC and housing fabrication requirements.

• Motorized Drive with Dual Speeds (6 or 12 m/min): Two-speed operation allows the operator to choose between delicate processing at low speeds or increased productivity during serial runs.

• 63 mm Diameter Rollers: The substantial roller diameter ensures stable profile formation, consistent contact with the sheet, and a long tool service life.

Standard Equipment

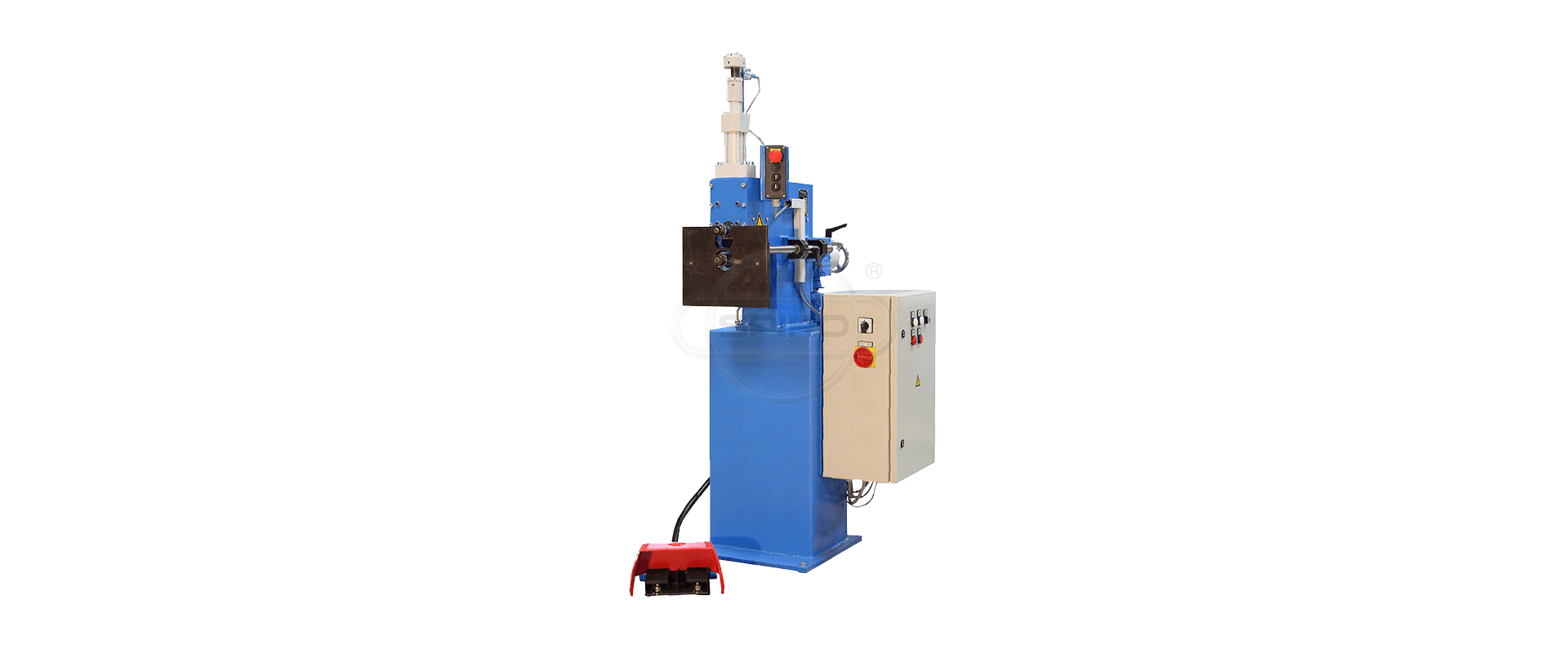

• Beading machine base Edgeformer SME 63 with electric drive (two working speeds).

• 250 mm throat depth console.

• 7 pairs of rollers with different profiles (standard set for a wide range of operations).

• Rollers with a 63 mm diameter (standard manufacturer mounting and type).

• Roller replacement tool kit and basic controls (speed adjustment, reverse).

Options

• Additional or alternative profile roller sets for specific tasks (box profiles, specialized flanges, crimping, or closed grooves).

Technical Specifications
