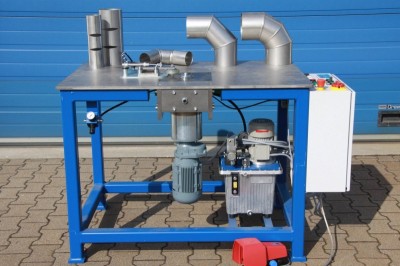

Hornung BM600 is a specialized machine from the German company Andreas Hornung Maschinenbau, designed for the production of segmented elbows (bends) for round ducts. The machine performs the key operation for segment connection: it forms an expanded edge (flange) on one end of each segment and a reduced (insertable) edge on the other. This machine utilizes Siemens PLC control for automatic parameter adjustment, ensuring the high speed and processing accuracy necessary for fast and high-quality assembly of elbows.
Welded Steel Construction (frame made of square tubes) and hardened working table.
Siemens PLC control system with a display for entering diameter and processing parameters.
Stepless speed adjustment of the machine.
Set of working rollers for the base diameter (usually 80 mm).
Foot switch for initiating the automatic processing cycle.
Processing mode indicators (inner/outer).
TSK Function (Sickenfunktion): Upgrade for forming stiffening beads (swages) on the segments, which further reinforces the parts.
Extended Working Space: Option to process diameters up to 1000 mm or a special version starting from ∅60 mm.
Clamp Insert Table (Clamp Insert Table): An additional insert table for manufacturing clamps suitable for joining segmented elbows (uses 0.6 mm strip material).
Safety Systems: For example, a clamping device and a photoelectric light barrier for increased work safety.
