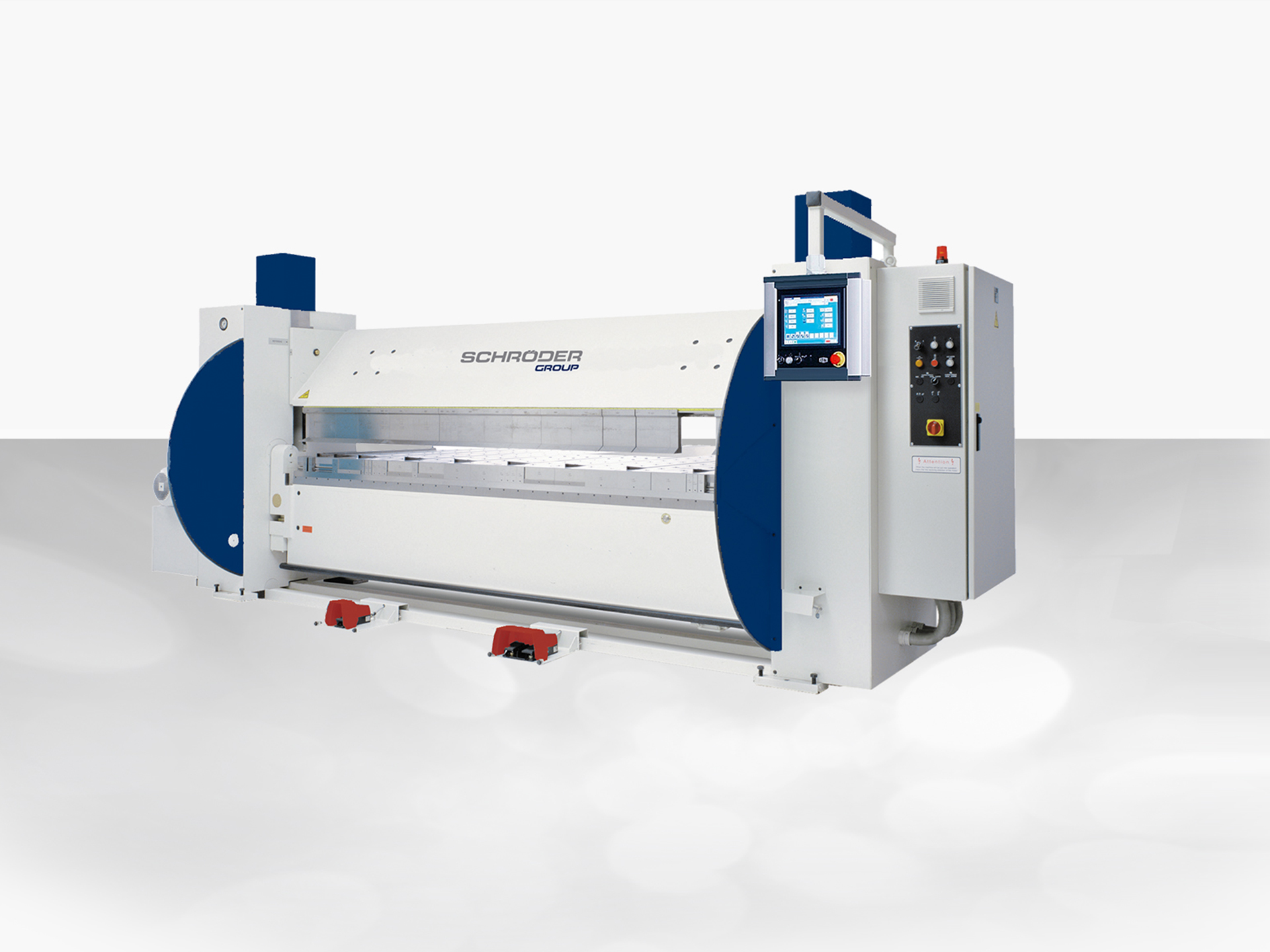

Key Advantages

• High Performance: Hydraulic drive ensures exceptional power and bending accuracy.

• Large Clamping Beam Stroke: A 350 mm stroke provides ample space for handling pre-bent sheets and complex shapes.

• Automated Precision: Motorized beam adjustments allow for exact radius bending and consistent results.

• Quick Tool Change: Compatible with WZS 2000 and WZS 3000 tool clamping systems for rapid changeovers.

• Industrial Power: A robust 8.6 kW motor drive and massive frame are engineered for heavy-duty materials.

• CFP CNC Control: Features an intuitive interface with graphic profile visualization for simplified programming.

• Versatile Backgauge: Motorized MAH 25R backgauge (10–1600 mm range) with options for L- or U-shaped extensions.

CFP Control System

• Display: 12" LCD touchscreen.

• Programming: Profile library with graphical visualization and automatic development (blank length) calculation.

• Functions: Specialized cycles for radius bending and press-folding.

• Memory: 10 program folders with up to 20 steps per program; cycle repetition up to 99 times.

• Database: Storage for 10 clamping beam tools and 6 folding beam tools; programming for up to 30 materials with correction data.

Standard Equipment

• Control System: CFP 120 with a 12" touchscreen.

• Clamping Beam: Hydraulic WZS 2000 system with a 350 mm stroke.

• Lower Beam: WZS 3000 system with 60 mm motorized adjustment.

• Folding Beam: WZS 3000 system with 60 mm motorized adjustment and a manual crowning system.

• Backgauge: Motorized MAH 25R (10–1600 mm range) with a speed of 330 mm/s and a ball-transfer support table.

Optional Equipment

Clamping Beam Tooling (WZS 2000):

• Sharp Nose Blades: 20°/30°, radii R 1/1.5/3, segmented.

• Goat's Foot Tools: Heights of 120 / 170 / 250 mm, 20°/30°, radii R 1/1.5/3.

• Durability: Hardened tools (~1100 N/mm²), phosphated.

Lower & Folding Beam Tooling (WZS 3000):

• Lower Beam: Blade without slots (H=40 mm) or slotted for backgauge fingers (min. gauge 10 mm).

• Folding Beam: Blades height 119 mm (solid or segmented), cranked segmented blades (H=119/65 mm), and 30° segmented folding rails.

Additional Options:

• Ergonomics: Two-person operation mode, foot switch on a linear rail, and tool trolley.

• Automation: Motorized crowning system and increased clamping beam stroke up to 500 mm.
