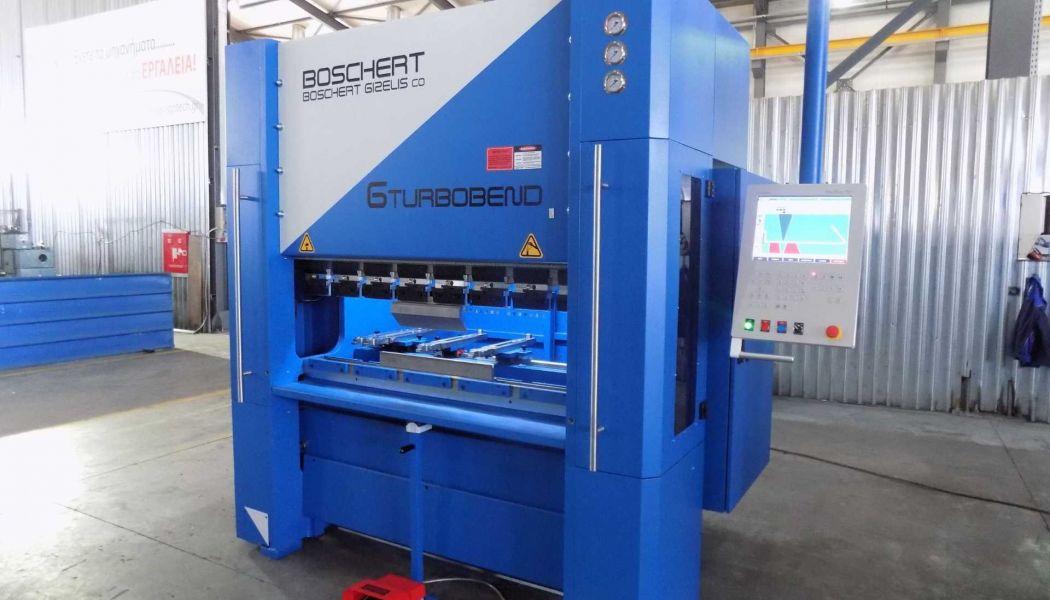

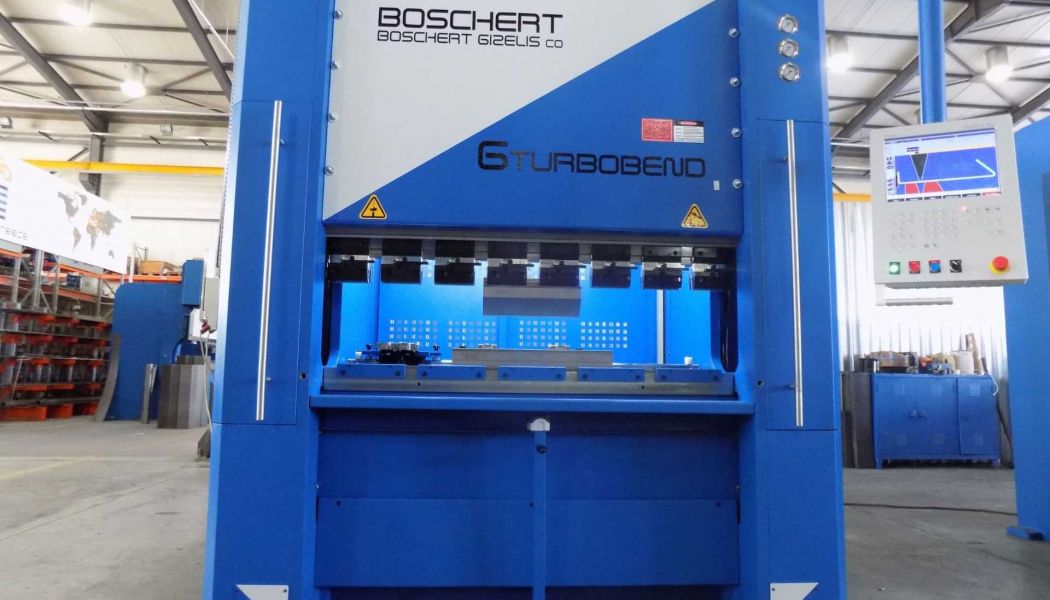

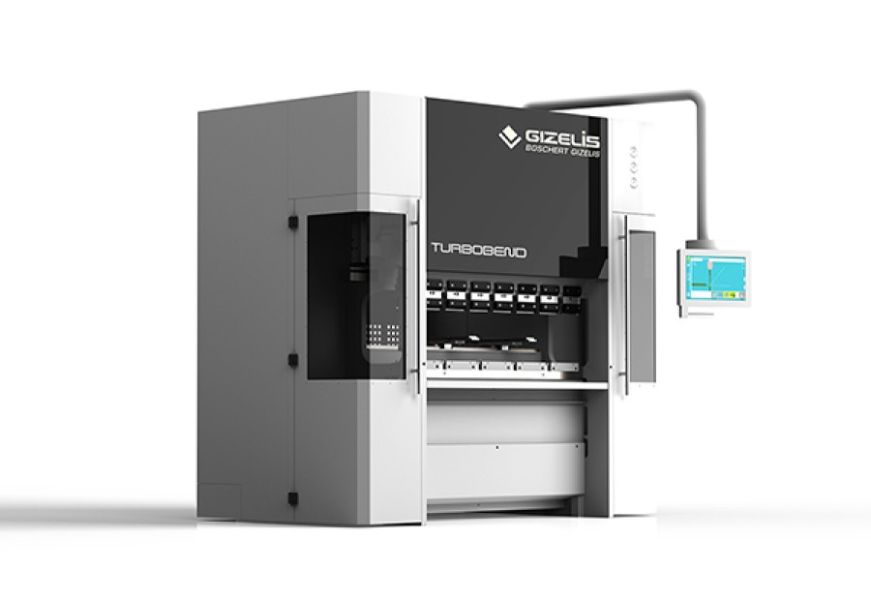

Advantages and Features

• Ultra-Fast Cycle Times: Features an exceptionally fast return speed of up to 200 mm/s and an approach speed of 260 mm/s, significantly accelerating the overall work cycle.

• Optimal Force: A 40-ton bending force makes it perfectly suited for processing thin and medium-thickness materials where speed and quality must be balanced.

• Intuitive Control: Programming is handled via the CybTouch 8 2D-graphical controller, featuring an 8" touchscreen for user-friendly operation.

• Synchronized Precision: Independent Y1 and Y2 hydraulic cylinders combined with proportional valves ensure precise and synchronized movement of both sides of the beam.

• Robust Stability: The beam moves on dual roller bearings on both sides, which enhances bending accuracy and reduces mechanical wear over time.

• Efficient Backgauge: A high-speed single-axis (X) backgauge—traveling at 800 mm/s—is sufficient for high-speed repetitive bending tasks.

• Silent Hydraulics: Equipped with an optimized, low-noise hydraulic system for a better working environment.

Standard Equipment

• CNC System: CybTouch 8 2D-graphical controller (8-inch color touchscreen).

• Hydraulics: Independent Y1 / Y2 cylinders and high-precision proportional valves.

• Tool Clamping: Standard mechanical upper and lower tool clamping.

• Backgauge: Single-axis (X) high-speed backgauge system.

• Beam Guidance: Dual roller bearings on both sides of the beam.

Options

• Enhanced Backgauge: Increased capabilities for the backgauge or additional axes for more complex part positioning.

• Tooling Solutions: Specialized bending tools and interchangeable clamping sets.

• Ergonomics & Safety: Front support arms, additional workpiece supports, and specialized safety systems.

Technical Specifications
