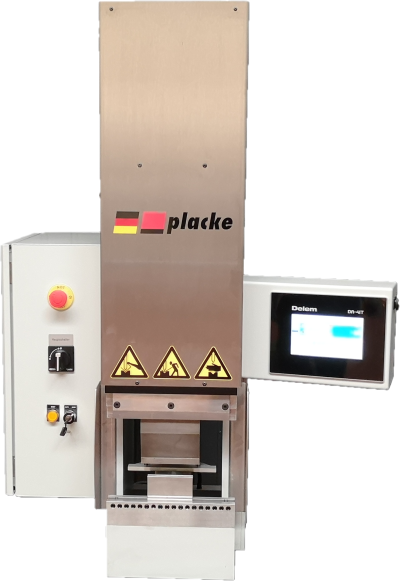

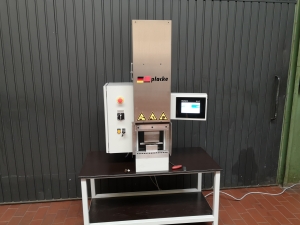

Placke BabyPress TYP BP-CNC-2 is a high-tech model in the BabyPress line, equipped with a CNC system. This benchtop machine was specially developed for the precise and efficient production of prototypes and small series. Its key advantage is the automated control of the axes, which ensures consistent bend quality and high repeatability.
Advantages and Features
CNC Control: The machine is equipped with the modern Delem DA-41T control system, allowing for precise programming of bending processes.
Compactness: Retains all the advantages of a benchtop format, making it ideal for laboratories, classrooms, and small production sites.
High Precision: CNC-controlled Y and X axes ensure accurate immersion depth and sheet positioning, resulting in high-quality finished products.
Energy Efficiency: Features low energy consumption and quiet operation, creating a comfortable working environment.
Standard Equipment
CNC Control System: Delem DA-41T controller for the Y-axis (depth) and X-axis (backgauge).
Backgauge System: CNC-controlled X-axis with a travel range of 170 mm.
Clamping System: Promecam mechanical tool clamping system.
Note: Crowning (deflection compensation) is not provided as a standard option for this model.
Technical Specifications
PLACKE-BabyPress-BP-CNC-2-TG05
