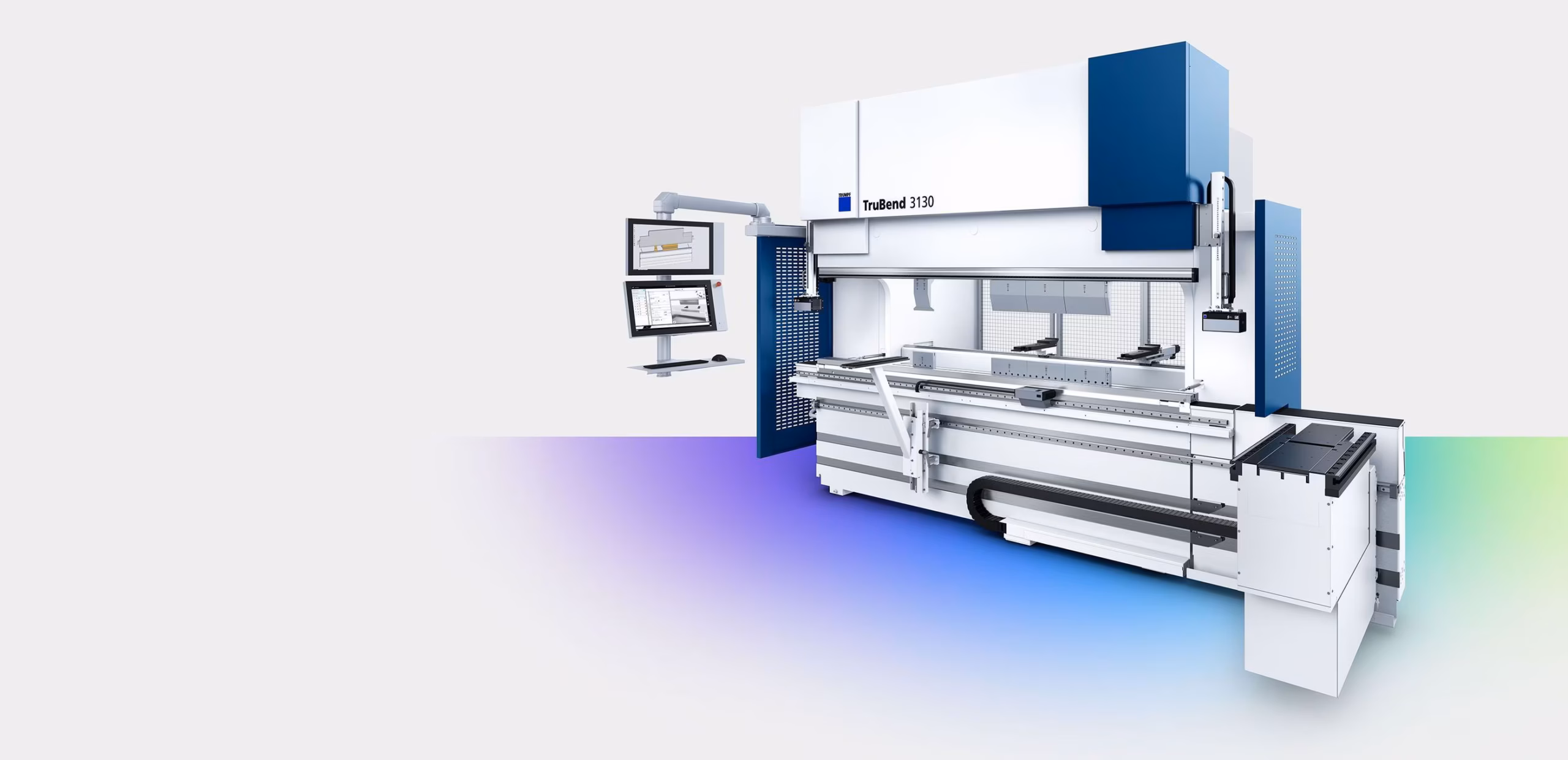

TRUMPF TruBend 3130 is a powerful press brake that combines high reliability, precision, and ease of use. As the foundational model in the TruBend 3000 series, it offers the full suite of TRUMPF’s signature functions, making it an ideal choice for companies seeking efficient and reliable bending equipment. Its robust construction and straightforward operation ensure high productivity and consistent part quality.
Advantages and Features
High Productivity: The new OnDemand hydraulic system enables a working speed of 15 mm/s and an approach speed of 170 mm/s, allowing for more parts to be produced in less time.
Optimal Safety: The BendGuard system combines safety with high throughput via intelligent monitoring of the light field in the bending zone.
Precision and Repeatability: The standard 4-axis backgauge (expandable to 5 axes) guarantees exact sheet positioning even for the most complex geometries.
Expanded Workspace: A generous open height of 615 mm provides ample room for processing tall box-shaped parts and complex components.
Ease of Operation: The Touchpoint TruBend interface offers intuitive control and simplified programming for operators.
Standard Equipment
OnDemand Hydraulic System: Provides dynamic press operation and high energy efficiency by only running when needed.
Control System: Intuitive Touchpoint TruBend CNC interface.

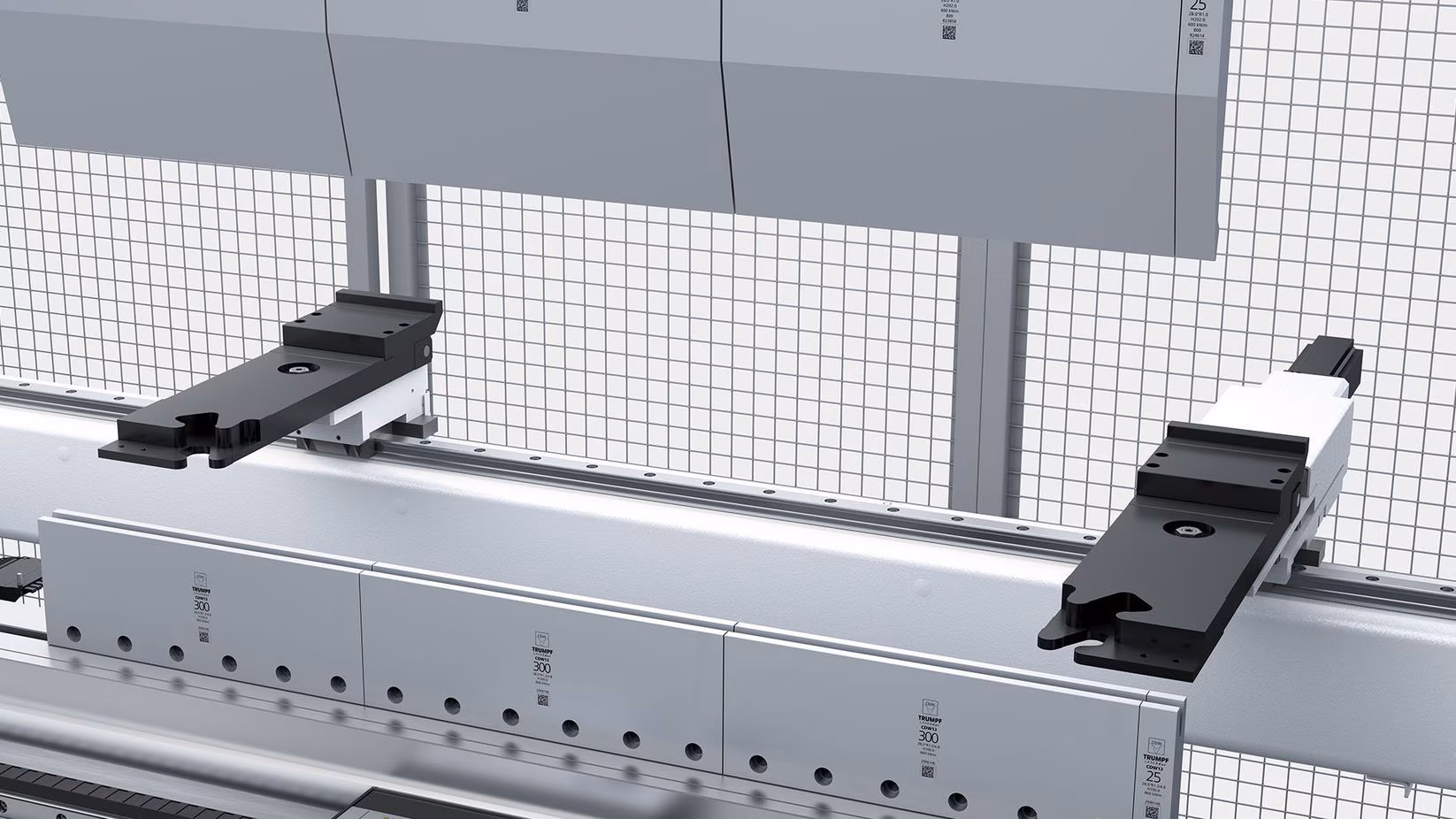

Backgauge System: 4-axis CNC backgauge for high-precision sheet positioning.
BendGuard Safety System: Intelligent light barrier for advanced protection of the bending zone.
Increased Open Height: 615 mm clearance for working with high-profile workpieces.
Options and Additional Equipment
Backgauge Upgrade: Ability to expand the backgauge system to 5 axes for enhanced flexibility.
Angle Measurement Systems: Various methods such as ACB Speed and ACB Smart ensure angle accuracy of ±0.3° by identifying and compensating for springback.
Operator Assistance: Practical bending supports with plastic coating, each capable of supporting up to 150 kg (up to two per machine).

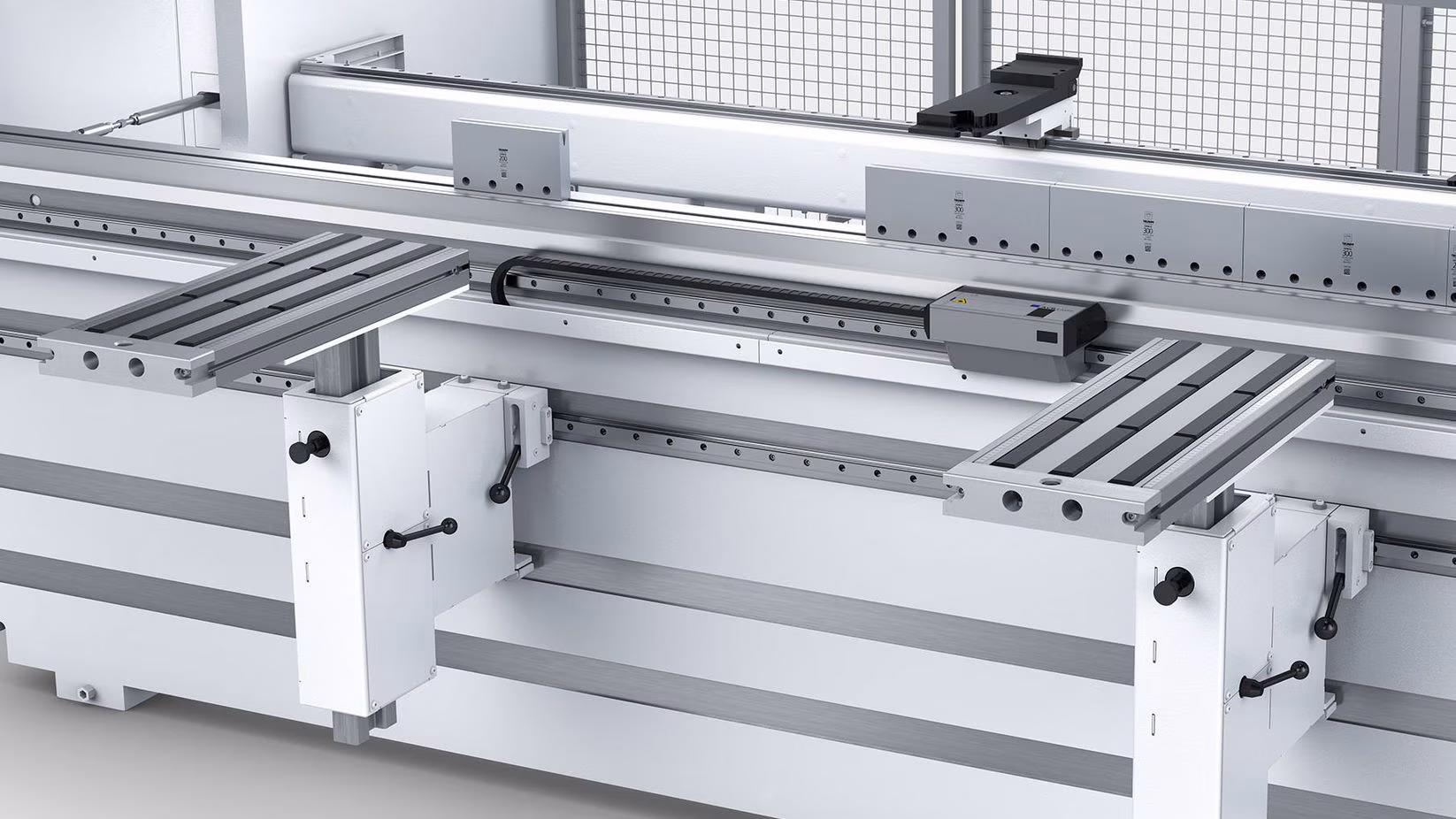

Support Brackets: Standard brackets with a 70 kg capacity or optional heavy-duty brackets supporting up to 100 kg.
Wireless Foot Switch: Enhances freedom of movement and eliminates trip hazards caused by cables.
Part Indicator: Visual guides on the screen show the operator exactly how to position the part to minimize errors.
Tool Setup Optimizer: Software option that optimizes tool placement to significantly reduce setup times.
Technical Specifications
