Features and Advantages

• Versatility and Flexibility: Choice between a manual version (equipped with a brake) and a motorized version (with loop control) to adapt to various production workflows.

• Space Optimization: An optional Decoiler Tower configuration is available, allowing for double the capacity (up to 2 × 2,000 kg) within the same footprint.

• Quick Coil Changeover: The central mandrel features manual expansion, ensuring secure mounting and rapid coil replacement.

• Safe Loading: The open design facilitates easy loading via crane or forklift, minimizing the risk of material damage.

Standard Equipment

• Construction: Single frame designed for floor mounting.

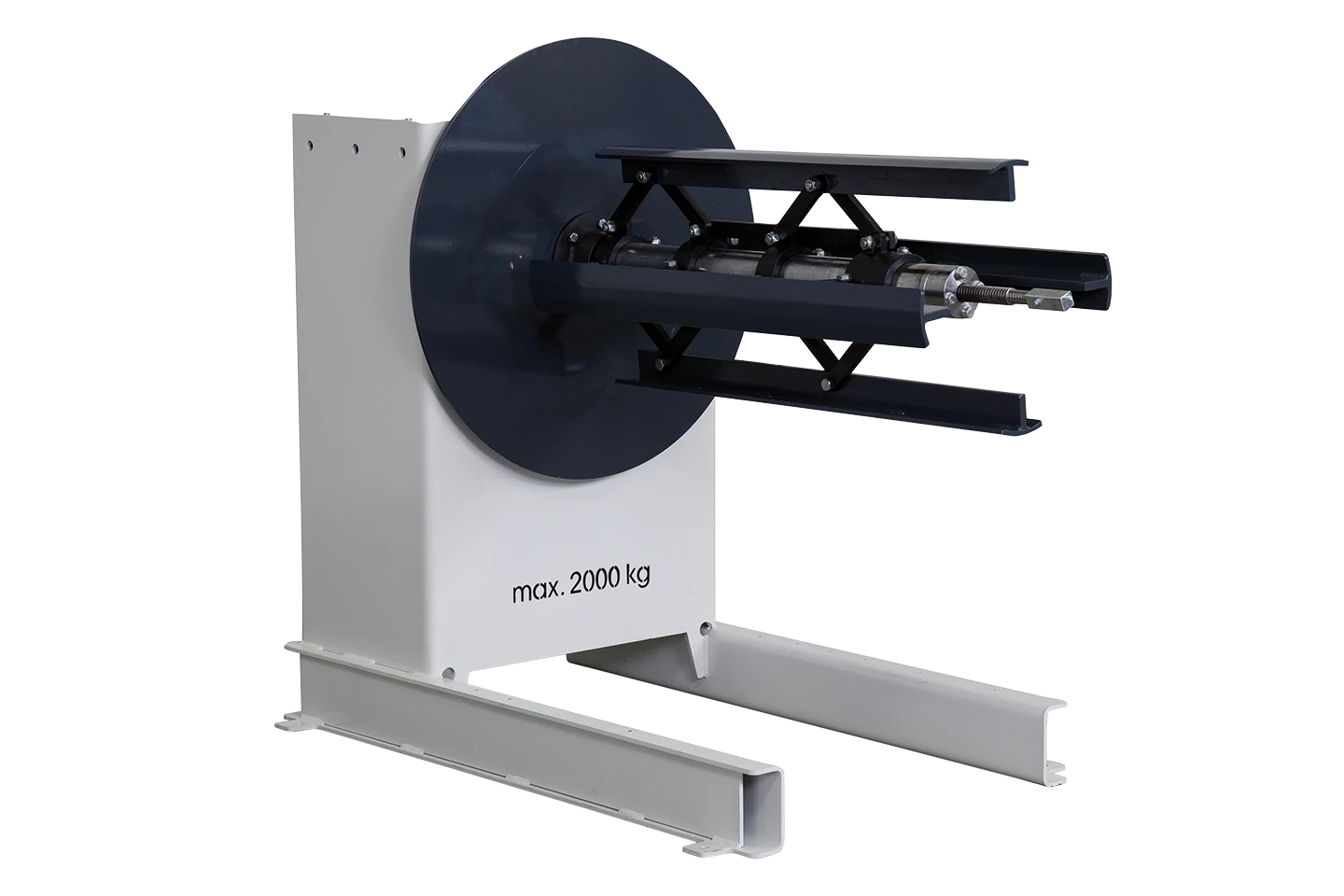

• Mandrel: Central mandrel with manual expansion mechanism.

• Coil Fastening: Clamping mechanism for internal diameters (ID) of 360–520 mm.

• Braking System (Manual Version): Manually adjustable mechanical brake.

• Drive (Motorized Version): Electric drive with loop control and an independent control system (for floor-standing installation).

Options

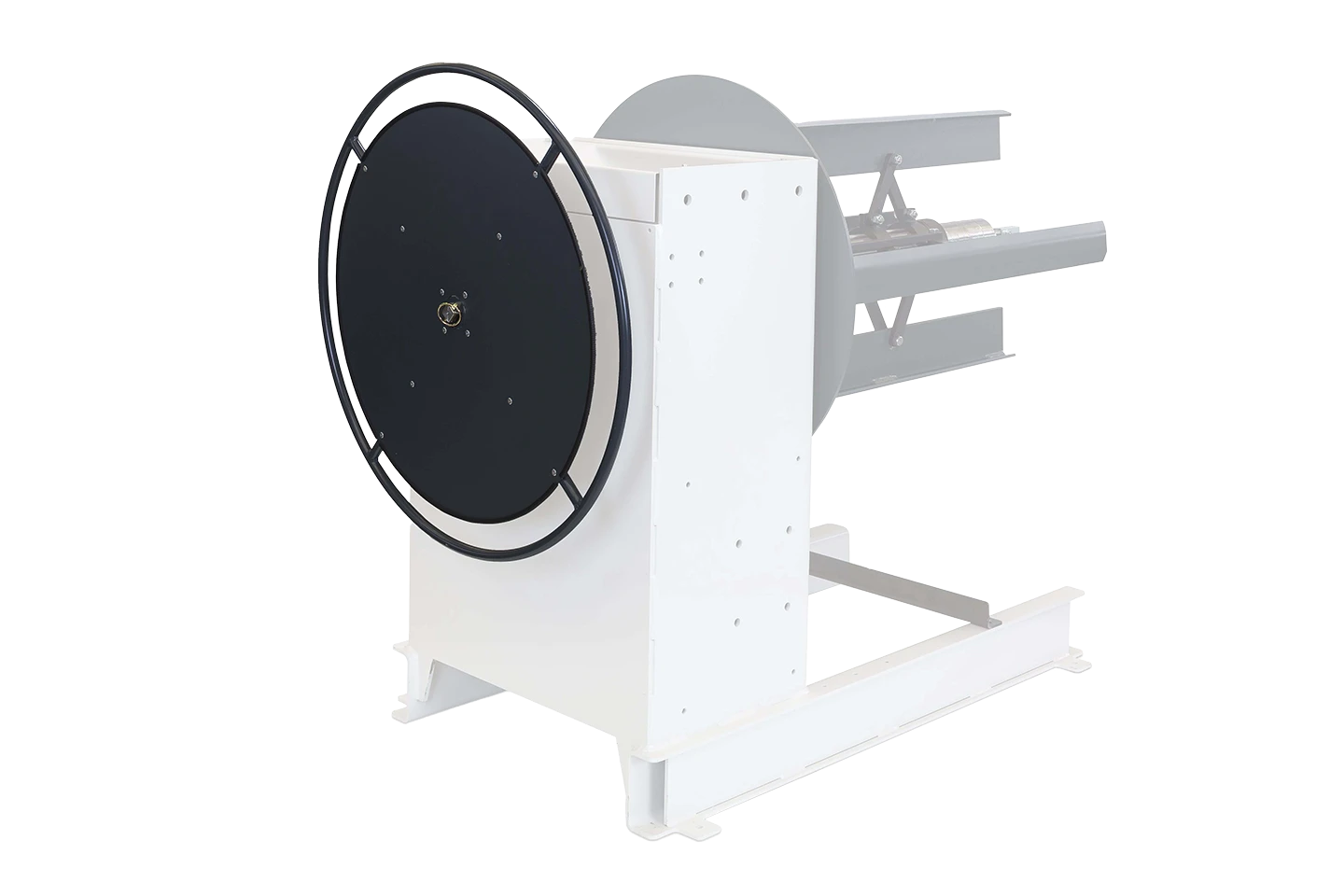

• Handwheel: A larger handwheel mounted at the rear of the decoiler to simplify sheet rewinding; easily transferable between multiple manual decoilers.

• Decoiler Tower: A vertical structure that allows two 2,000 kg decoilers to be installed one above the other.

• Expanded ID Range: Available configurations for larger coil internal diameters, such as 470–620 mm.

• Integration (Motorized Version): Full integration capability with CIDAN/Forstner slitting lines equipped with S1 or F3 control systems (for multi-coil lines).

Technical Specifications
