Standard Equipment:

• Patented eccentric quick-clamping device for tool replacement.

• Multi-stage clamping beam drive (4 tool heights).

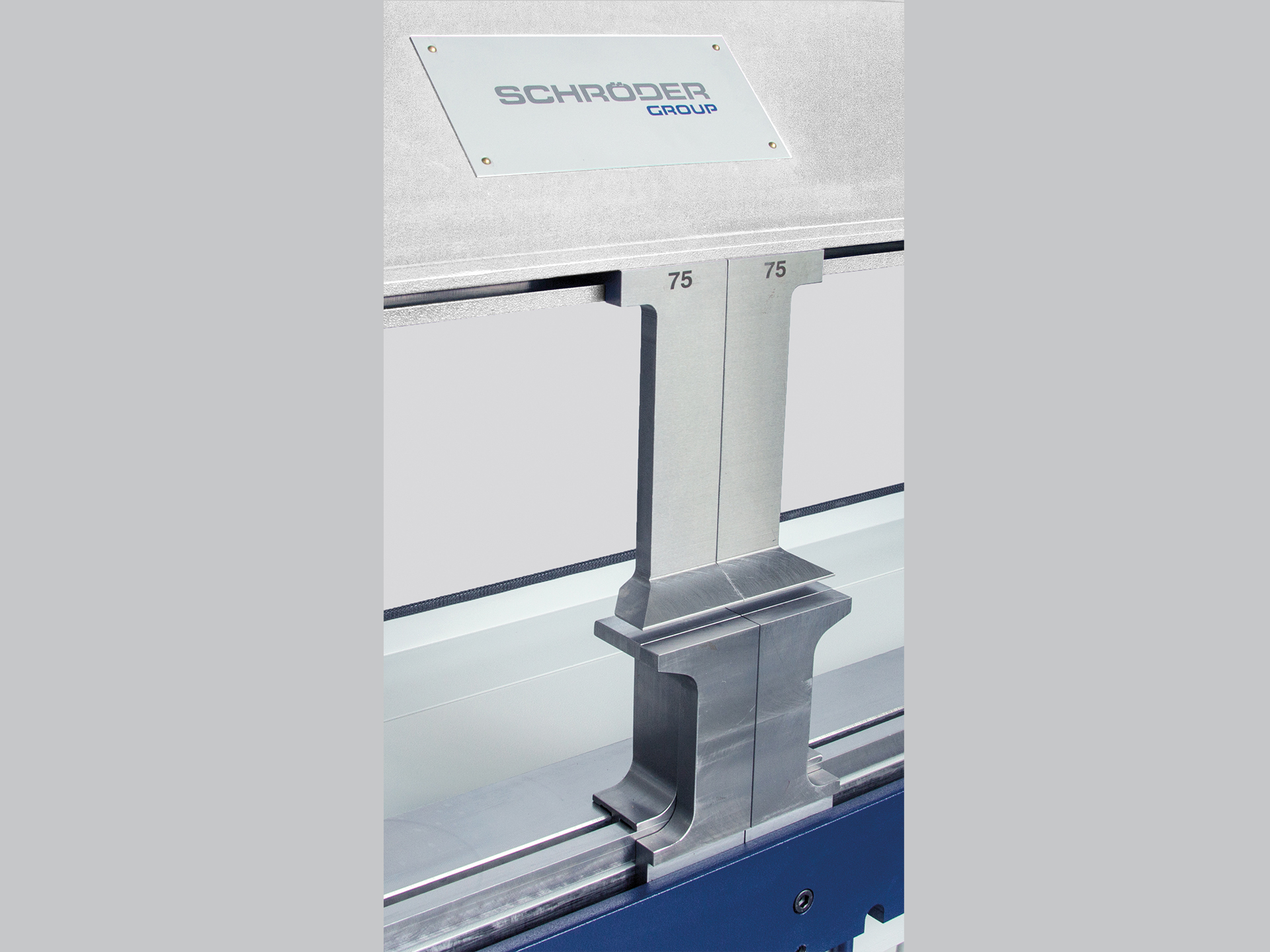

• Segmented "Goat's foot" blade: H=130 mm, 30°, clearance 26 mm, foot width 40 mm, free space 110 mm.

• Segmented lower beam: free space 55 mm.

• Combined folding blade: H=120 mm, 12/15 mm, free space 77 mm, segmented.

• Segment set for 1000 mm: 30 / 50 / 70 / 100 / 150 / 200 / 300 mm + 2 corner segments of 75 mm each.

• Clamping beam with tool storage function.

• Stand with a folding plate and tool storage space.

• Tool stacking table.

• Angle gauge and angle indicator.

• Foot pedal for opening/closing the clamping beam.

• Mobile base with 4 wheels (2 fixed + 2 steerable with locks; steerable wheel features height adjustment).

Options:

• 2 gauge arms (600 mm) + a pair of additional flip-over sensors.

• Additional protractor.

• Corrosion protection (zinc phosphating).

• Clamping beam tools with manganese phosphating.

• Window sill formation kit.

• Additional steerable rollers.

• Cutting device (for sheets up to 0.8 mm St37).

• Tool case.

Additional Tools (Hardened, 1100 N/mm²):

• "Goat's foot" blade: H=130 mm, 30°, R1/2/3/4, clearance 30 mm, width 50 mm, free space 110 mm.

• "Goat's foot" blade: H=170 mm, 30°, R1/2/3/4, free space 150 mm.

• "Goat's foot" blade: H=200 mm, 30°, R1/2/3/4, free space 180 mm.

Technical Specifications:
