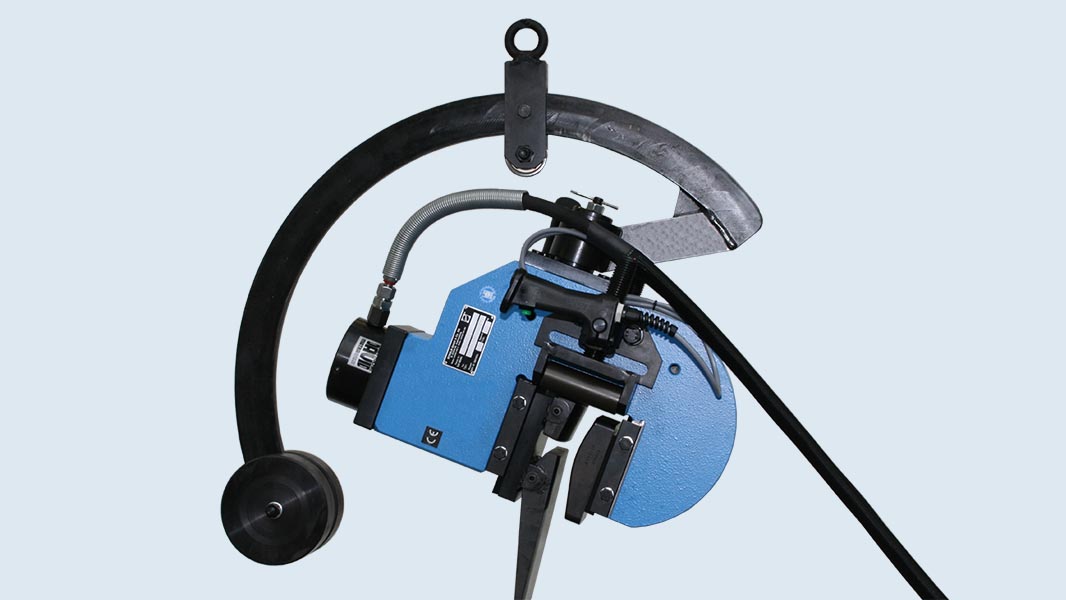

Eckold MKF 140/32 is the largest and most powerful mobile hydraulic system in the C-Frame format (Portable Kraftformer). The machine is designed to perform high-precision cold forming operations on metal sheets of extreme thickness, up to 15.0 mm for mild steel. It is used for flanging (beading), clinching, stretching, and geometry correction of large and heavy structures in tank construction, shipbuilding, and heavy industry. Its mobility allows forming to be performed in situ, circumventing the limitations of stationary equipment.
The MKF 140/32 system typically comes with:
Reinforced Mobile C-Frame MKF 140: Represents the tool itself, housing the hydraulic cylinder.
High-Power Hydraulic Cylinder: Provides immense compression force (up to 32 tonnes at 500 bar).
High-Pressure Hydraulic Power Unit (e.g., HA 510): External power block necessary to create the operating pressure.
Tool Set: A wide range of quick-change inserts for flanging, clinching, and correcting.
Roller Guides: Adjustable stops for precise positioning and guiding of thick sheet metal.
Control System: Capability to select single or continuous stroke, as well as two-hand control for safety.
