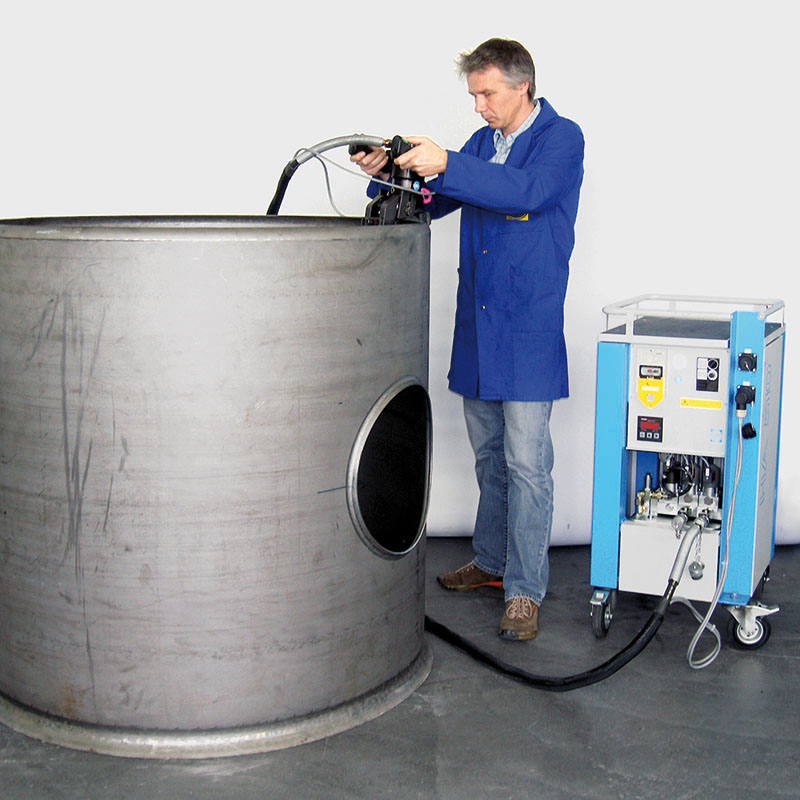

Eckold MZ 30 Mobilformer is a powerful mobile hydraulic forming system designed for flanging (beading), clinching, and straightening thick-walled metal sheets and edges. Like the MZ 20, these pliers operate from an external hydraulic power unit (e.g., HA 550) and are a portable tool. Its main distinction is the significantly larger material thickness range (up to 7.0 mm for steel) and an increased throat depth (reach). The MZ 30 is ideally suited for the industrial production of large reservoirs, thick-walled tanks, industrial apparatus, and large-scale structures that cannot be processed on stationary equipment.

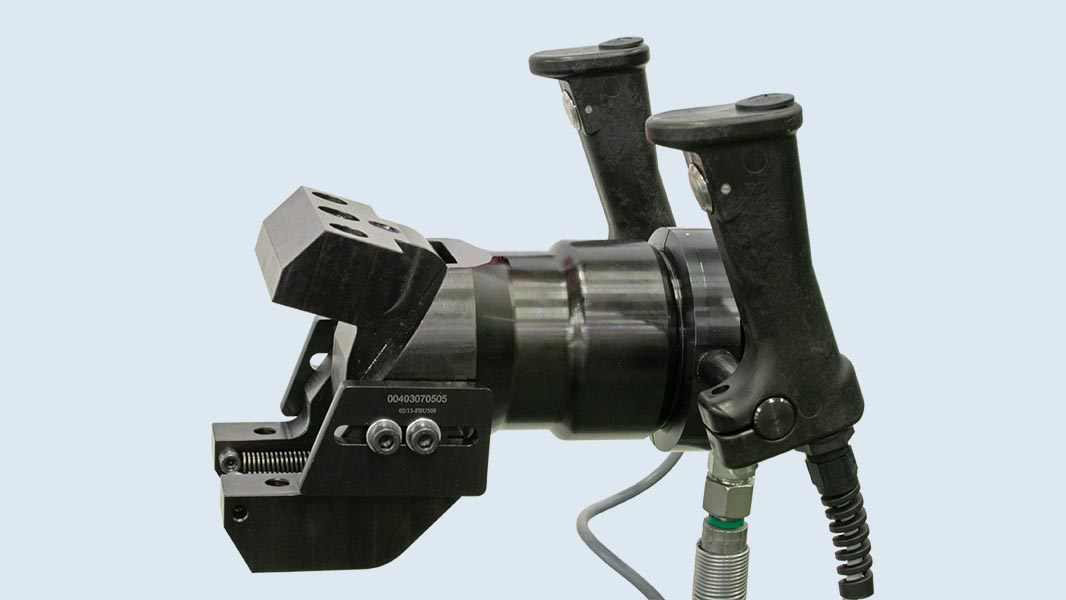

MZ 30 Forming Pliers: The mobile working head itself.
Hydraulic Power Unit (e.g., HA 510/550/2): A separate unit that provides pressure (up to 550 bar) and power.
Hose Package: Connecting hydraulic hose between the pliers and the hydraulic unit.
Exchangeable Working Inserts: Sets of tools (variable) for performing basic flanging and clinching operations.
Extended Tool Kit: A wide assortment of quick-change tool inserts for special tasks like flanging, clinching, straightening, and profile correction.
Various Hydraulic Power Units: Choice of hydraulic units with different power and operating pressure (400 bar,550 bar) depending on the batch size and thickness of the material being processed.
Mobile Trolley for the Unit: For convenient movement of the hydraulic block around the worksite.
Flyer ECKOLD Blechumformung Ru 2018-08 Hydraulikaggregate_034_2024_07_6_DEU_ENG_klein
