Features and Advantages

• High Performance: Engineered for high-speed operations, achieving a maximum decoiling speed of up to 25 m/min.

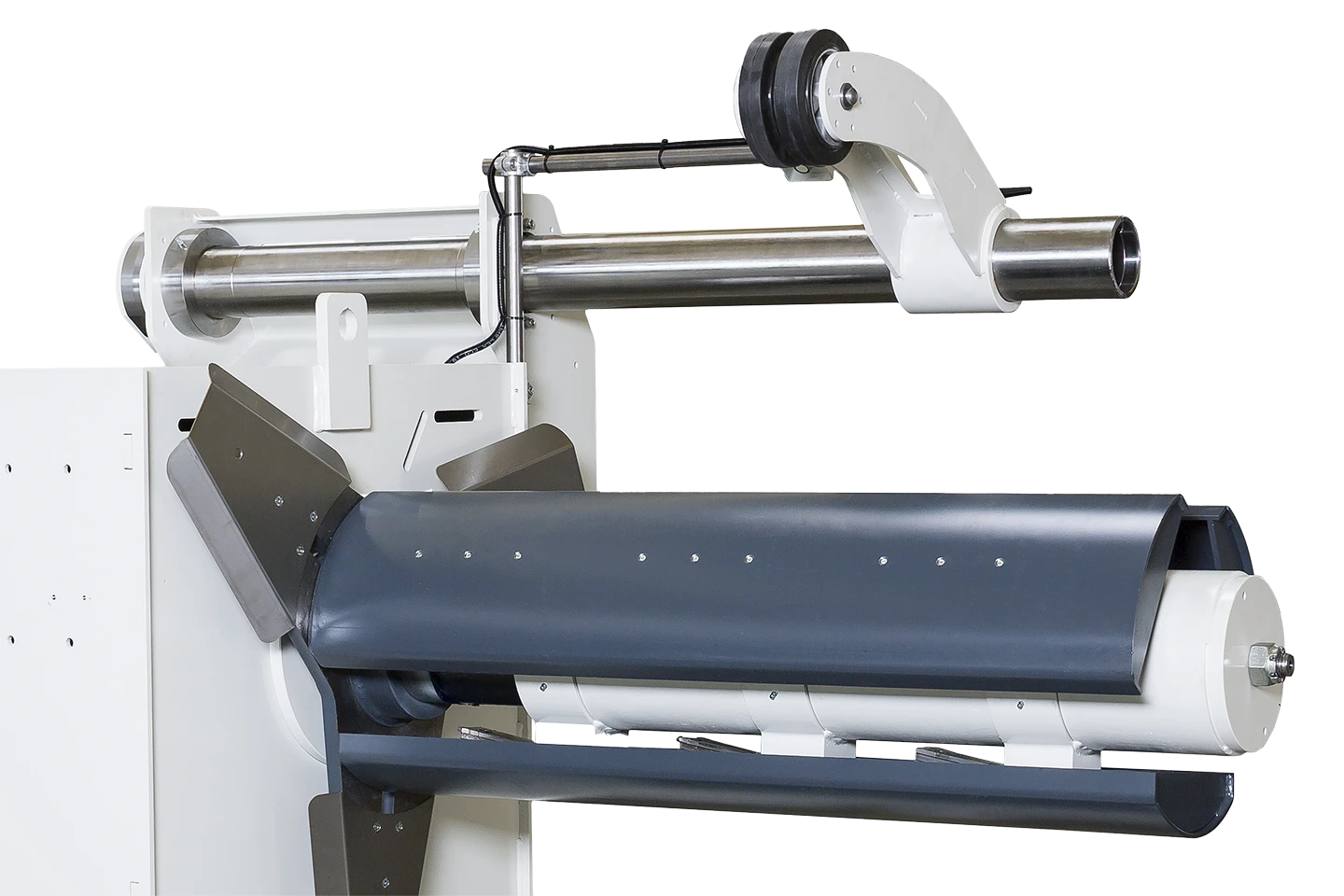

• Hydraulic Central Mandrel: Features a hydraulic expansion mandrel (with three support plates) that provides a secure and powerful grip on the coil, maintaining its perfect roundness throughout the process.

• Safety and Protection: Most critical components are housed within the machine body, preventing damage and wear in harsh industrial environments.

• Infinitely Variable Speed: The frequency-controlled motor allows for precise adjustment of the feed rate to match the requirements of the cutting line.

• Easy Loading: The cantilever (single-sided) design allows for effortless loading of coils directly onto the mandrel using a crane, forklift, or a specialized coil car.

• Gentle on Sensitive Surfaces: Highly suitable for materials with sensitive surfaces due to the controlled and smooth decoiling process.

Standard Equipment

• Drive Type: Motorized with frequency inverter control.

• Central Mandrel: Hydraulic expansion via wedges with three support plates for secure fastening.

• Decoiling/Recoiling: Capabilities for both motorized decoiling and powered rewinding of the coil.

• Construction: Cantilever design (single-sided mandrel support) for floor mounting.

Options

• Coil Car: A specialized hydraulic trolley with travel and lift/lower functions for the easy and safe loading of coils weighing up to 8,000 kg.

• Loop Control: Electronic eye system or a dancer arm for automatic control of the material loop being fed to downstream equipment (e.g., a leveling machine).

• Paper Recoiler: A device for rewinding protective paper used when processing sensitive materials.

• Hydraulic Press Roll: An additional pressure roller to prevent uncontrolled "clock-springing" or decoiling of the coil.

Technical Specifications
