Features and Advantages

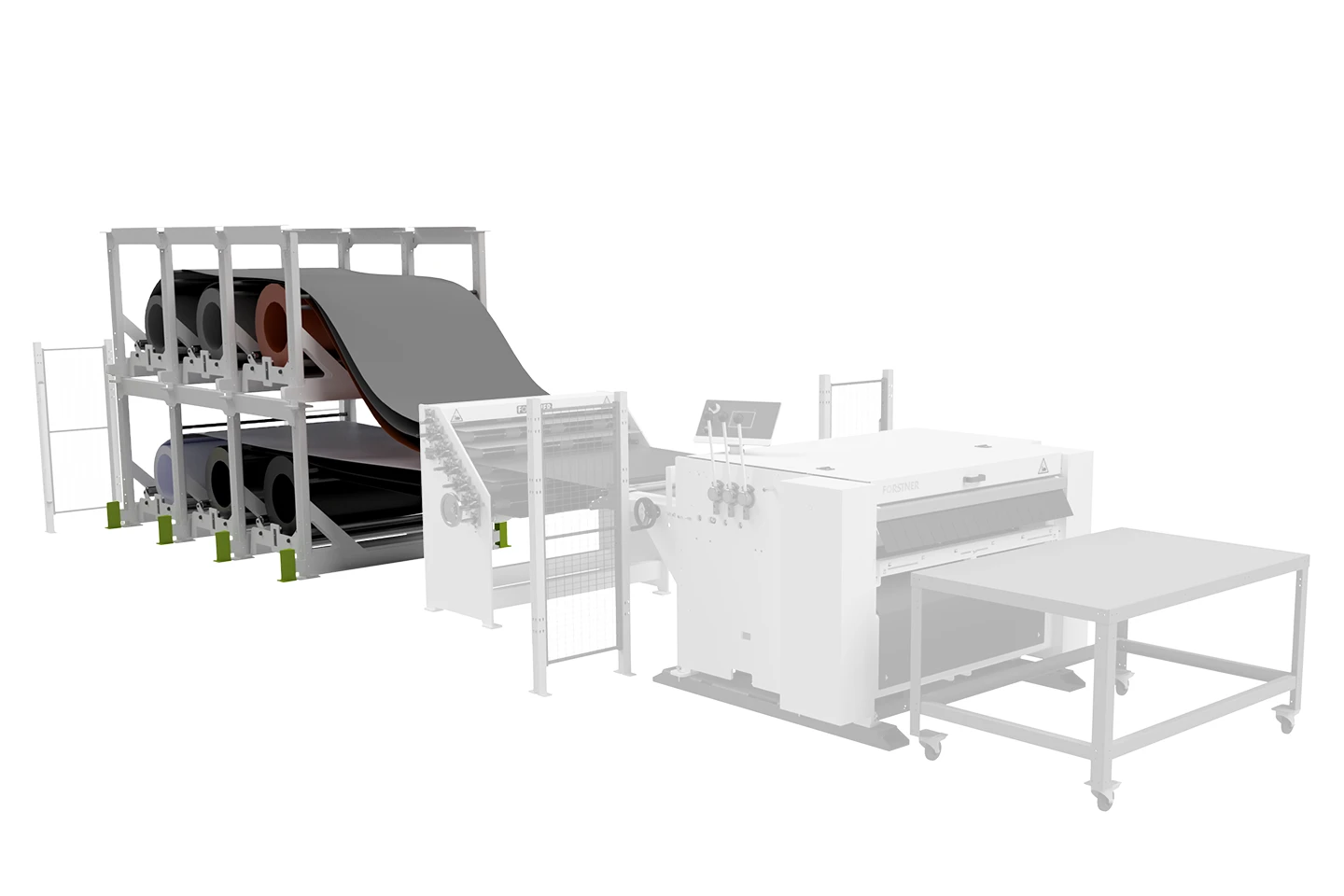

• Space Optimization: Utilizes the facility's vertical height rather than floor area, allowing for the storage of four coils (up to 8 × 1,000 kg) on a small base.

• Rapid Material Changeover: Provides quick and easy access to different materials, which significantly reduces downtime when operating a cutting or slitting line.

• Organization and Order: Creates a clear organization of materials, improving order and safety in the working area.

• Material Protection: Equipped with movable guide rolls that lift the sheet and create a clearance, preventing scratches on sensitive or prepainted coatings.

Standard Equipment

• Capacity: 8 coil slots arranged in two tiers (4 on the bottom and 4 on the top).

• Slot Load Limit: Up to 1,000 kg per slot.

• Construction: Robust steel frame for floor mounting, designed for simple self-assembly.

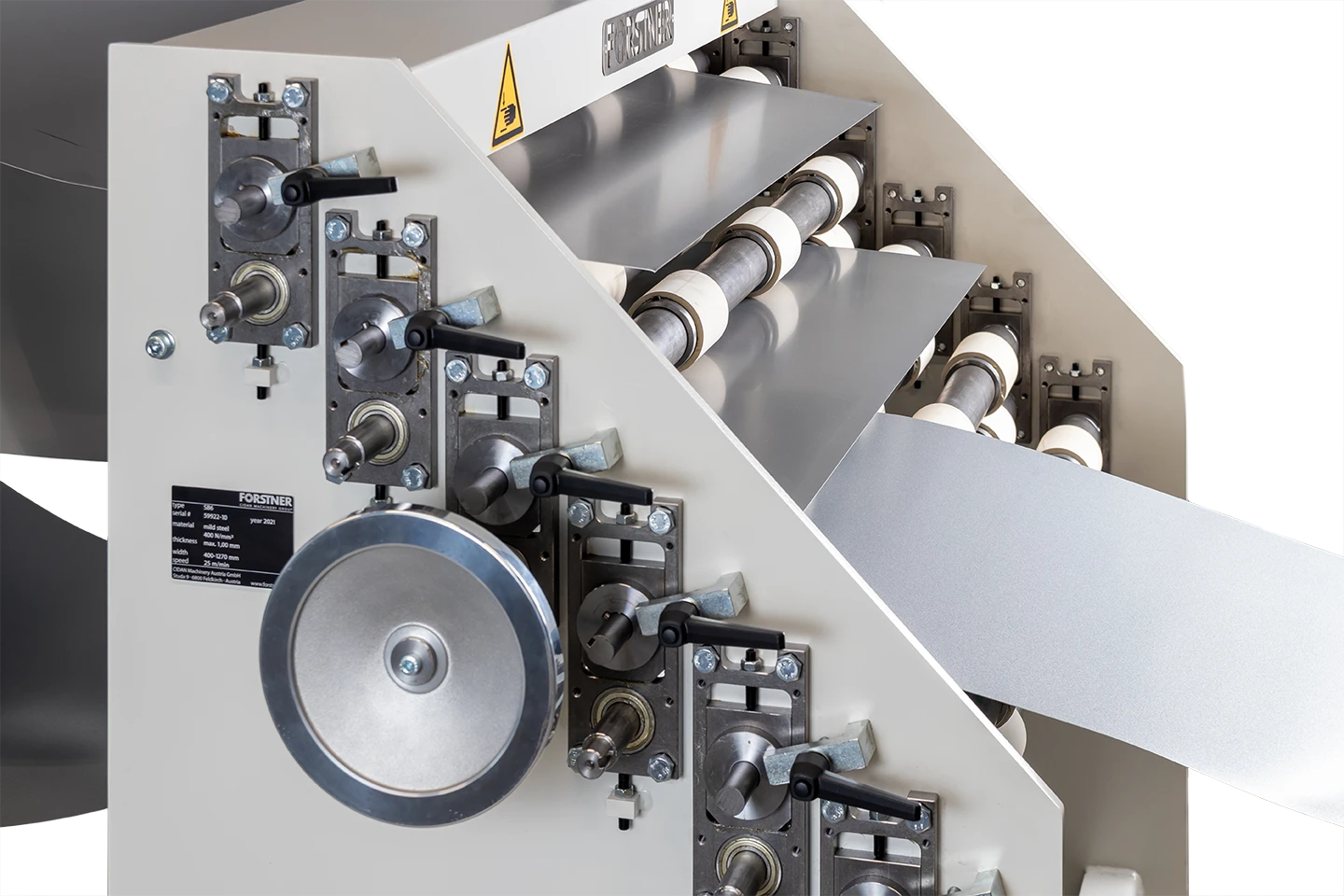

• Feeding Mechanism: Movable Guide Rolls for adjusting the depth and perpendicularity of the metal feed into the cutting machine.

Options

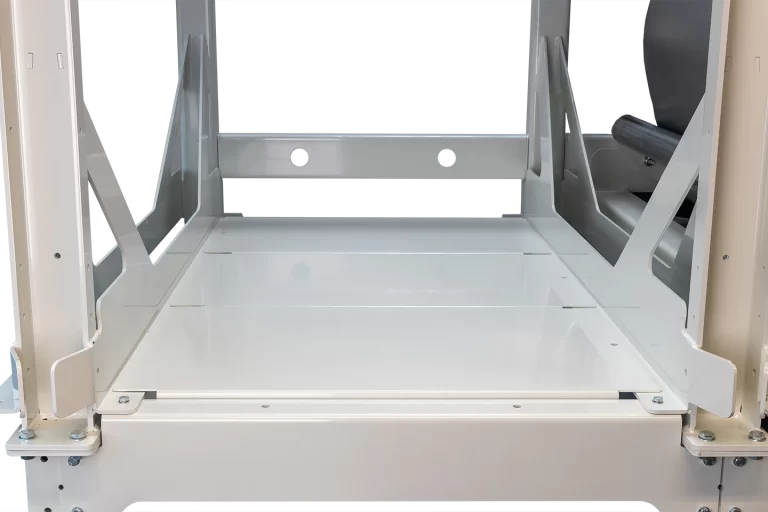

• Cover Plates: Specialized plates that allow empty compartments to be used as storage space for pallets or additional equipment.

• Manual Coil Selector: A recommended addition that secures the selected material and ensures its precise feeding into the cutting line.

• CRADLE Integration: The COILMASTER system is specifically designed to work in conjunction with Cradle-type decoilers.

Technical Specifications
