Features and Advantages

• Inch Size Range: Ideally suited for welding standard inch-sized pipes in the range of $3-19.05\text{ mm}$.

• Efficient Cooling: The fully integrated liquid cooling system for the head housing ensures high durability and the capability for prolonged operation (High Duty Cycle) without overheating.

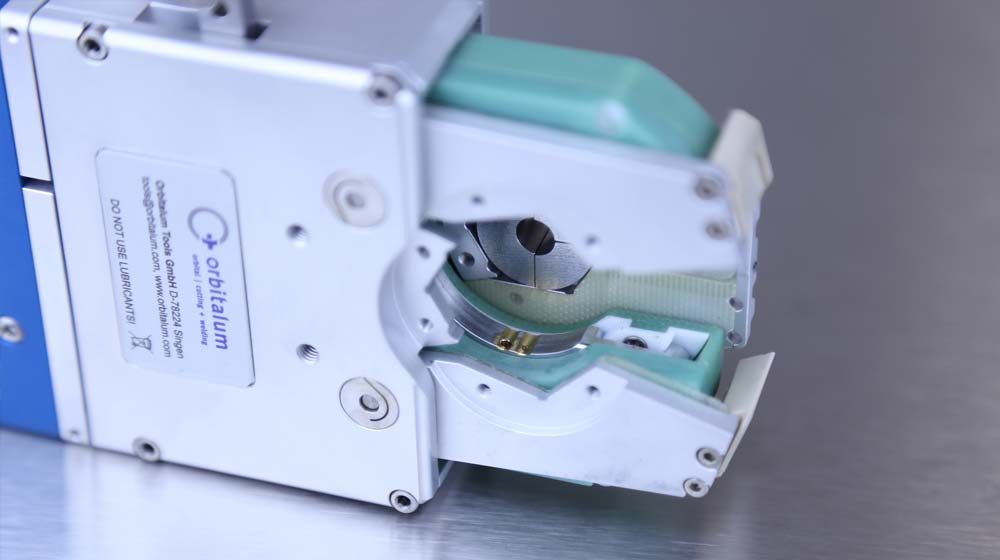

• Reliable Clamping: The special design guarantees ** precise and offset-free centering** of the workpieces, which is critical for ensuring weld seam quality.

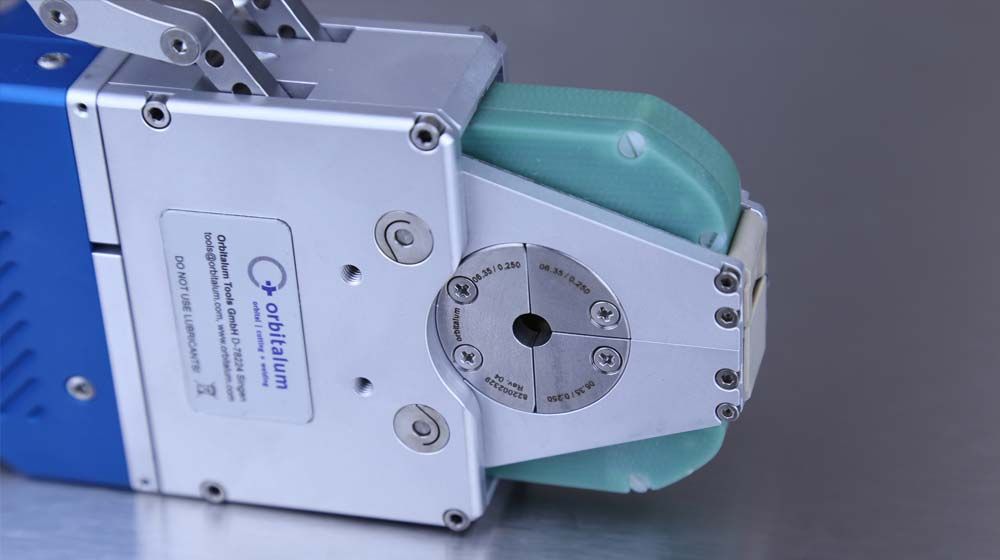

• Quick Insert Replacement: A patented quick-change system for the Clamping Inserts allows the operator to rapidly retool the head for various pipe diameters.

• Electrode Control: The head features a mechanism for easy access and precise adjustment of the tungsten electrode position.

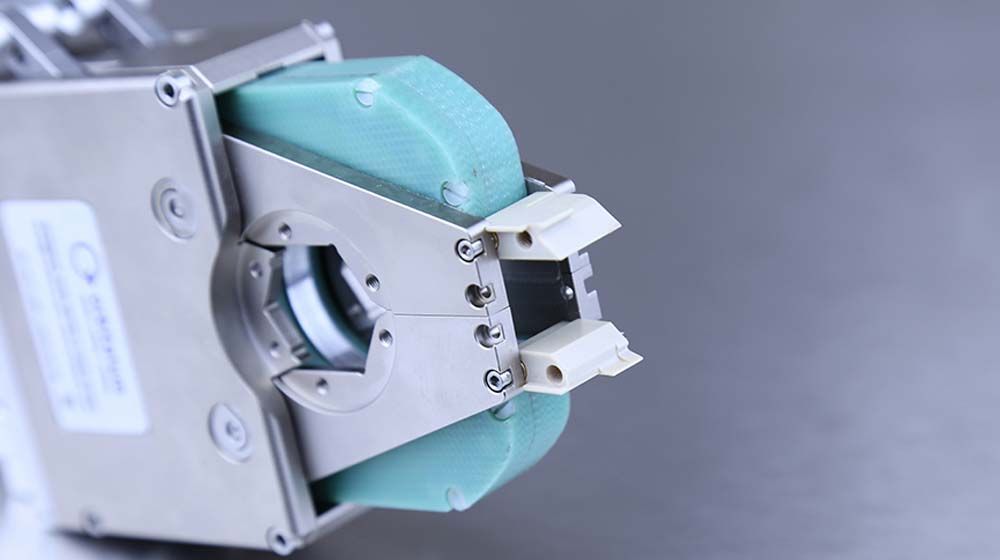

• High Weld Quality: The closed welding chamber ensures an optimal and stable protective gas atmosphere for achieving clean and hermetic welds.

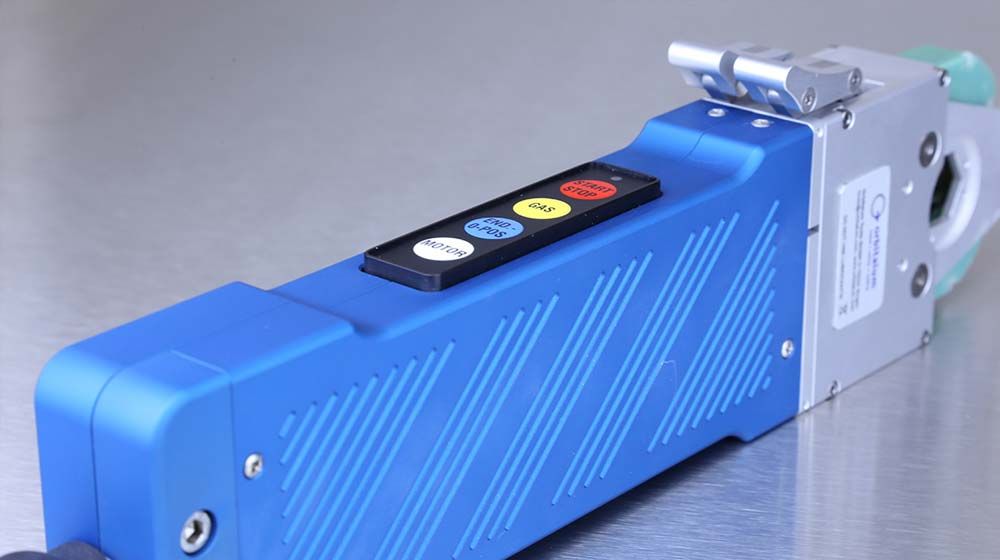

• Integrated Control Handle: A convenient handle for positioning and process control.

• Automatic Recognition: Orbitalum ORBIMAT power sources automatically recognize the head and its parameters.

Standard Equipment

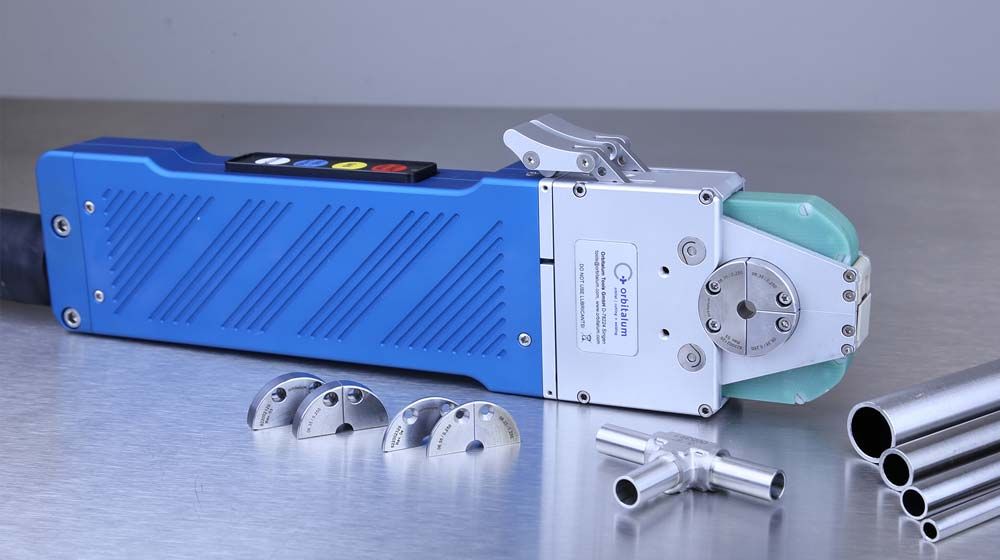

• Orbitalum ORBIWELD 19 orbital weld head.

• Flexible hose pack (with integrated lines for current, gas, and cooling) with a length of $7.5\text{ m}$.

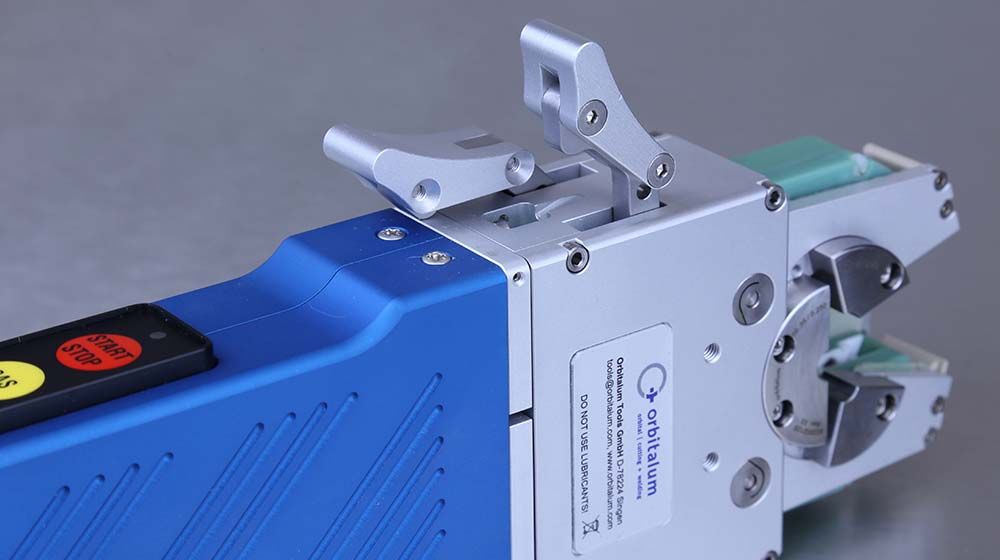

• Clamping locks and fixation mechanism.

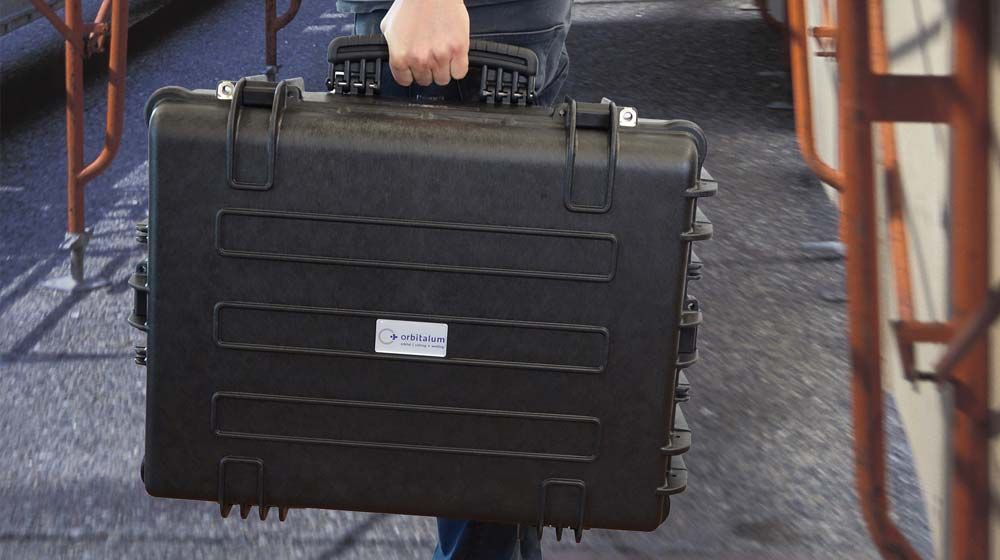

• Transport case.

• Tool kit and feeler gauge for electrode adjustment.

Options

• Special Clamping Inserts: Full range of Clamping Inserts for all pipe diameters within the head's range.

• Fittings Welding Set: Special inserts for welding fittings (elbows, tees) and flanges.

• Table Mounts.

• Additional hose packs of different lengths.

• Tungsten electrodes with diameters of $1.0\text{ mm}$ and $1.6\text{ mm}$.

Technical Specifications
