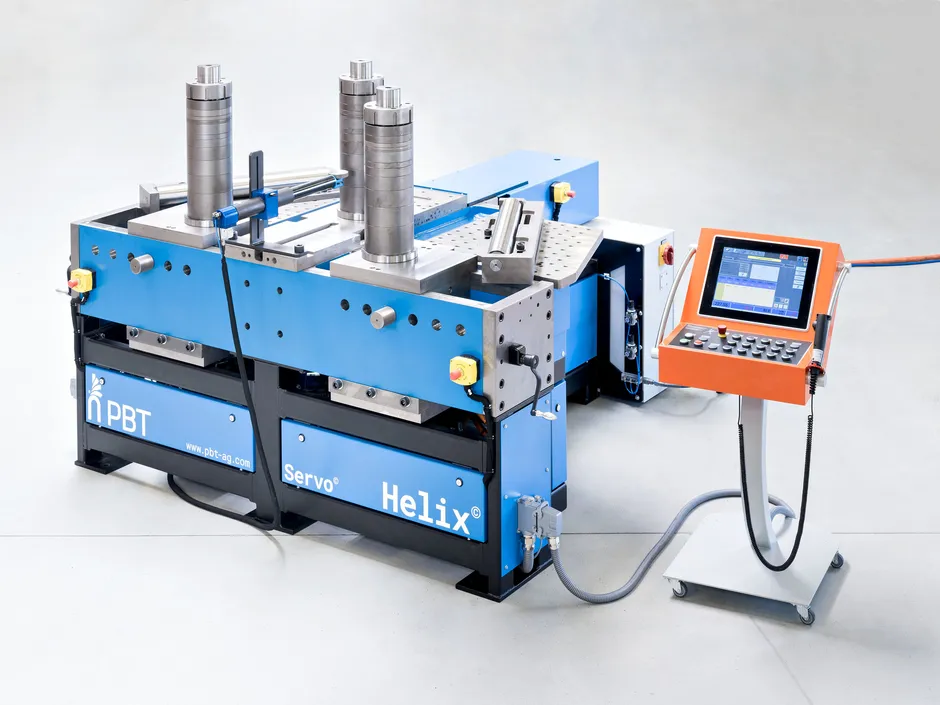

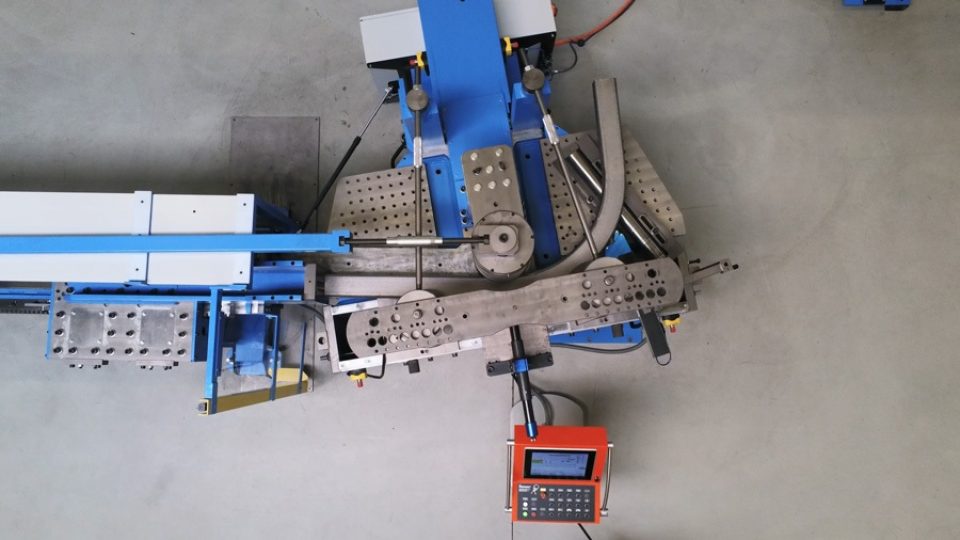

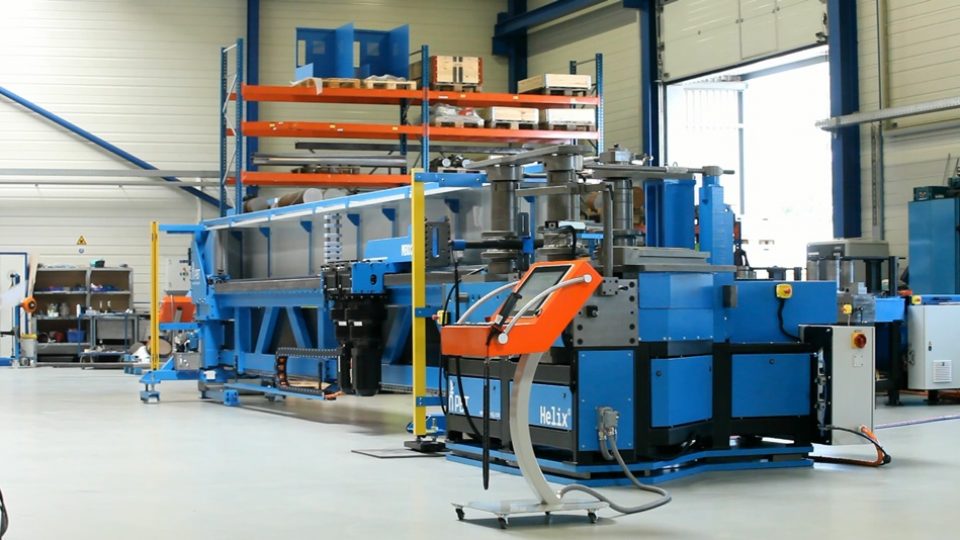

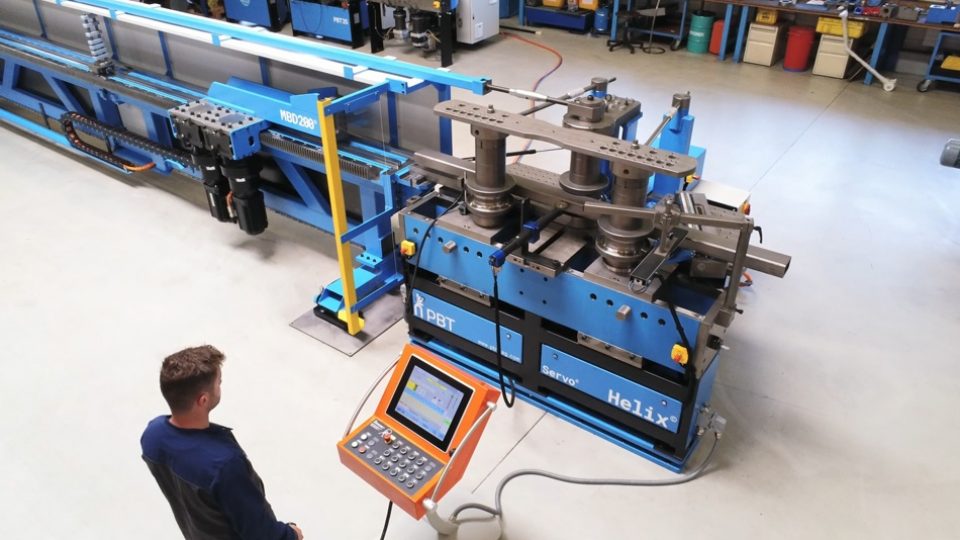

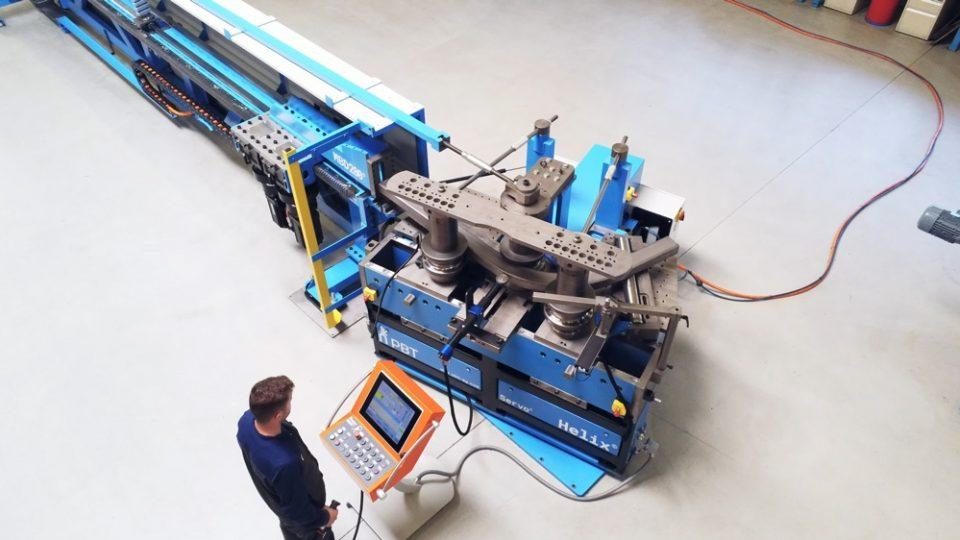

Key Benefits of PBT HELIX Servo

• Reliable solution for extra-large profiles and load-bearing beams

• 75 ton force for heavy-duty industrial applications

• Modern design and ergonomic working conditions

• Continuous adjustment of the front roller distance

• 15-inch touch screen display with parameter display accuracy up to 1/100 mm

• Controlled side guide rollers

• High-performance CNC control system PC400

• Swiss quality and durability

Applications

• Bending and forming of load-bearing beams

• Production of structural steel and aluminum profiles

• Suitable for construction, industry and infrastructure sectors

Control system

• PC400 - modern software with an intuitive interface

• Display of program parameters on a large touch screen

• Full control of all axes with maximum precision

HELIX Servo Specifications

Parameter Value

X-axis force 75 t

X-axis positioning accuracy 0.01 mm

X-axis drive SERVOHydraulics (low noise, 70% energy saving)

X-axis travel 445 mm

Max. insert width 415 mm with roller ring D220

Hydraulic oil volume 9 liters

Drive shaft (Y-axis) Servo drive, low noise, 100% torque

Dynamic shaft speed control 1 - 8 rpm

Max. torque per shaft 9000 Nm

Shaft height 500 mm

Shaft diameter Ø 130 mm

Shaft supports series

Front shaft distance 630 – 1330 mm

Manual Z-axis control (static) —

Cranked Z-axis (dynamic) —

CNC-controlled Z-axis (dynamic) series 4 t

Machine control PC400

Operating system Windows 10

Connection 3 x 400 V AC, 62 A

Power 34 kW

Dimensions (L × W × H) 2520 × 2240 × 1760 mm

Weight 5500 kg
