Key benefits of PBT25®

• Flexible configuration – work possible on both sides of the machine (front: rolling, rear: chamfering)

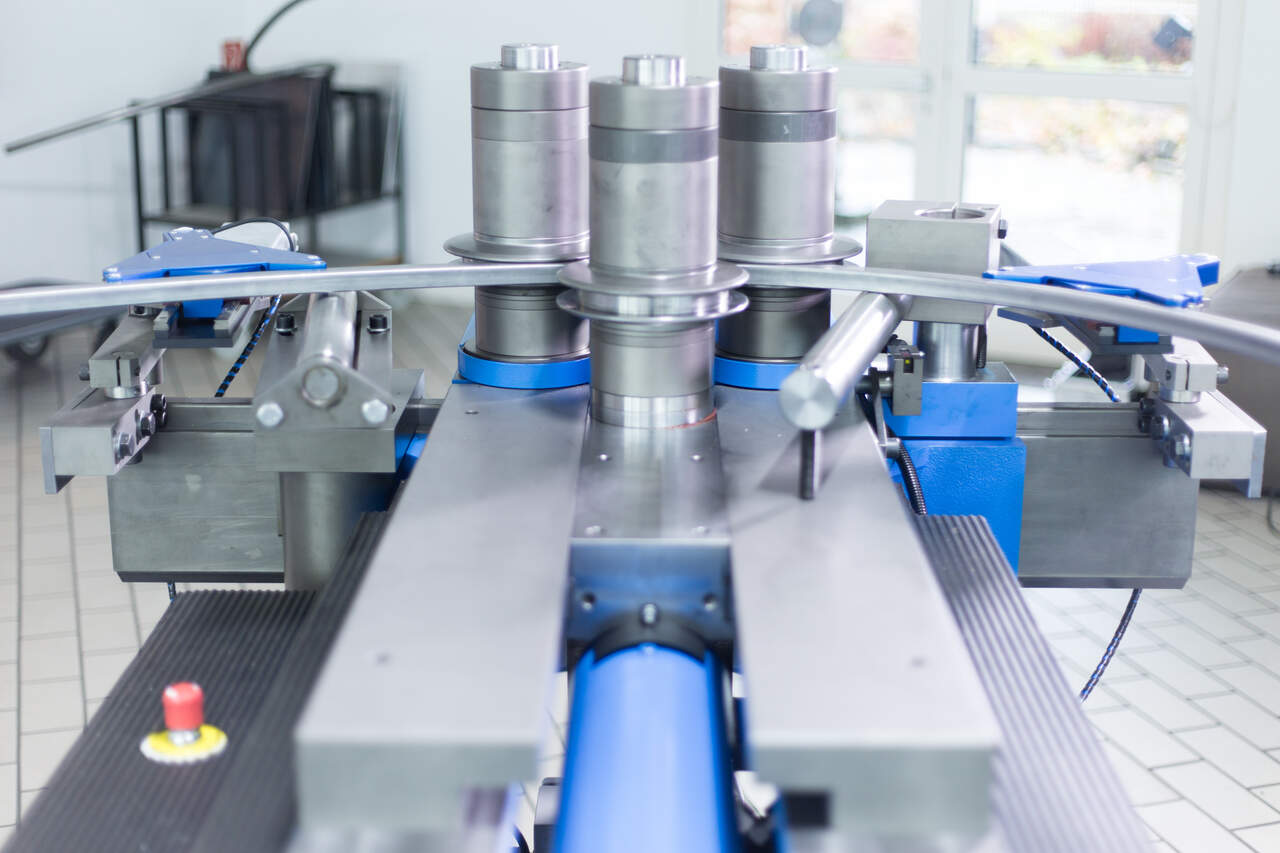

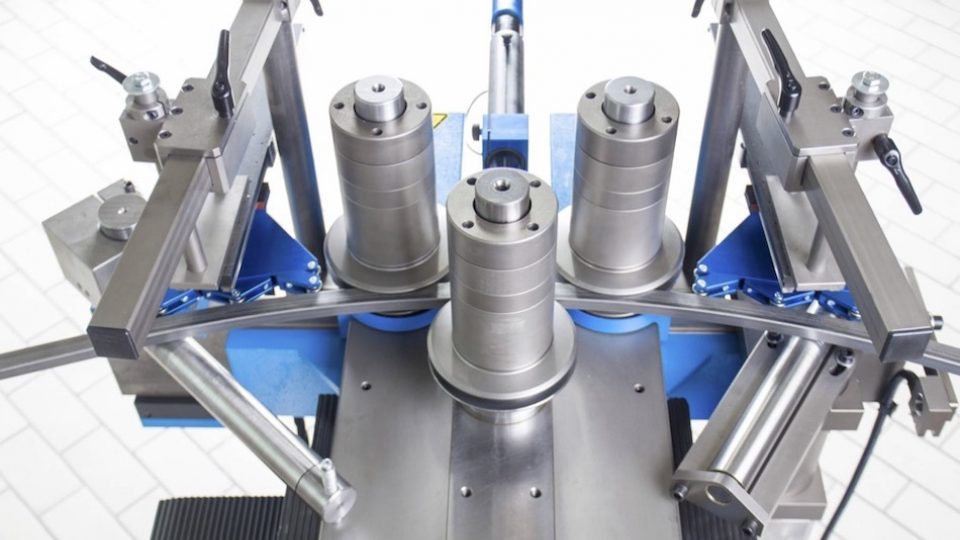

• Three separately controlled rollers, allowing work with profiles of large cross-sections

• Continuous adjustment of the distance between the front rollers (min. 200 mm) for ideal radii and smooth transitions

• Roller height – 300 mm

• Powerful and quiet electric motors with speed regulation up to 22 rpm

• Standard roller support with zero backlash – no additional costs

• Minimum oil volume – 18 liters

• Bending direction from the operator – increased safety

• Easy mobility thanks to integrated drawbar

• Ergonomic working conditions and low operating costs

• Swiss quality and durability

Areas of application

PBT25® is a universal tool for a wide range of industrial areas:

• Automotive

• Aerospace

• Metalworking and steel construction

• Architectural panels and lighting

• Conveyor technology

• Window production

• Space technology

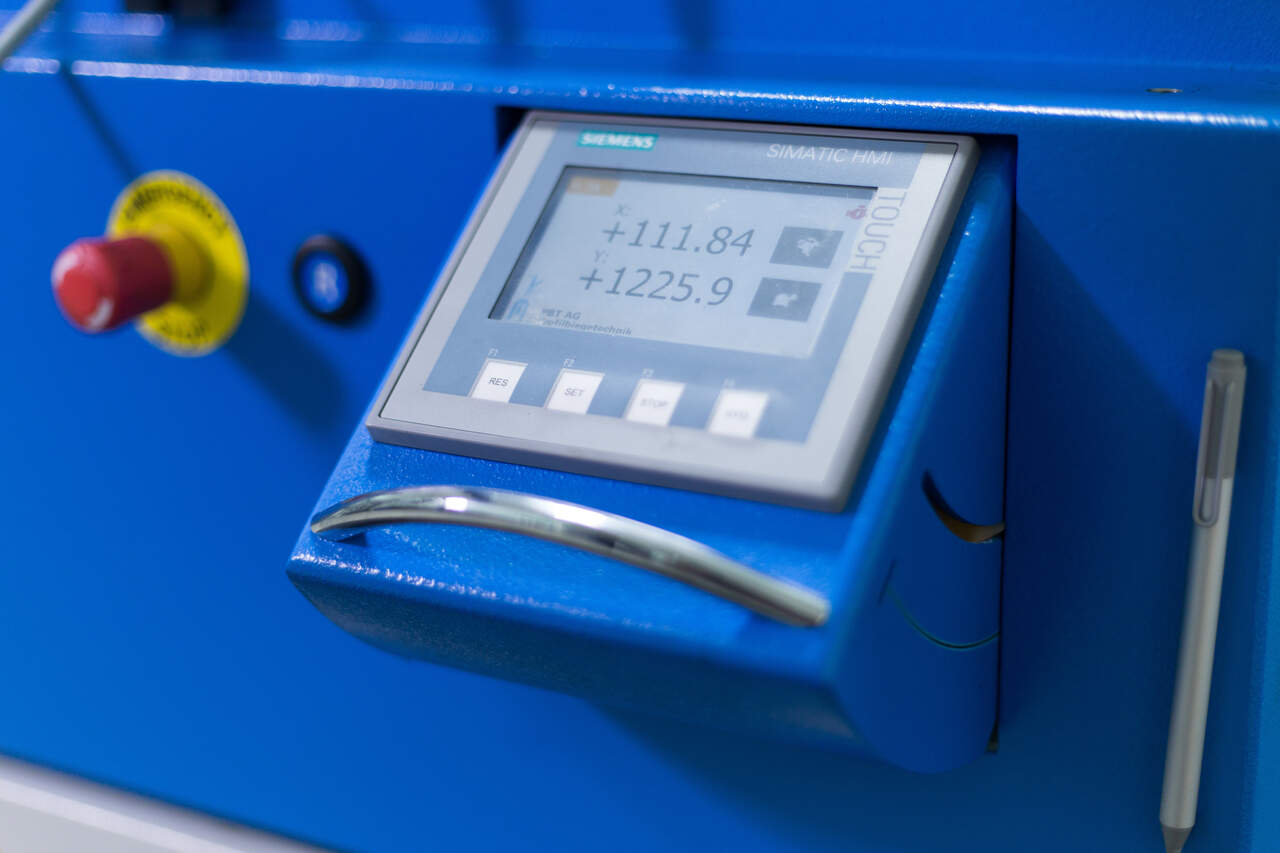

Control system

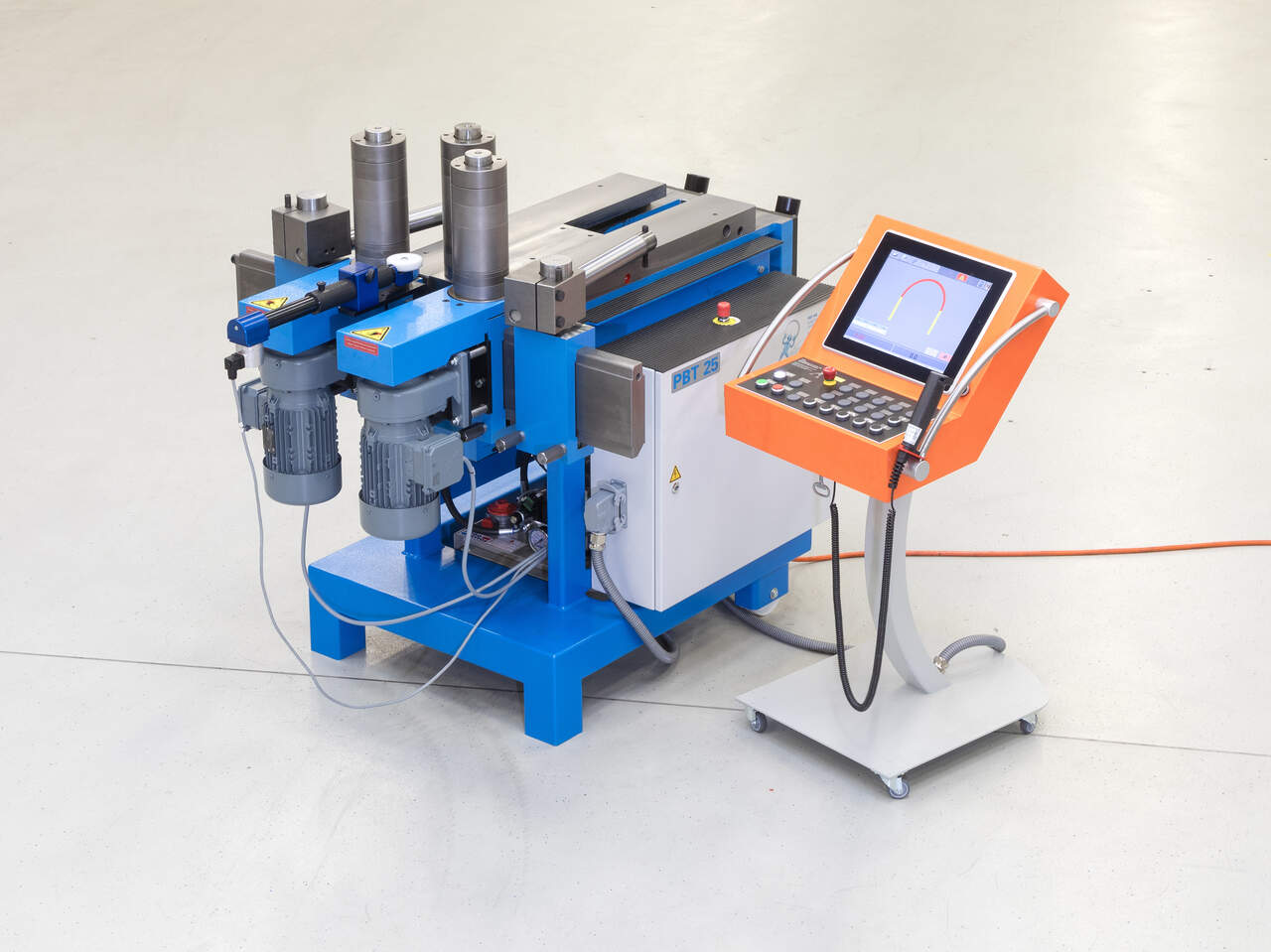

• Manual / Tablet Teach-In / Tablet350 / PC400 - a choice of systems for convenient control

• Modern interface with the ability to program and save parameters

• High-performance software for maximum bending accuracy

Technical characteristics PBT25

Parameter Value

X-axis force 25 t

X-axis positioning accuracy 0.01 mm

X-axis drive Hydraulics with valve control

X-axis travel 265 mm

Max. insert width 238 mm with roller ring D130

Hydraulic oil volume 18 liters

Drive shaft (Y axis) Electric motors, clean and low noise

Dynamic shaft speed control 1 - 22 rpm

Max. torque per shaft 1600 Nm

Shaft height 300 mm

Shaft diameter Ø 65 mm

Front shaft distance 200 – 1000 mm

Z-axis with CNC control (dynamic) optional 2 t or 4 t

Machine control Instruction / Tablet training / TABLET350 / PC400

Operating system Windows 10

Connection 3 x 400 V AC, 32 A

Power 7 kW

Dimensions (L × W × H) 1680 × 1250 × 1390 mm

Weight 1150 kg
