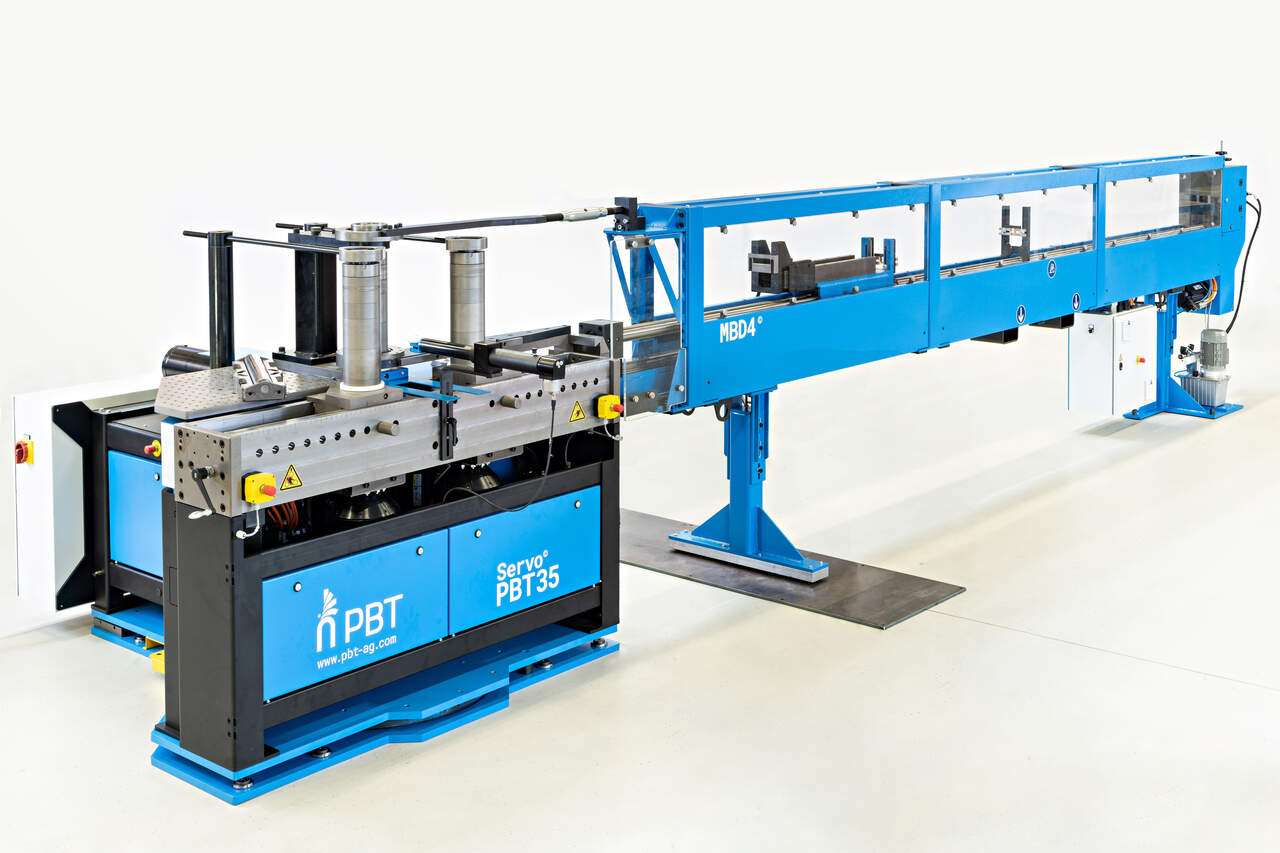

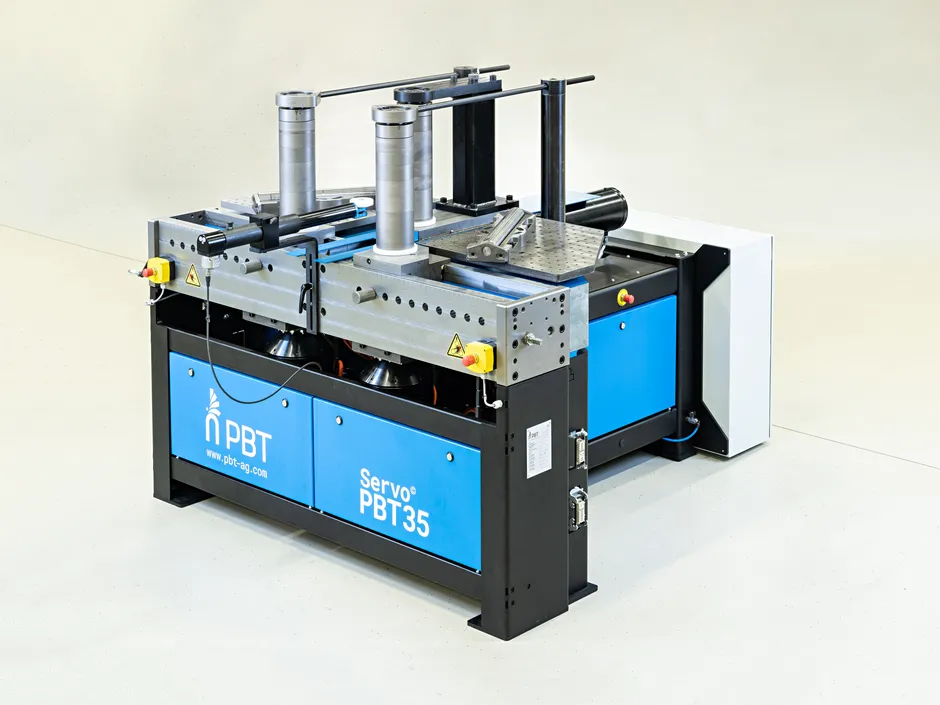

Key benefits of PBT35 Servo Wide®

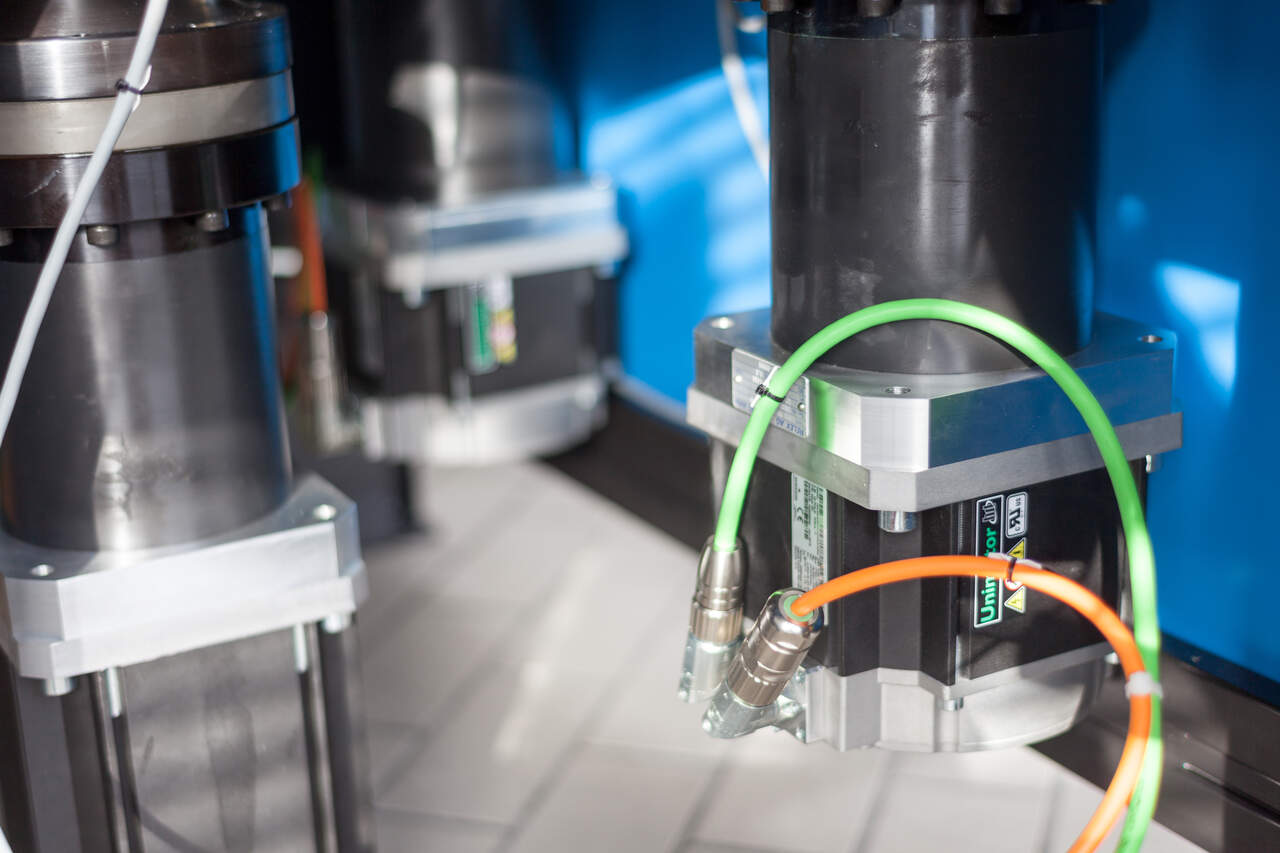

• Powerful servo motors for driving all three rollers

• Infinitely variable distance adjustment between front rollers (min. 360 mm)

• Roller height – 400 mm

• Tool mounting system 105 mm (as in PBT25®)

• Bending direction from the operator – maximum safety in work

• High-performance control systems with the possibility of expansion with innovative components

• Ergonomic design and extremely low noise level

• Energy efficiency: up to 70% energy savings

• Maximum precision and reliability thanks to modern servo technology

Control system

• PC400 – modern CNC system with intuitive interface and high control precision

• Bending programming with visualization and saving of parameters

• Full integration with production processes

Technical characteristics of PBT35 Servo Wide

Parameter Value

X-axis force 35 t

Positioning accuracy X-axis 0.01 mm

X-axis drive SERVO Hydraulics (low noise, 70% energy saving)

X-axis travel 390 mm

Max. insert width 243 mm with roller ring D150 (optional 350 mm)

Hydraulic oil capacity 9 liters

Drive shaft (Y-axis) Servo drive, low noise, 100% torque

Dynamic shaft speed control 1 - 16 rpm

Max. torque per shaft 3000 Nm

Shaft height 400 mm

Shaft diameter Ø 105 mm

Front shaft distance 360 ​​– 1120 / 1400 mm

Z-axis with CNC control (dynamic) optional 4 t

Machine control PC400

Operating system Windows 10

Connection 3 x 400 V AC, 32 A

Power 15 kW

Dimensions (L × W × H) 1970 × 1860 × 1420 mm

Weight 2250 kg
