Portable Clinching Frame Eckold MCD 30/5 PH

Cold Joining, Clinching Joining and Welding Equipment Brand: Eckold

Portable Clinching Frame Eckold MCD 30/5 PH

Portable Clinching Frame Eckold MCD 30/5 PH - Image 2

Portable Clinching Frame Eckold MCD 30/5 PH - Image 3

Portable Clinching Frame Eckold MCD 30/5 PH

Cold Joining, Clinching Joining and Welding Equipment Brand: Eckold

Order a product

Technical specialist

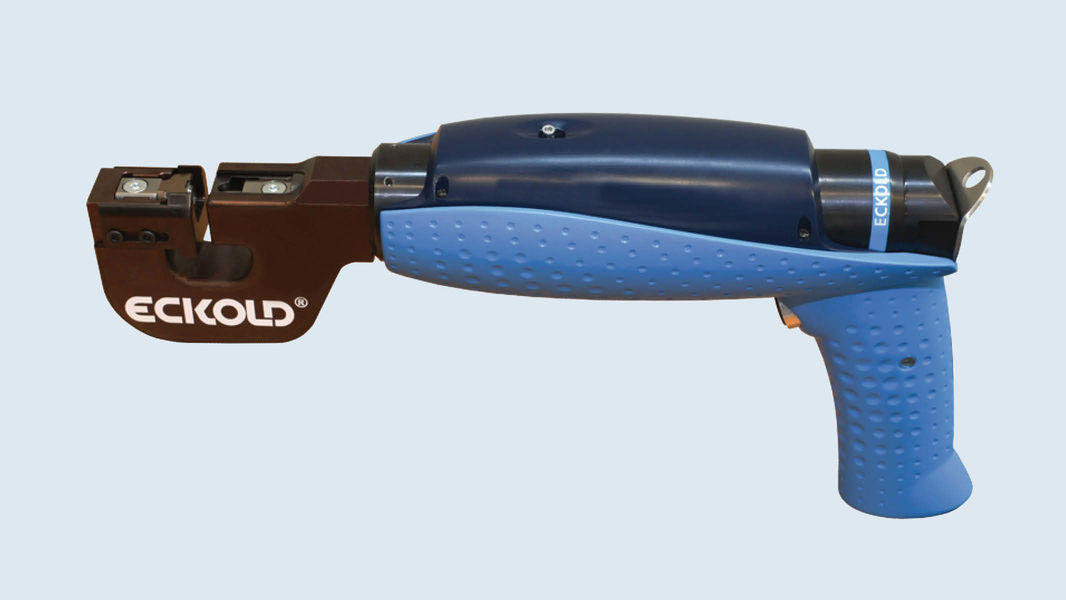

ECKOLD MCD 30/5 PH is a compact and robust portable clinching frame designed for mobile joining of sheet metal parts. This tool features one-handed operation, a 360° swiveling head, and an adjustable stroke limiter. It operates via a pneumo-hydraulic drive using the PHD-001 pressure intensifier. This model is ideal for assembly, service, and production tasks where fast, reliable, and non-thermal fixation of parts is required.

Features and Advantages

Feature	Advantage
Compact & Lightweight	Ergonomically designed for convenient operation in hard-to-reach or confined spaces.
Pneumo-Hydraulic Drive	Powered via the PHD-001 intensifier, providing stable working force and high process repeatability.
High Pressing Force	Delivers up to 50 kN (at 500 bar), sufficient for the majority of thin-sheet metal applications.
Rapid Cycle Time	A short cycle of approximately 2 seconds per clinch ensures high productivity during mobile tasks.
Tooling Versatility	Compatible with various punch/die systems: S-DF, R-DF, G-DF, allowing the joint geometry to be adapted for strength or airtightness.
Material Compatibility	Optimized for work with well-deformable steel and aluminum alloys ( $A_{80} \ge 12\%$ ).

Standard Equipment

MCD 30/5 PH Clinching Frame: The main handheld unit.

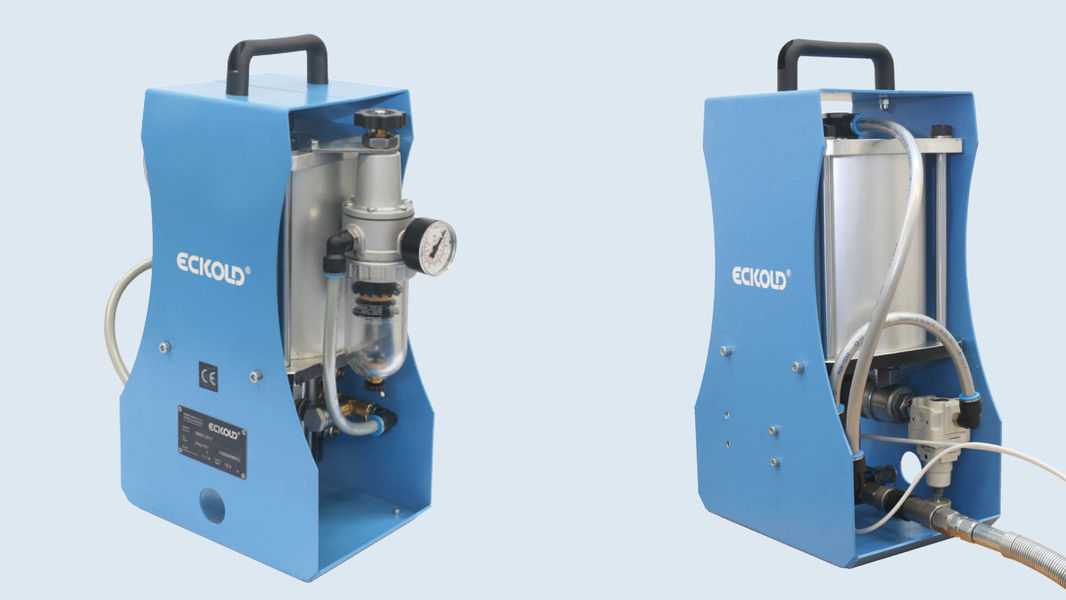

PHD-001 Pressure Intensifier: Required component for powering the frame.
Flexible Hose: Standard 3.0 m length for connecting the frame to the intensifier.
Operating Manual & Packaging.

Options

Punch and Die Sets: Various types including SMD 721.XX, SMD 731.XX, 951.XX (R-DF 6), 950.XX (R-DF 8), 592.XX (G-DF 6), and 591.XX (G-DF 8).
Specialized Dies: Designed specifically for soft materials like aluminum and copper.
Extended Hoses: Different lengths available upon request.
Service Kits: Maintenance sets and additional adapters for integration into production lines.

Technical Specifications

Parameter	Value
Drive	Pneumo-hydraulic (via PHD-001)
Input Pressure (for PHD-001)	5 – 16 bar (Recommended), max. compressed air 6 bar
Maximum Pressing Force	50 kN (at 500 bar)
Cycle Duration	2 seconds
Air Consumption	18 L per stroke (via PHD-001)
Supported Clinch Variants	S-DF, R-DF, G-DF (Punches/Dies on request)
Max. Total Thickness (Steel $440 \text{ N/mm}^2$ )	Up to 3.0 mm
Max. Total Thickness (Al $250 \text{ N/mm}^2$ )	Up to 3.0 mm
Horizontal Throat (Reach)	34 mm
Vertical Throat (Height)	31 mm
Opening / Gap	6 mm
Weight (Net)	5.0 kg (without hose) / 6.4 kg (with hose)
Dimensions ( $L \times W \times H$ )	$378 \times 77 \times 196 \text{ mm}$

Video not found.

Mobiler_Clinchbuegel_MCD_30_5PH_011_2024_07_15_DEU_ENG_klein_01
