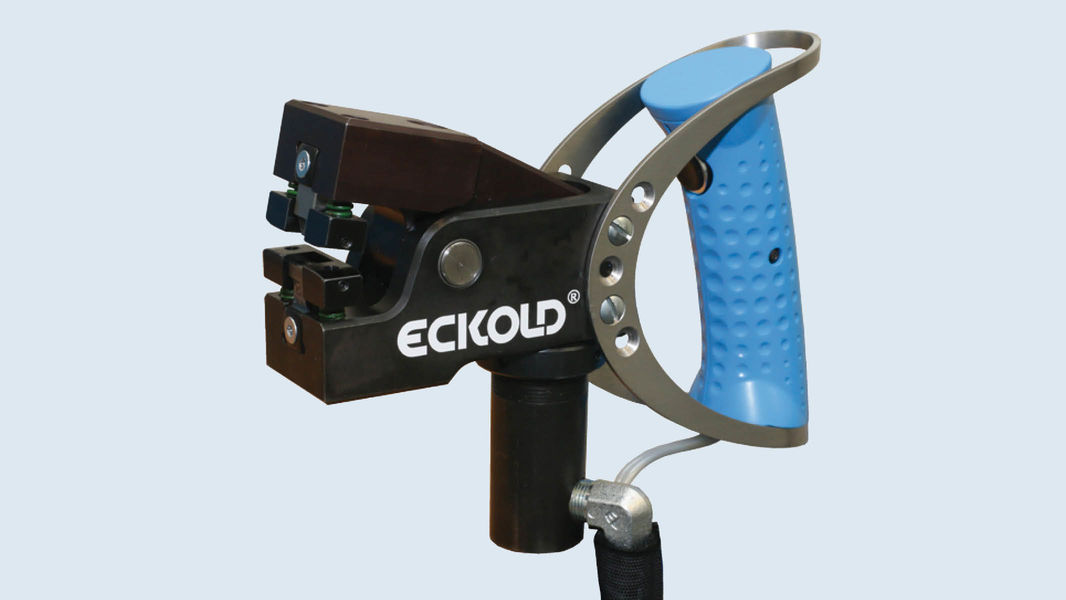

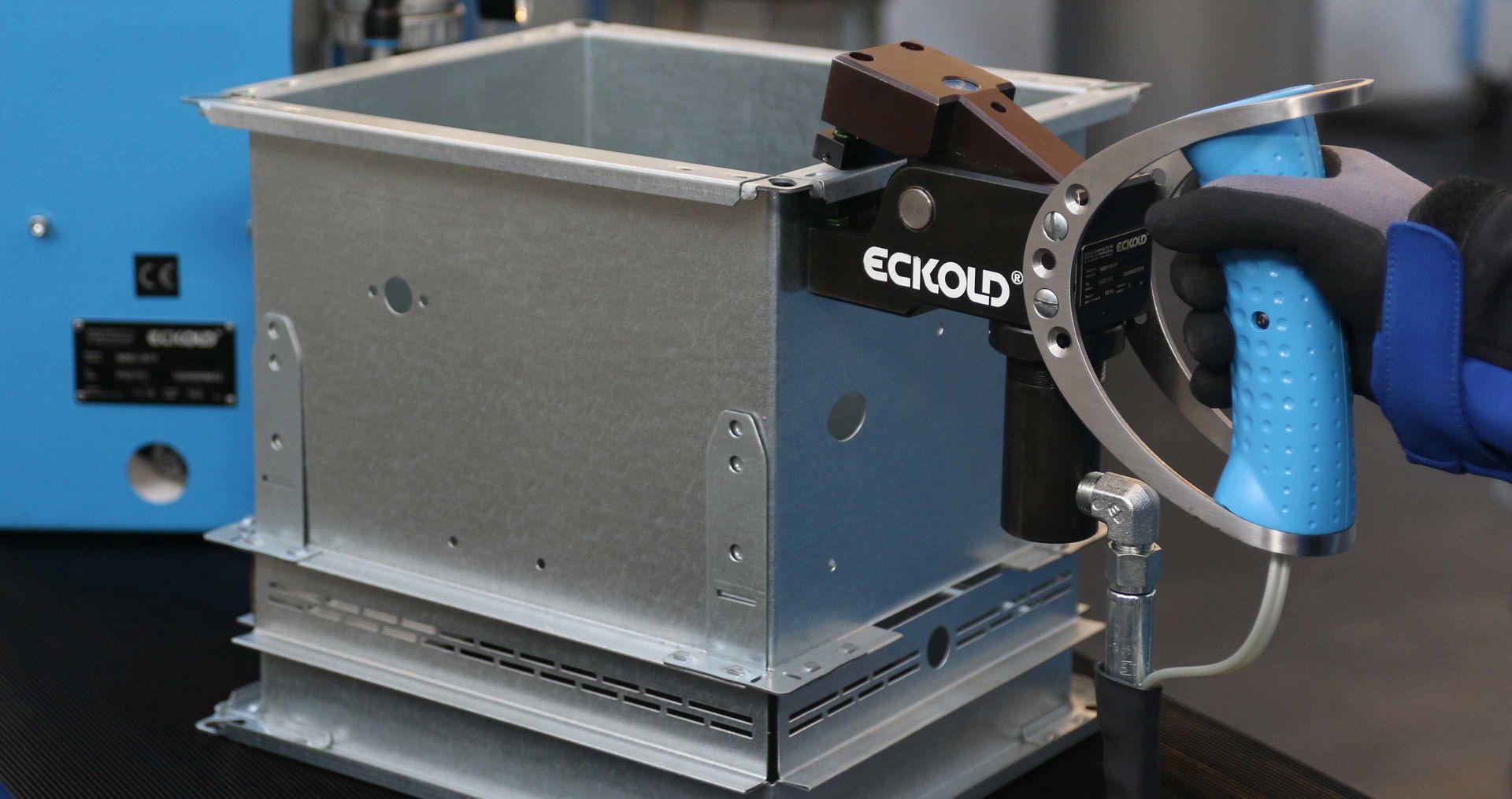

Eckold MZD 25/3 PH is a compact and robust portable clinching tool designed for mobile joining of thin-sheet metal products. This device is engineered for one-handed operation in hard-to-reach areas. A key advantage is the reversible joining direction (interchangeable punch/die positions), which provides high operational flexibility. The system utilizes a pneumo-hydraulic drive, with specific clinching tools (punches and dies) selected based on the application.
Features and Advantages
Clinching Tooling: S-DF Variant
The S-DF (clinching with partial cutting) is the primary variant for this tool, known for its high torsion resistance.
Recommended Dies: SMD 721.XX (Universal) and SMD 731.XX (for soft materials like Aluminum/Copper).
Min. Single Layer Thickness: 0.5 mm.
Approximate Holding Forces (Steel Rm≈400 N/mm2):
2×0.75 mm → 1900 N
2×1.00 mm → 2400 N
2×1.50 mm → 3300 N
Standard Equipment & Options
Standard:
MZD 25/3 PH Clinching Pliers.
PHD-001 Pneumo-hydraulic pressure intensifier (required for operation).
3.0 m flexible high-pressure hose.
Options:
Punch and die sets for various materials (Steel, Aluminum, Copper).
Extended or specialized hoses.
Service kits (replacement seals and maintenance parts).
Technical Specifications
Mobile_Clinchzange_MZD_25_3PH_023_2024_07_13_DEU_ENG_klein_01
