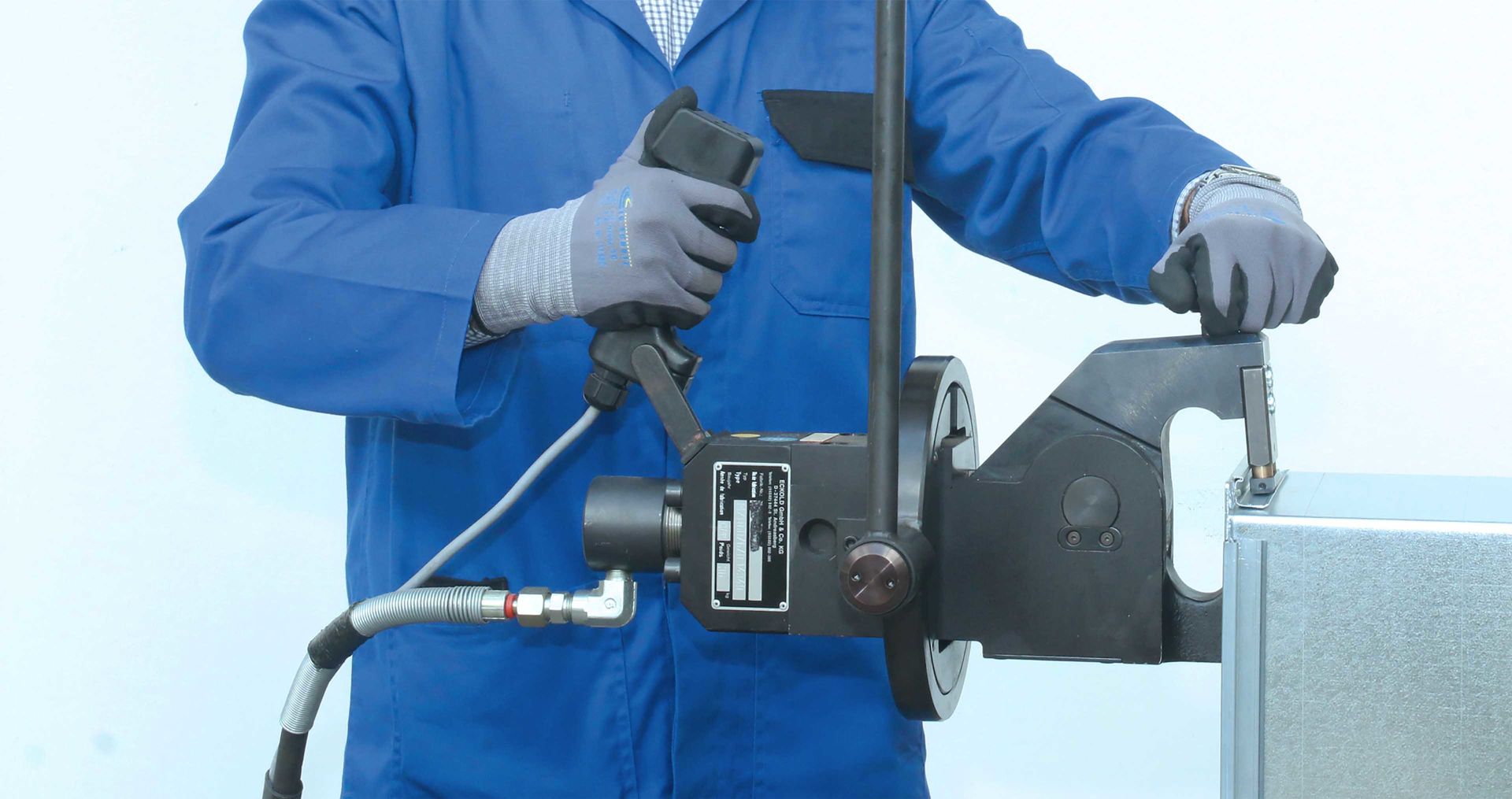

ECKOLD MZD 60/6 is a heavy-duty portable clinching plier designed with a large throat and high pressing force. This model is engineered for both mobile and industrial clinching of sheet metal parts in assembly and serial production environments, such as HVAC, enclosure manufacturing, and onsite installation. Featuring a “plier-type” grip, a 360° cardan suspension, and interchangeable tool holders, the MZD 60/6 is a highly versatile solution for various clinching applications.

Features and Advantages

Feature Advantage
Large Working Area A horizontal throat of 60 mm and vertical throat of 2 × 40 mm provide access to wide flanges and deep assembly points.
High Pressing Force Delivers 60 kN (up to 80 kN in some modifications) at 500 bar, ensuring reliable joints in thick and multi-layer workpieces.
Multiple Configurations Available in variants (D, W, D-W) with options for stroke control, stroke limitation, or strippers to meet specific production requirements.
Interchangeable Tooling Supports various punch/die sets (S-DF, R-DF, G-DF) to adapt the joint for airtightness, strength, or minimal surface marking.
Durability Stroke-controlled variants (W / D-W) reduce tool wear compared to pressure-dependent processes, extending tool life.
Ergonomic Positioning The 360° cardan suspension allows for effortless positioning in any spatial orientation.

Standard Equipment

  • MZD 60/6 Clinching Pliers: Handheld unit (shipped without punch/die; tooling selected separately).

  • Hydraulic Connection: Requires an external hydraulic power unit (HA 510 or HA 510 DS series).

  • Cardan Suspension: 360° swivel mount and standard mounting elements.

  • Operating Manual & Packaging.

Options and Variants

  • MZD 60/6 D: Includes a stripper (holding element).

  • MZD 60/6 W: Equipped with stroke control for higher precision.

  • MZD 60/6 D-W: Combined version with both a stripper and stroke control.

  • Hydraulic Power Units: HA 510 / HA 510 DS (ordered separately).

  • Tooling Sets: Wide range of punches and dies for S-DF, R-DF (6/8/10), and G-DF (6/8).

Technical Specifications

Parameter Value
Operating Mode Single stroke
Pressing Force 60 kN at 500 bar (up to 80 kN for specific variants)
Stroke Control Yes (in W / D-W variants); No (in base MZD 60/6)
Stripper Element Included in D / D-W variants
Supported Clinch Types S-DF, R-DF (6/8/10), G-DF (6/8)
Max. Total Thickness (S-DF) Up to 4.0 mm (Steel/Aluminum)
Max. Total Thickness (R-DF 8/10) Up to 4.0 mm
Horizontal Throat (Reach) 60 mm
Vertical Throat 2 × 40 mm
Opening / Gap 45 mm
Weight 34 kg – 36 kg (depending on modification)
Connection 6 m hydraulic hose to external HA 510 / HA 510 DS unit
