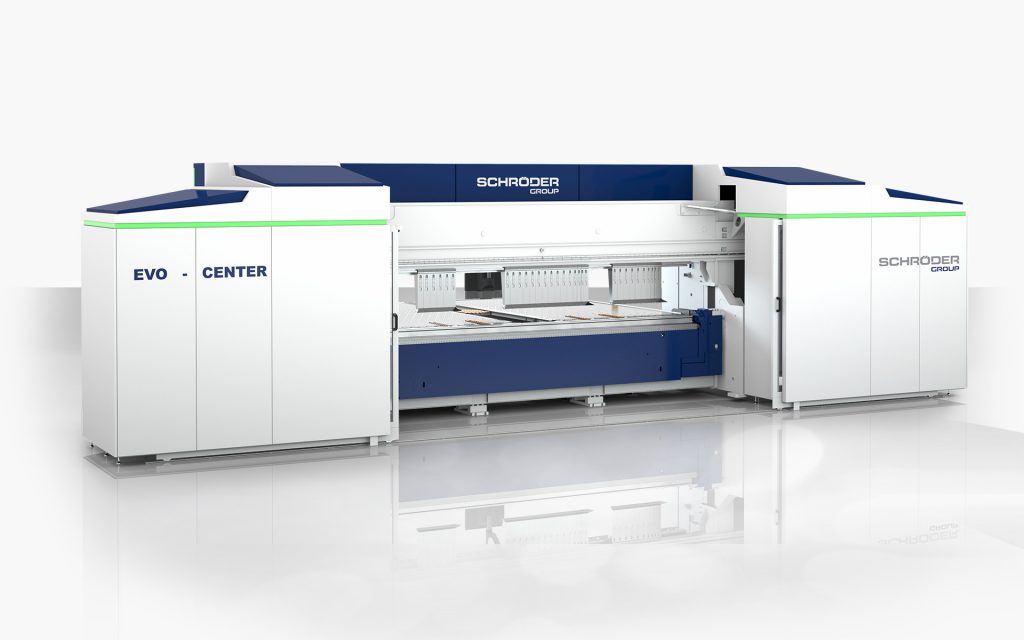

Schröder EVO Center 3200×4.0 is a high-performance, automated folding machine from the Schröder Evolution series. It is designed for serial and high-volume production where minimizing setup time, increasing bend repeatability and accuracy, and minimizing manual labor are essential. This model features a working bending length of 3,240 mm and is capable of folding steel sheets up to 4.0 mm (400 N/mm2) thick. The machine is engineered for flexibility, offering bi-directional bending (Up’n Down) capability, automatic tool change, and integration with sheet positioning and handling systems, all managed through the advanced POS 3000 control and automation extensions.

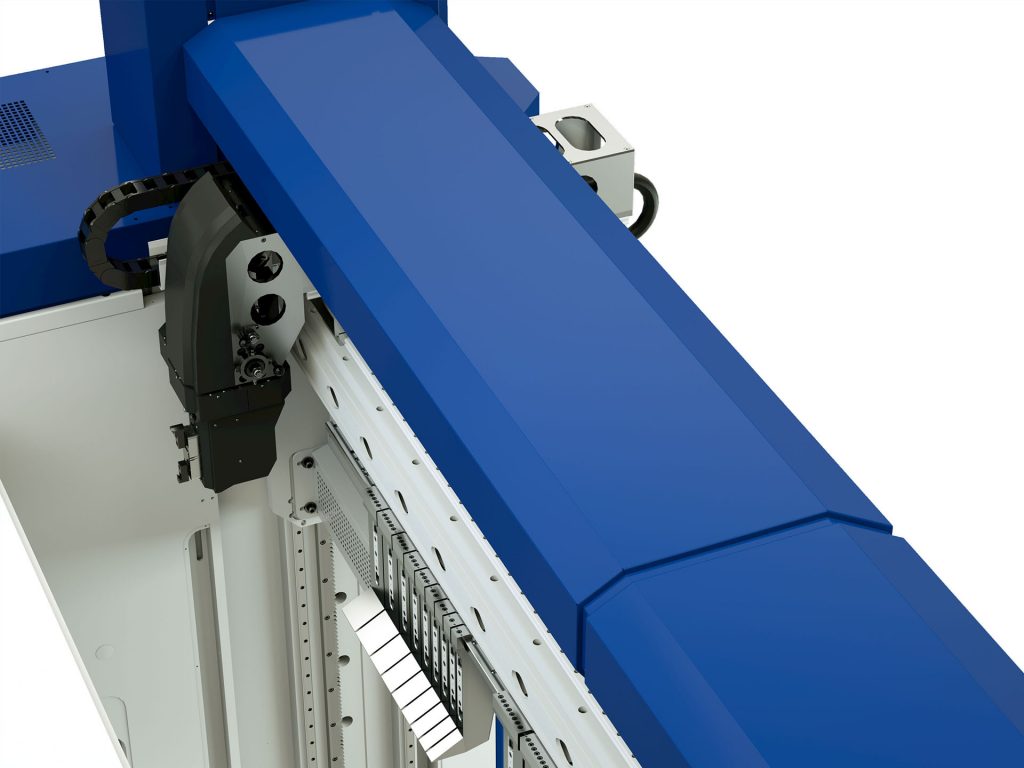

Automatic Tool Changer (ATC) for the Clamping Beam: Significantly reduces changeover time, especially when processing small batches or diverse product types.
Up'n Down Folding Beam with Programmable Control: Allows bending both downwards and upwards, enabling the processing of flanges and counter-bends without the need to manually flip or manipulate the parts.
Motorized Adjustment of the Folding Beam (200 mm) and Central Crowning Device: Compensates for beam deflection to ensure a uniform bend along the entire sheet length.
Powerful and Fast POS 3000 3D Control: Features a 22′′ color touchscreen display mounted on a traversing guide, enhancing operator convenience. Includes capabilities for remote maintenance and external programming.

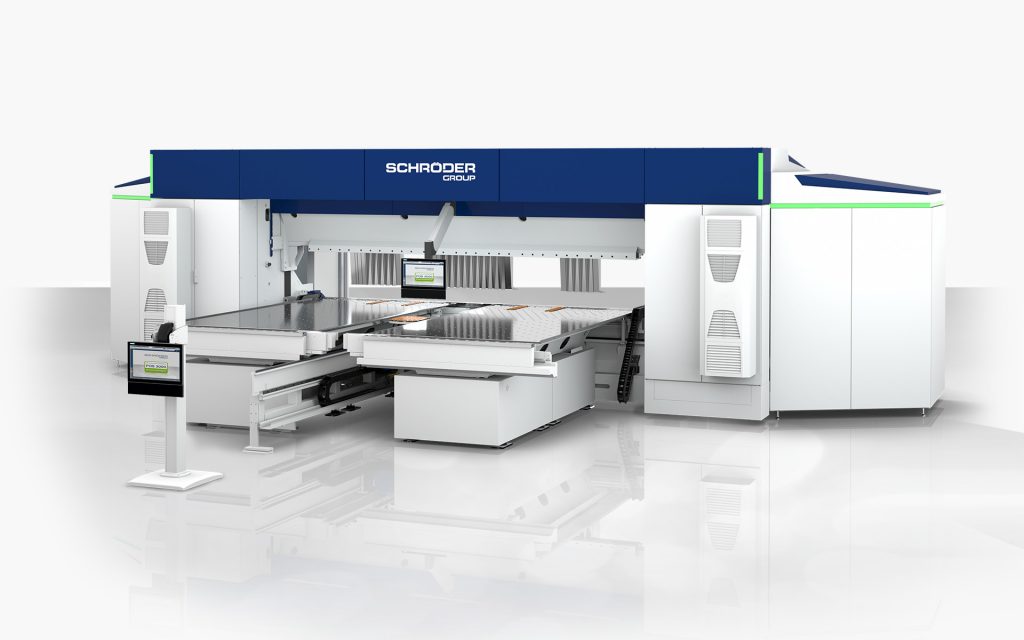

Back Gauge System with Large U-Shaped Table: Equipped with segmented support plates featuring steel ball casters, suction cups, lateral angle gauges, and lifting elements, ensuring precise and rapid blank positioning.

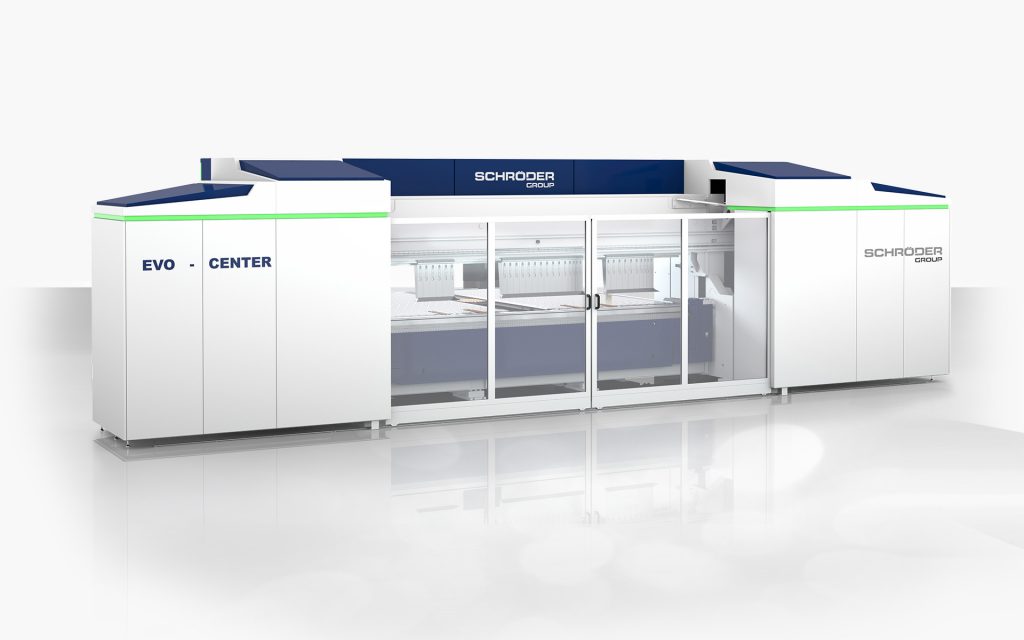

Operational Safety: High safety standards include a light curtain at the rear, double doors at the front, and protected dual-pedal foot switches.
Fully Automatic Tool Changer (ATC) for the clamping beam and/or for the folding beam.

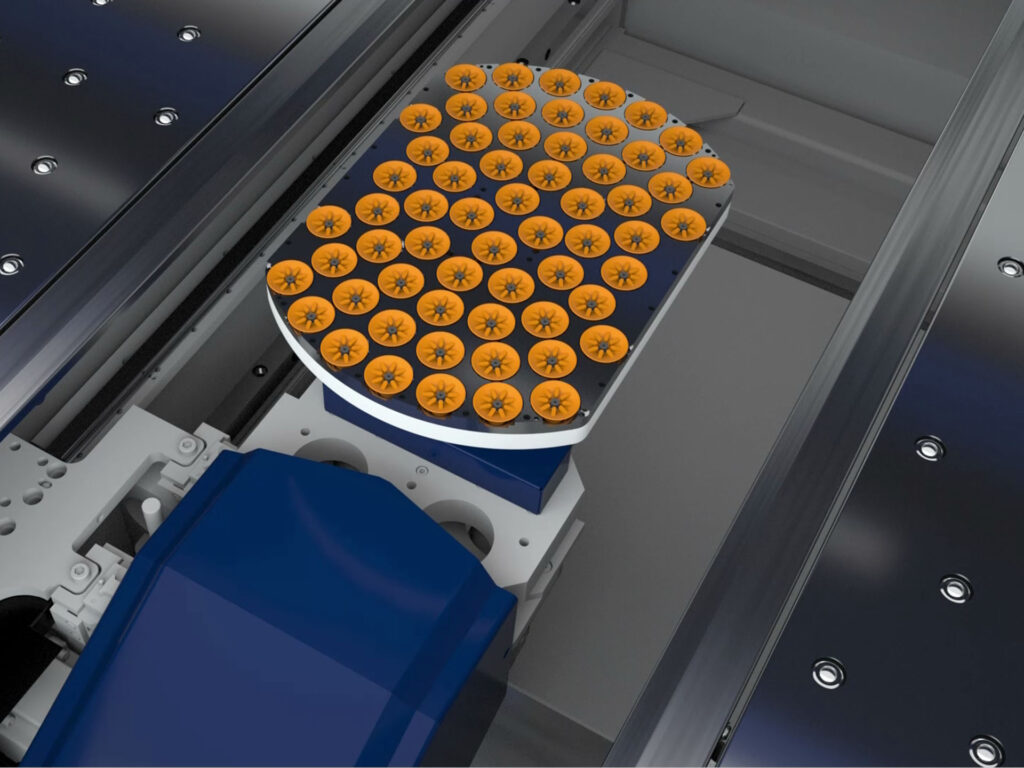

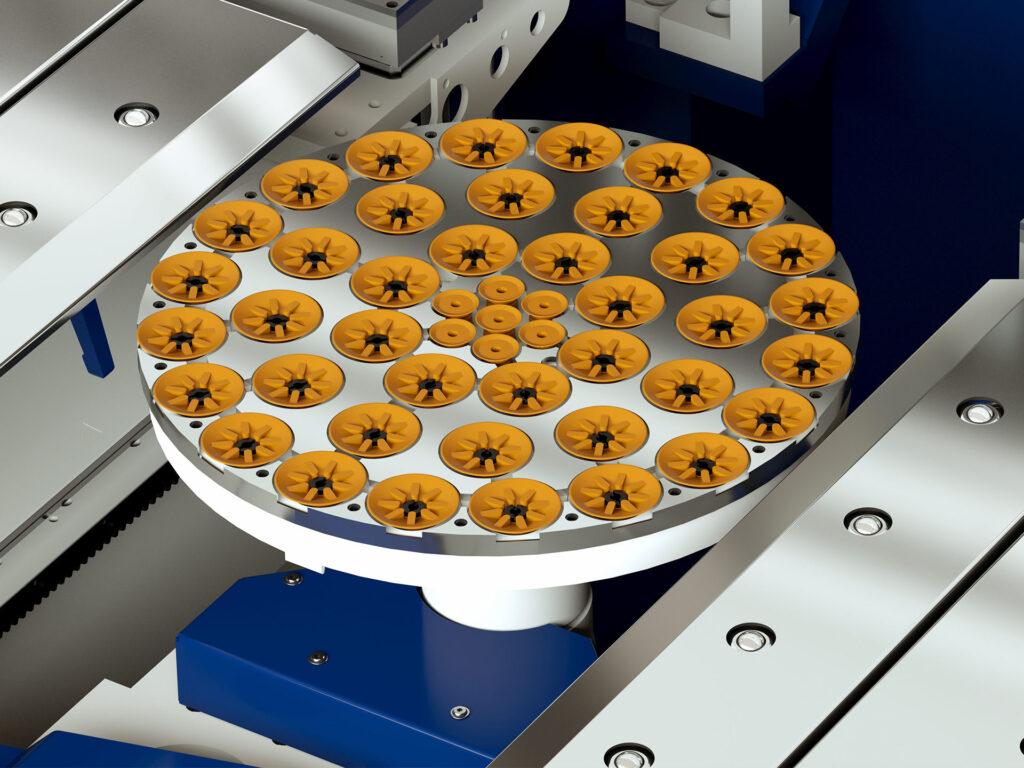

Advanced Handling System (AHS): Moving central platform with suction cups, camera(s) for sheet dimension control, automatic sheet rotation, infeed/outfeed system.
Back Gauge / Table Extensions: Side tables, additional panels, mechanisms with pneumatic gauge fingers, etc.
Additional Control Stations / Terminals: Operator console at the rear of the machine, mobile modular panels.
Special Tooling (Application Dependent): Segmented folding tools, "goat's foot" segmented elements, various angles, etc.
18 kW Voltage Transformer (upon request) for remote markets or non-standard power conditions.
