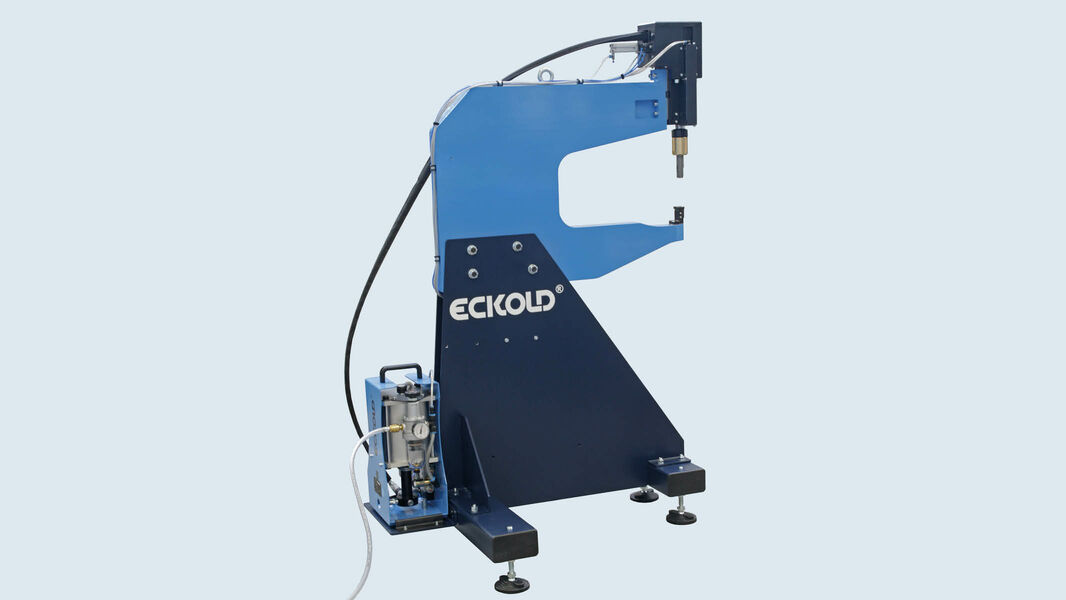

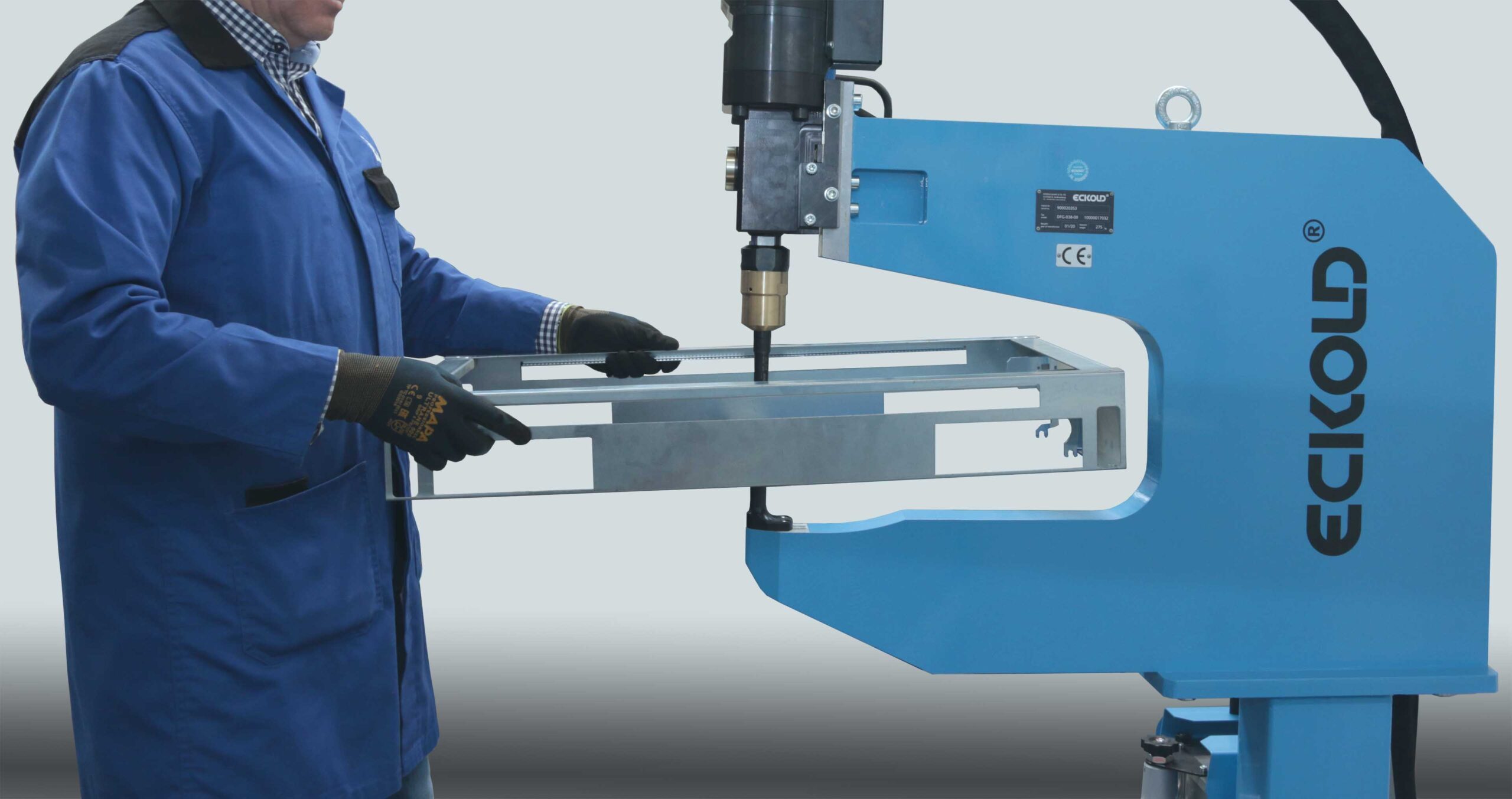

ECKOLD DFG 450/50 PH is a base-level stationary clinching unit that provides an economical entry into stationary clinching production. The machine features a massive throat clearance for processing bulky and hollow workpieces, an integrated pressure intensifier, and an adjustable pressing force of up to 50 kN. Both the closing and the working stroke are activated via a foot pedal, leaving the operator’s hands free to position the part. Designed for continuous operation in workshop environments, the DFG 450/50 PH is ideal for HVAC/ductwork, soundproofing structures, general metal fabrication, signage, and roofing industries.
Features and Advantages
Standard Equipment
DFG 450/50 PH Stationary Unit: With an integrated pneumo-hydraulic intensifier.
Foot Switch: For controlling the closing and working stroke cycle.
Adaptable Mounting Plates: For precise tool positioning across various clinching variants.
Control Elements: Base pressure regulation and stroke limitation settings.
Options
Tooling Sets: Punches and dies for R-DF, G-DF, and S-DF variants in various sizes.
Assembly Packages: Specialized sets to optimize results for specific material thickness combinations.
Positioning Aids: Additional fixtures for stabilizing large or hollow workpieces during the cycle.
Technical Specifications
Stationaeres_Clinchgeraet_DFG_450_50_PH_233_2025_05_1_DEU_ENG
