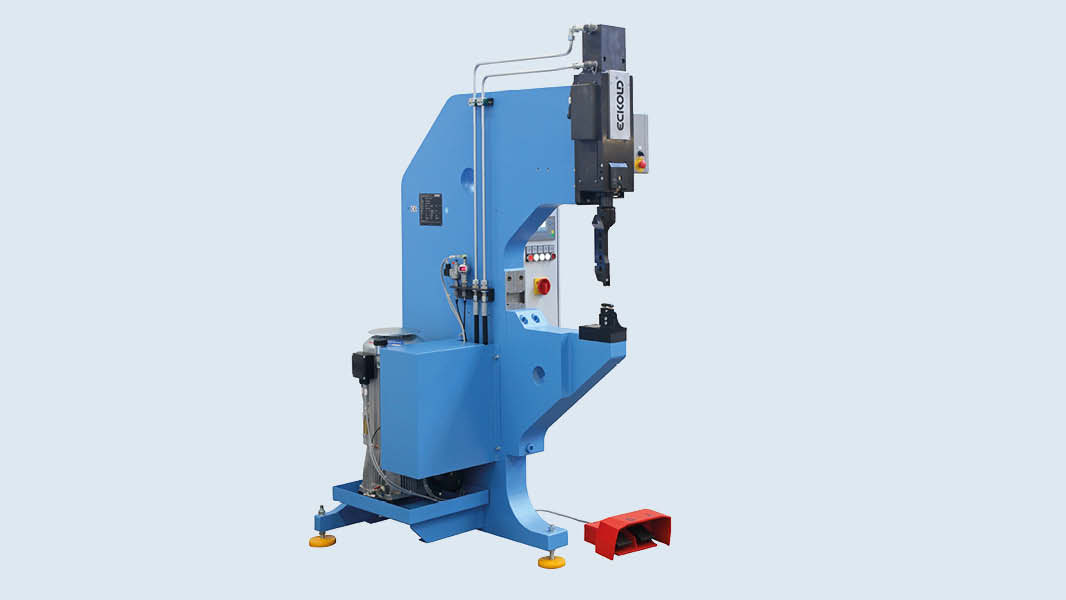

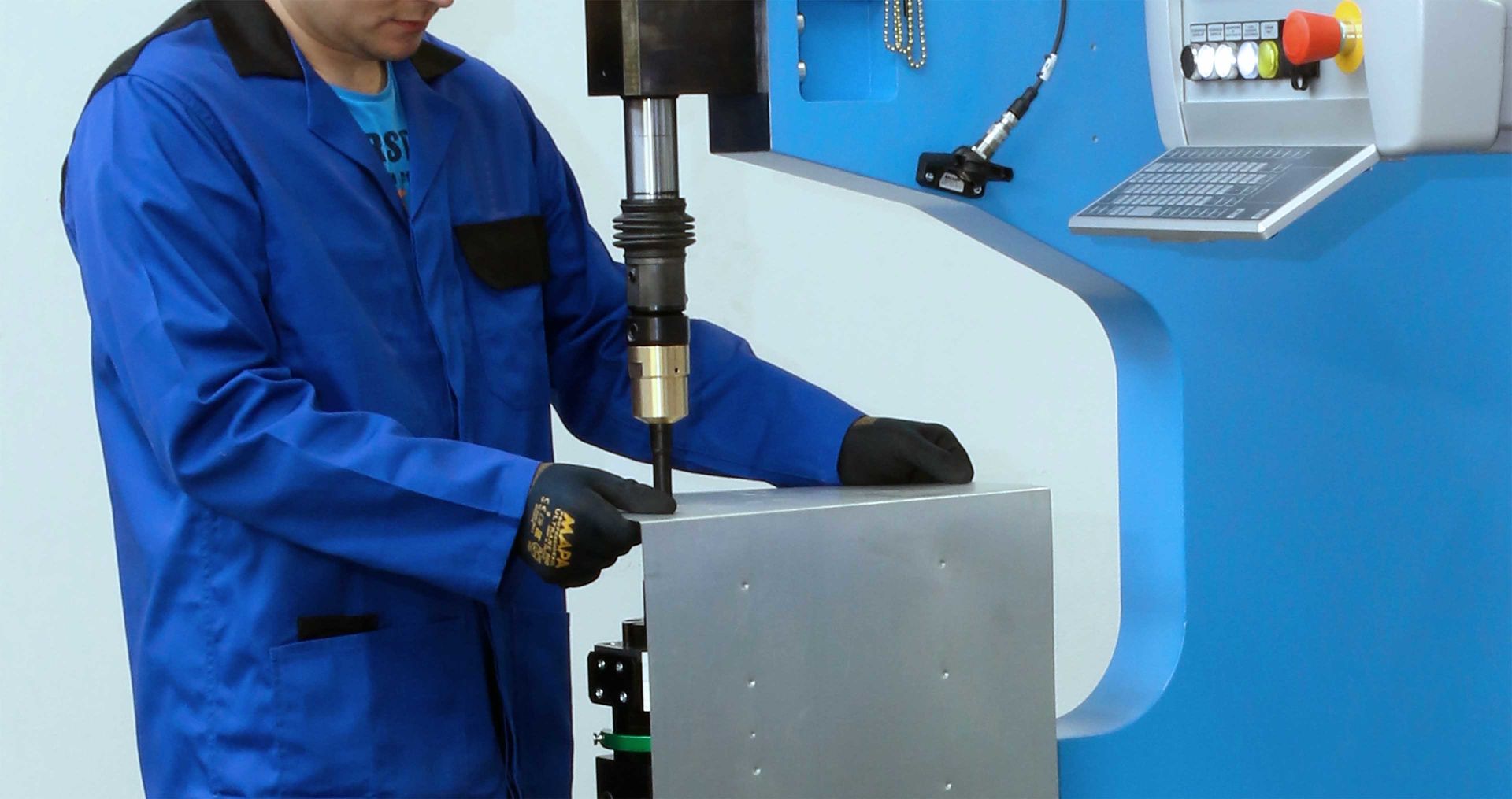

Eckold MFG 500/150 H is a stationary multifunctional C-frame unit from Eckold technics GmbH & Co. KG. It is designed as a universal solution for a wide range of joining and processing tasks for sheet metal and profiles. With a high hydraulic force of 150 kN and the ability to quickly change tool holders, this unit is perfectly suited for serial production in industries working with aluminum, steel, and stainless steel.

Features and Advantages

Feature	Advantage
Multifunctionality	Fast reconfiguration for clinching, self-piercing riveting, punching, embossing, and press-fitting elements (e.g., press-fit nuts).
High Hydraulic Force	Adjustable force up to 150 kN (15 t) ensures reliable processing of thicker and stronger materials.
Large Working Reach	A horizontal reach of 490 mm provides excellent accessibility for processing large workpieces and deep-seated areas.
Wide Material Range	Capable of working with sheets up to 5.5 mm thick for steel/aluminum and up to 3.0 mm for stainless steel.
Stepless Stroke Adjustment	Infinite adjustment of the stroke limit increases precision and adaptability to different material thicknesses.
Robust Drive	3-phase hydraulic drive ensures stable and high performance in demanding industrial environments.

Standard Equipment

Stationary C-frame Unit (Frame): Heavy-duty rigid construction.
Hydraulic Drive: Powered by an integrated Eckold power unit.
Double Foot Switch: Includes a safety device for cycle initiation.
Stroke Limit Mechanism: Features stepless (smooth) adjustment.

Options

Standardized Tool Holders: Essential for rapid functional changes (e.g., switching from clinching to punching).
Specialized Tool Sets: Punches and dies for various joint types (S-DF, R-DF, G-DF, CONFIX) and operations (riveting, punching).
Custom Tooling Kits: Manufactured according to the specific geometry and requirements of the customer.

Technical Specifications

Parameter	Value
Drive	Hydraulic
Max. Pressing Force (Adjustable)	150 kN (at 500 bar)
Max. Total Joint Thickness	5.5 mm (Steel $R_m = 400 \text{ N/mm}^2$ ) 3.0 mm (Stainless Steel)
Horizontal Throat (Reach)	490 mm
Vertical Throat (Upper)	200.5 mm
Vertical Throat (Lower)	267.5 mm
Working Opening	87 mm
Mains Connection	250–500 V / 3-phase / 50–60 Hz
Weight	1650 kg

Multifunktionsgeraet_MFG_500_150_H_189_2024_07_6_DEU_ENG_klein_01
