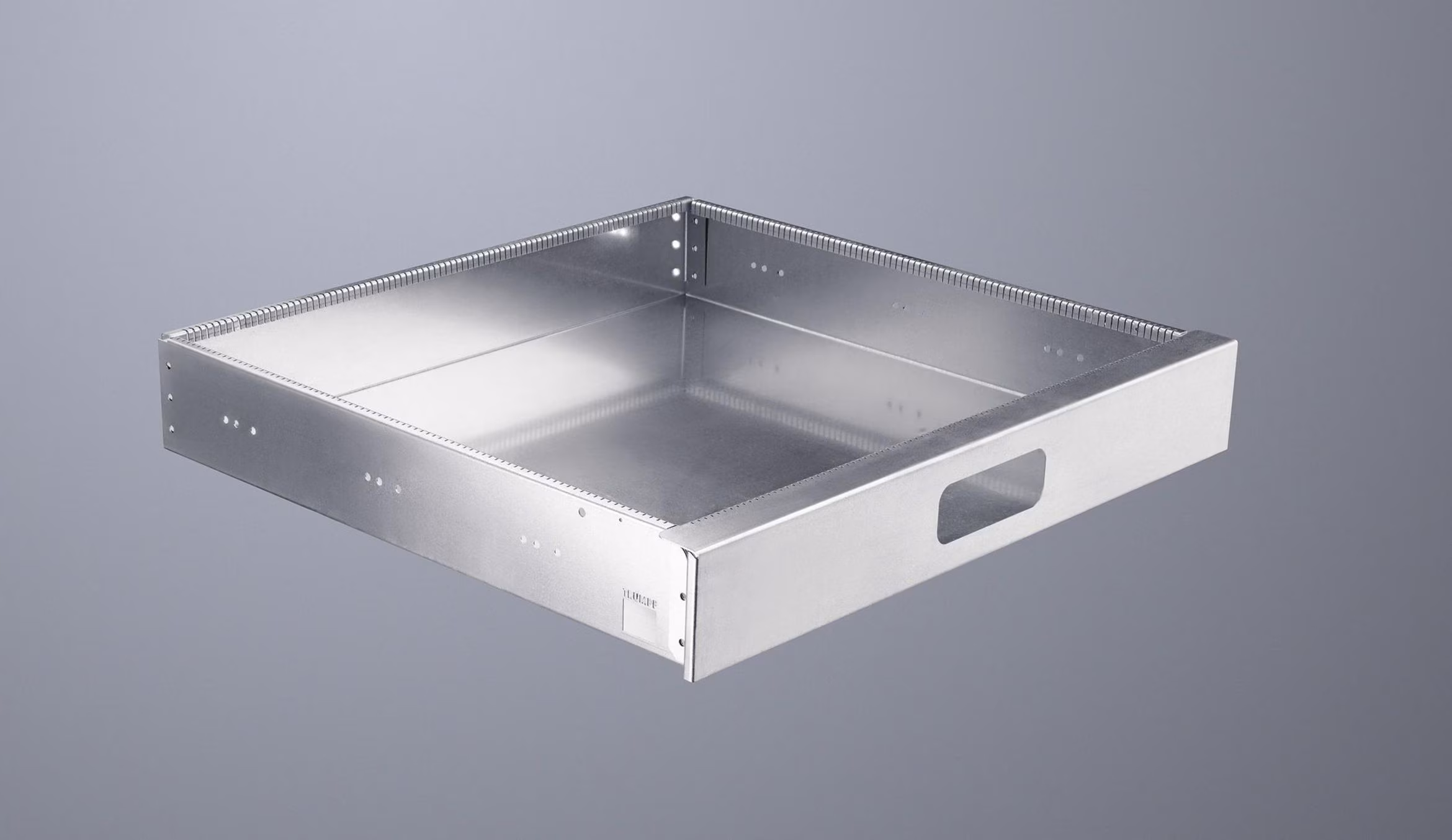

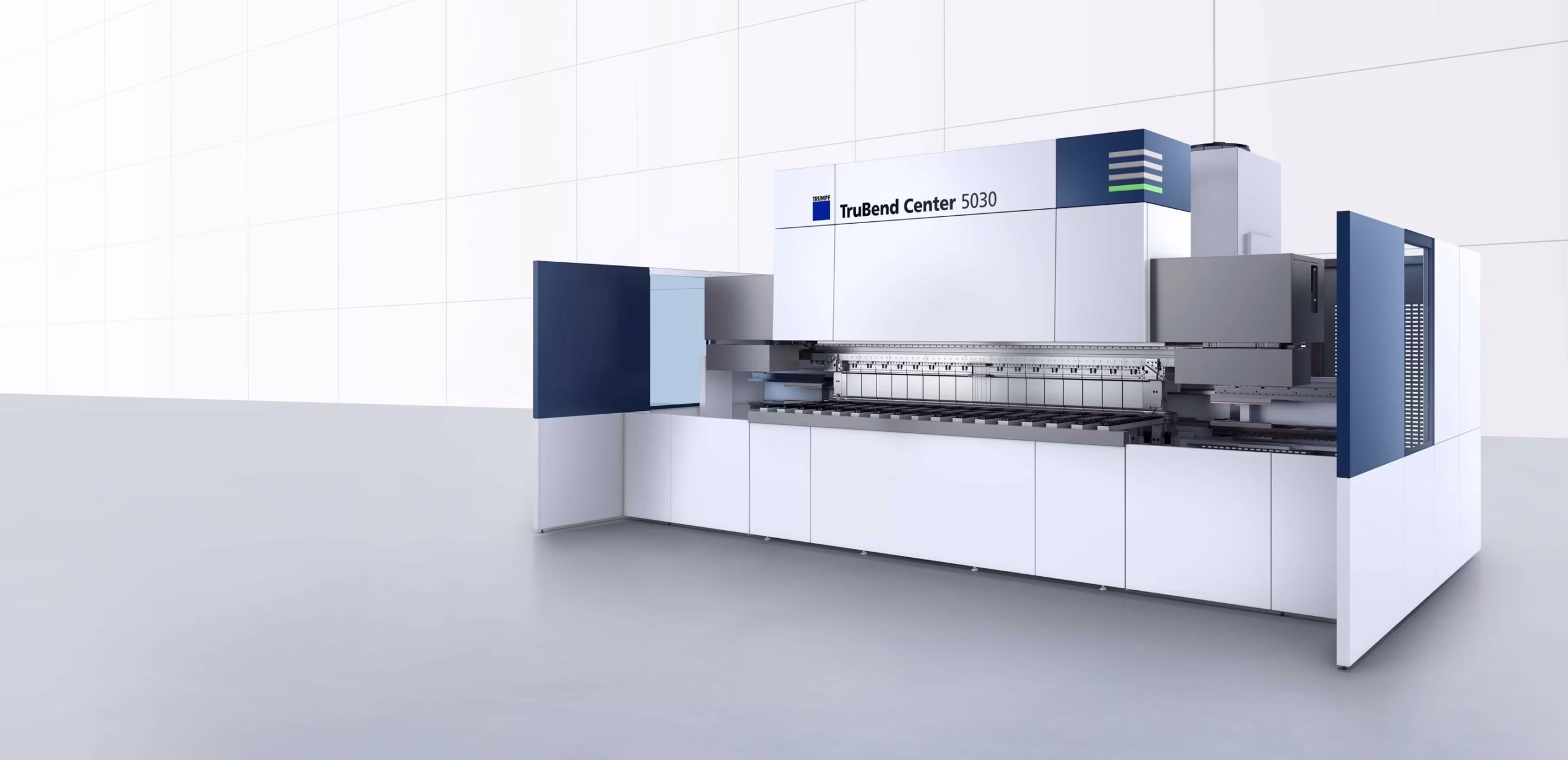

TRUMPF TruBend Center 5030 is a semi-automatic panel folding center that combines software control, extensive capabilities for complex geometric parts, and efficient tool change. The machine allows for the manufacturing of products ranging from thin decorative panels to boxes and bases with radii, internal bends, and reverse folds, all with high repeatability and accuracy. This center provides the capability to process a wider range of parts compared to a conventional press brake (or bending machine) — with less retooling, greater automation, and support for digital programming.

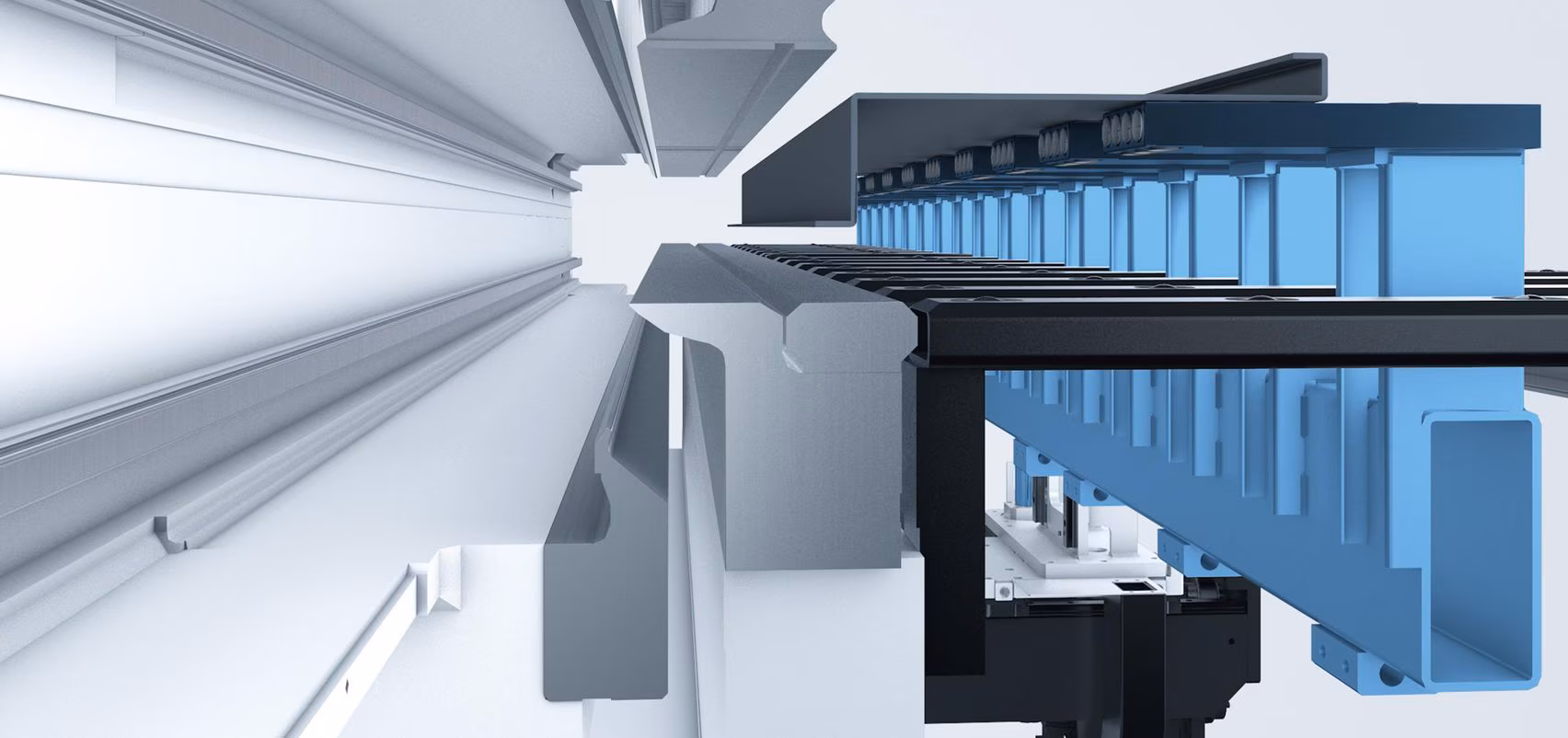

2-Axis Part Manipulator: Positions the sheet along two axes and has the necessary height to allow for reverse folds, as well as for parts with holes or radii. This enables folding "from below" without manually flipping or manipulating the part.
ACB Laser (Optical Non-Contact Angle Control System): Ensures angle accuracy from the very first part.

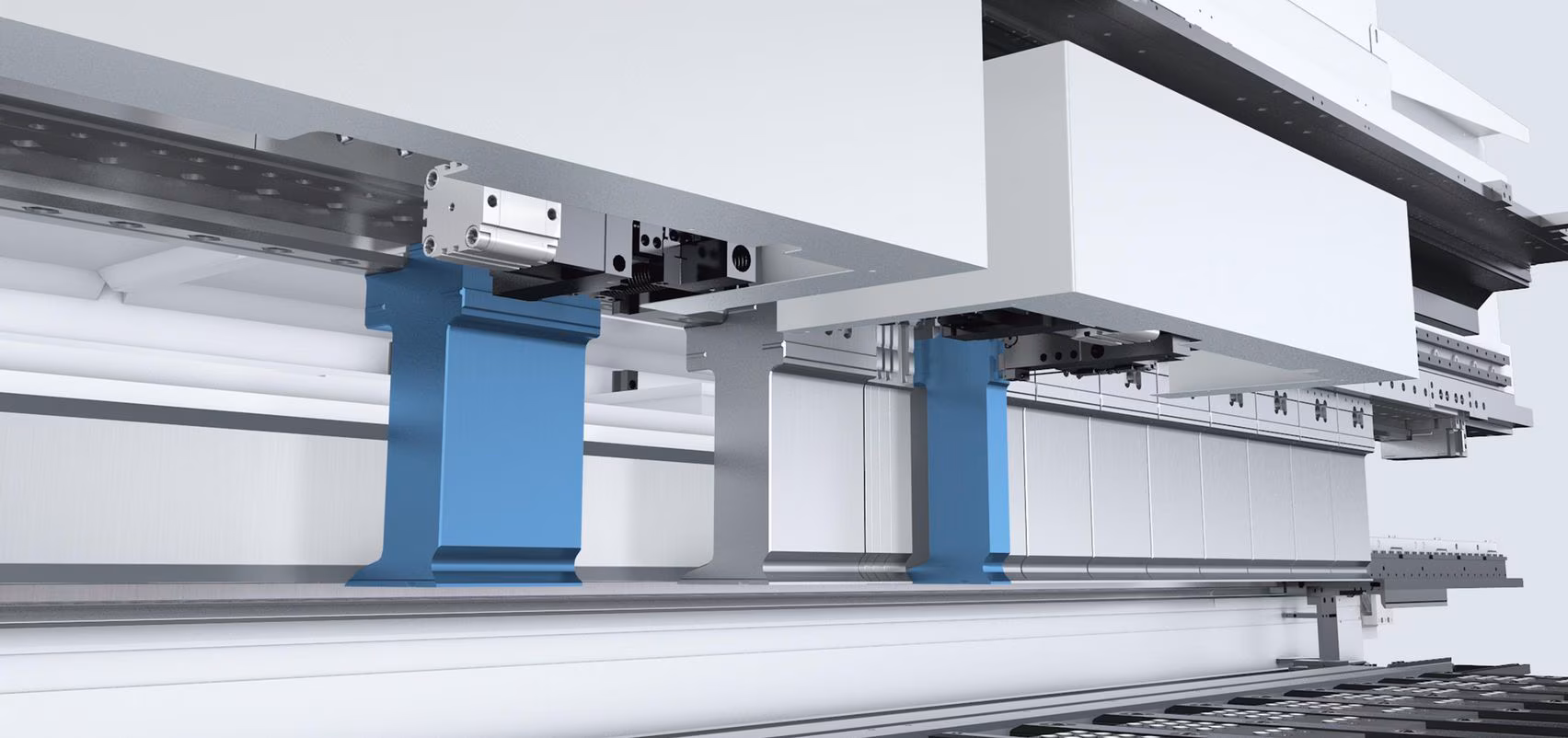

Automatic Change of Upper Blank Holders: Via the ToolMaster Bend, this reduces setup time and errors in tool placement.
Gripper / Clamping Systems: Features three-surface suction cups (top, bottom, front side), magnetic, or mechanical clamps, depending on the part shape and material—ensuring reliable fixation of parts with varying grip areas.
Offline Programming via TecZone Fold: Allows folding programs to be prepared using 2D or 3D data both before and during production, including simulation and collision checking.

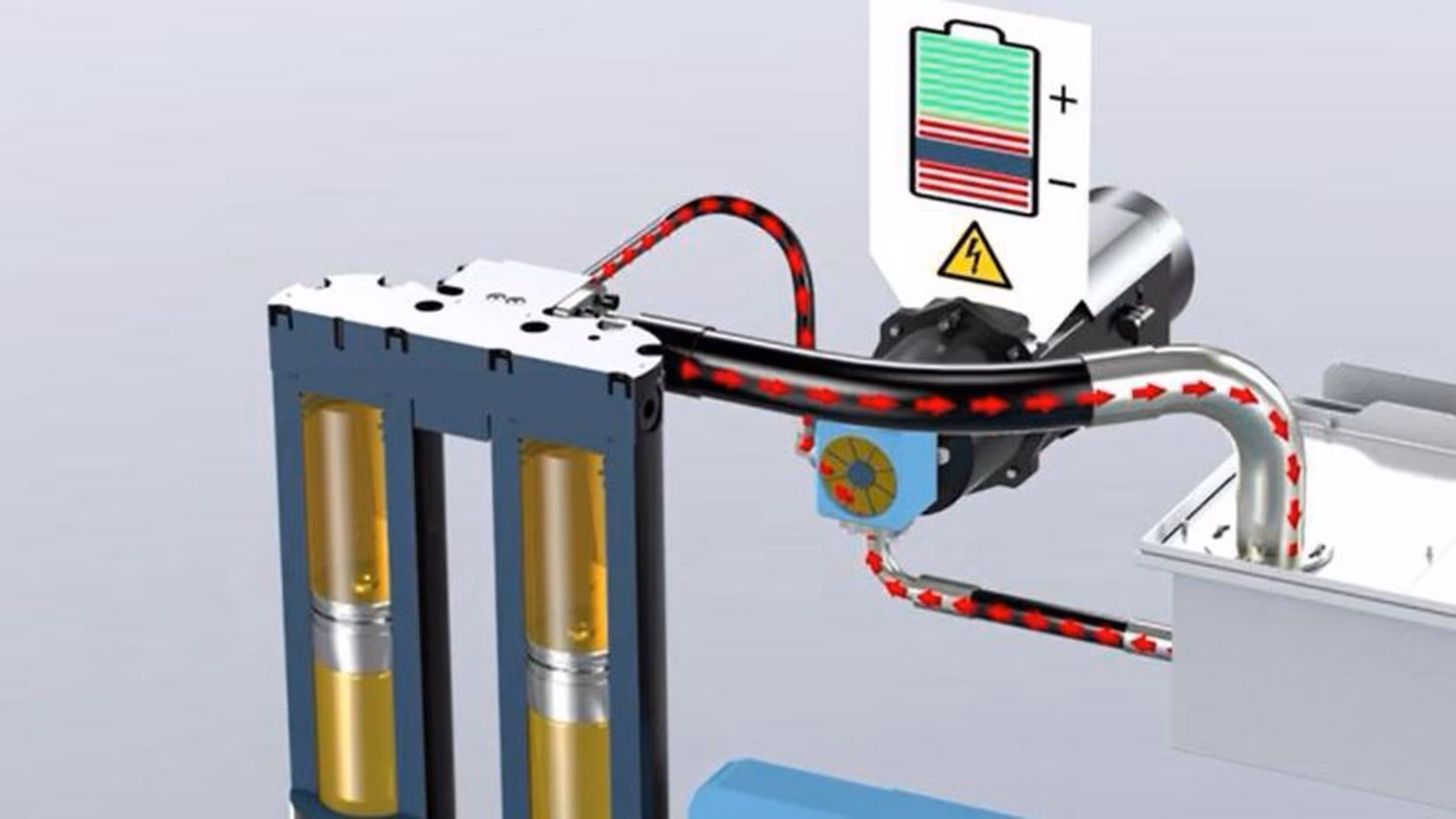

On-Demand Servo Drive: Energy-efficient operation: the drive activates only when folding is required, operating quickly and quietly.

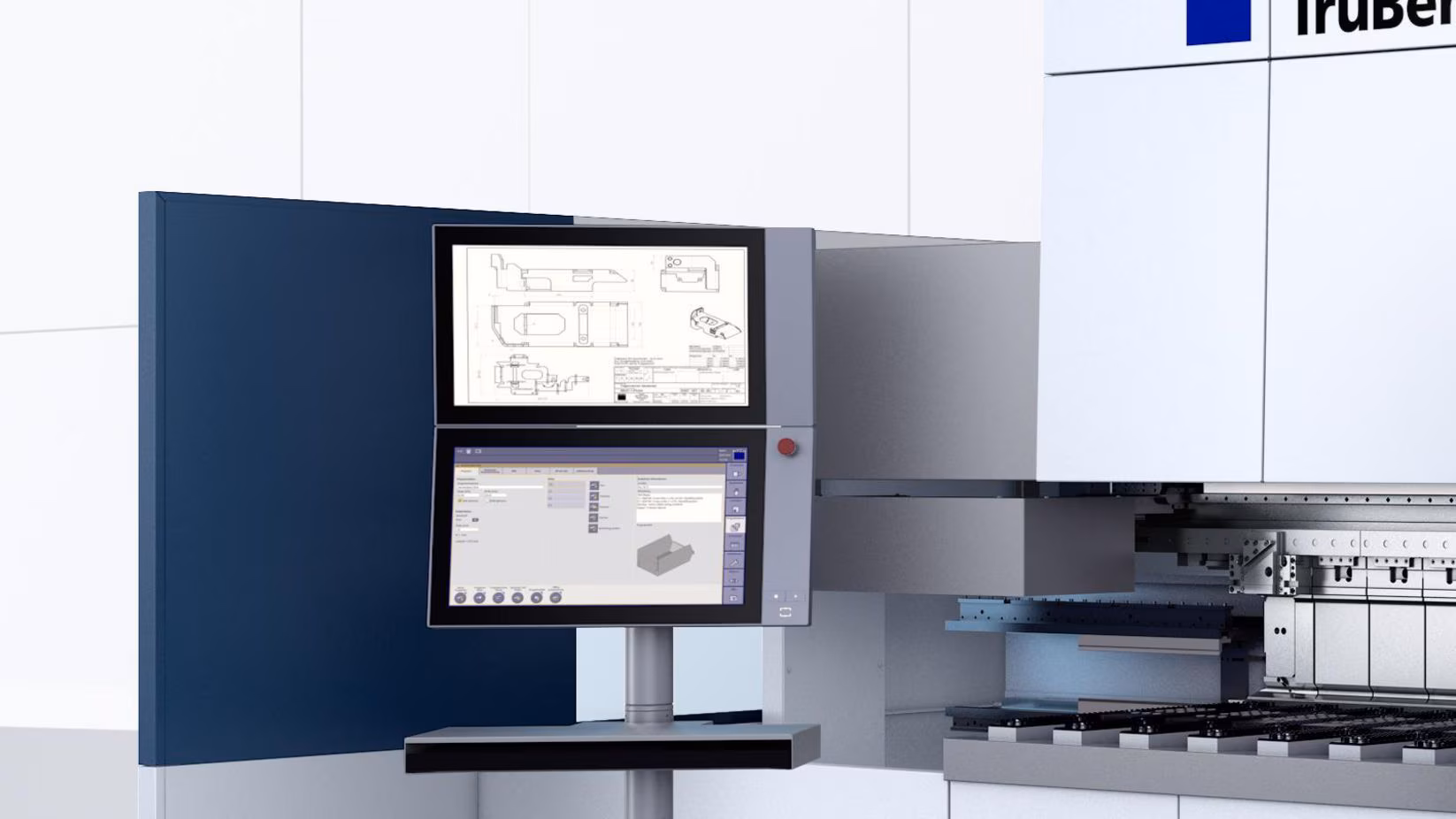

Front and Side Monitors / Screens: For parallel display of programs, drawings, or instructions during operation, allowing the operator to monitor and program simultaneously.
2-Axis Part Manipulator: For flat positioning and reverse folds.
ACB Laser: Bending angle control system.
ToolMaster Bend: Automatic changer for upper blank holder tools.
Three-surface vacuum grippers (suction cup module), magnetic, or mechanical grippers (gripper modules), depending on the part requirements.
Integrated TecZone Fold software: For offline programming and mode simulation.
On-Demand Servo Drive system.

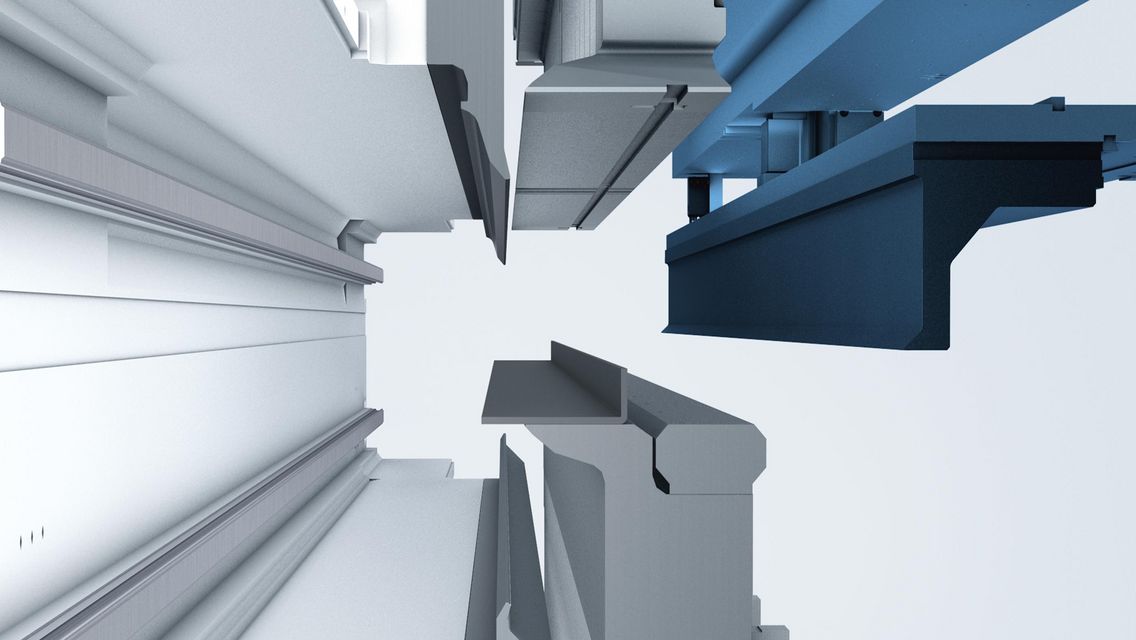

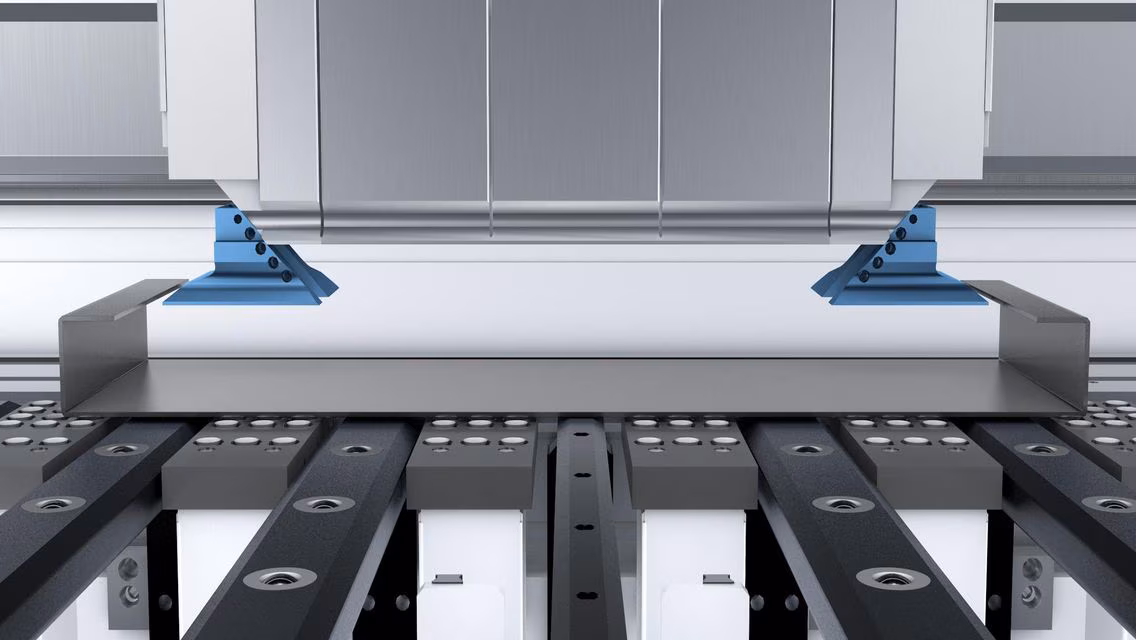

Extra Blank Holder Tools (ENW): For narrow profiles or special conditions.

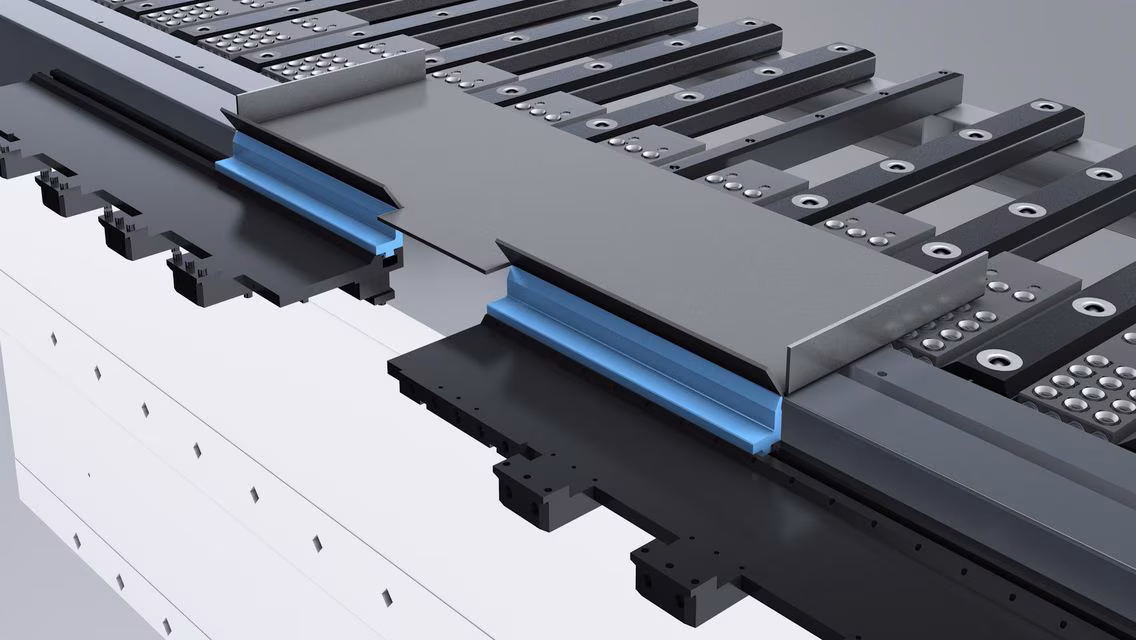

Extra Bending Tools (ZBW): For offset bends, special radii, etc.
Various Gripper Modules: Magnetic, mechanical, or alternative vacuum grippers, depending on the blank shape and area.
Additional Operator Screens / Monitors: For parallel programming and operation.
Other Tooling and Material Options: Depending on the specific order.
