Key Advantages

• Double Folding (Up’n Down): Minimizes manual handling and sheet flipping.

• Full Tool Segmentation: Integrated on the upper, lower, and folding beams.

• Servo-Electric Drives: Maximum positioning and bending accuracy.

• OED Eccentric: Uniform clamping force regardless of the tool height.

• Automation: Vacuum grippers, automatic tool changer, and robot integration.

• ProLink CNC (21.5'' Touchscreen): User-friendly control and programming, including offline capabilities.

• Ecological Efficiency: Low energy consumption and reduced noise levels.

Standard Equipment

Upper Beam (Clamping Beam):

• Combi Design: Rapid switching between a straight rail and high-segmented box tools.

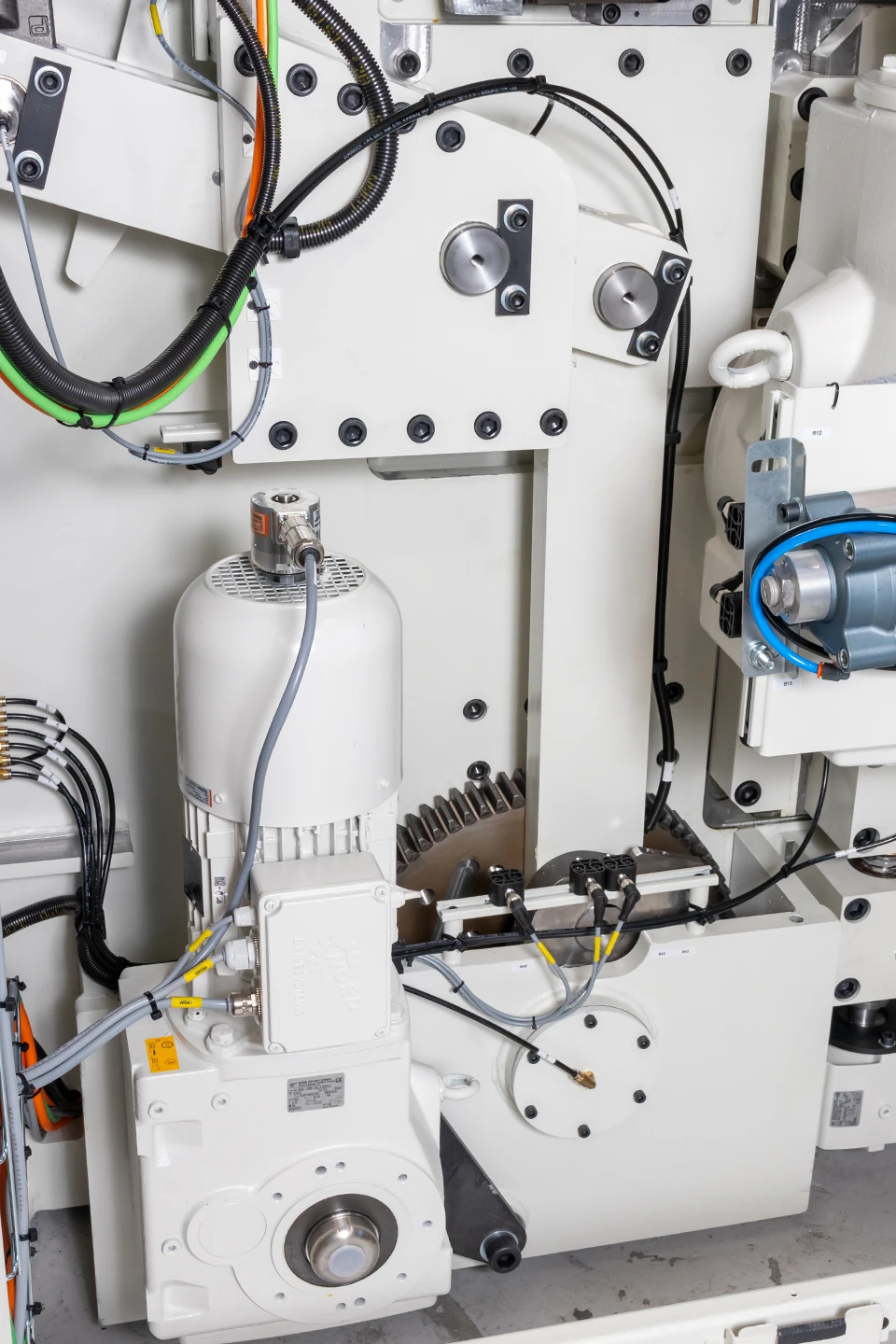

• Patented OED Eccentric: Featuring a double drive system.

• Automatic Adjustment: CNC-controlled clamping force, material thickness, and bending center.

• High-Speed Operation: Rapid opening/closing cycles and large opening height.

Folding Beam:

• Bidirectional Operation: Functions in both Up and Down directions.

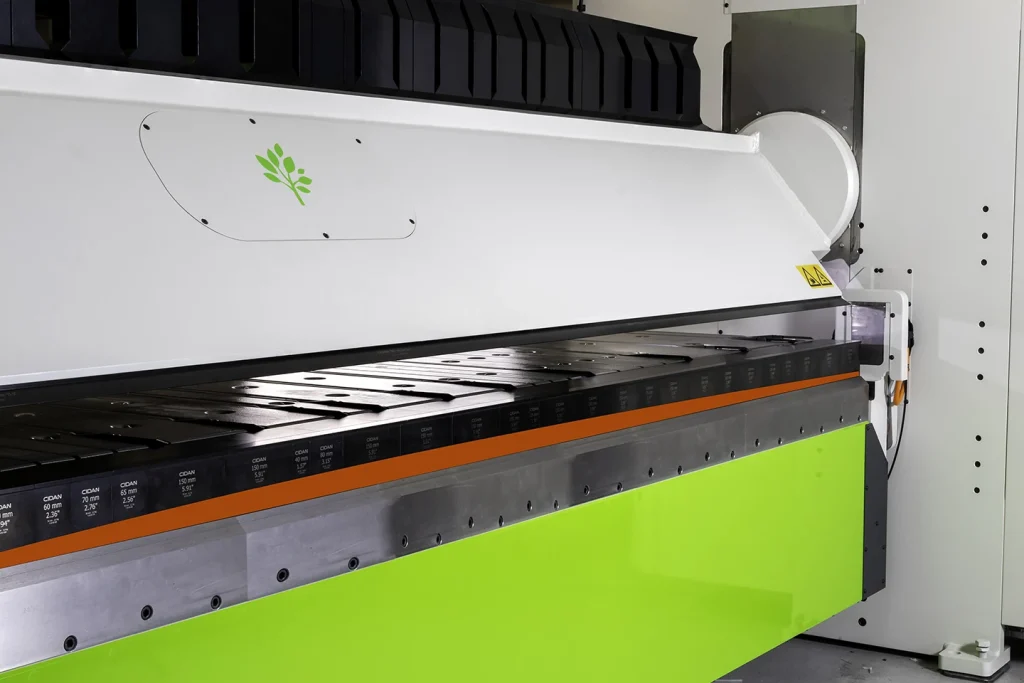

• Automatic Crowning: Integrated tool crowning system.

• Gauge Function: Can be utilized as a front gauge (up to 148 mm).

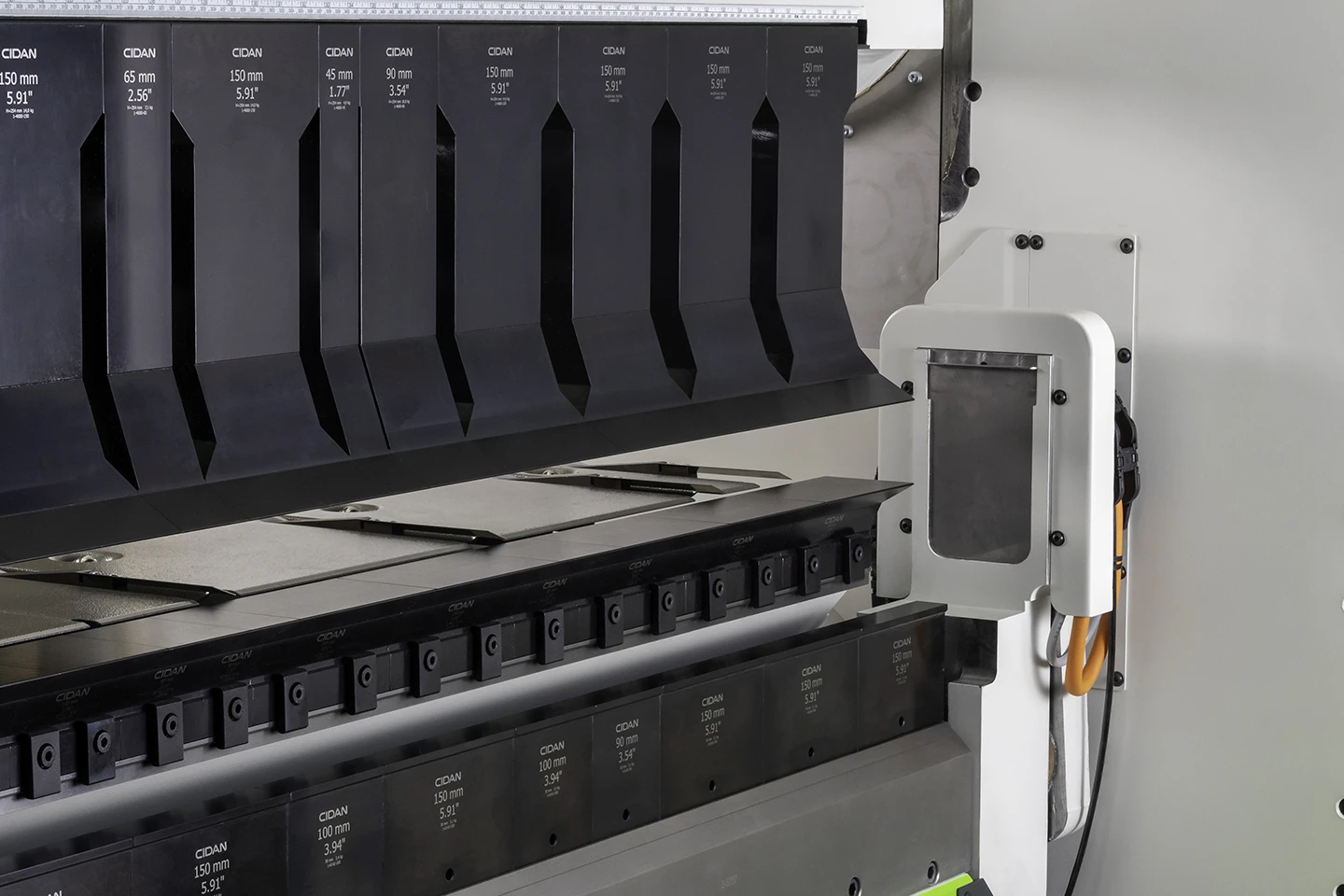

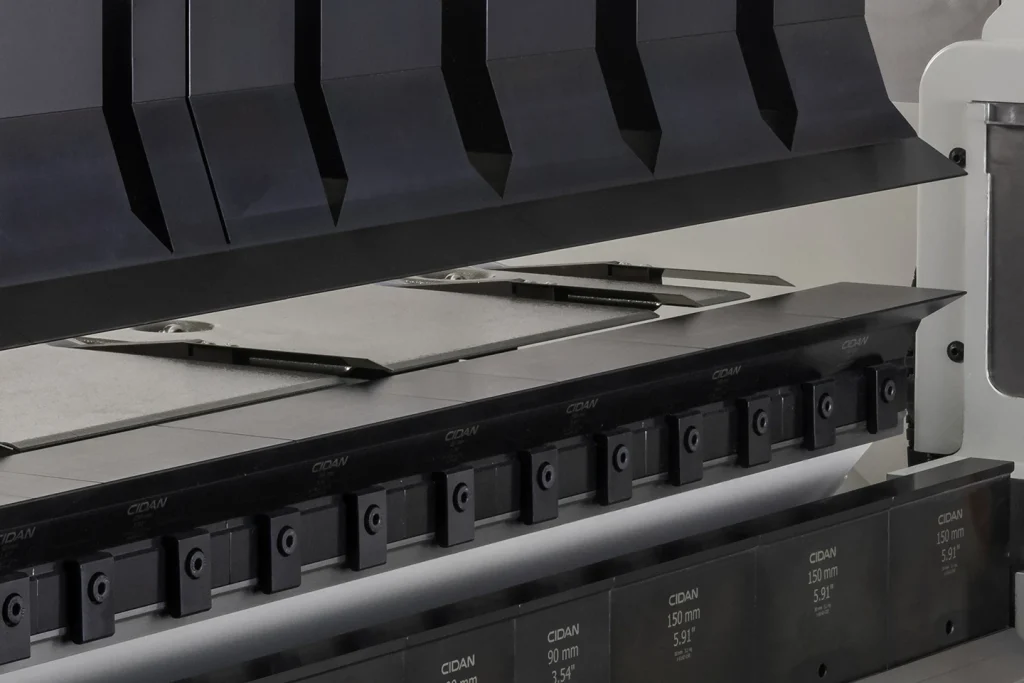

Tooling:

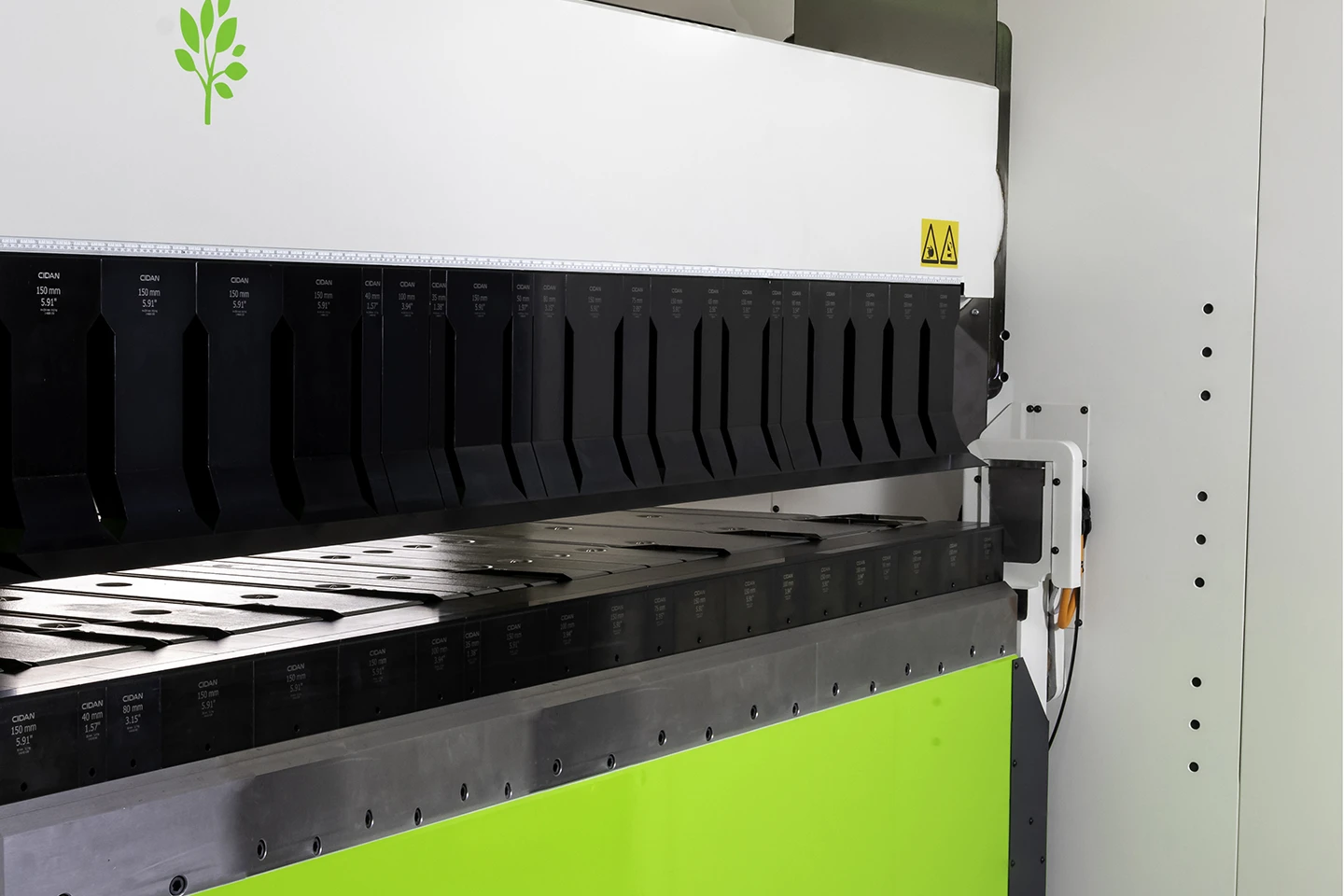

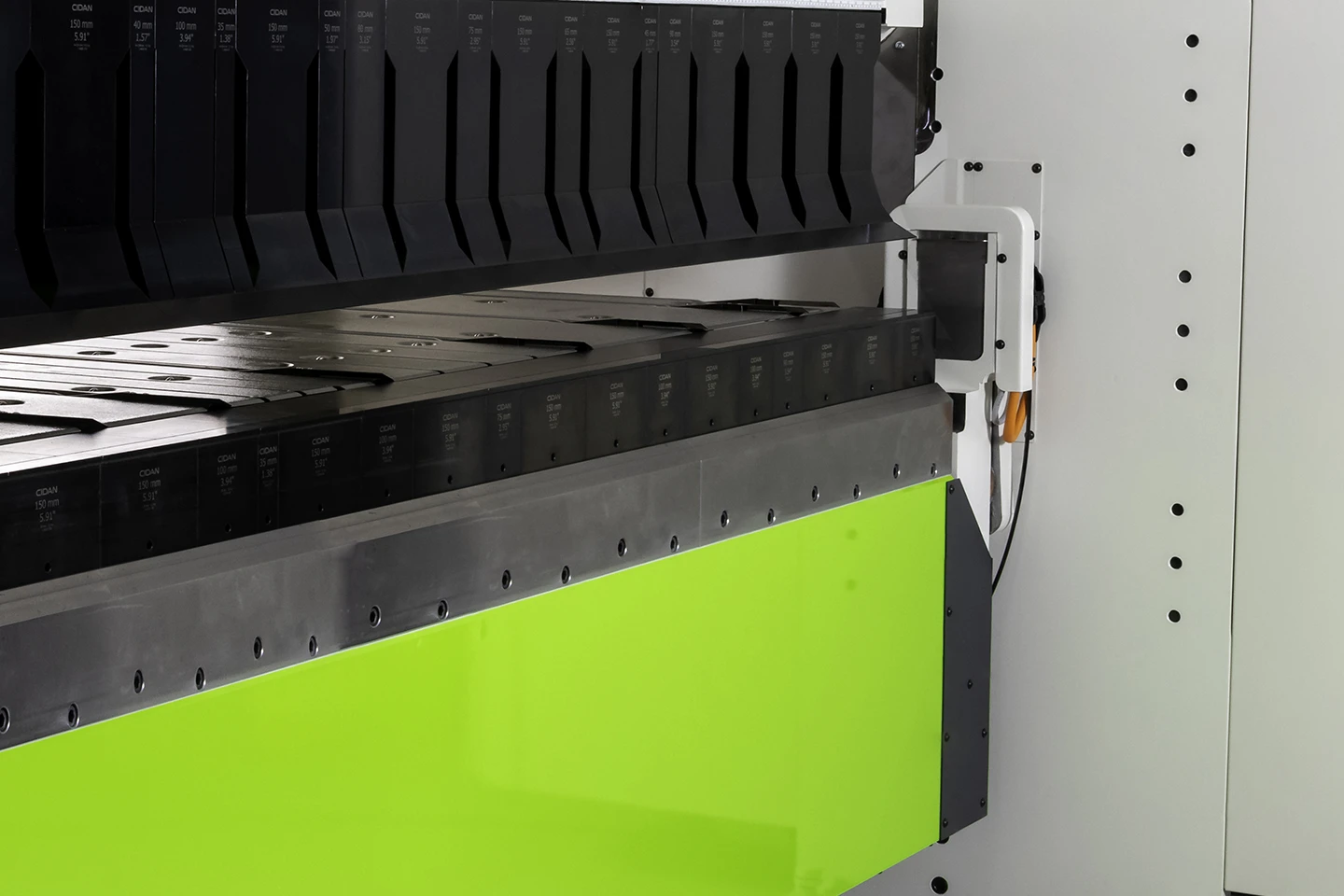

• Fully Segmented: Available for upper, lower, and folding beams.

• High-Clearance Tools: Provides a free space of 276 mm for deep profiles.

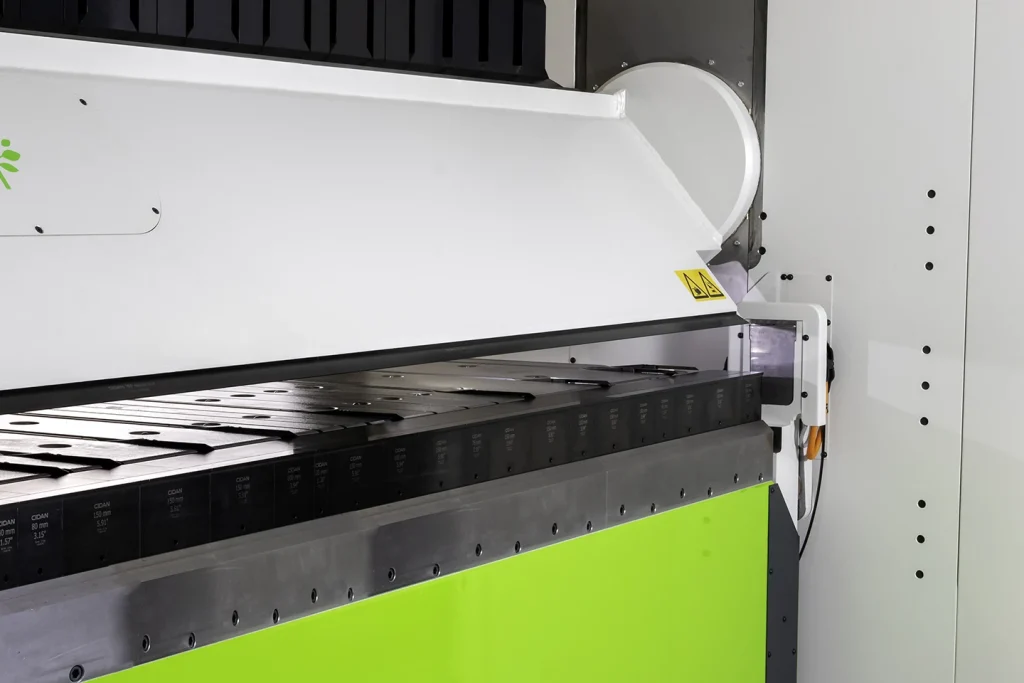

• Divided Straight Rail: Segmented sharp rail (800/900 mm).

• Pneumatic Locking: Automatic system for rapid tool replacement.

AGS Backgauge:

• U-shaped Design: Depth of 1550 mm (sides) and 1050 mm (center).

• Modular Construction: Expandable to J, L, or U configurations.

• Vacuum Integration: Compatible with vacuum grippers for automated sheet manipulation.

ProLink CNC Control System:

• 21.5'' Touchscreen Display.

• Automated Parameter Adjustment: For all bending sequences.

• Software Support: Compatible with AutoPOL 3D-import and ProLink W offline programming.

Safety:

• Laser Floor Scanner.

• Upper Beam Limiter: Safety gap of 6 mm above the material.

• Emergency Protection: 3 emergency stop buttons and 2 foot pedals.

Optional Equipment

• Specialized Tooling: Foldable corner tools for 4-sided boxes; available in standard, hardened, or Toolox quality.

• S1-Tools: Sharp blade tools with R1/R2 radius variants.

• Extended Backgauge: J, L, or U-shaped configurations with height adjustment (0–50 mm).

• Vacuum Modules: 6 or 10 vacuum grippers with independent group control.

• Robot Interface: For full integration into automated production lines.

• Advanced Controls: Side bending control and specific packages for narrow/complex profiles.

Technical Specifications
