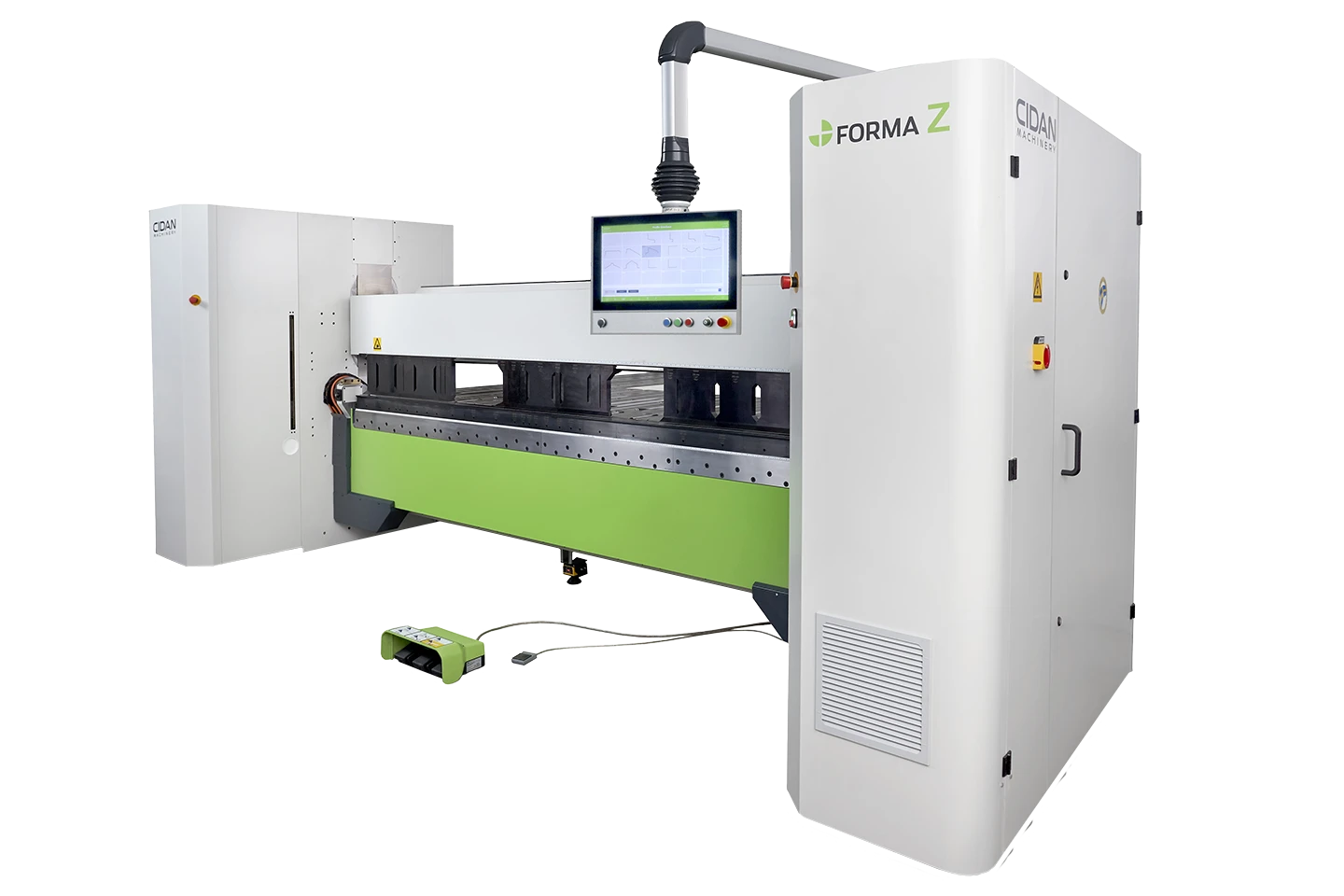

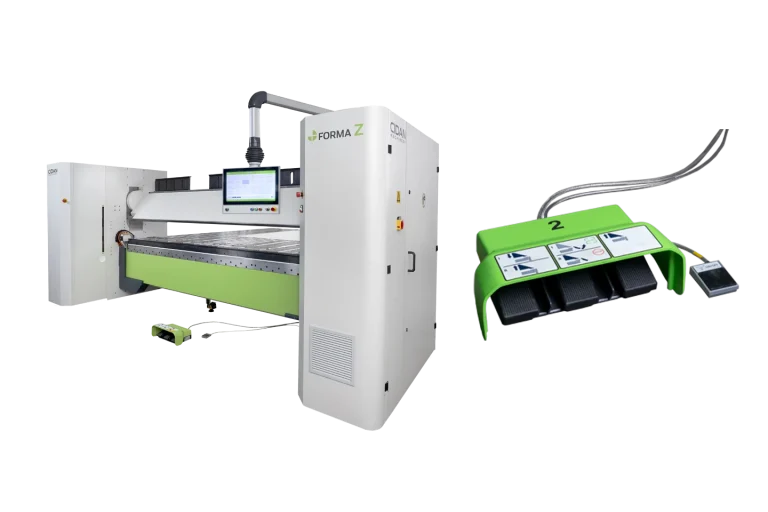

Electromechanical Folding Machine CIDAN FORMA Z 32

Standard Equipment

Up & Down Bending System: Bending in both directions without flipping the material.

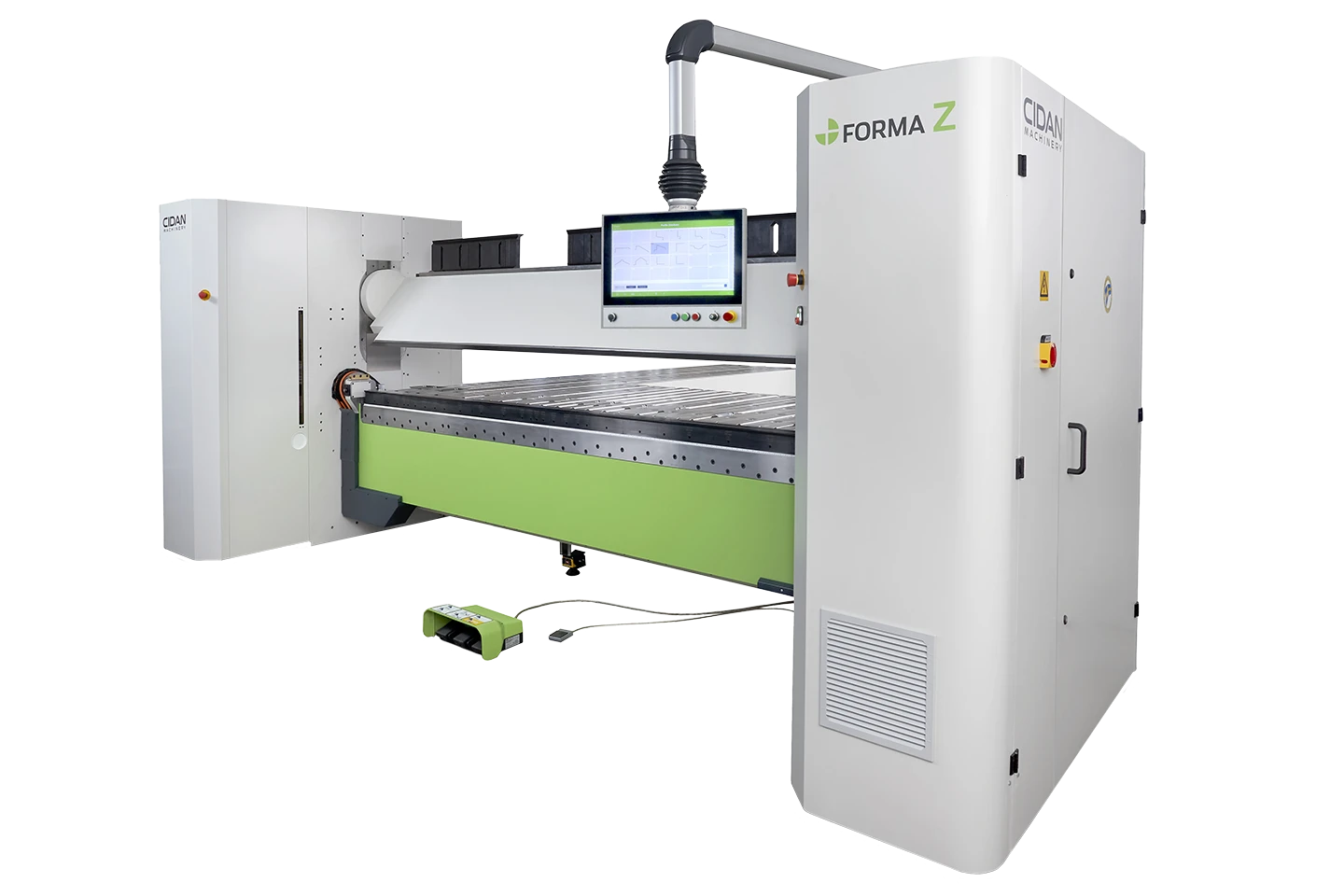

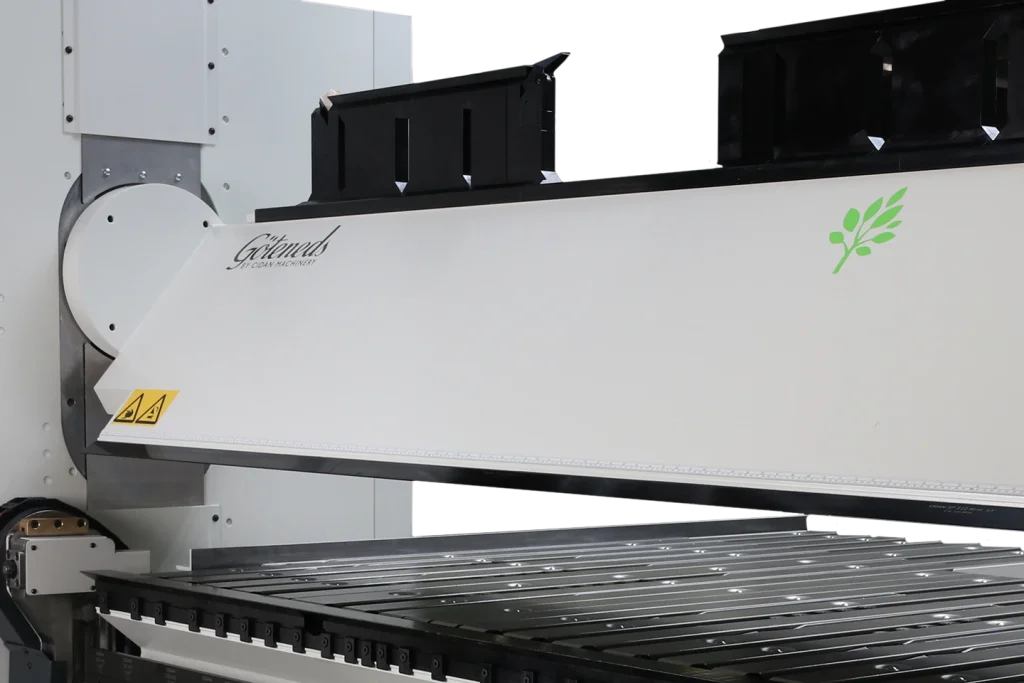

Combi Beam: Includes 203 mm segmented box tools and a 30° straight rail.

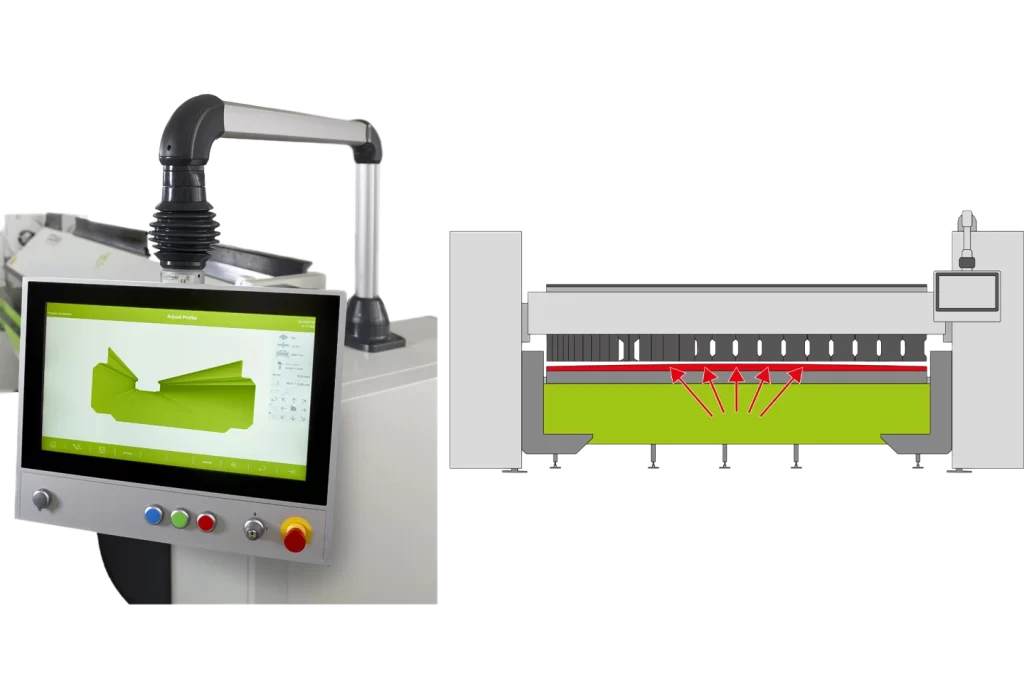

CNC-Controlled Adjustments: Automatic crowning, bending center, and material thickness adjustment.
Servo Drives: Ensures maximum positioning precision.

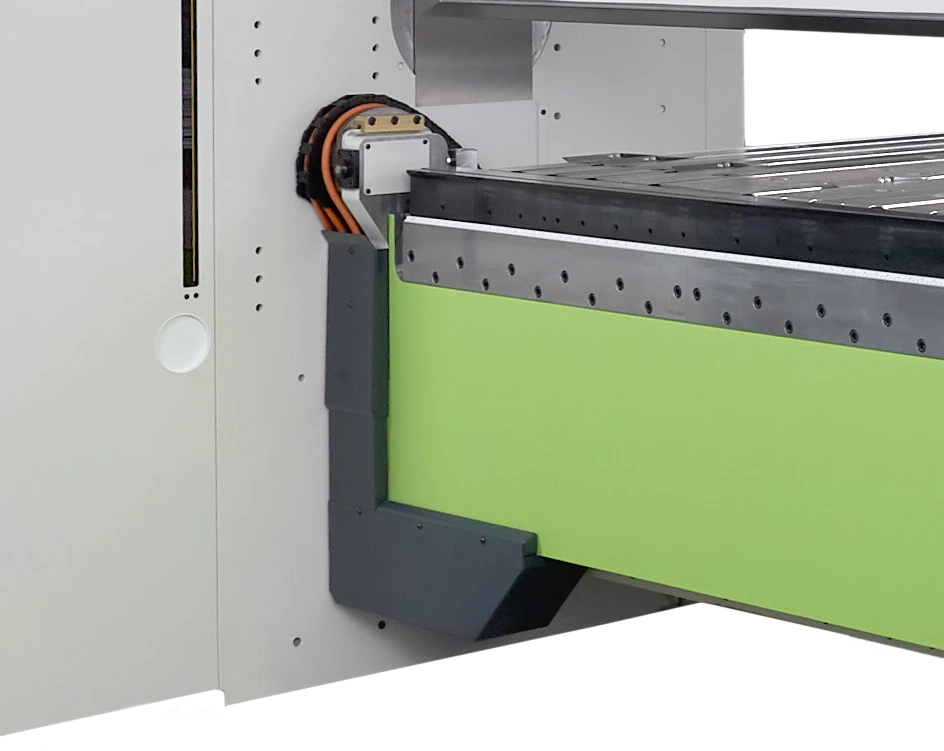

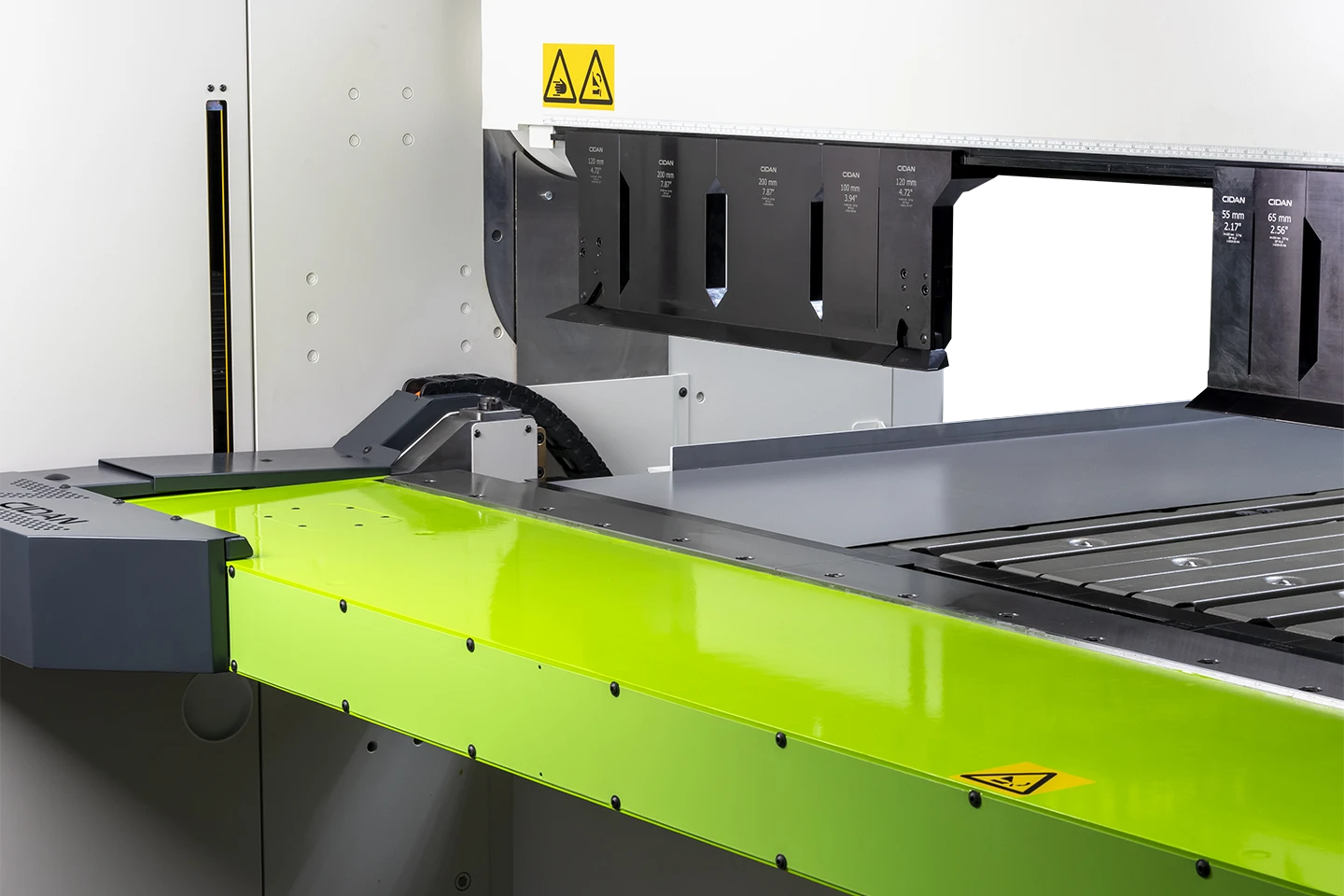

Folding Beam Clearance: 150 mm opening height; the beam can also function as a front gauge.

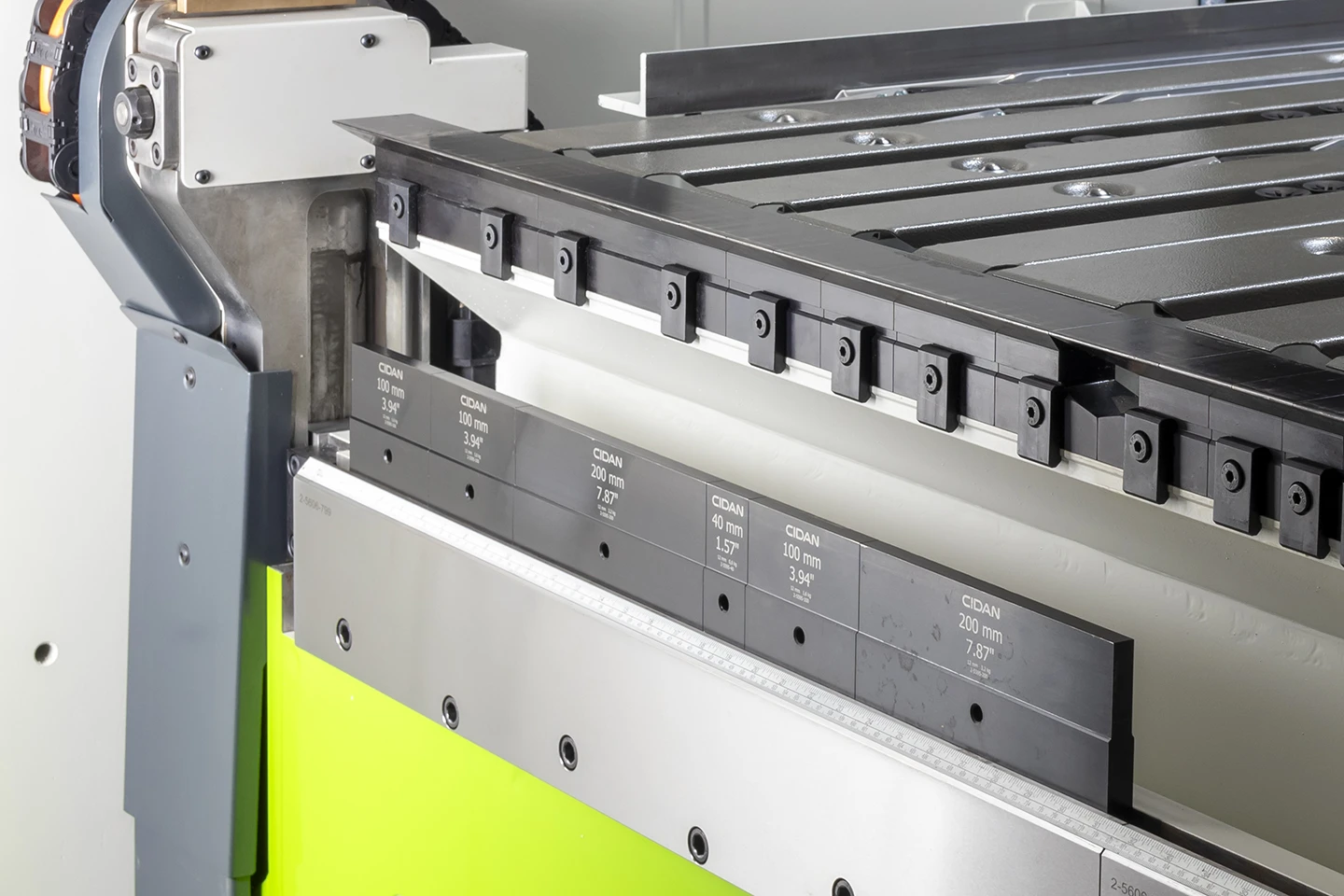

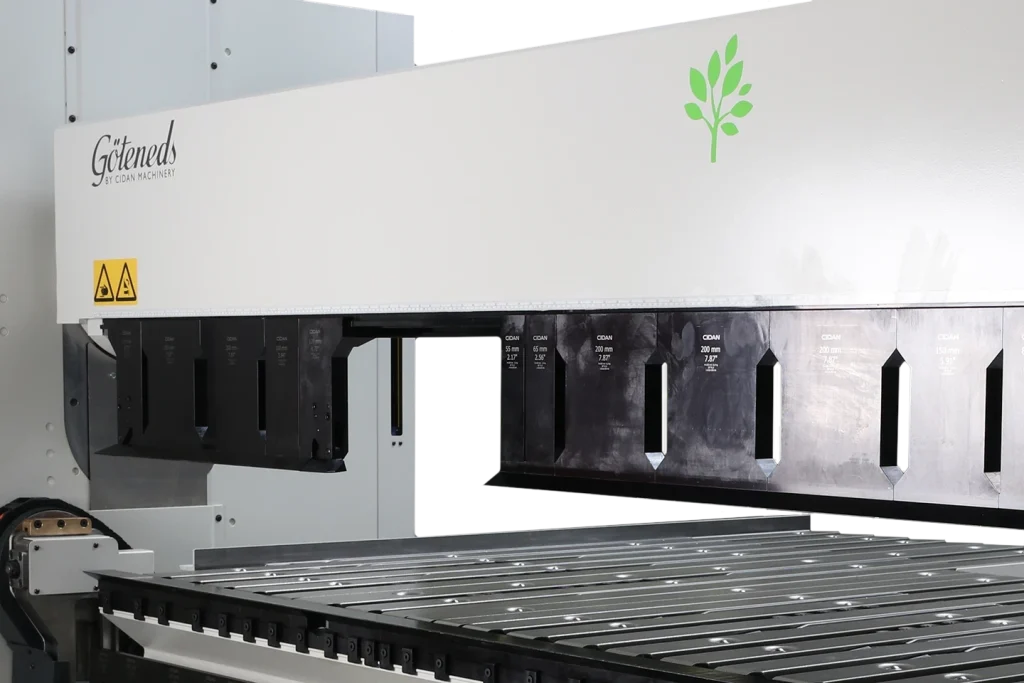

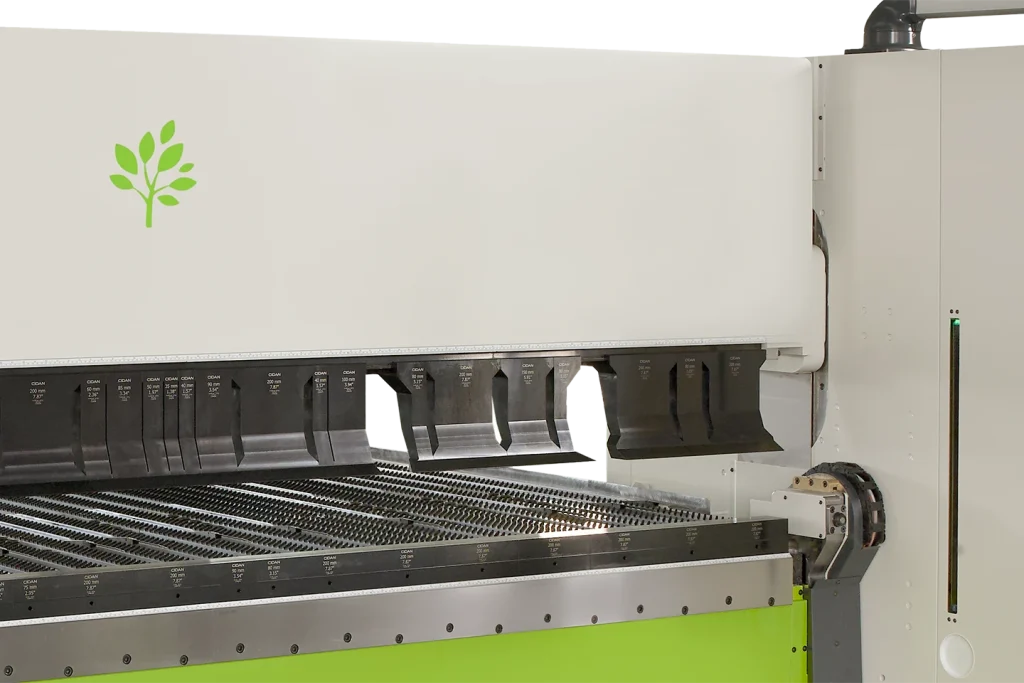

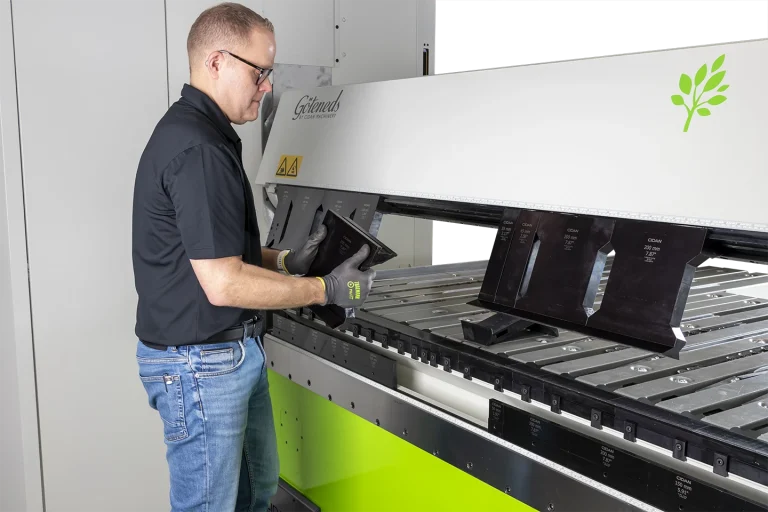

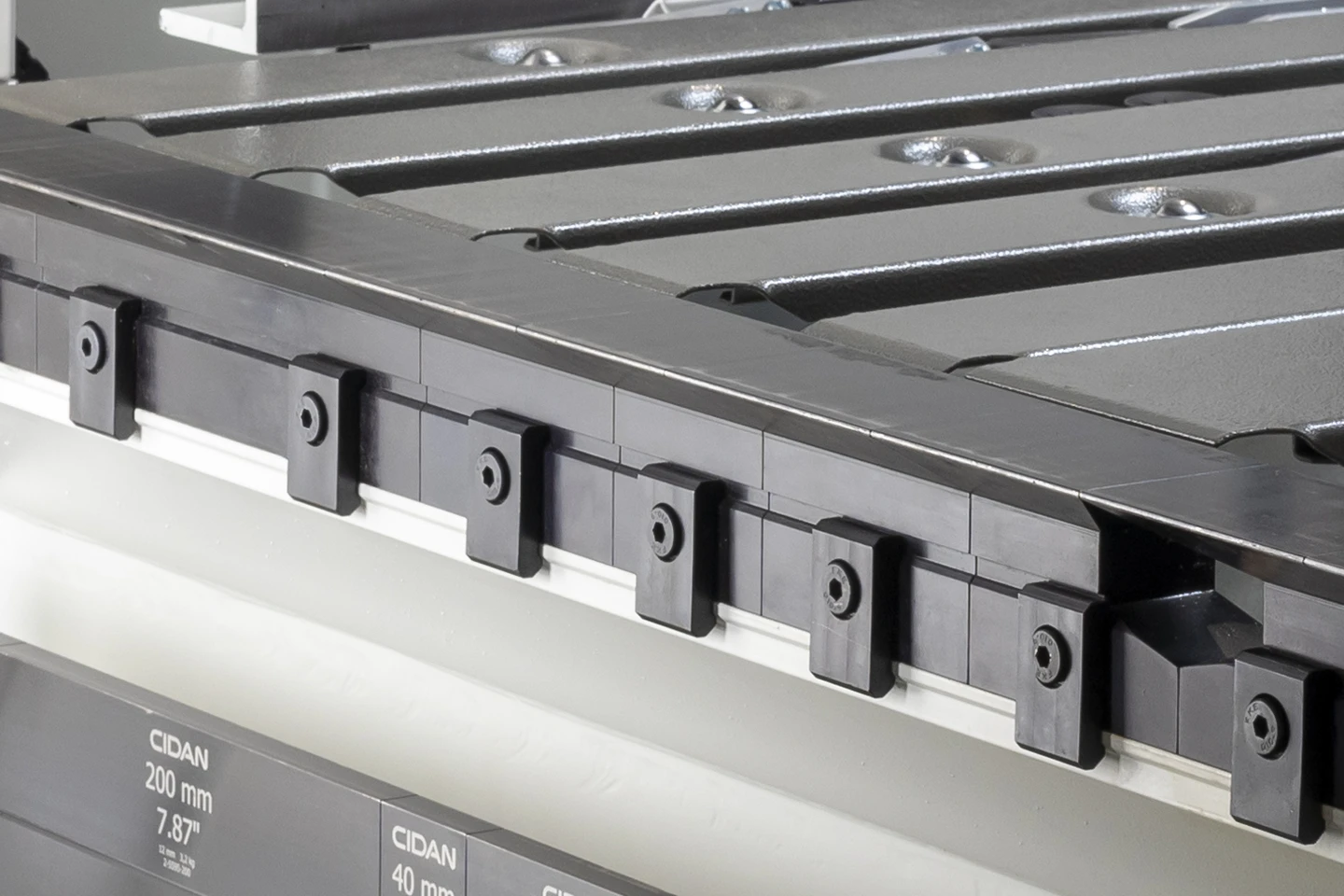

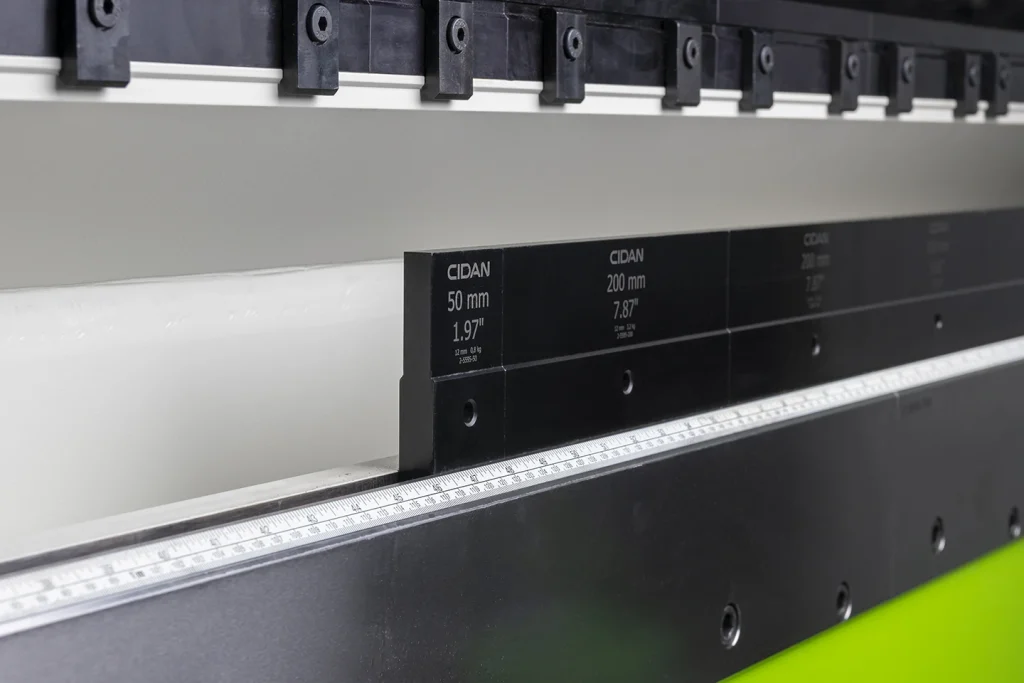

Multifold System: Full tool segmentation in the upper, lower, and folding beams.

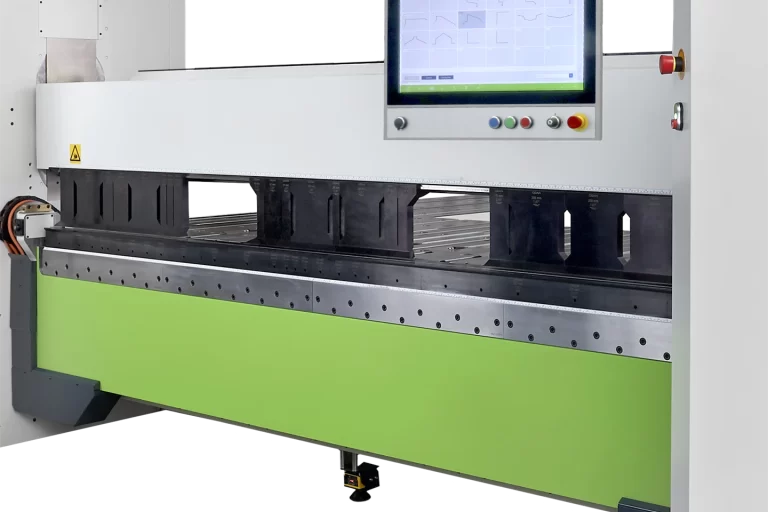

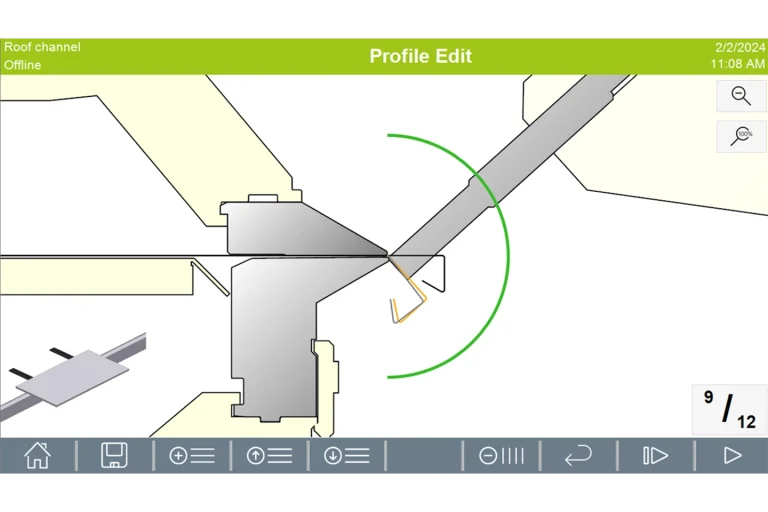

ProLink W: 21.5″ touchscreen with advanced control and automation features.

Options

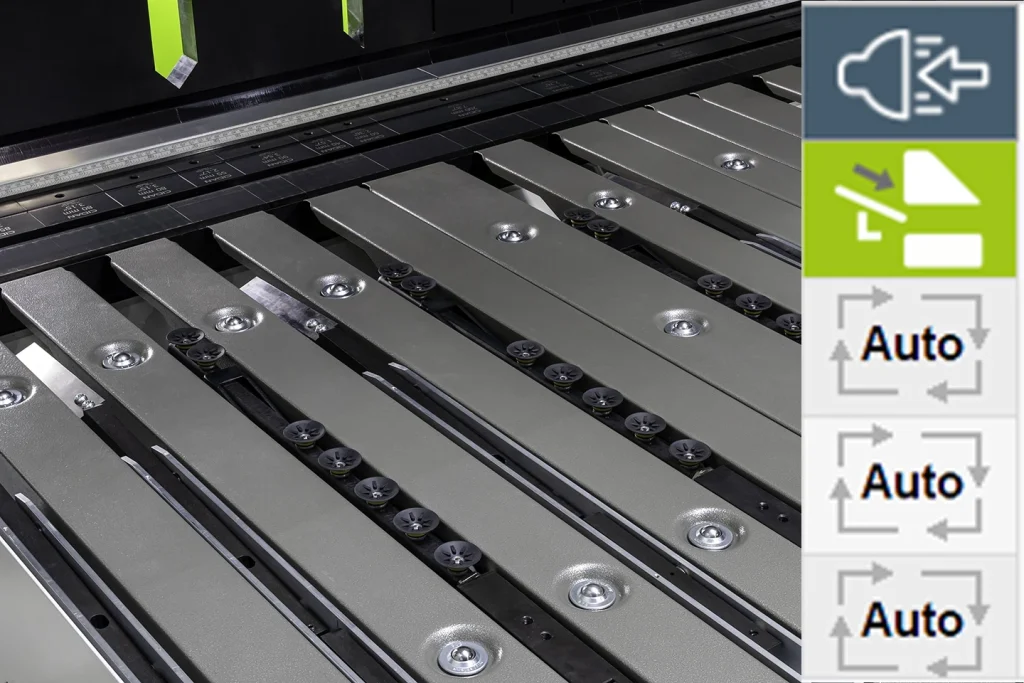

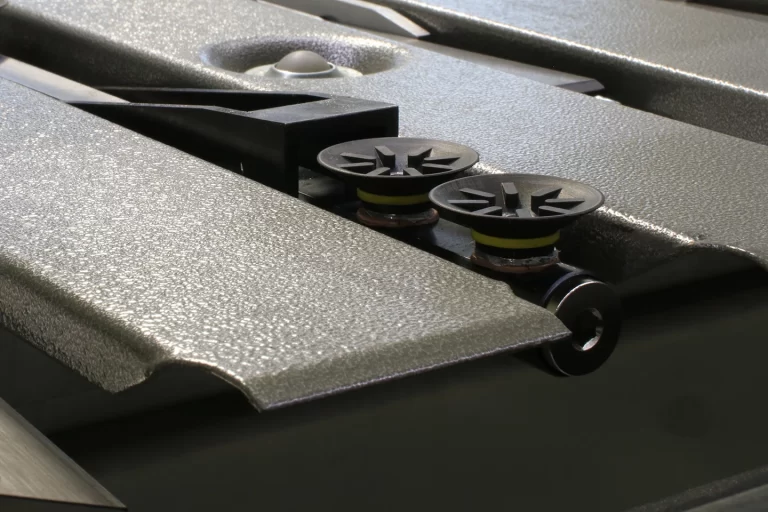

Vacuum Grippers: Integrated into the backgauge for automatic material positioning.

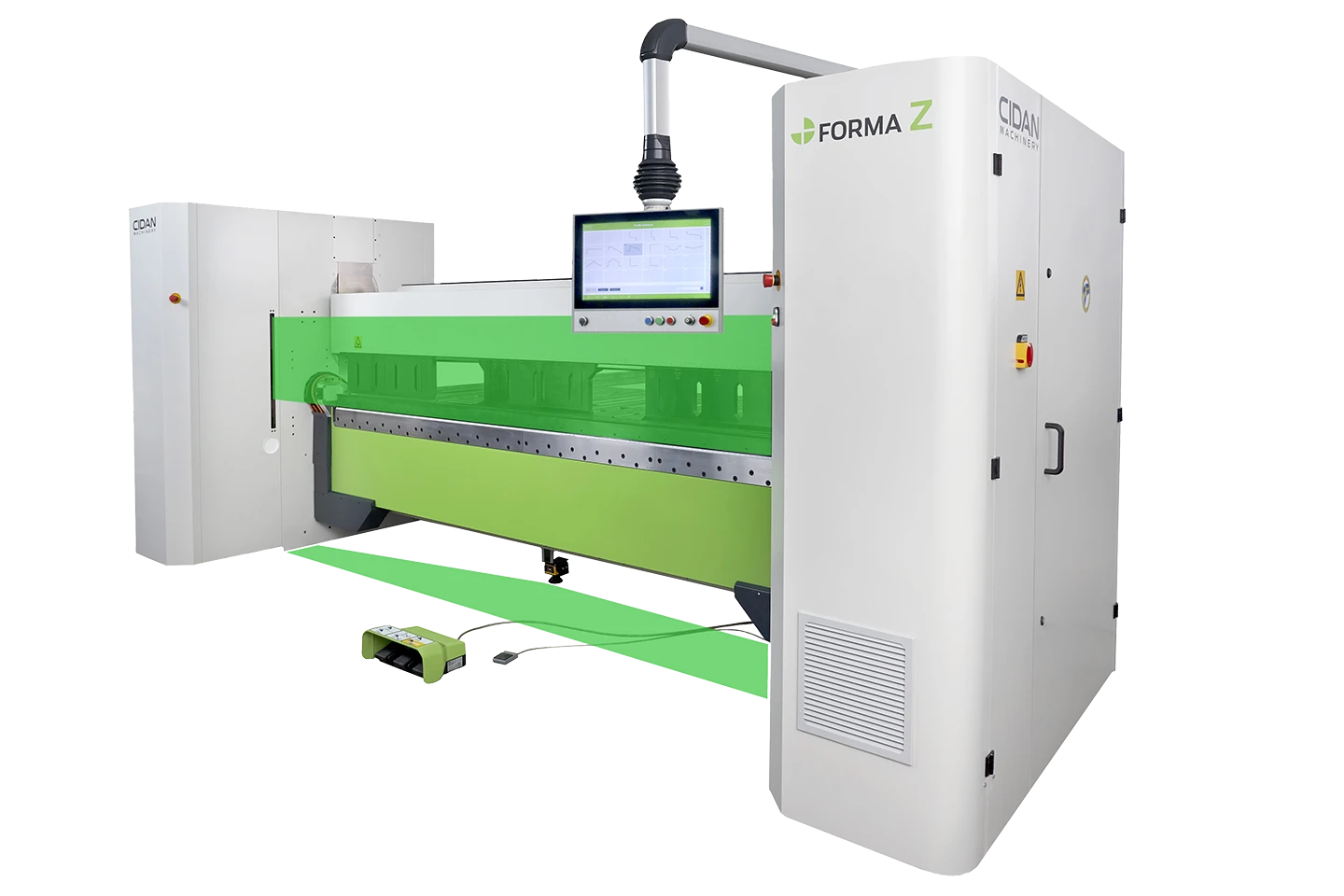

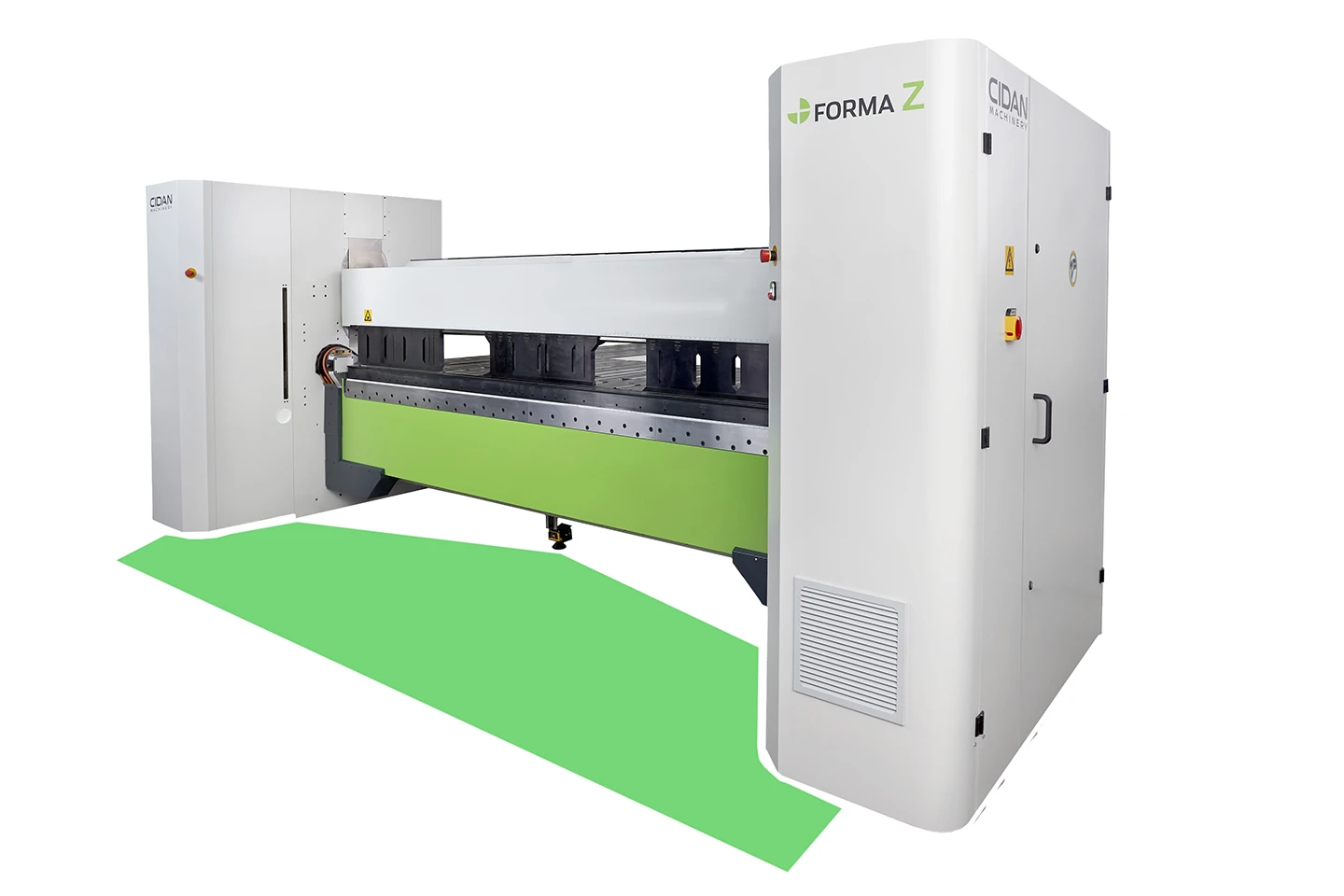

Safety Systems: Laser scanners and light curtains for enhanced operator protection.

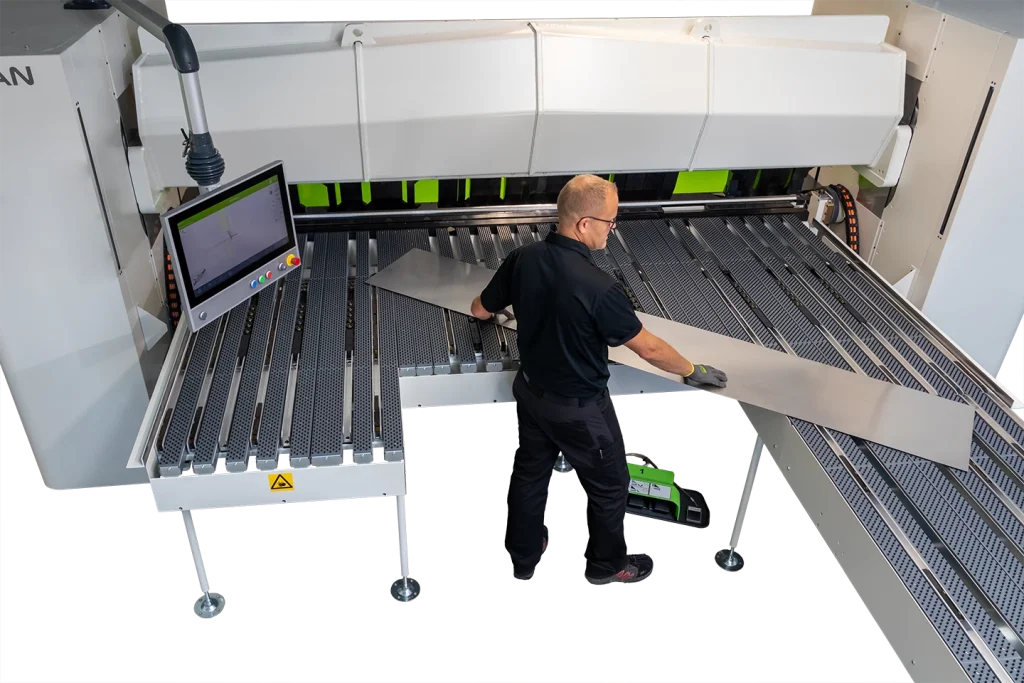

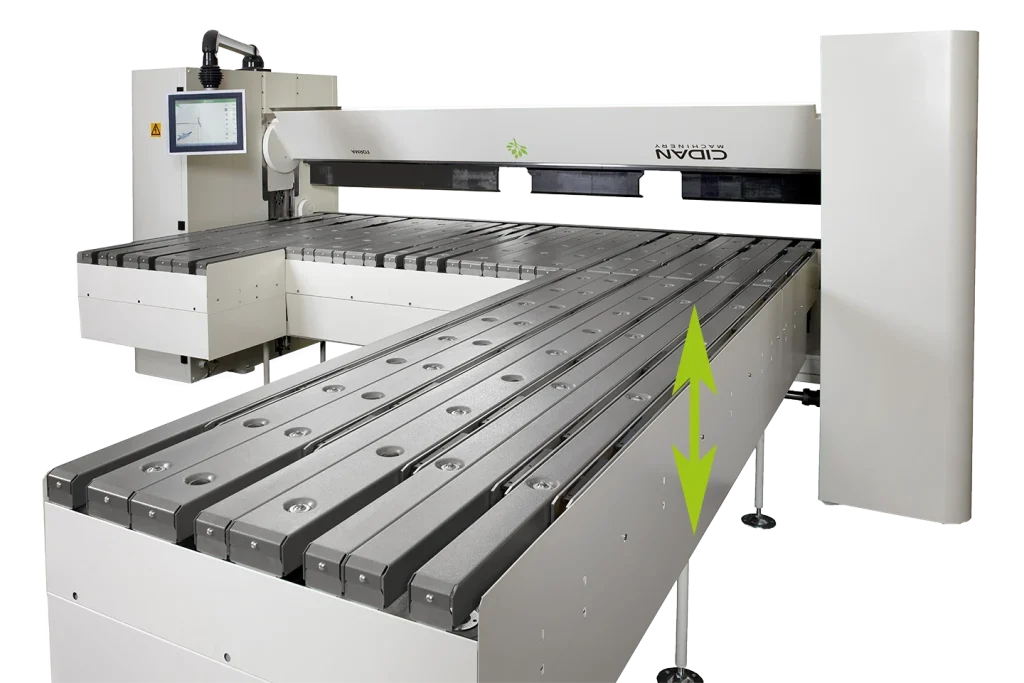

Backgauge Geometries: J-, L-, and U-shape configurations optimized for specific workflows.
Productivity Upgrades: Automatic lubrication, offline programming, tool cart, 3D-import, and additional foot pedals for increased comfort.

Technical Specifications

Parameter	Value
Working Length	3200 mm
Steel Capacity ( $400\text{ N/mm}^2$ )	3.0 mm
Stainless Steel Capacity ( $600\text{ N/mm}^2$ )	2.0 mm
Aluminum Capacity ( $200\text{ N/mm}^2$ )	4.5 mm
Opening Height	210 mm

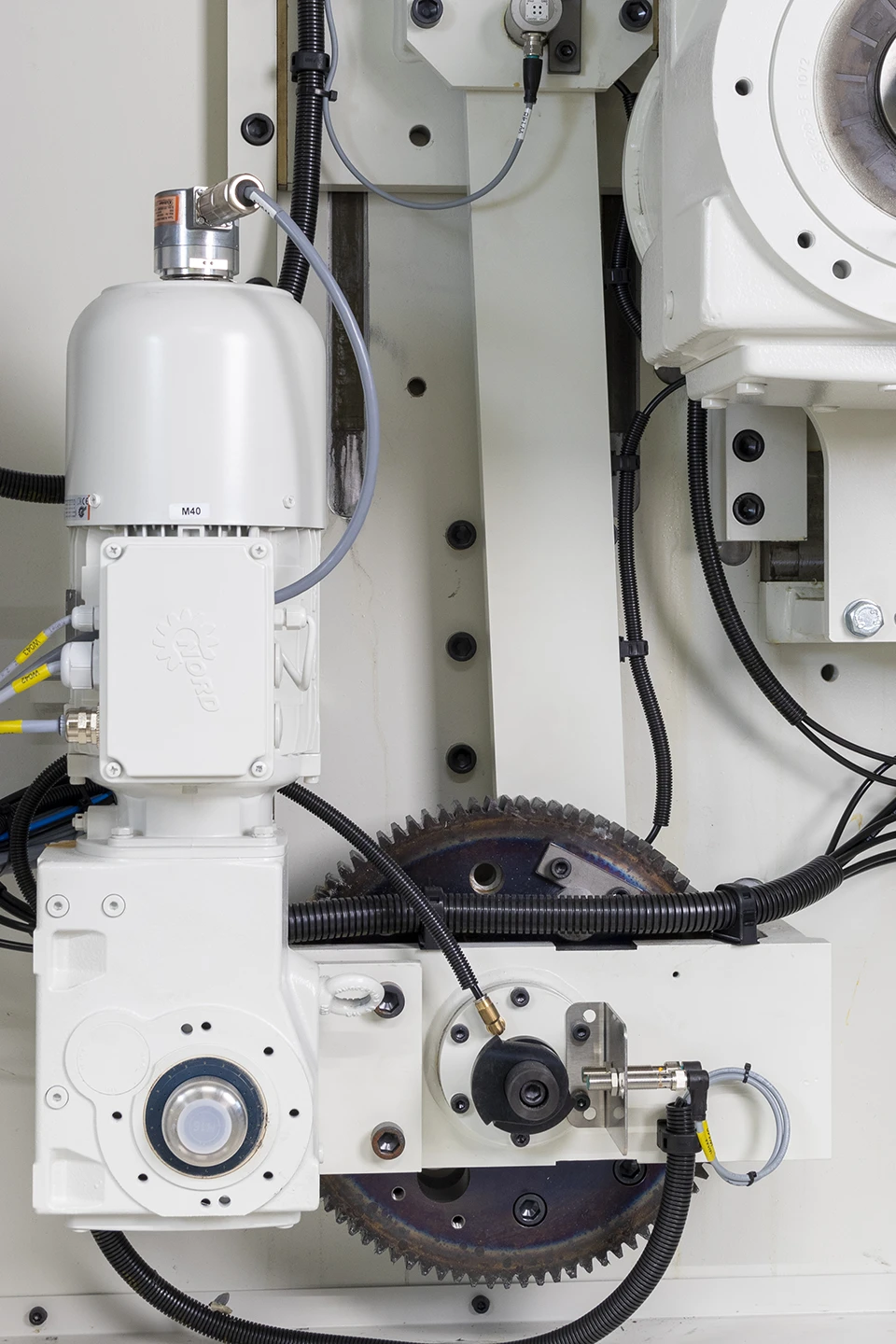

Drives (Clamping / Folding)	$2 \times 1.1\text{ kW} / 2 \times 4.0\text{ kW}$
Weight	6960 kg
Overall Dimensions (L×W×H)	$4900 \times 2750 \times 2000\text{ mm}$
