Advantages and Features

• High Speed and Productivity: Thanks to its direct electromechanical drive, the TruBend 7036 achieves working speeds of up to 25 mm/s, significantly reducing cycle times.

• Ergonomics: The machine is designed for the operator to work comfortably while either standing or sitting. The workstation is equipped with an adjustable support table and an ergonomic seat.

• Exceptional Precision: A 6-axis backgauge system and an inductive length-measuring system with temperature compensation guarantee maximum positioning accuracy and repeatability.

• Reliability: The TRUMPF TASC 6000 control system ensures stable, trouble-free operation, while BendGuard—a laser-based safety system—ensures maximum operator protection.

Standard Equipment

• Direct Electromechanical Drive: High-dynamic servo drive for a fast and energy-efficient bending process.

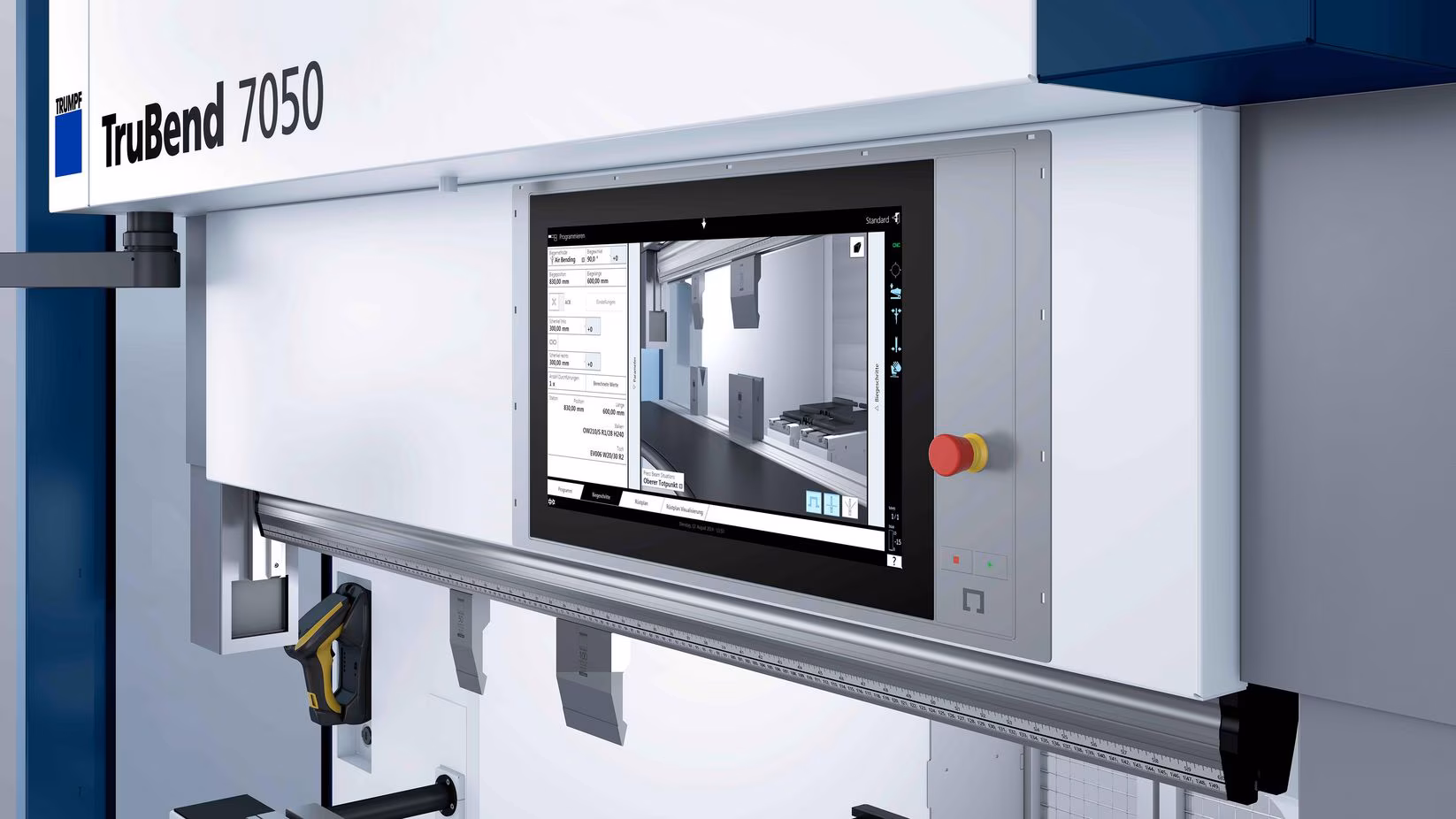

• TRUMPF TASC 6000 Control System: A powerful CNC system designed for intuitive operation and programming.

• 6-Axis Backgauge System: High-precision system allowing for part positioning across X1, X2, R1, R2, Z1, and Z2 axes.

• Safety Features: BendGuard laser safety system and a dual-section foot switch for safe operation in both sitting and standing positions.

• Ergonomic Workstation: Adjustable support table and operator seating for enhanced comfort.

Options and Additional Equipment

• Angle Measurement Systems: ACB Wireless (wireless sensor for angle measurement) and ACB Laser (laser angle control) for guaranteed precision.

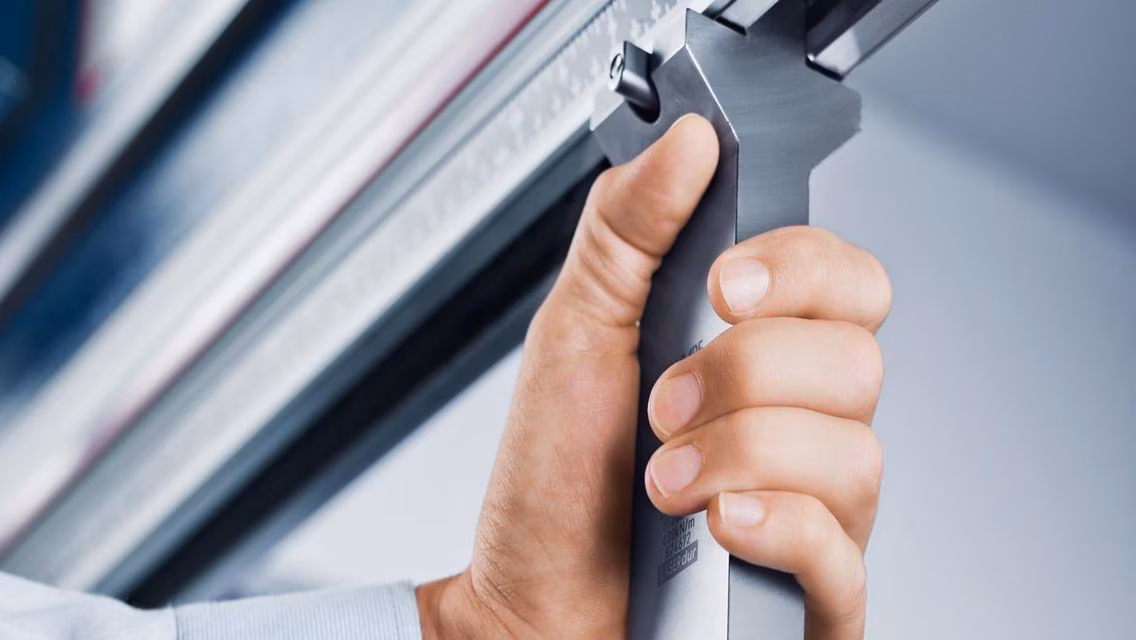

• Automated Tooling: Wila quick-change tool clamps to minimize setup and changeover times.

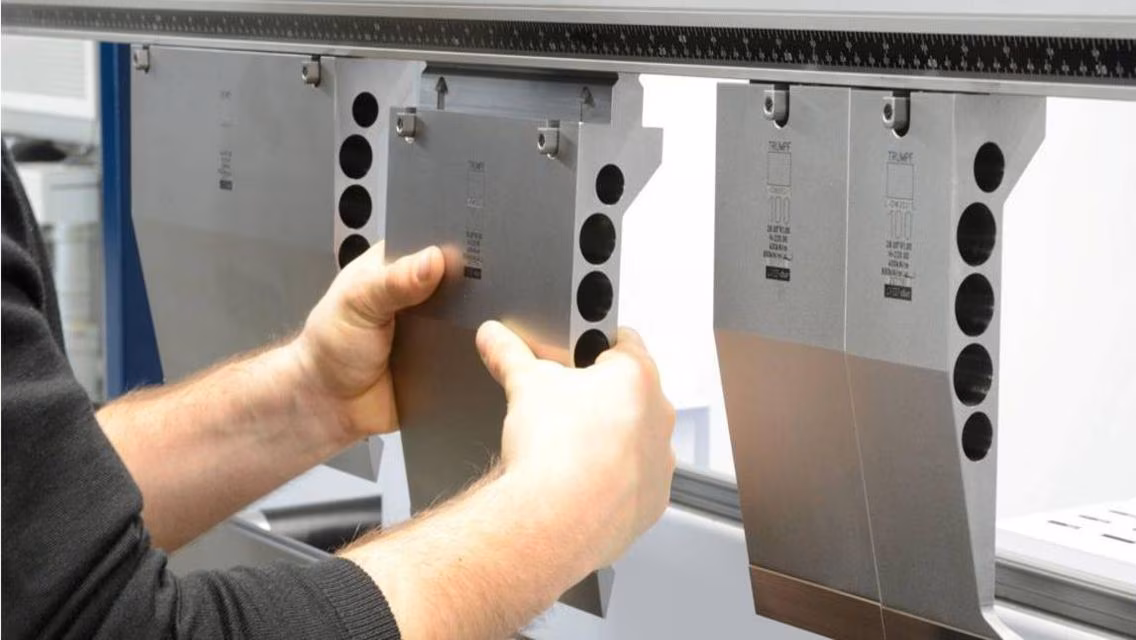

• Specialized Tooling: TRUMPF offers a wide selection of specialized bending tools, including options for working with galvanized sheets.

• 2D Code Scanner: Automatically reads and loads bending programs, streamlining the production workflow.

• Automation Upgrades: Capability to integrate into the Flex Cell high-speed bending production complex for fully automated manufacturing.
