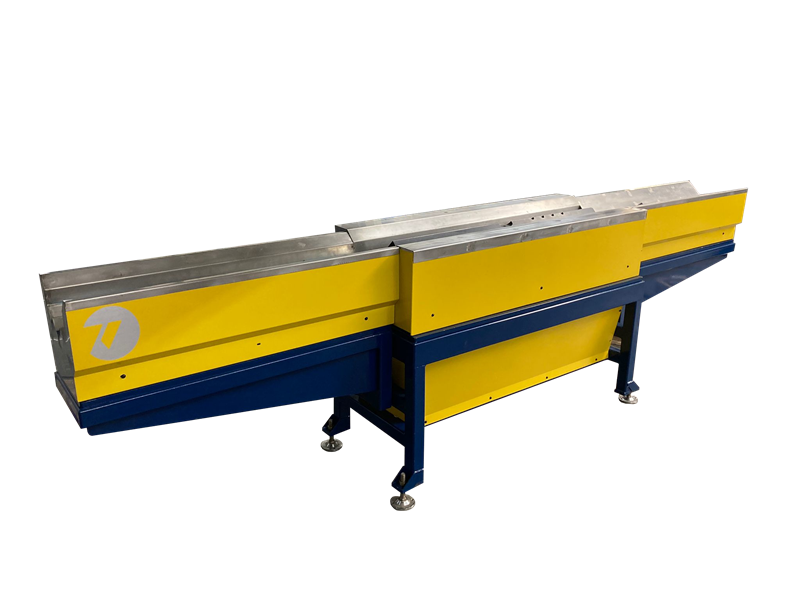

Electromechanical Seam Closing Machine Wammes Duct Seamer DS 1.0

Electromechanical Seam Closing Machine Wammes Duct Seamer DS 1.0 - Image 2

Electromechanical Seam Closing Machine Wammes Duct Seamer DS 1.0

Forming Seam Closing Machines Brand: Wammes

Order a product

Technical specialist

Wammes Duct Seamer DS 1.0 is a high-efficiency electromechanical machine from the German company Wammes Machinery GmbH. It is specifically designed to simultaneously form the corner lock (“male” and “female”) on two opposite sides of a rectangular duct and close it in a single pass. This versatility makes it exceptionally productive for the manufacturing of rectangular HVAC ductwork, reducing the need for additional equipment and multiple operators.

Features and Advantages

Feature	Advantage
Comprehensive One-Pass Processing	Resource Savings — combines flange profiling and seam closing into a single operation, significantly increasing productivity and reducing production costs.
Ductwork Specialization	High Quality — specifically optimized for four-sided duct workpieces, ensuring a precise and reliable corner seam.
Low Resource Consumption	Cost-effectiveness — efficient and productive equipment that saves labor, ultimately lowering overall manufacturing expenses.
Optimal Working Speed	Production Speed — a working speed of approximately 10 m/min ensures rapid assembly of even long duct sections.
Rigid Construction	Reliability — the robust machine design guarantees durability and consistent seam quality over a long service life.

Standard Equipment

Robust Welded Frame: Ensures machine stability during high-speed operations.
Integrated Electromechanical Drive System: Rated at 5.5 kW.
Forming and Closing Roller Set: Hardened rolls)mounted on heavy-duty axes for simultaneous profiling and closing of the corner lock.
Infeed and Outfeed Tables: Designed to support oversized workpieces.
Control Panel: Equipped with necessary safety elements and emergency stops.

Technical Specifications

Parameter	Value
Max. Material Thickness (Galvanized Steel)	0.5–1.0 mm
Min. Duct Cross-Section	$150 \times 150 \text{ mm}$
Working Speed (approx.)	10 m/min
Motor Power	5.5 kW
Power Supply	$3 \times 400 \text{ V}; 50 \text{ Hz}$
Table Height (from floor)	950 mm
Dimensions ( $L \times W \times H$ )	$4520 \times 820 \times 1100 \text{ mm}$
Weight	1200 kg
