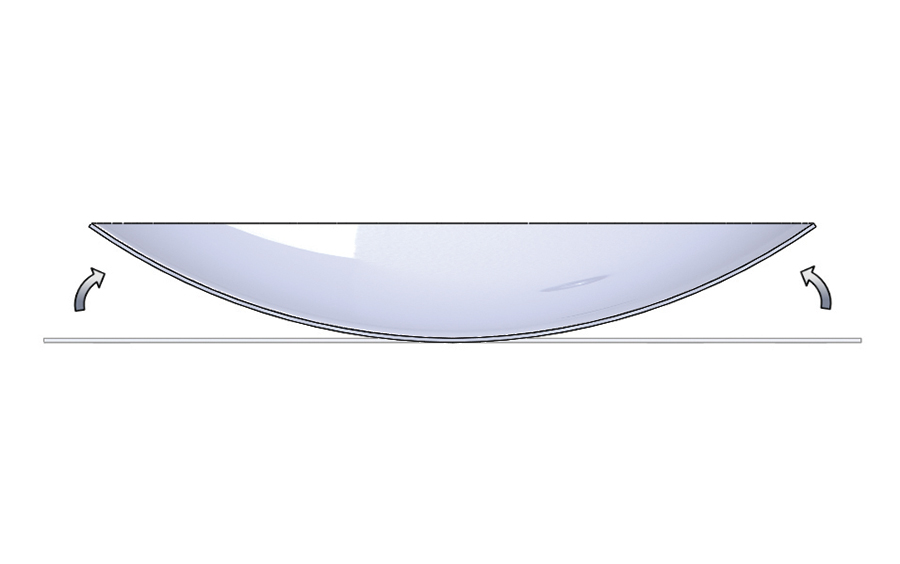

BENDMAK BMBP 800xD from Bendmak Makine (Turkey) is a 800-ton hydraulic dishing press designed for forming dished ends for tanks, boilers, and pressure vessels. It is part of the BMBP series, which offers capacities ranging from 100 to 1200 tons. The primary function of the press is to give a spherical or “domed” shape to pre-cut circular metal blanks before they proceed to the flanging stage. Engineered as a HEAVY DUTY machine, it ensures high productivity and long-term reliability.
Features and Advantages
Standard Equipment
Hydraulic Press Unit: High-capacity industrial hydraulic system.
Welded Steel Frame: Provides the necessary strength and stability for heavy-duty forming.
User-Friendly Control System: Operator panel designed for intuitive navigation.
Safety System: Includes an emergency stop function for immediate interruption of the stroke.
Options
Hydraulic Manipulator (BMA): Enables automatic manipulation of large, heavy workpieces for precise and consistent pressing patterns.
Die Sets (Stamps): A variety of dies for forming dished ends with different diameters and radii (e.g., torispherical, ellipsoidal).
Special Attachments: Tools for forming perforated dished ends or those with pre-cut openings.
Technical Specifications
BMB-P_dishing_press
