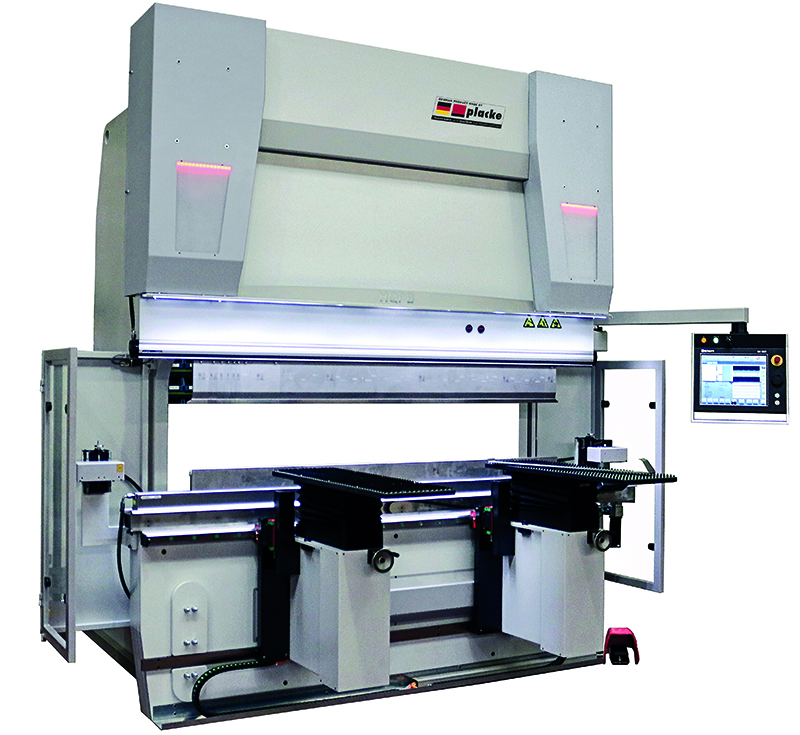

Advantages and Features

• High Precision: The advanced hydraulic system coupled with the ESA S 640 control system guarantees high bending accuracy and excellent repeatability.

• Intuitive Control: Operation is handled through an intuitive touchscreen, allowing for rapid programming and machine setup.

• Operational Flexibility: Thanks to its compact dimensions and universal equipment, the machine is perfectly suited for small to medium-sized production facilities.

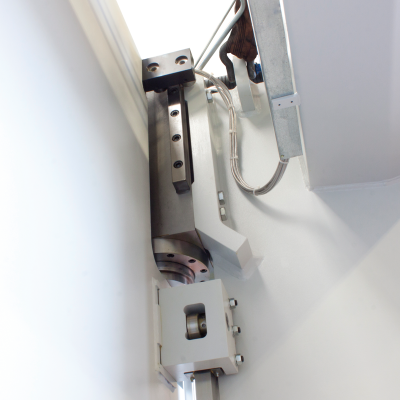

• Energy Efficiency: An optimized hydraulic system ensures efficient energy consumption and quiet operation.

Standard Equipment

• Robust Frame Construction: Manufactured from high-quality steel to guarantee machine stability and a long service life.

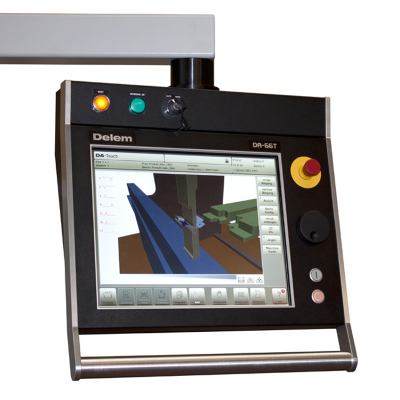

• Control System: ESA S 640 with a 15-inch touchscreen, featuring automatic bend sequence calculation and 3D visualization to significantly simplify the programming process.

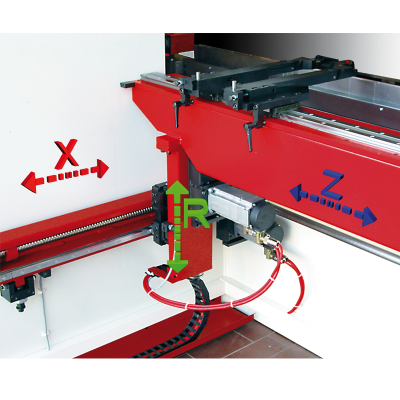

• Backgauge System: An automatic 2-axis system for fast and precise sheet positioning.

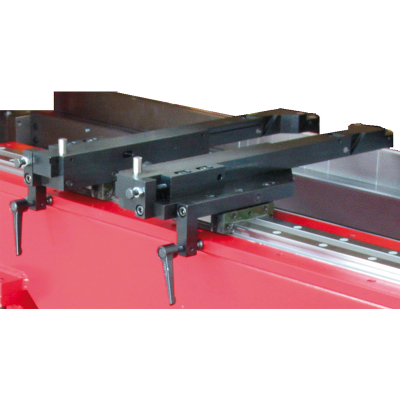

• Quick-Change Clamps: Modern tool clamping systems that ensure easy and rapid tool changeovers.

• Workpiece Support: Two height-adjustable supports that move along the X-axis to provide stability for workpieces during the bending process.

Options and Additional Equipment

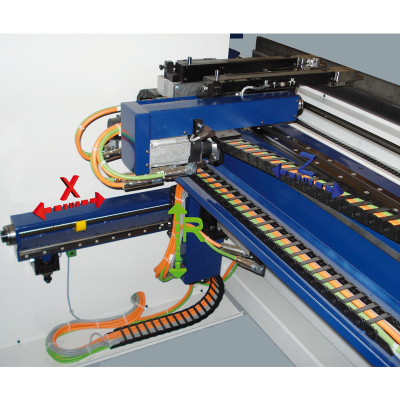

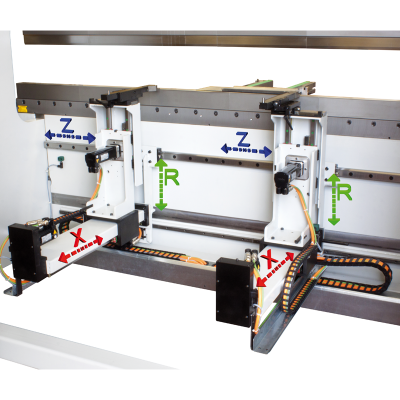

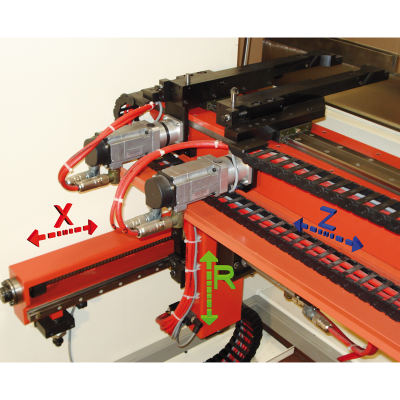

• Extended Axis Configuration: The backgauge can be expanded up to 6 axes (X, R, Z1, Z2), enabling more complex and precise bending operations.

• Angle Measurement Systems: Options for real-time high-precision angle measurement using laser systems.

• Hydraulic Clamping: Systems for rapid and automatic tool clamping.

• Heavy-Duty Bending Supports: Powerful mobile supports designed for handling large and heavy components.

• Specialized Tooling: Custom-ordered tools tailored for specific or non-standard bending requirements.

Technical Specifications
