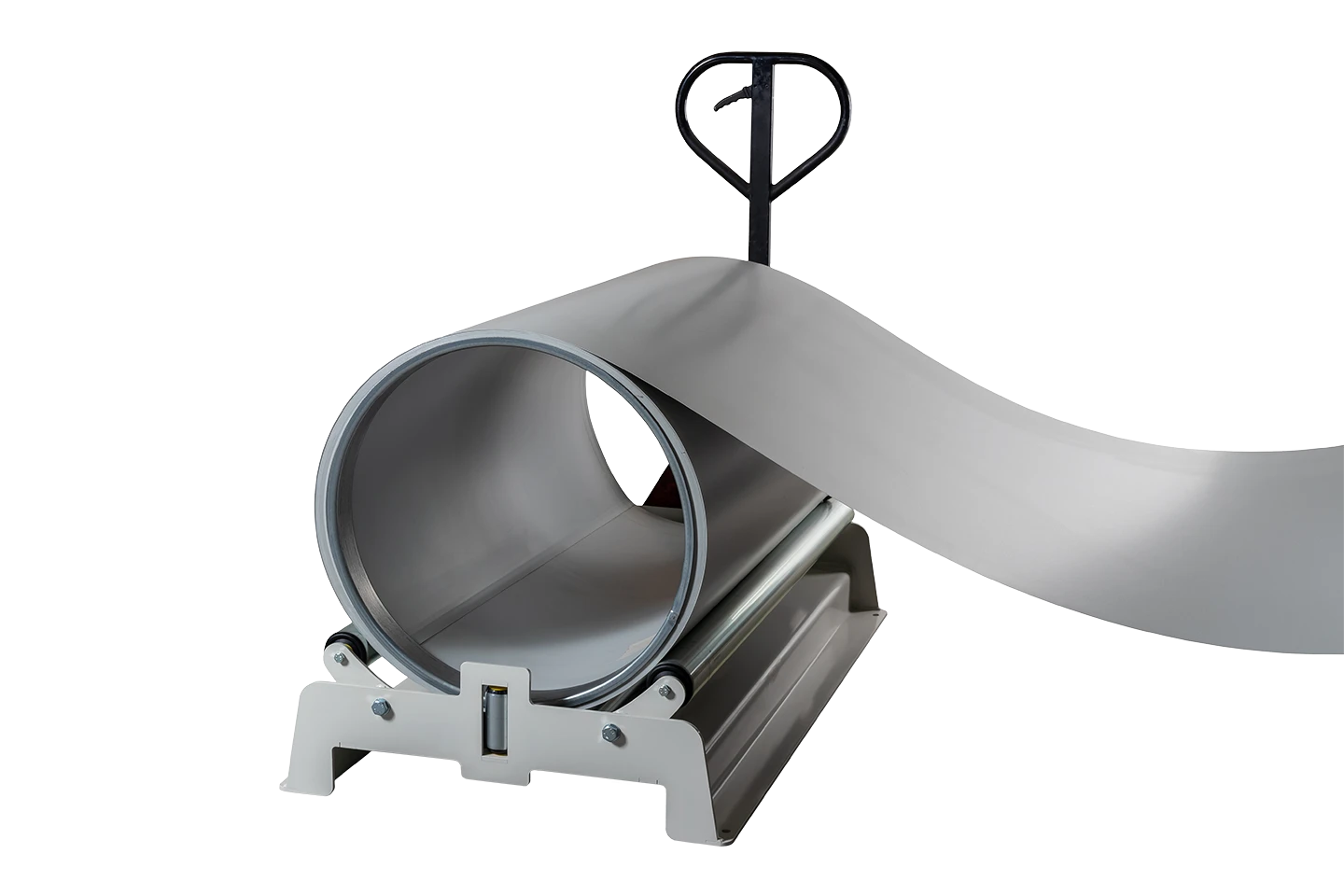

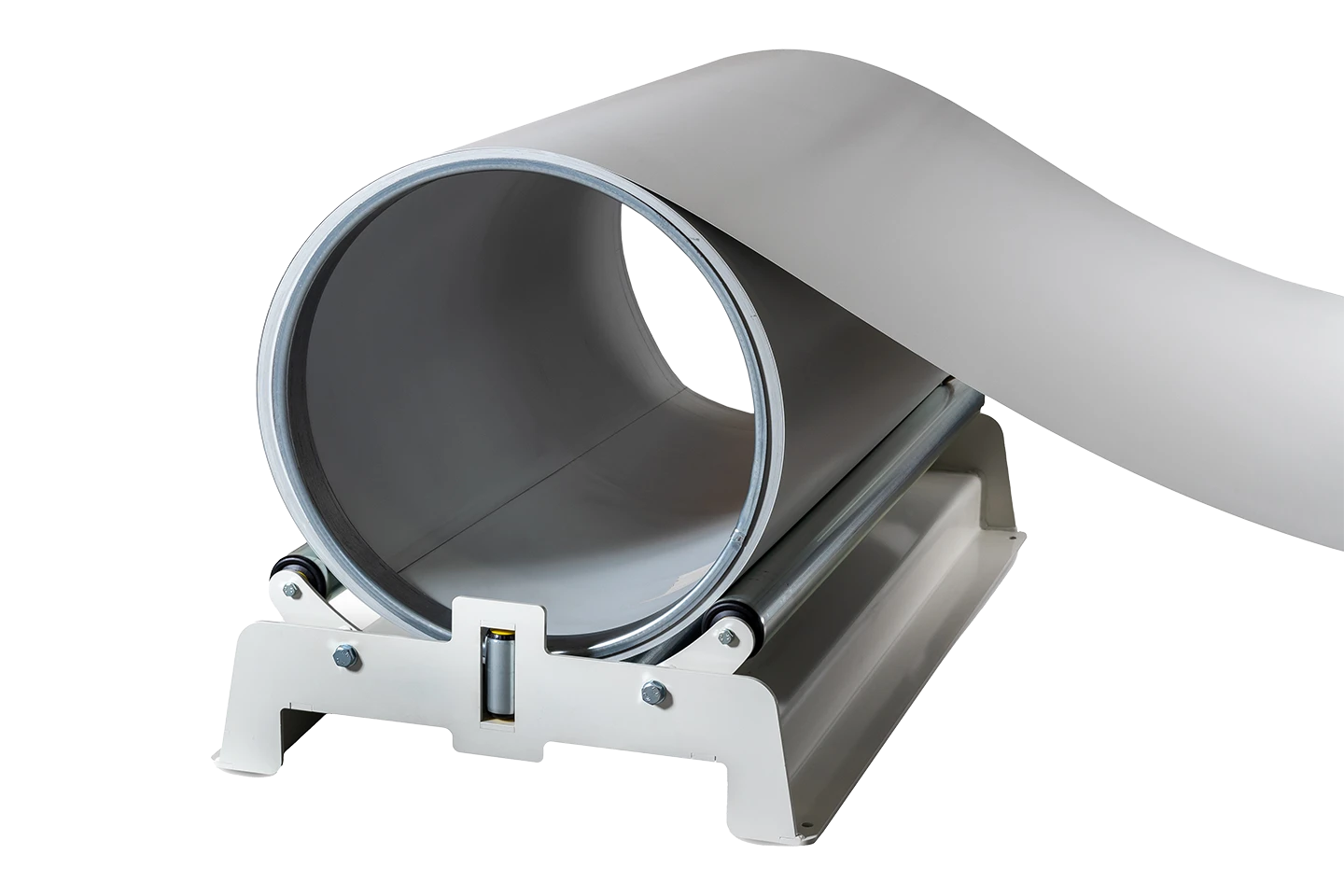

CIDAN CRADLE is a compact and flexible decoiling device for light and medium metal coils weighing up to 1,000 kg. Unlike traditional decoilers that utilize a mandrel, the “Cradle” uses a system of supporting and lateral rollers upon which the coil is directly placed. This is an ideal solution for small workshops requiring fast and stable material feeding within a limited space.
Features and Advantages
Compactness and Mobility: Due to its low-profile design, the cradle can be easily relocated across the shop floor using a standard pallet jack, providing high flexibility in layout.
Gentle Material Handling: Decoiling occurs from the outer surface of the coil, minimizing damage to sensitive materials (e.g., coated or prepainted sheets).
Stability and Smoothness: Four galvanized rotating support rollers and two lateral guide rollers guarantee smooth decoiling and additional coil stability.
Cost-Effectiveness: Compared to expensive decoilers with hydraulic mandrels, the Cradle is a more economical and easy-to-maintain solution for low-to-medium weight coils.
Standard Equipment
Frame: Robust, low-profile steel construction.
Support System: Four galvanized rotating support rollers for smooth coil rotation.
Lateral Stabilization: Two lateral support rollers to ensure stability and strip alignment.
Mobility: Built-in pick-up points (fixators) for transport via pallet jack.
Operation: Typically non-powered; operates on the "pull-through" principle using the feeding rolls of downstream equipment (e.g., a slitting or cutting line).
Technical Specifications
