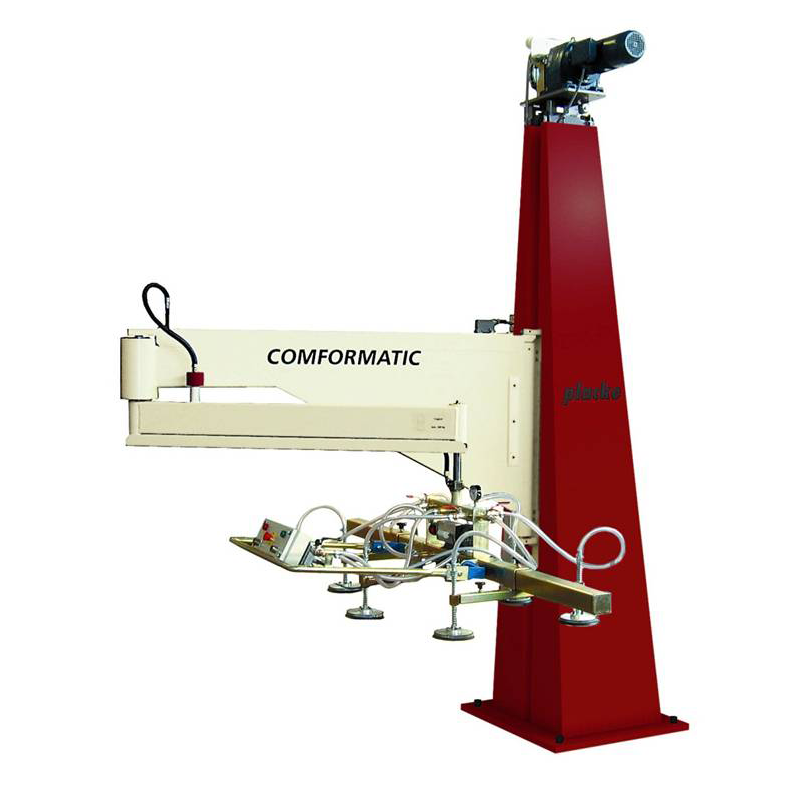

Mounting and Transport Device Placke COMFORMATIC-VT500

Advantages and Features

Full Support for Heavy Materials: Capable of handling large-area sheets with significant weight, saving time and physical effort.
Single-Operator Operation: Allows one person to perform mounting or material feeding, reducing labor costs and improving workplace safety.
High Flexibility: A large swivel radius and lifting height provide excellent reach when positioning parts relative to the machine; compatible with various sheet formats.
Robust Construction: Features a welded frame and a reinforced articulated swivel arm mechanism designed for moving large surfaces.
User-Friendly Control: Simple control panel and locking mechanisms for height and position fixation ensure ease of use.

Standard Equipment

Component	Description
Base Frame	A welded structure with a roller guide for adjusting the swivel arm height; includes cable channels and an electrical cabinet.
Swivel Arm	Square tube construction with a chain-guided arm to ensure materials move parallel to the main frame; includes position locking.

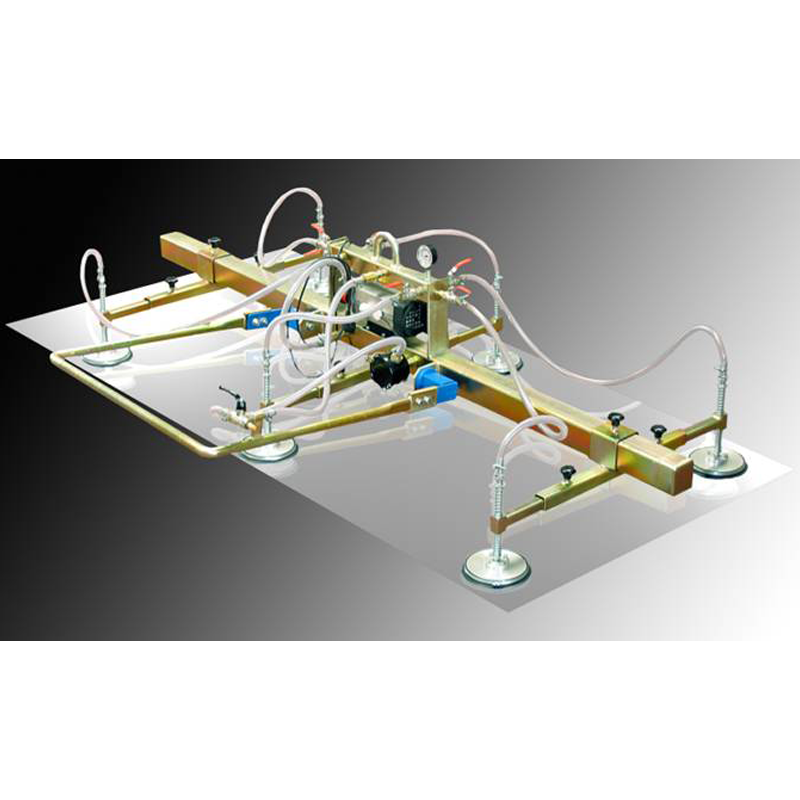

Lifting Beam & Control Panel	Consists of telescopic square tubes, height-adjustable, equipped with 6 vacuum suction cups. Operated via a button panel mounted on a swiveling joint with clamps.
Drive System	$400\text{ V}$ electric motor with a brake motor and a slip clutch.

Technical Specifications

Parameter	Value
Supply Voltage	$400\text{ V} / 50\text{ Hz}$
Maximum Load Capacity	$500\text{ kg}$
Maximum Lifting Height	$1740\text{ mm}$
Lifting Speed	$4$ and $8\text{ m/min}$

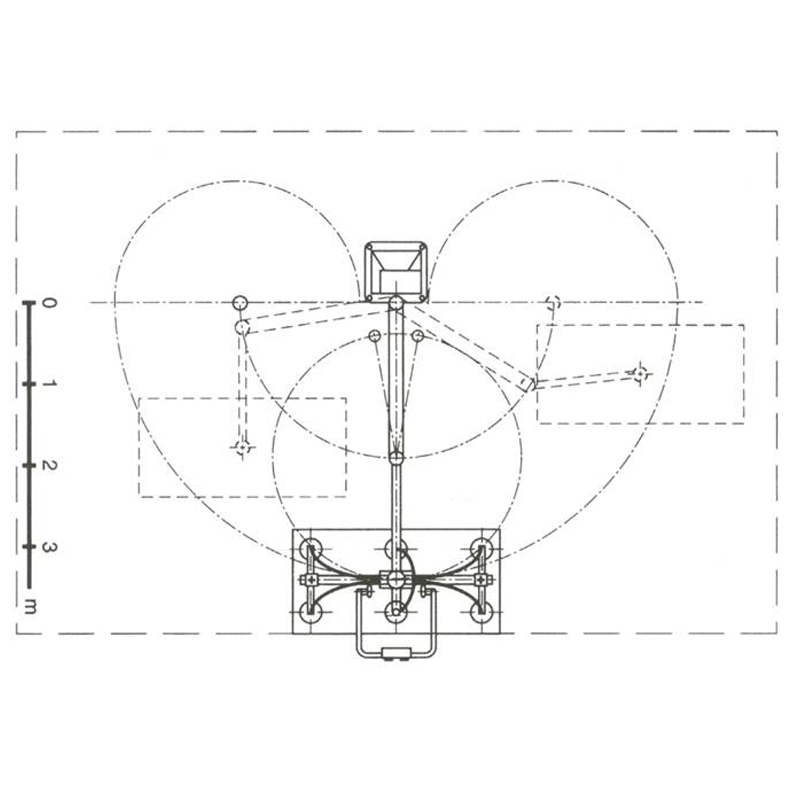

Maximum Swivel Radius	$3900\text{ mm}$
Maximum Workpiece Dimensions	$4000 \times 2000\text{ mm}$
Total Height	$3580\text{ mm}$
Device Weight	$850\text{ kg}$
