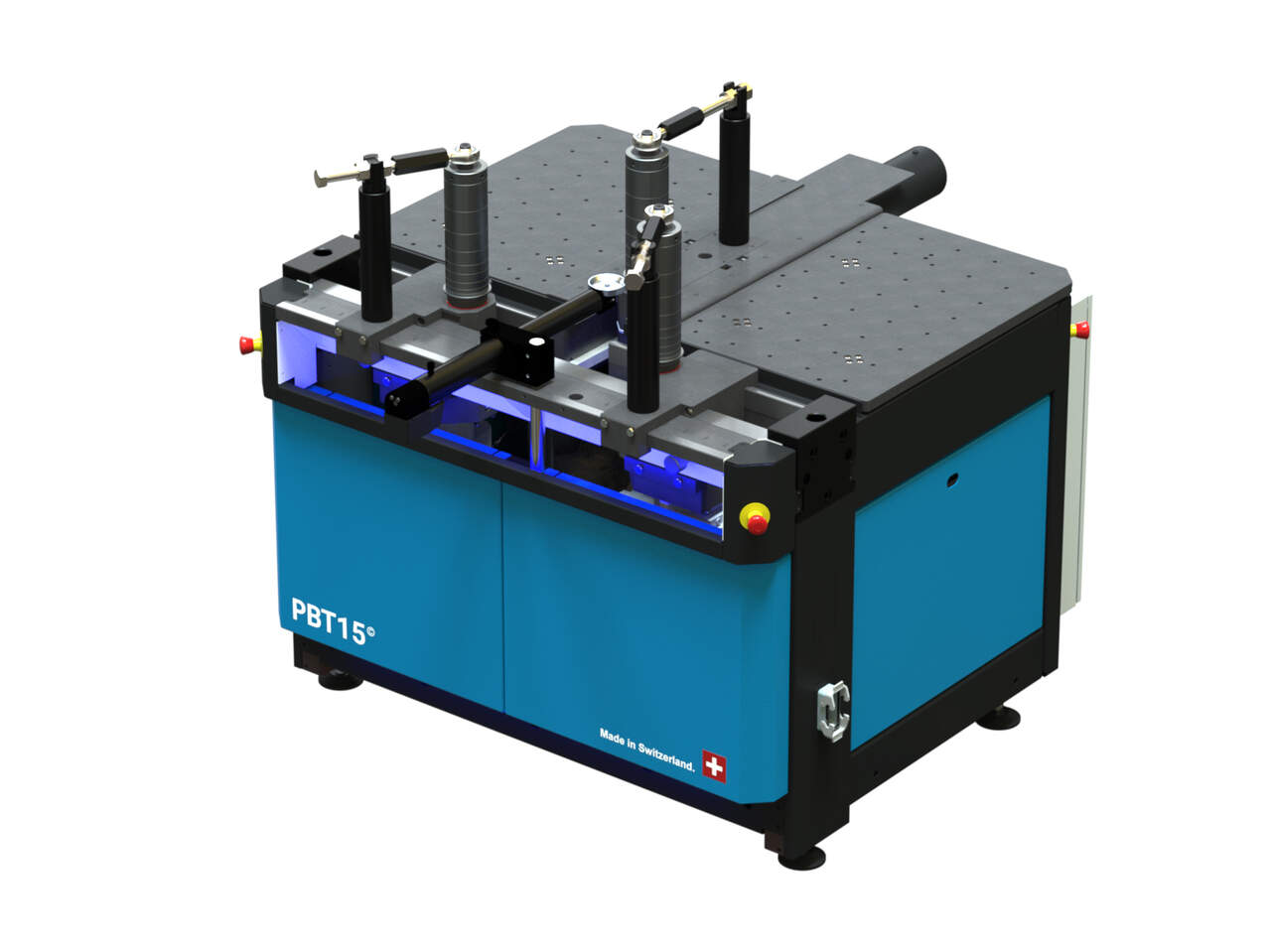

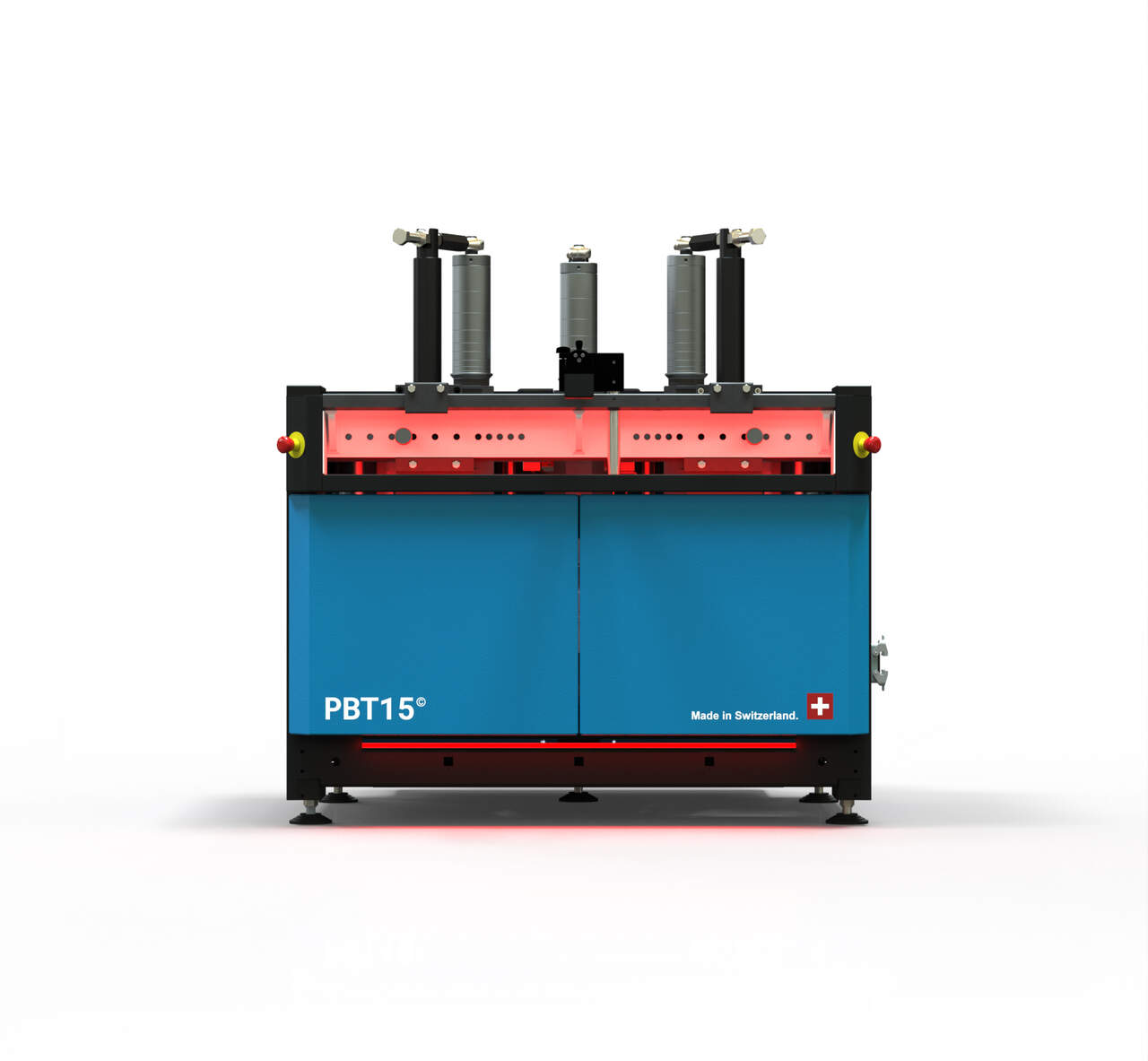

Key benefits of the PBT 15

• The optimal solution between the compact ARKUS 12 and the powerful PBT 25

• Compact design to save space in the production area

• Maximum versatility of use - from small to large profiles

• Outstanding price-performance ratio

Technical features

• All three rollers are driven by powerful, clean and low-noise electric motors with speeds up to 20 rpm

• Choice of roller diameter: D40 or D65 mm

• Roller support for all three shafts

• Adjustable distance between the front rollers:

o 200–800 mm in 20 mm increments

o 110–200 mm in 10 mm increments - for extra-small radii with smooth transitions

• Roller height - 275 mm

• LED indicator for a clear display of the working status

• Bending direction from the operator for increased safety

• Ergonomic working conditions

• Low maintenance costs

• Swiss quality and reliability

Control system

• Advanced PC400 software with intuitive interface

• High-performance controls for precise and repeatable bending

PBT 15 specifications

Parameter Value

X-axis force 15 t

X-axis positioning accuracy 0.01 mm

X-axis drive Hydraulics with valve control

X-axis travel 300 mm

Max. insert width 263 mm with D105 roller ring

Hydraulic oil volume 17 liters

Drive shaft (Y-axis) Electric motors, clean and low noise

Dynamic shaft speed control 1 - 20 rpm

Max. torque per shaft 800 Nm

Shaft height 275 mm

Shaft diameter Ø 40 mm

Shaft supports series

Front shaft distance 110 – 800 mm

Manual Z-axis control (static) series

Cranked Z-axis (dynamic) optional

CNC-controlled Z-axis (dynamic) optional 2 t

Machine control PC400

Operating system Windows 10

Connection 3 x 400 V AC, 20 A

Power 4 kW

Dimensions (L × W × H) 1400 × 1450 × 1370 mm

Weight 1275 kg
