160 mm wide Flexible track

PROMOTECH equipment Tracks and Accessories Brand: PROMOTECH

160 mm wide Flexible track

160 mm wide Flexible track - Image 2

160 mm wide Flexible track - Image 3

160 mm wide Flexible track - Image 4

160 mm wide Flexible track - Image 5

160 mm wide Flexible track

PROMOTECH equipment Tracks and Accessories Brand: PROMOTECH

Order a product

Technical specialist

For circumferential, irregular, and straight-line applications. It can be fixed on both ferrous and non-ferrous materials by means of magnetic or vacuum units. Suitable for GECKO / GECKO HS / GECKO 42V / GECKO Battery 2 and SCORPIO Battery.

Advantages and Features

For circumferential, irregular, and straight-line applications
The minimum curve radius is 1.25 m
Length of a single trackway 1.88 m
Joinable for unlimited run length

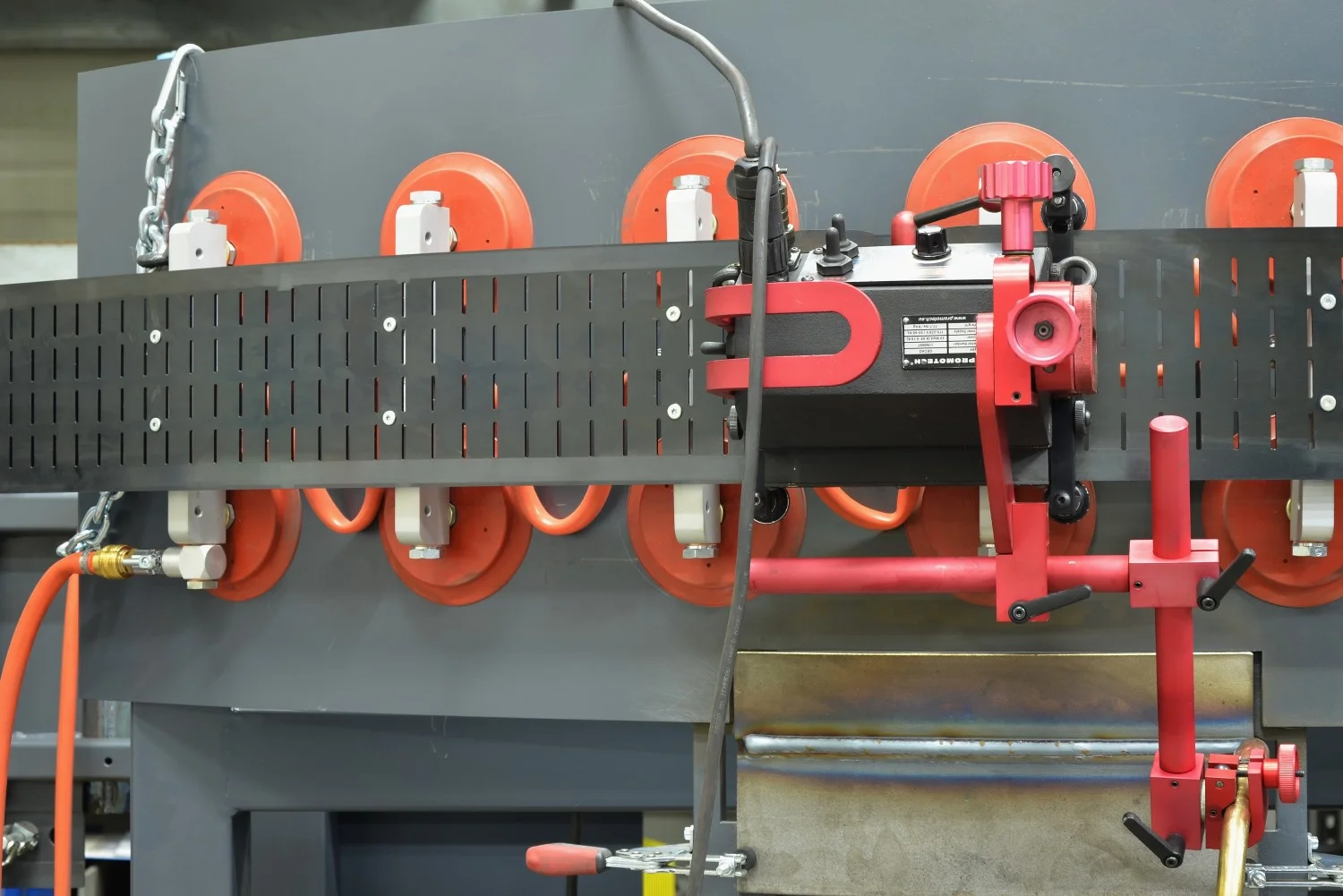

Can be fixed on both ferrous and non-ferrous materials by means of magnetic or vacuum units

Technical Specifications

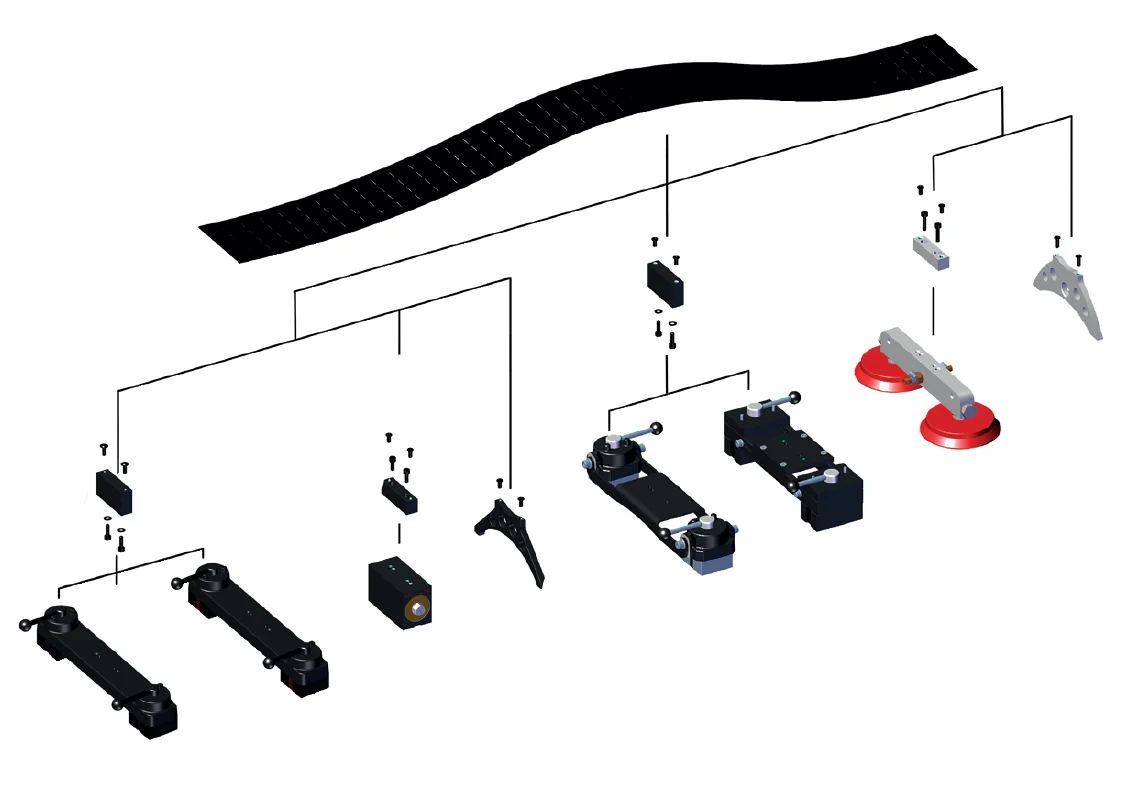

Product code	Description
PRW-0466-71-00-00-0	Flexible trackway length 1.88 m (6.1 ft), minimum curvature radius of 1.25 m (4.1 ft)
DYS-0466-71-05-00-0	Bracket for magnetic units for flexible trackway
ZSP-0475-92-00-00-0	Magnetic unit
ZSP-0475-93-00-00-0	Heat-resistant magnetic unit
DYS-0466-71-07-00-0	Bracket for magnetic narrow unit for flexible trackway
PDS-0582-10-00-02-0	Narrow magnetic unit with hexagon
WSP-0466-71-06-00-0	Steel track support for flexible trackway
ZSP-0475-85-00-00-0	Pivoting magnetic unit
ZSP-0523-19-00-00-0	Spacing-adjustable magnetic unit
DYS-0466-71-04-00-0	Bracket for vacuum modular units for flexible trackway
MST-0541-10-02-00-0	Vacuum modular unit
WSP-0466-71-03-00-0	Aluminum track support for flexible trackway
