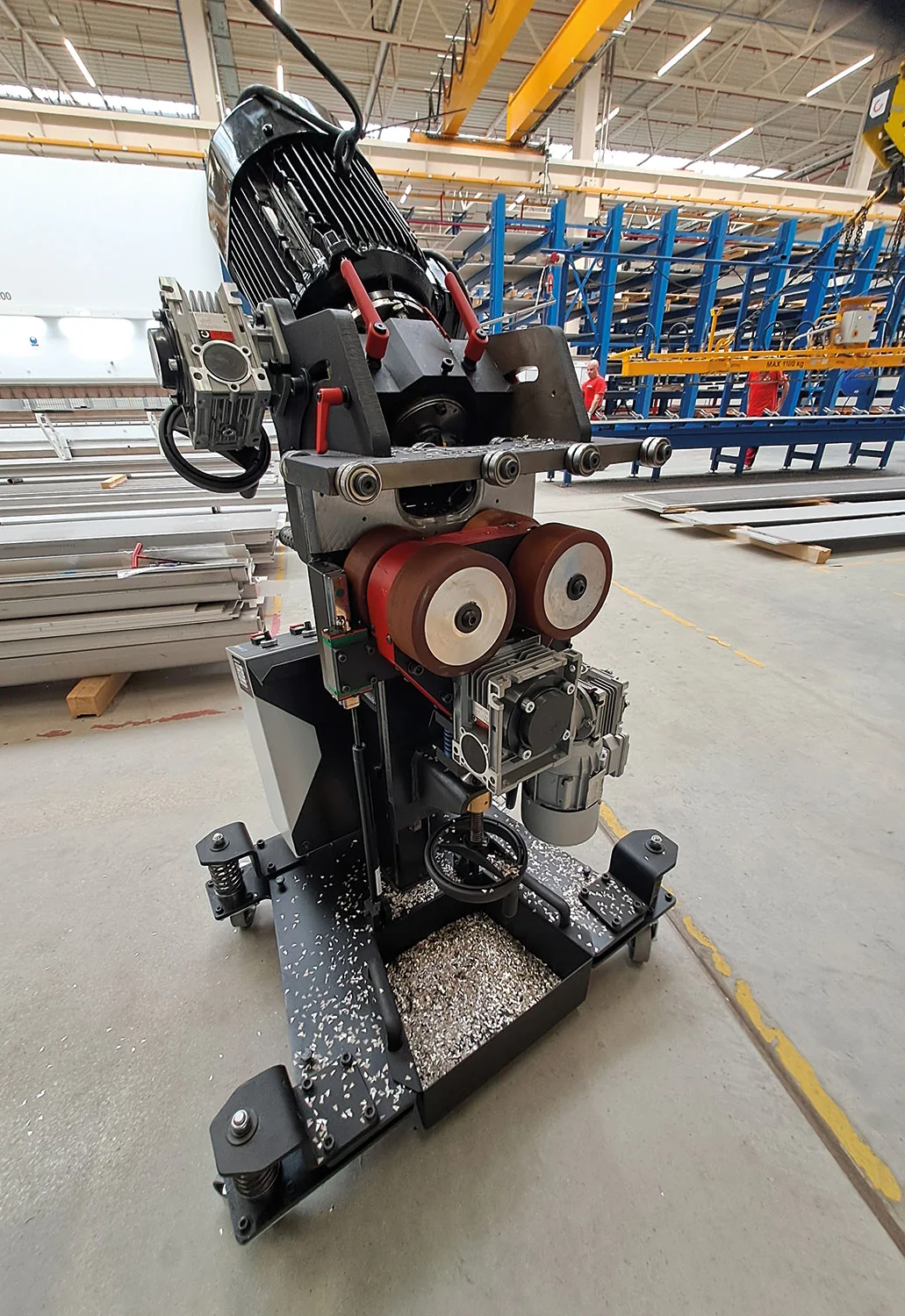

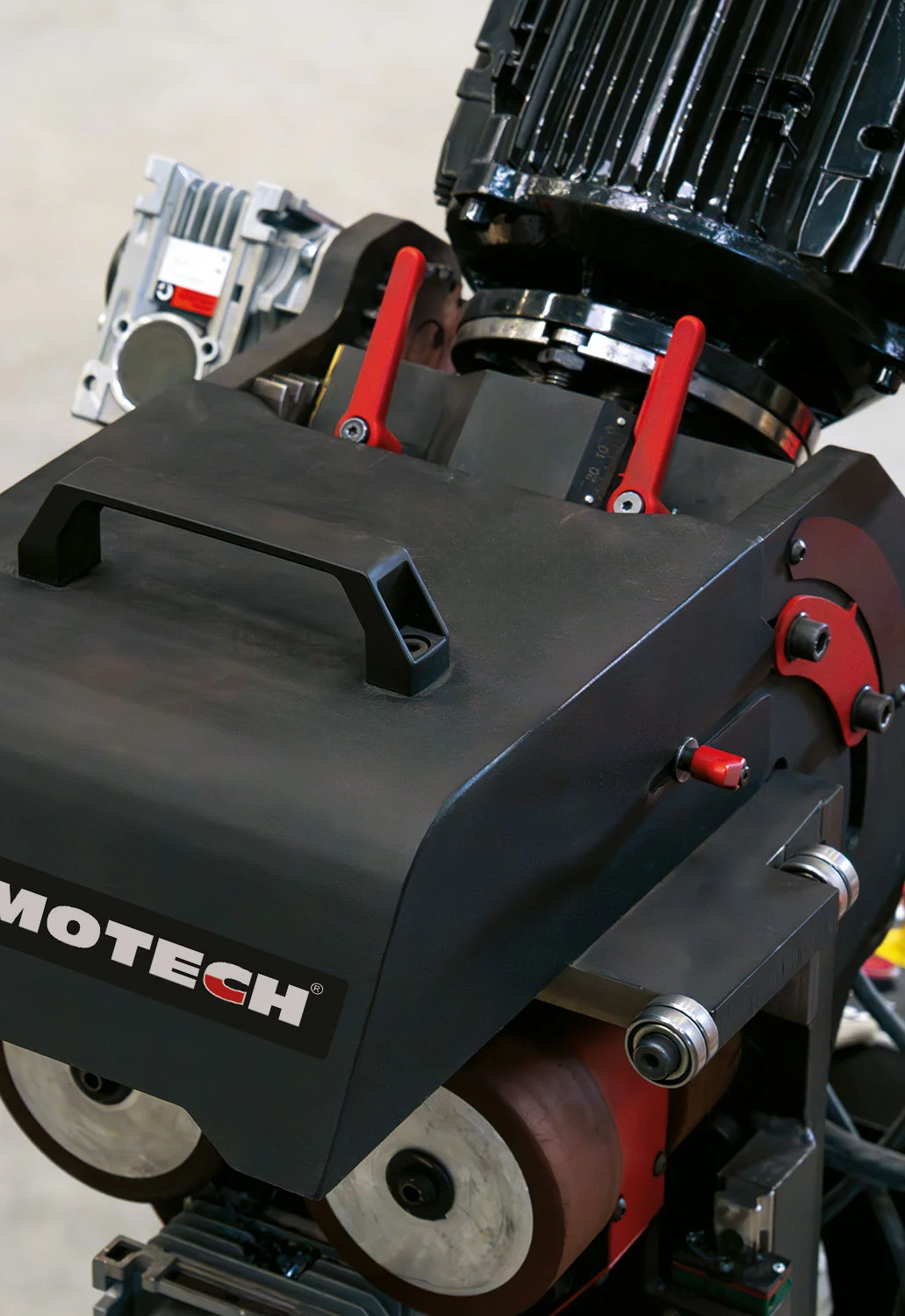

ABM-50 DD / Vario Auto-Feed Heavy Duty Beveller

Features and Advantages

self-propelled machine moves along the edge of the plate at speeds of up to 1.2 m/min.
auto-feed machining to increase ergonomics, comfort, and productivity

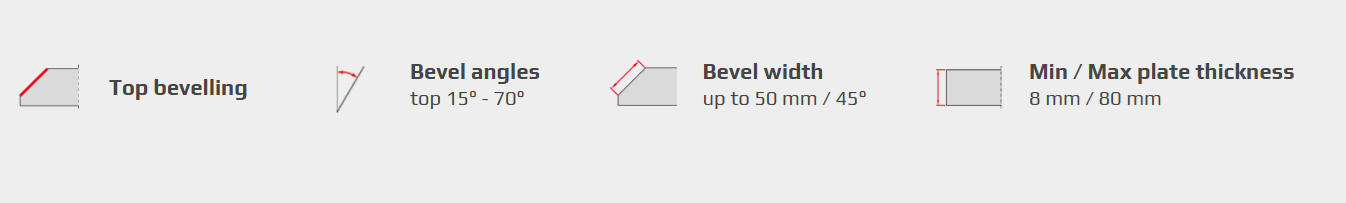

continuous bevel angle adjustment from 15° to 70°

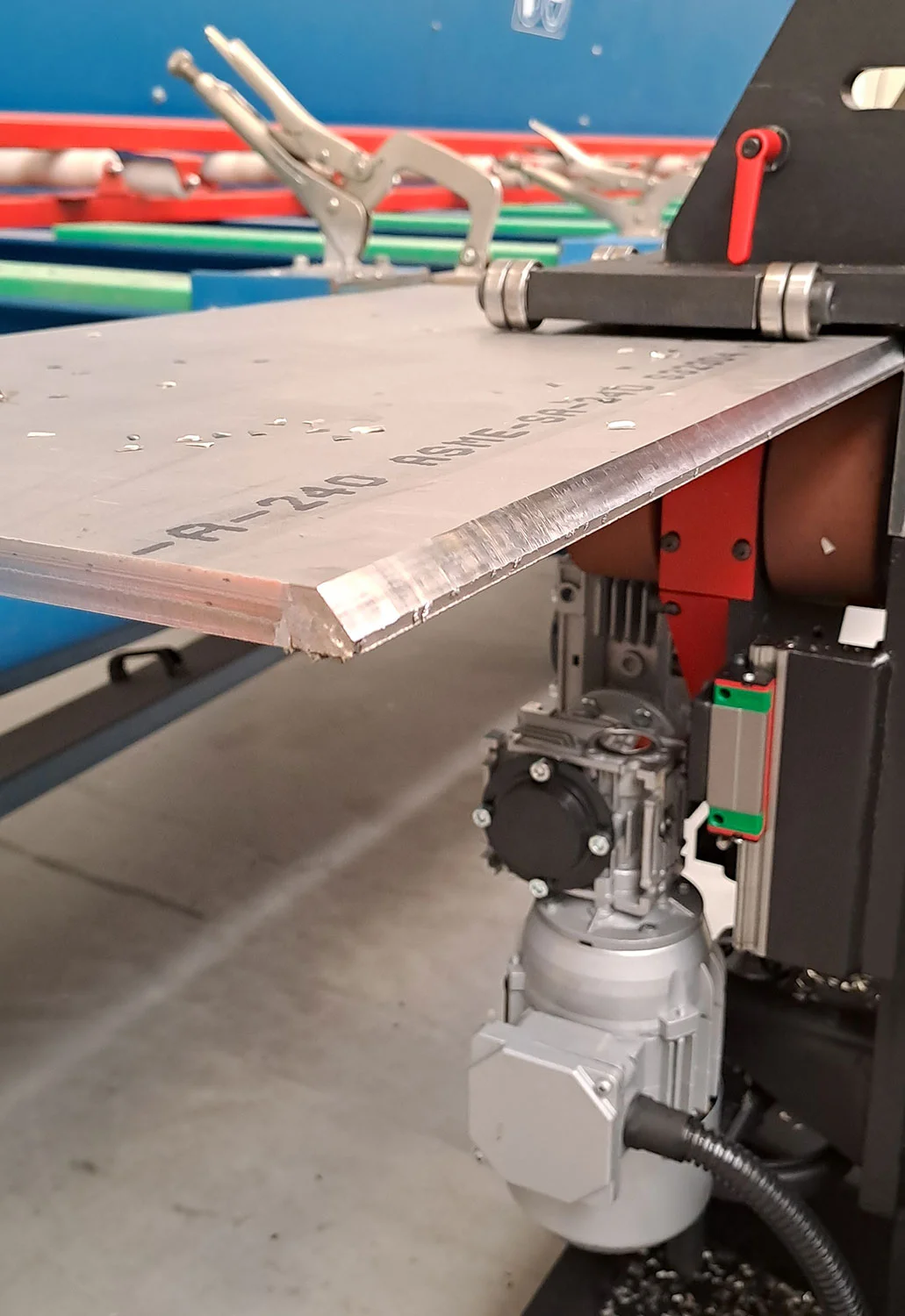

high-quality bevels made without thermal distortion or creation of heat-affected zone on plate thickness range 8-80 mm
continuous bevel width adjustment up to 50 mm at 45 degrees
variable spindle speed for machining a wide range of steel grades
LED monitoring system indicates the load level by means of green, yellow and red signals to prevent motor damage
2 years of warranty

Technical Specifications

ABM-50 DD Vario ABM-50 DD *

Voltage	3~ 400 V + PE, 50/60 Hz 3~ 480 V + PE, 50/60 Hz	3~ 400 V + PE, 50/60 Hz 3~ 480 V + PE, 50/60 Hz
Power	4 kW	4 kW
Spindle rotational speed (without load)	500-1450 rpm	1450 rpm (50 Hz) 1750 rpm (60 Hz)
Feed speed	0-1.2 m/min (0-3.94 ft/min)	0-1.2 m/min (0-3.94 ft/min)
Bevel angle (ß, Fig. 1)	15-70°	15-70°
Maximum bevel width (b, Fig. 1)	50 mm (2”)	50 mm (2”)
Maximum milling head penetration (‘d’, Fig. 1) per single pass	6 mm (15/64”)	6 mm (15/64”)
Sheet thickness	8-80 mm (5/16-3 9/64”)	8-80 mm (5/16-3 9/64”)
Required ambient temperature	0-40°C (32-104°F)	0-40°C (32-104°F)
Weight	260 kg (573 lbs)	260 kg (573 lbs)
Product code (packed in cardboard):	UKS-0773-10-40-01-0	UKS-0773-10-40-02-0
Product code (packed in wooden case):	UKS-0773-10-40-03-0	UKS-0773-10-40-00-0

Drawing 1 Maximum bevel width depending on the angle
