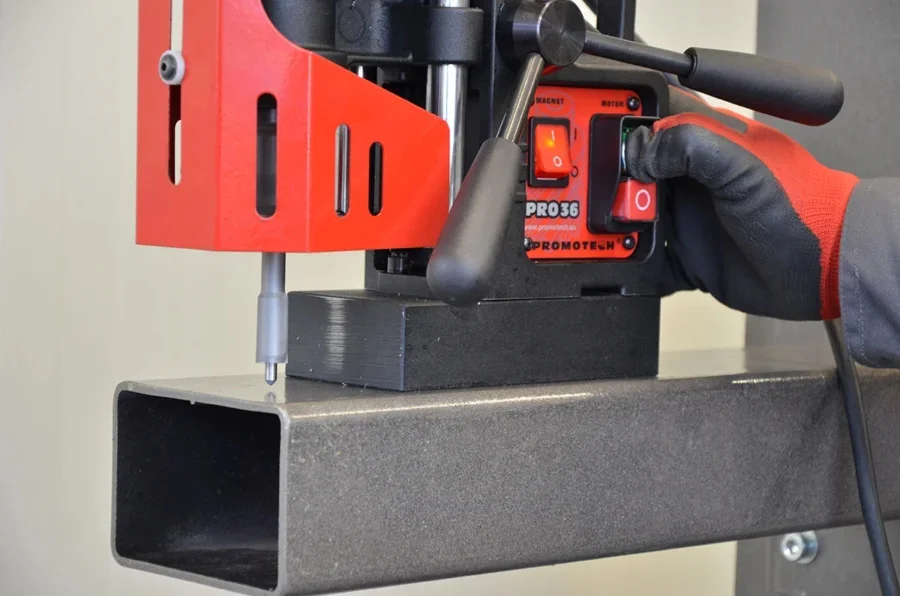

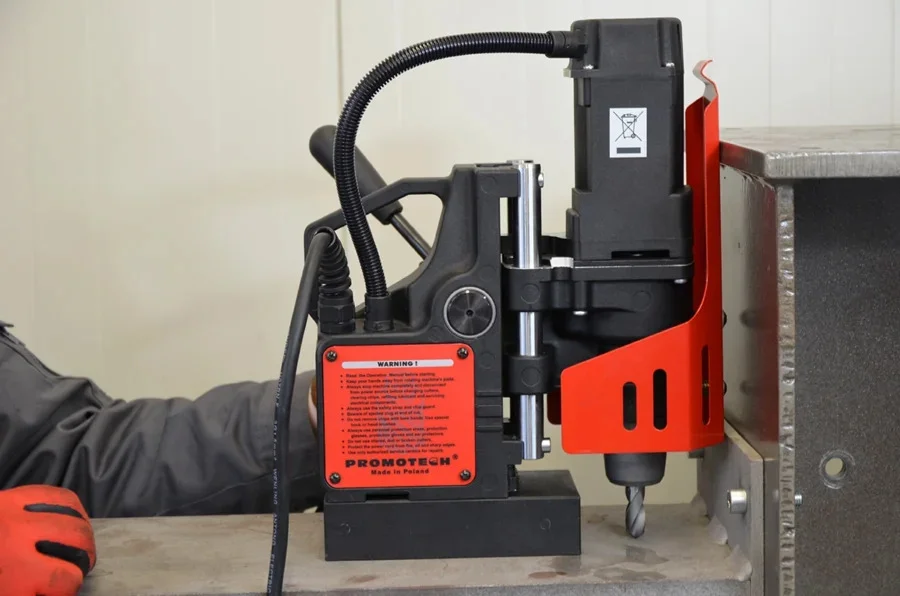

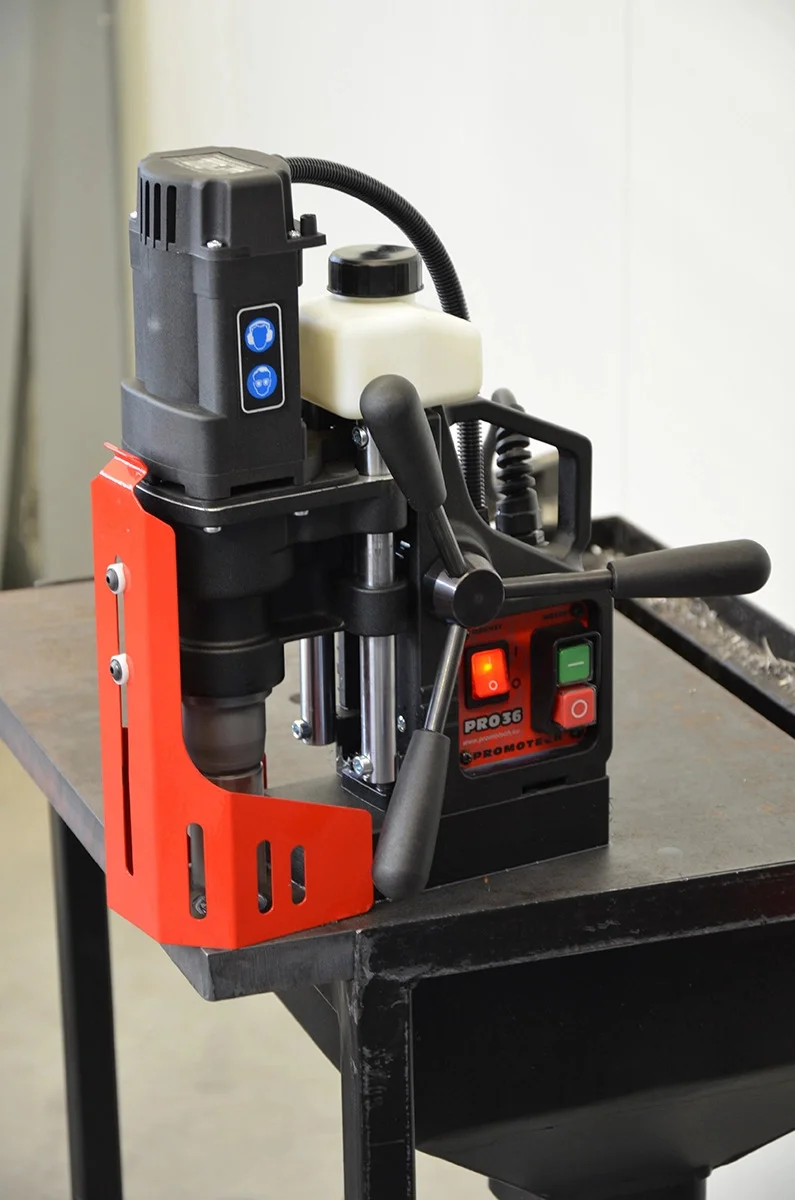

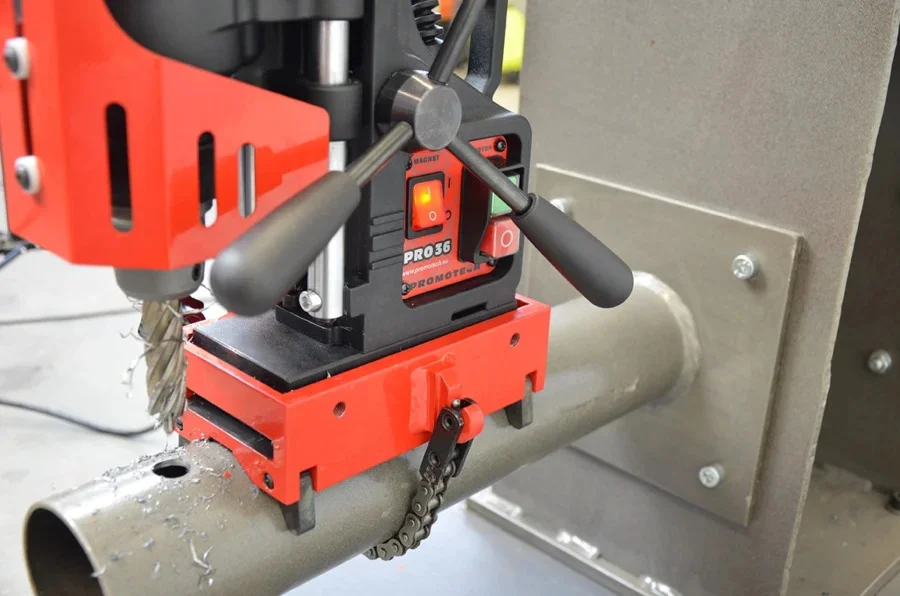

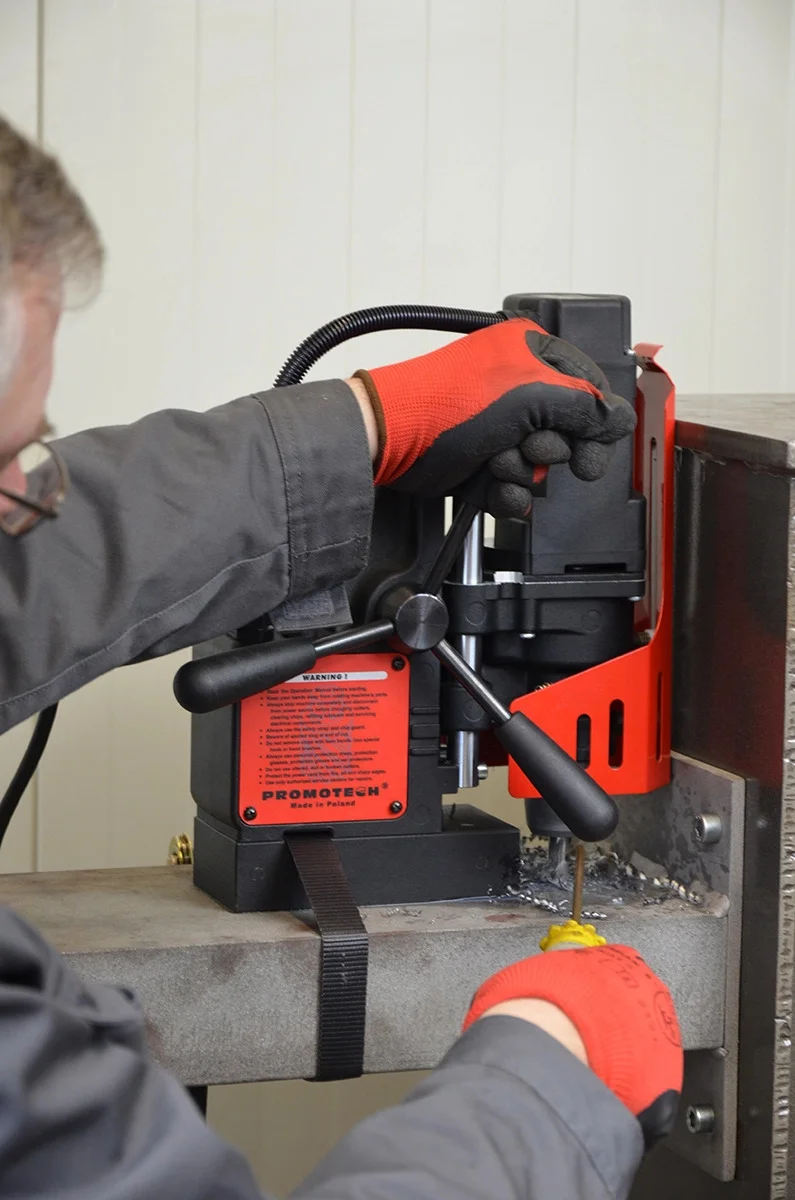

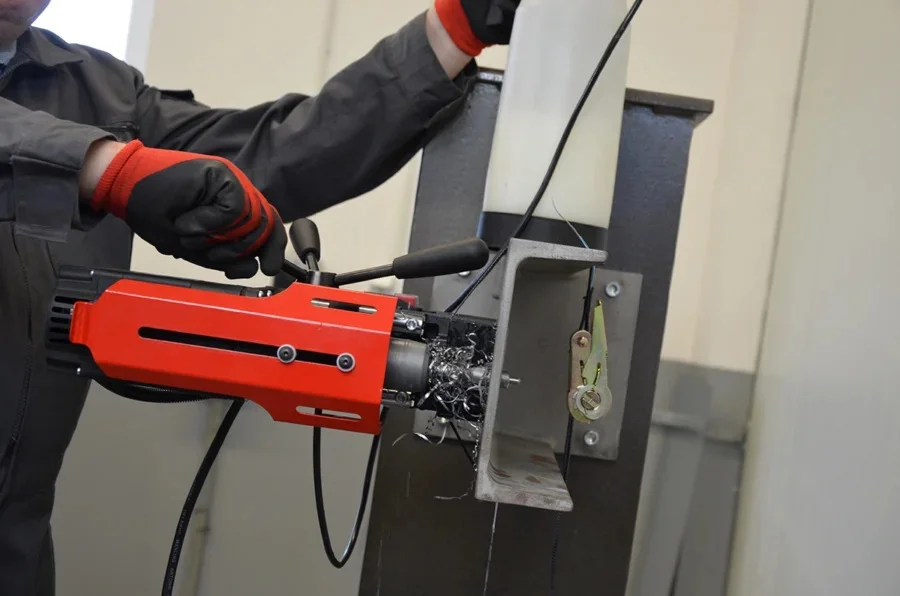

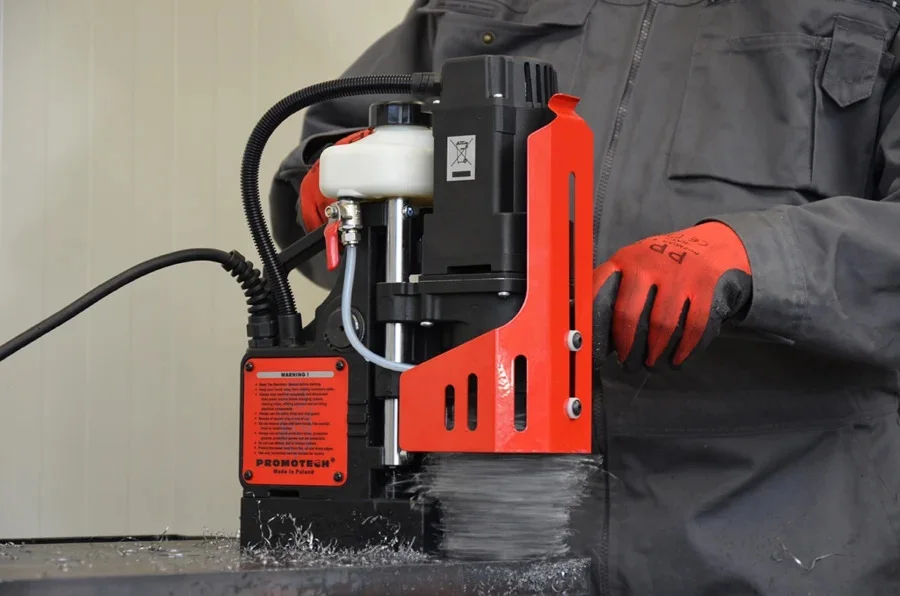

PRO-36 Compact Drilling Machine

Features and Advantages

Dual bars guide system ensures extraordinary stiffness and adjustment free operation
Compact size and ultra-lightweight – ideal for site work
Rugged one piece slide and gear box for extra stability
Purpose designed motor with heavy duty gear box
Maintenance-friendly design makes it easy to use
Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin work piece

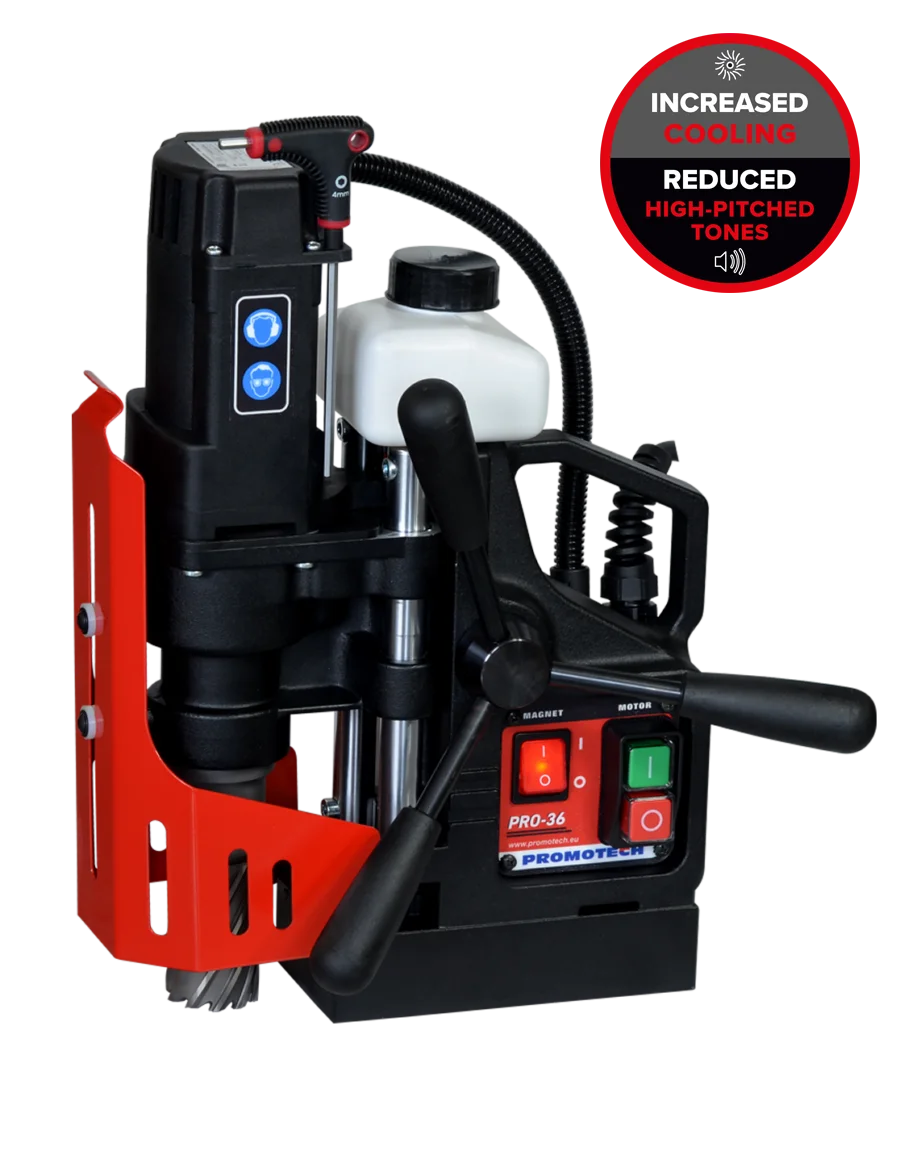

Improved electric motor cooling – redesigned motor fan increases airflow and improves motor cooling
Reduced high noise levels unpleasant for the operator – significant reduction in annoying sounds, with noise reduction of over 2 dB
2 year warranty

Technical Specifications

Motor Speed (under load)	350 rpm
Power	1020 W
Weight	10 kg

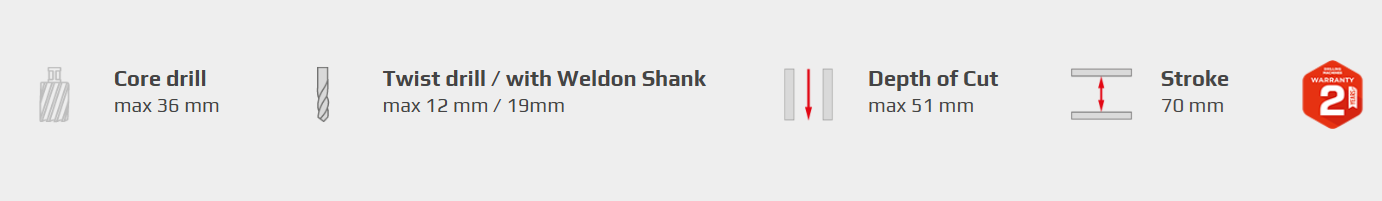

Max milling capacity	36 mm (1 7/16”)
Max drilling capacity	12 mm (1/2”)

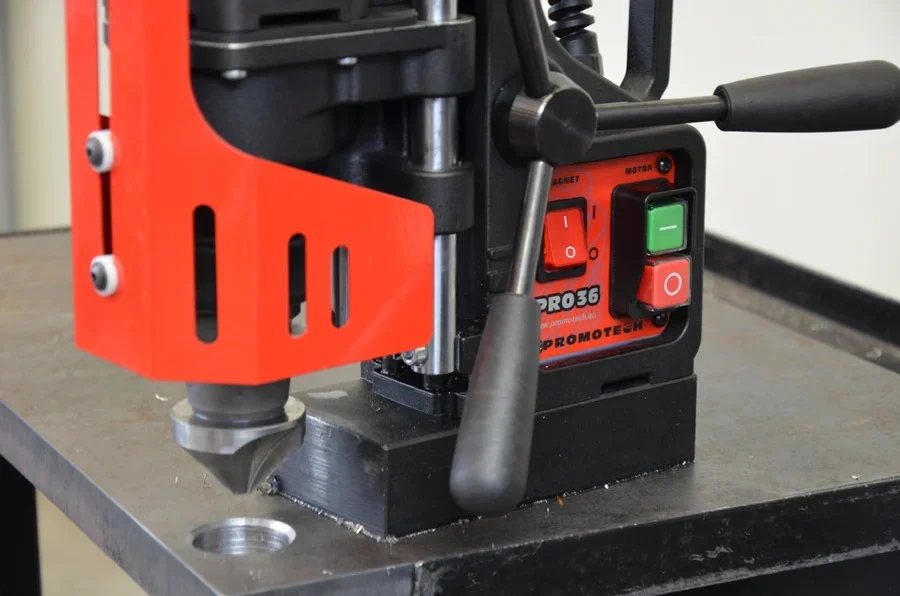

Max countersinking	40 mm (1 9/16”)
Stroke	70 mm (2 3/4”)
Max depth of cut	51 mm (2”)
Voltage	1~ 220-240 V, 50-60 Hz 1~ 110-120 V, 50-60 Hz
MPAC (Magnetic Power Adhesion Control)	yes
MFSC (Magnetic Field Shape Control)	yes
Magnetic clamping force (surface with the thickness of 25 mm and roughness Ra = 1.25)	917 kgf (9000 N)
Magnet Base Dimensions	80 x 161 x 36,5 [mm] 3-1/8 x 6-5/16 x 1-7/16 [“]
Min. Workpiece Thickness	6 mm (1/4")
Tool holder	19 mm (3/4”) Weldon
Product Code 230V/50Hz	WRT-0440-10-20-00-4
Product Code 115V/60Hz	WRT-0440-10-10-00-4
