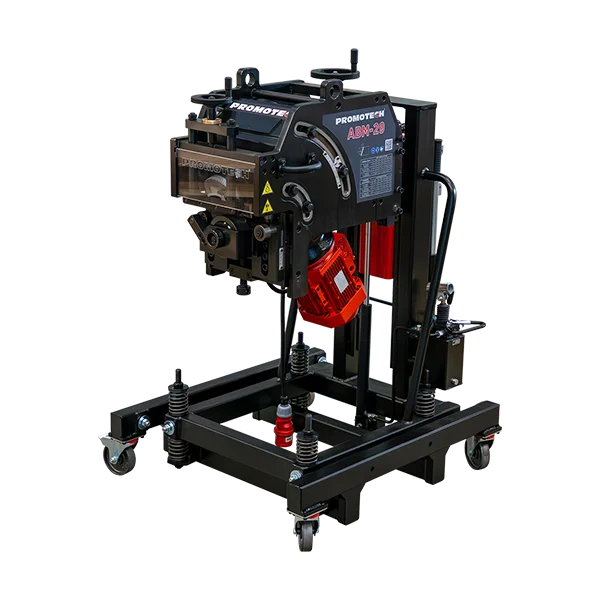

ABM-29 Auto-Feed Double-Side Heavy Duty Portable Beveller

Features and Advantages

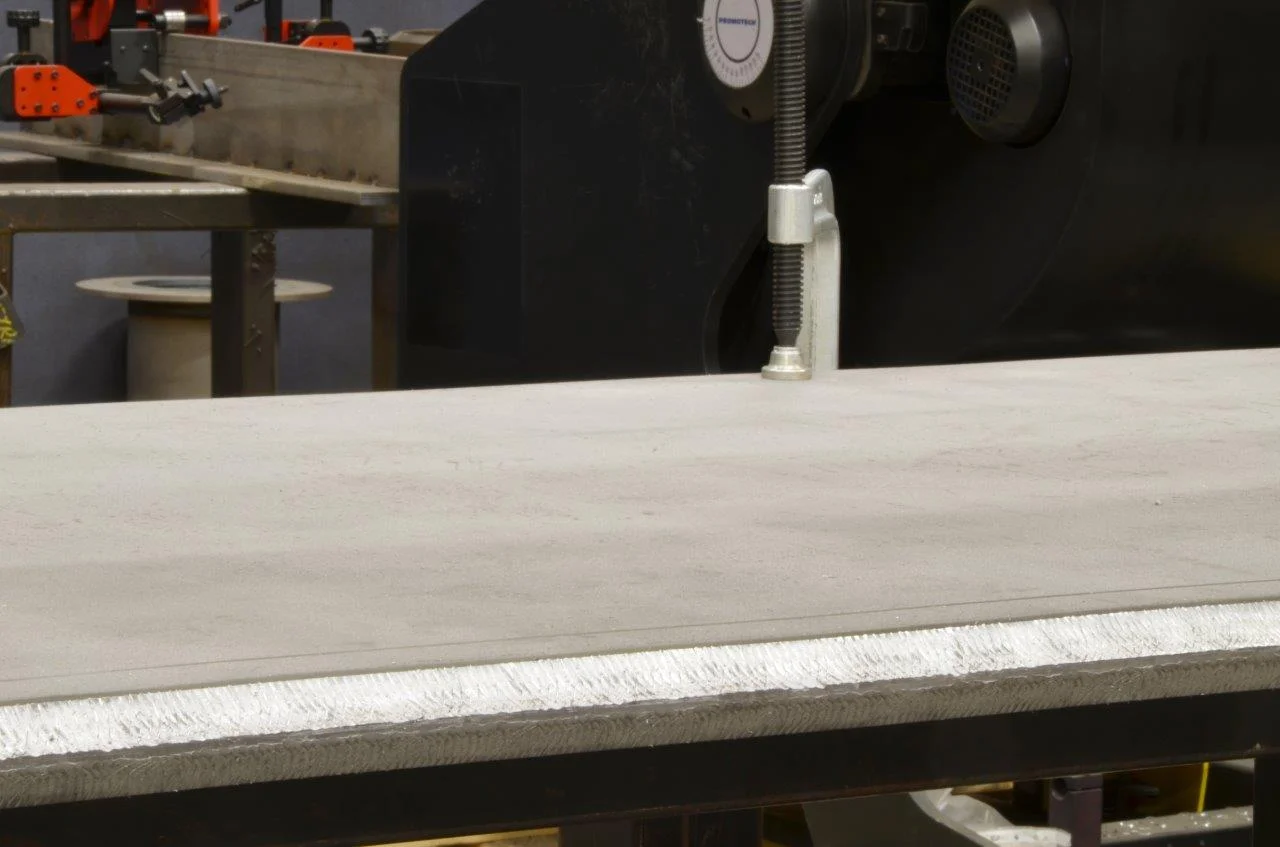

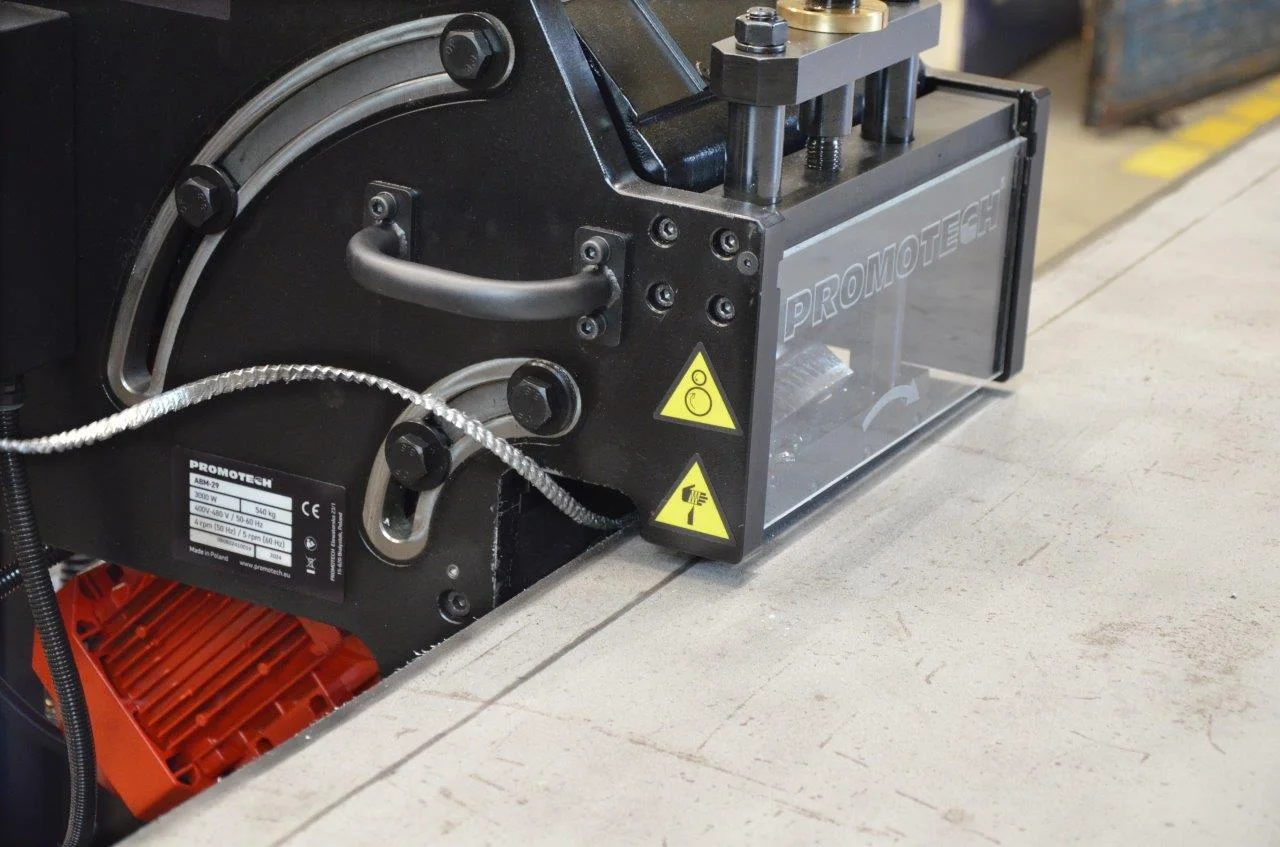

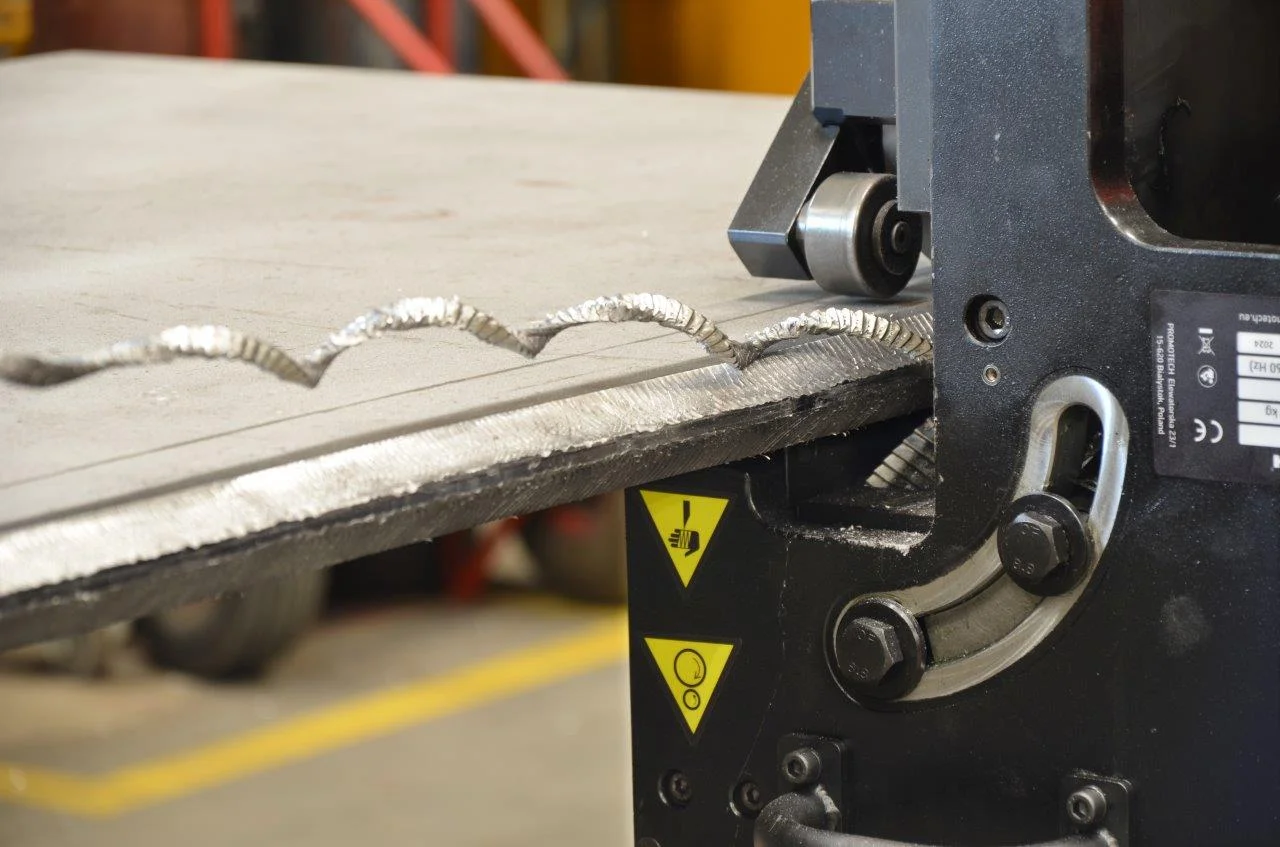

Heavy-duty beveller which auto travels along an edge of a plate with speeds of up to 1.7 m/min.

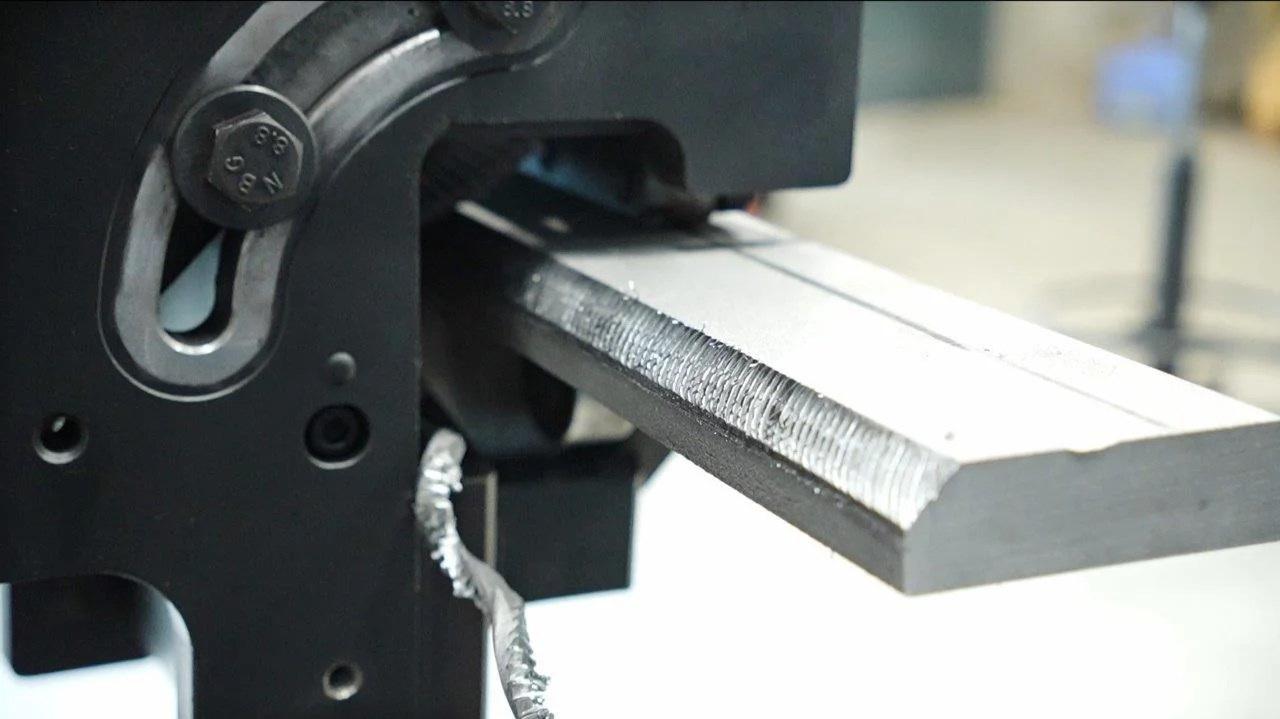

Up to 20 mm bevel width in one run and maximum 29 mm bevel width after multi passes

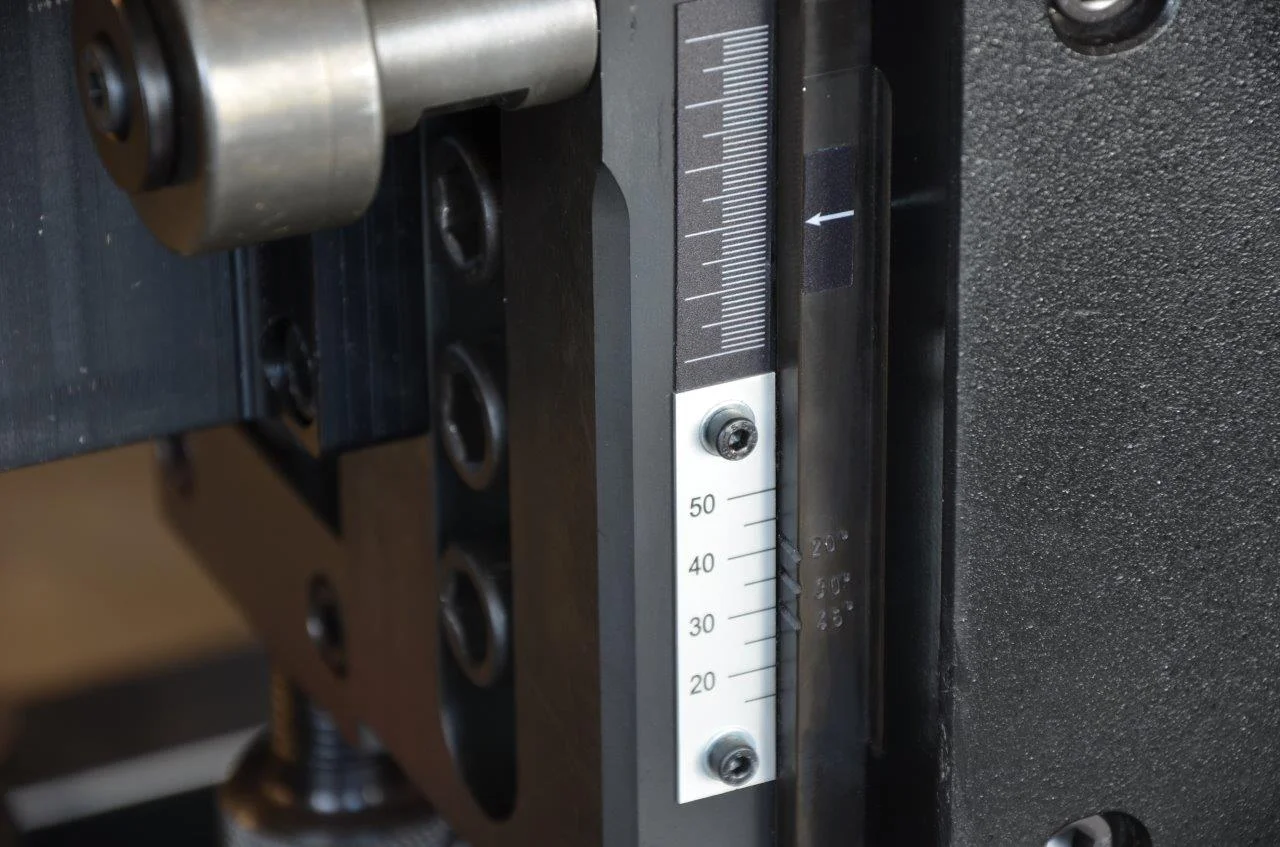

Continuous milling height/bevel width adjustment

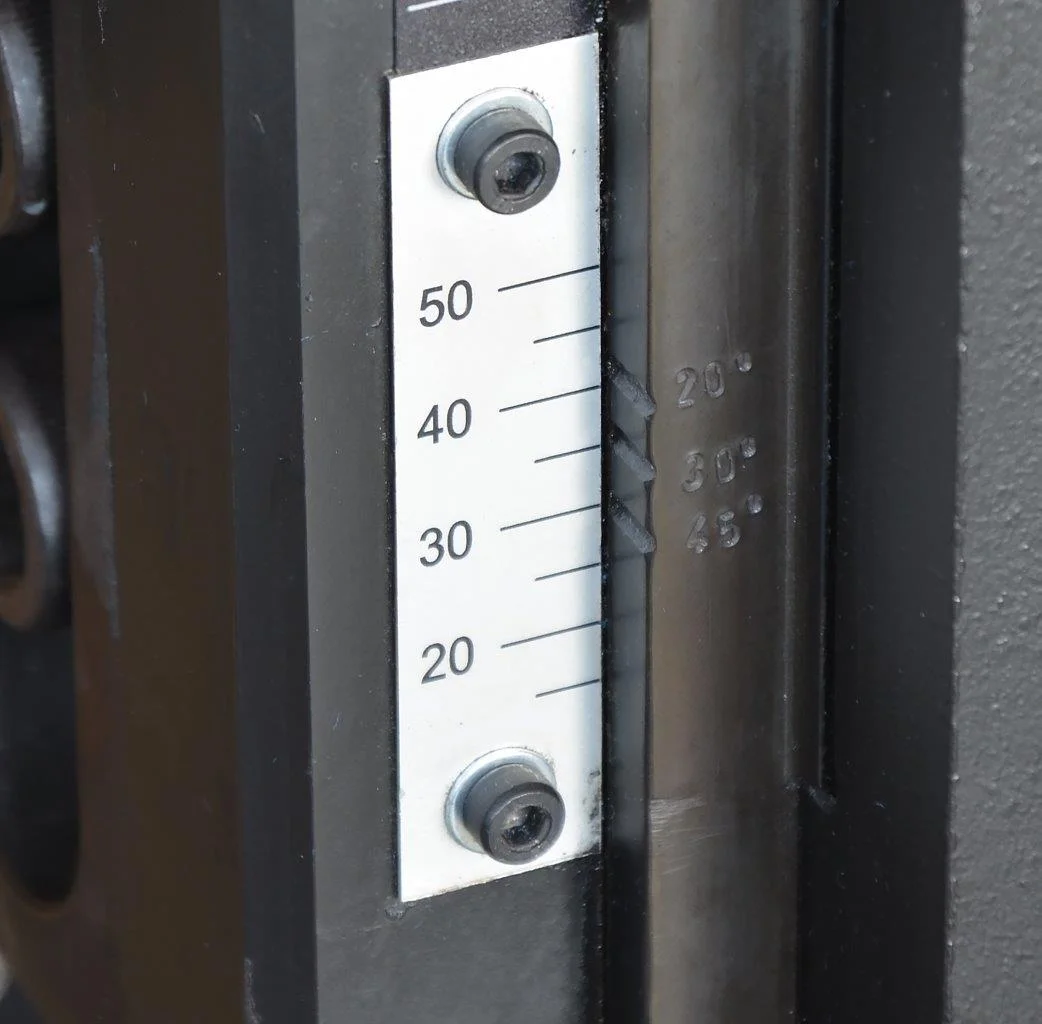

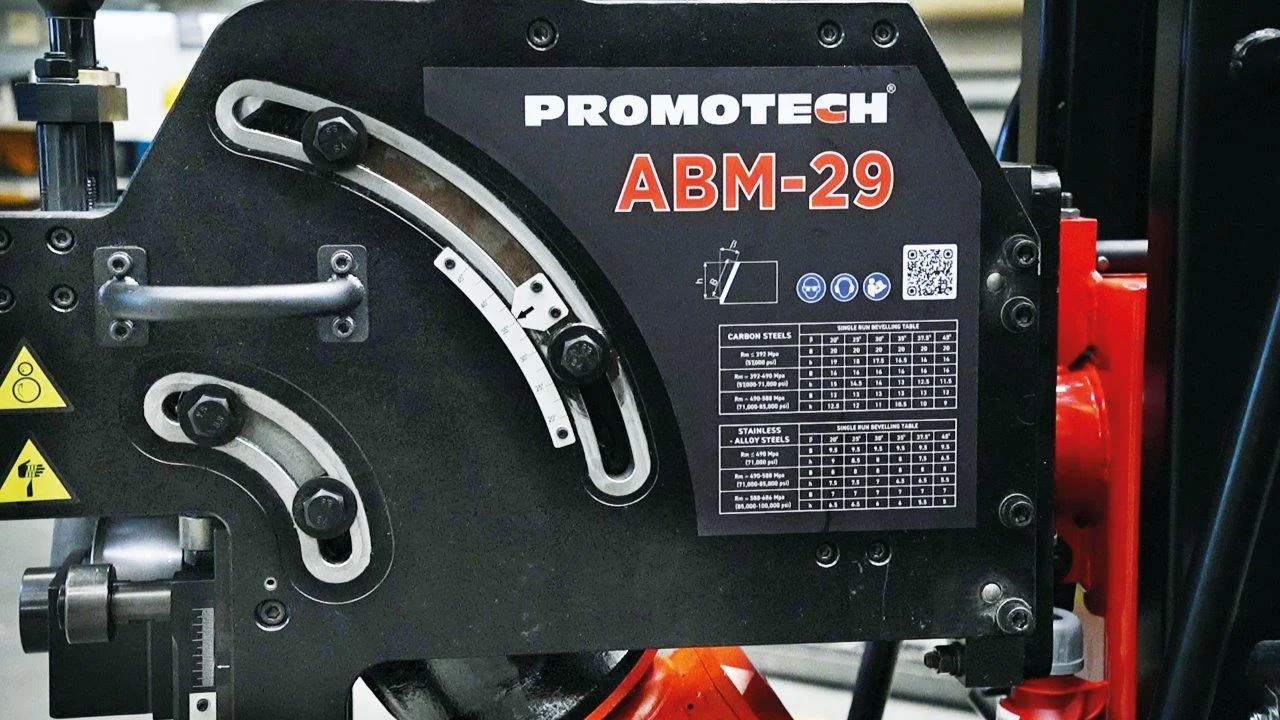

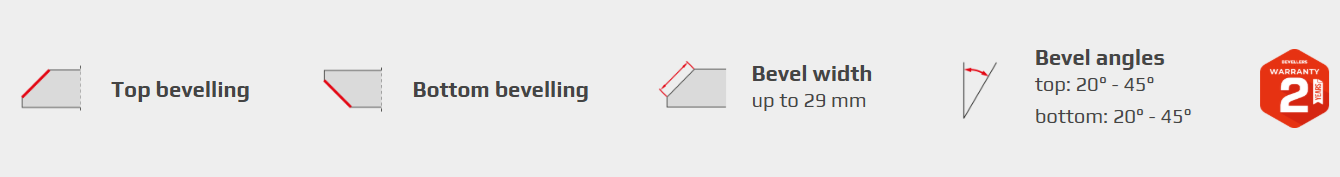

Continuous bevel angle adjustment between 20 and 45 degrees

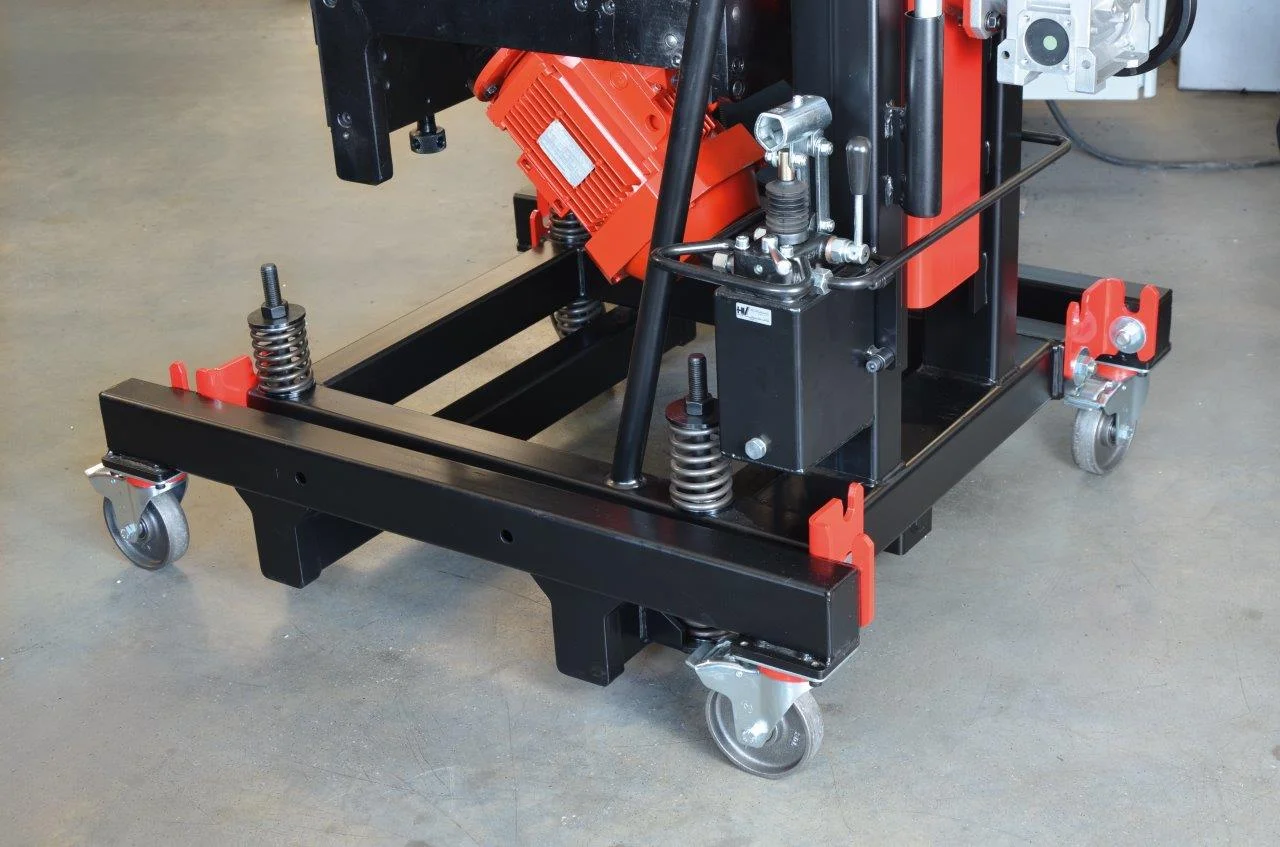

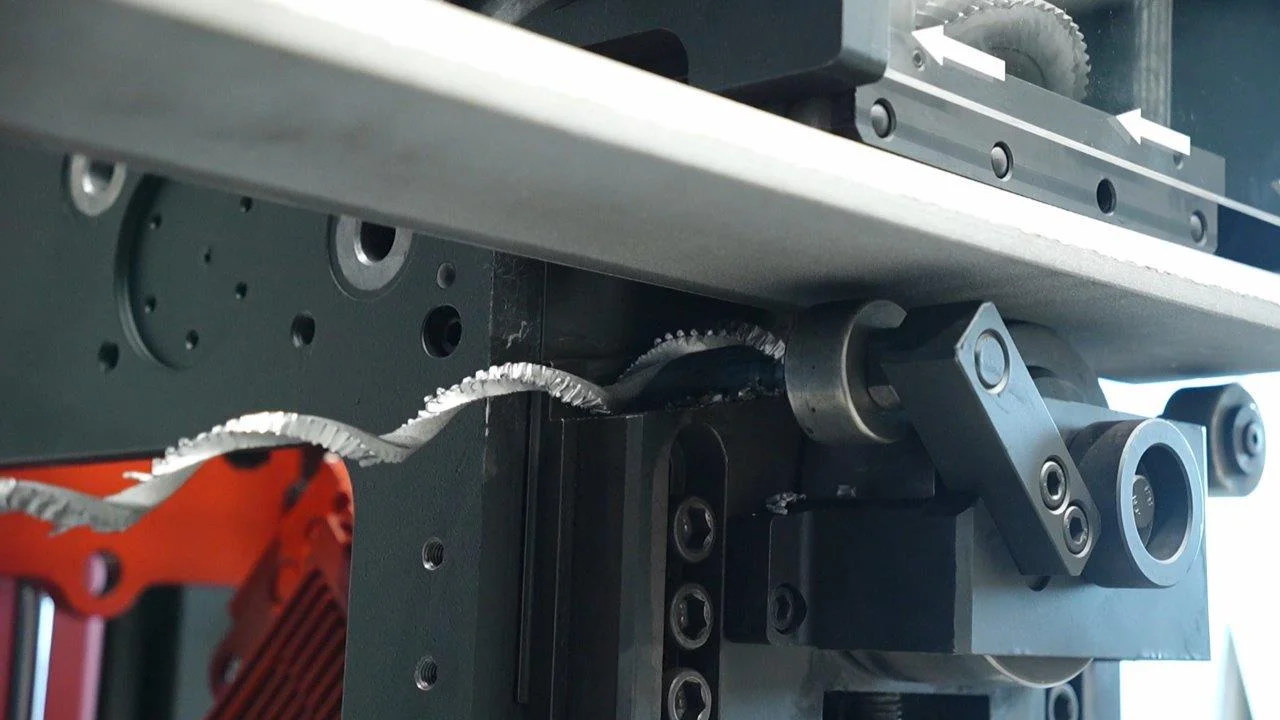

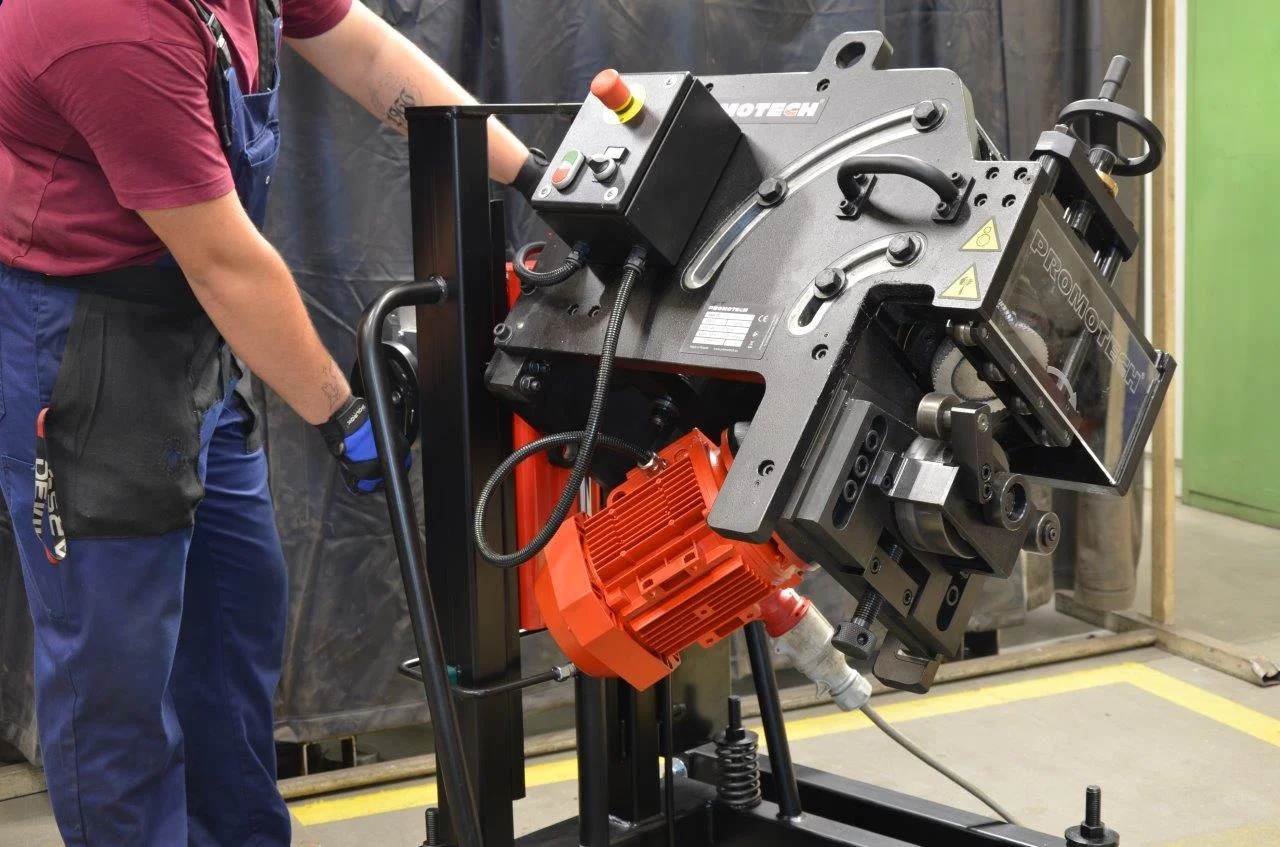

Integrated trolley to facilitate top & bottom bevelling with height adjustment between 685 and 1000 mm
Stationary operation for machining small workpieces

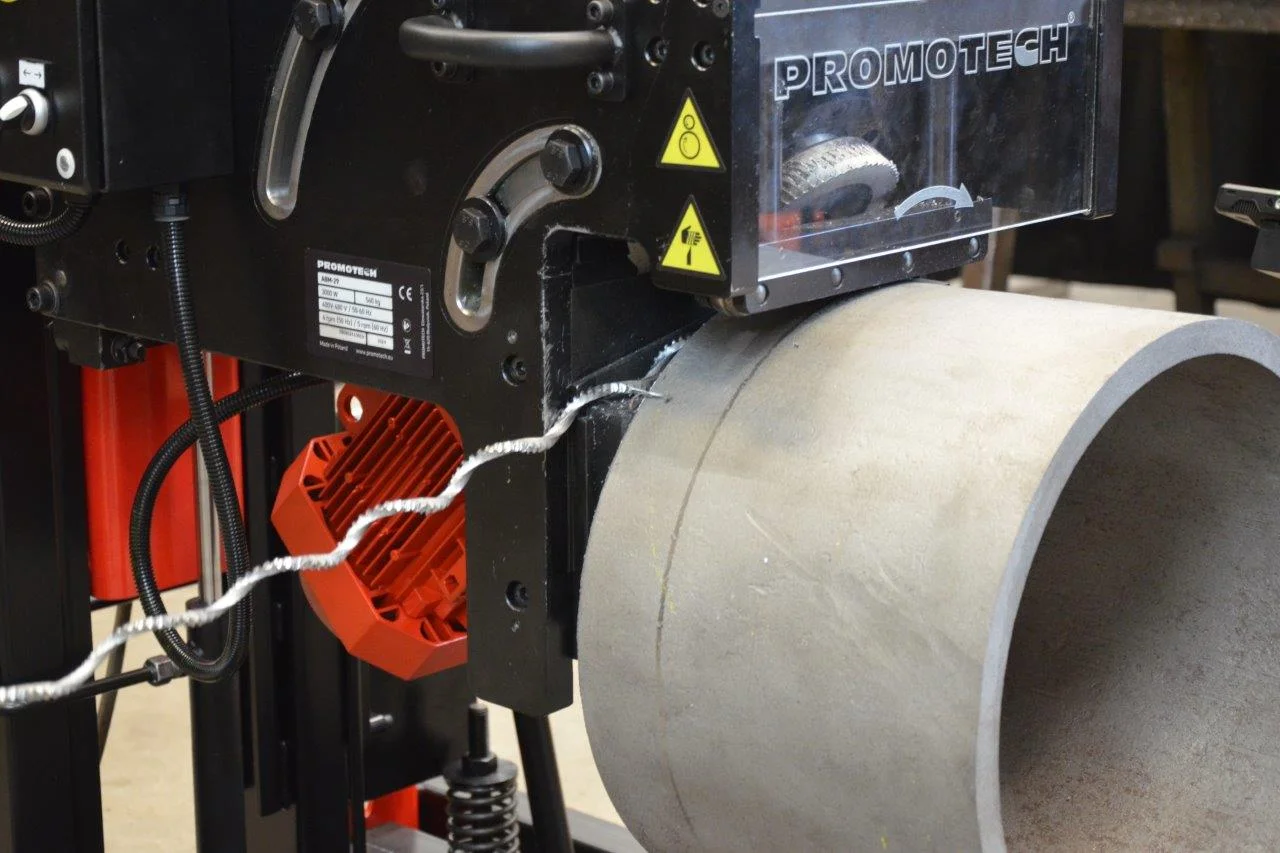

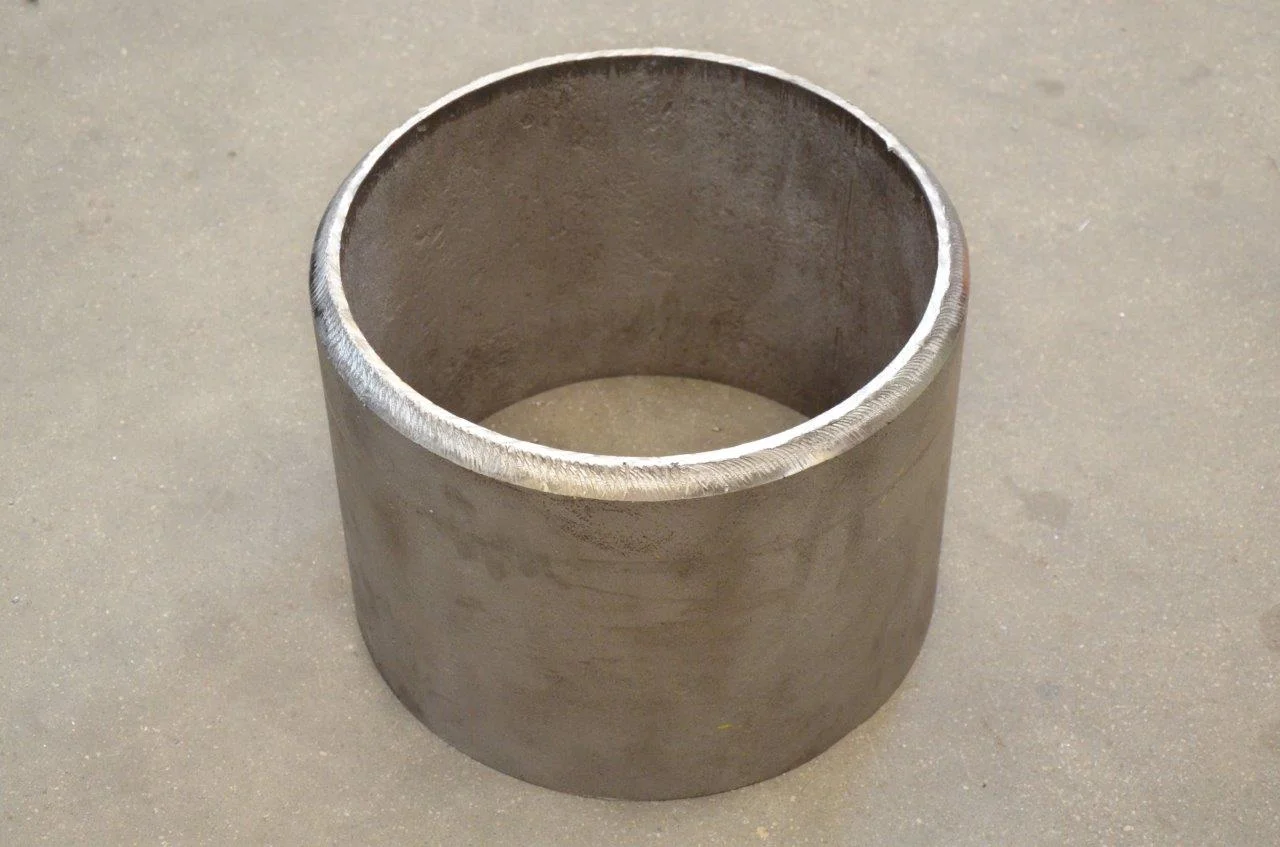

Pipe machining with minimum ID 150 mm (6″)
Overload protection
Reverse travel mode to free jammed tool
ABM-29 is a low-noise machine
2 years of warranty

Technical Specifications

Voltage	3x400 V / 3x480 V + PE, 50-60 Hz / 3x240 50-60 Hz
Power	3000 W
Spindle speed	4 rpm (for 50 Hz); 5 rpm (for 60 Hz)
Bevel angle	20°-45°
Maximum bevel width	29 mm
Maximum bevel in one single run	20 mm
Maximum height of cut	14.5 mm
Minimum plate thickness	10 mm
Maximum plate thickness	40 mm (50 mm*)
Minimum plate width	80 mm
Bevel length per minute	1.7 m/min for 50 Hz; 1.9 m/min for 60 Hz
Minimum pipe ID	150 mm
Weight	540 kg
Product Code	UKS-0808-10-40-00-00-0

* for 50 mm thick plate, the minimum bevel width is 15 mm.
