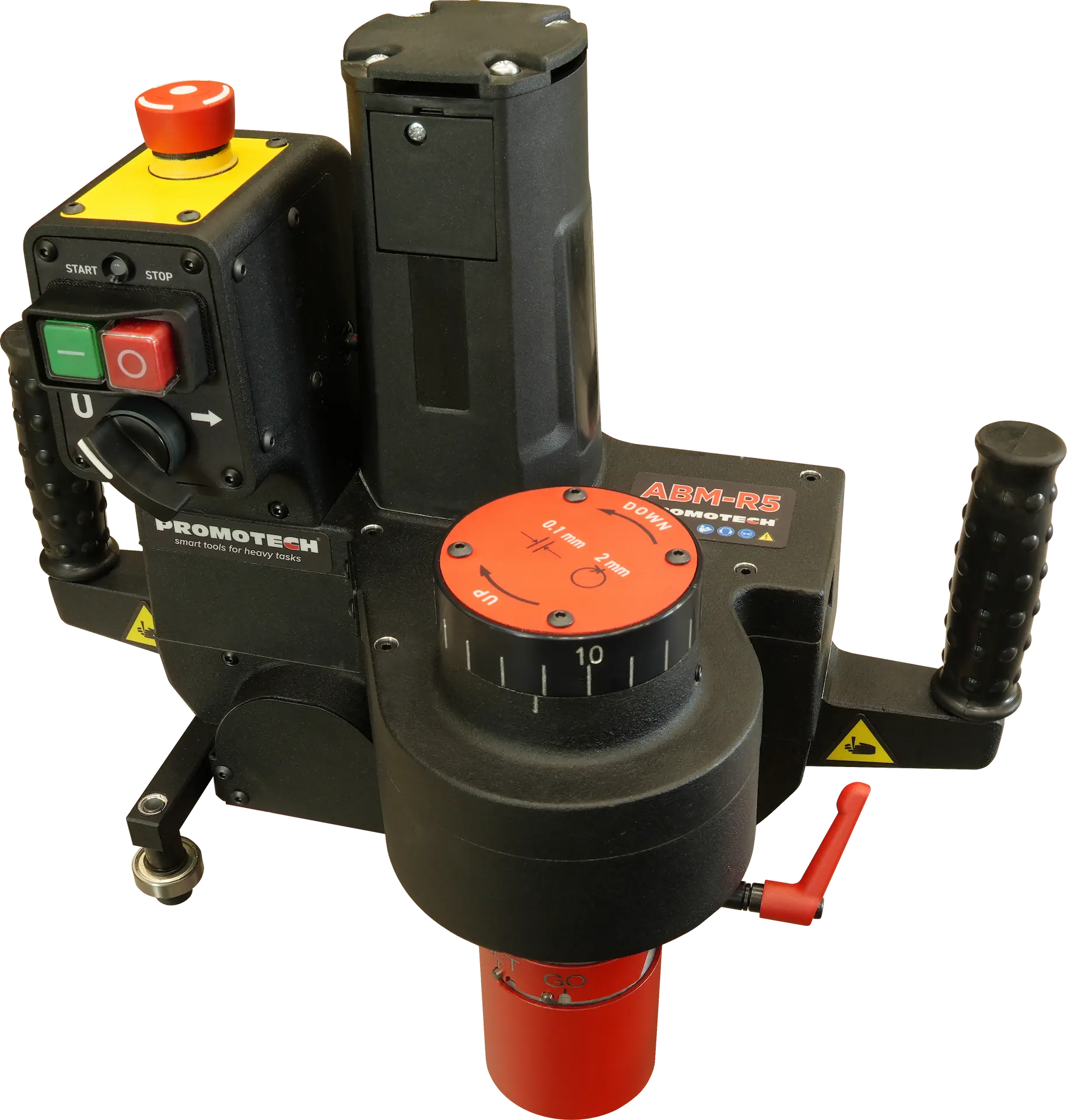

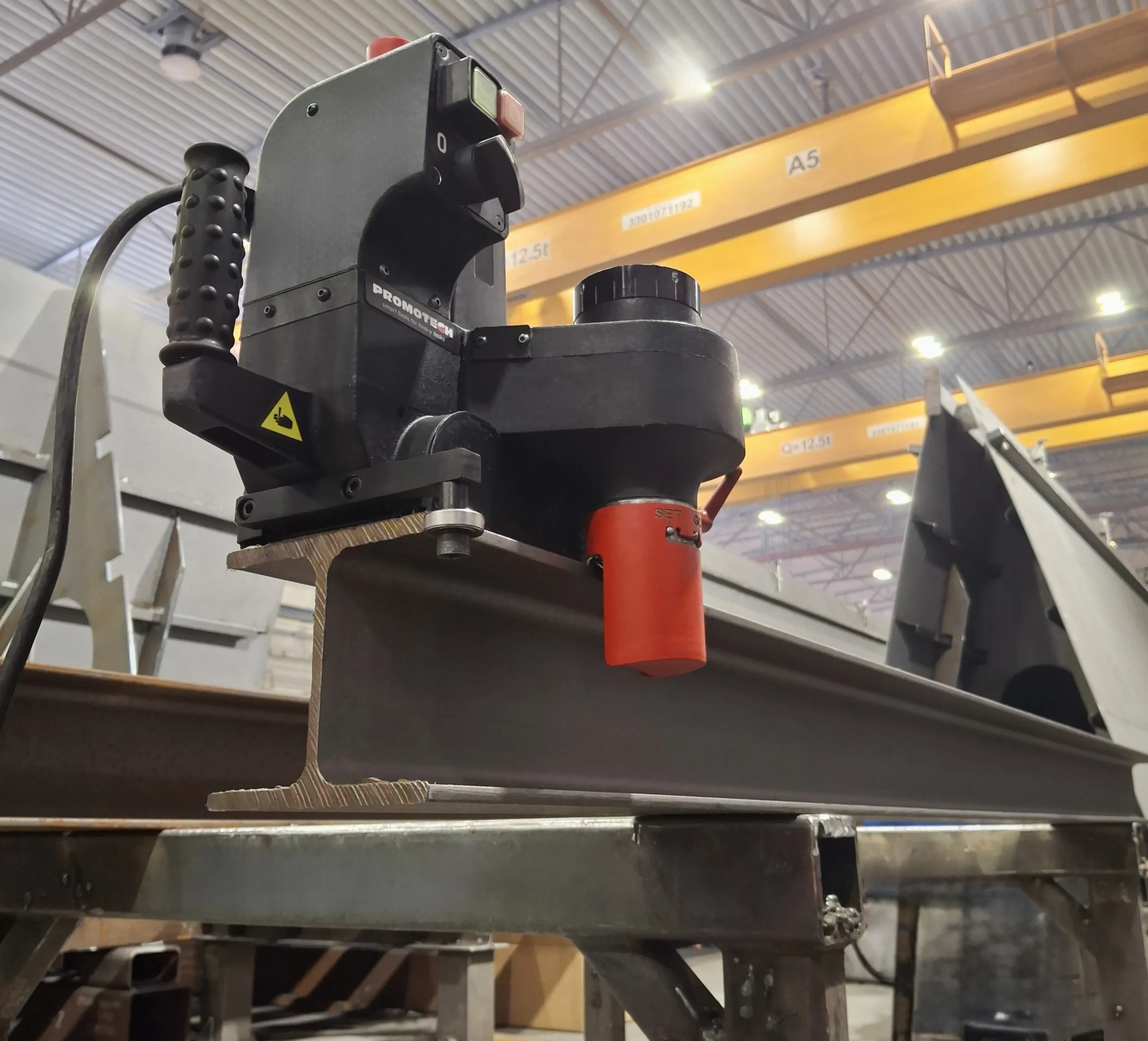

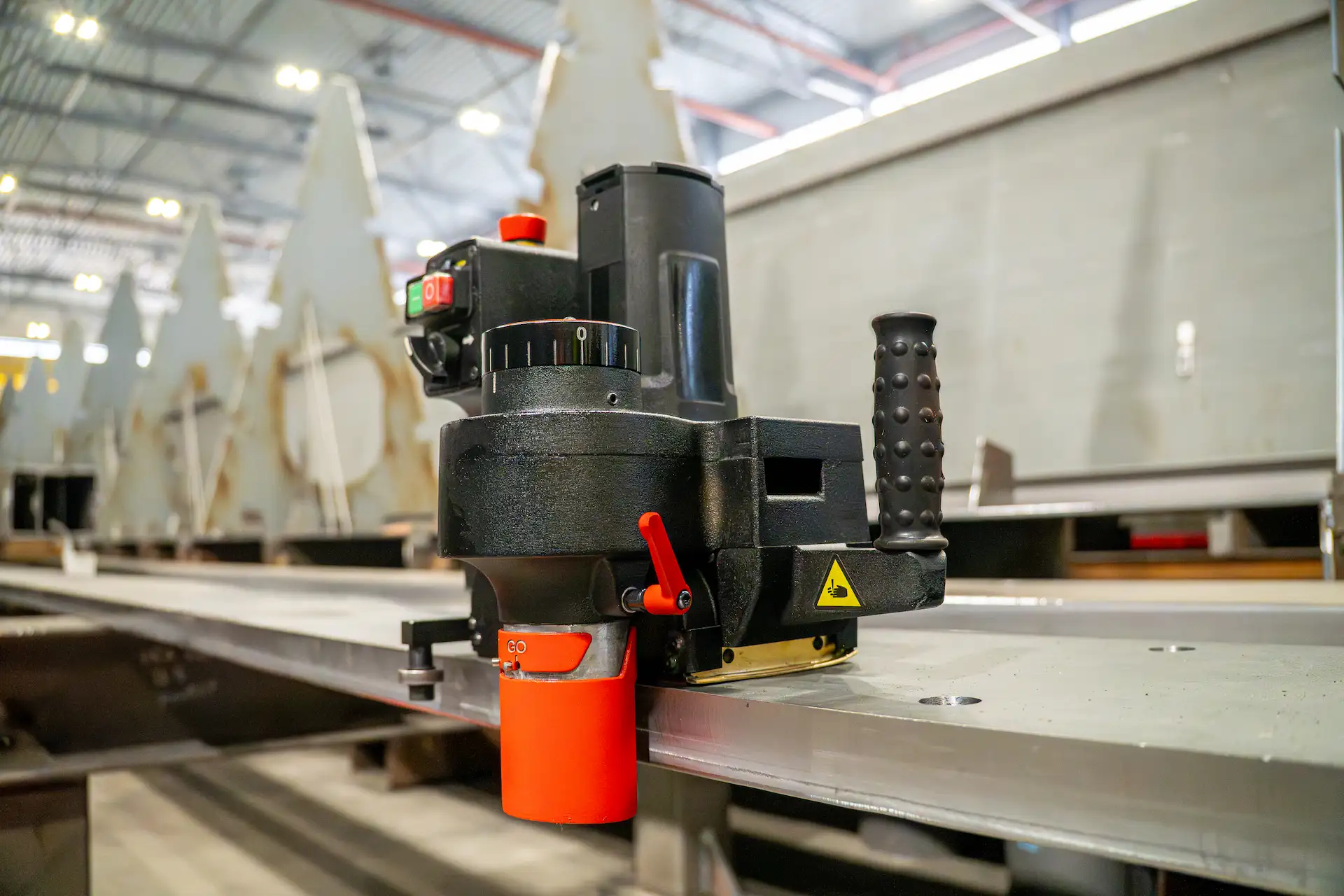

ABM-R5 Auto-feed radius beveller

Features and Advantages

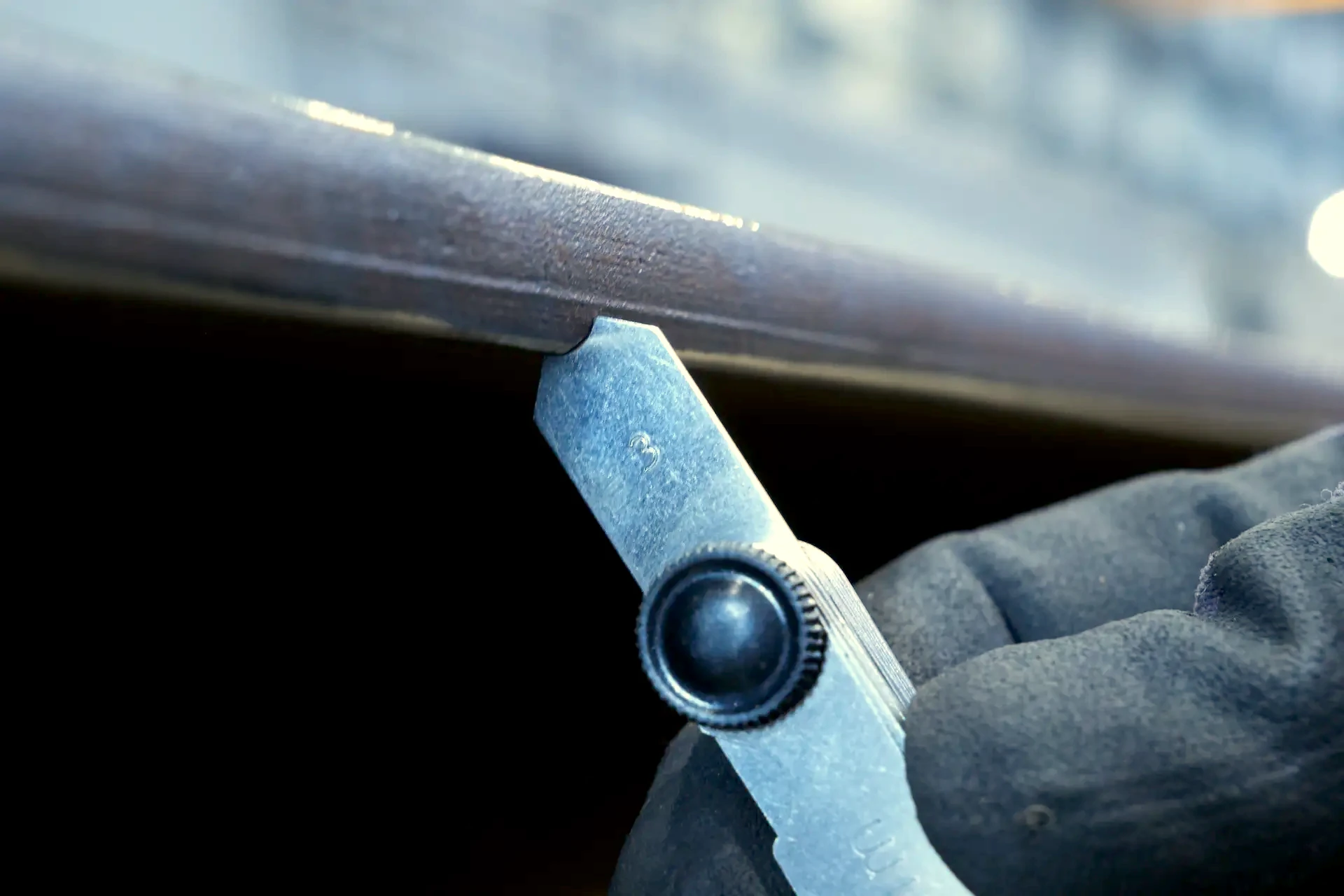

Creation of R2, R3, R4 or R5 radius in single pass on upper or lower edge.
Travel speed of ~2.0 m/min results in approximately 120 m of machined workpiece in just one hour.
Continuous bevel width adjustment up to 6 mm.

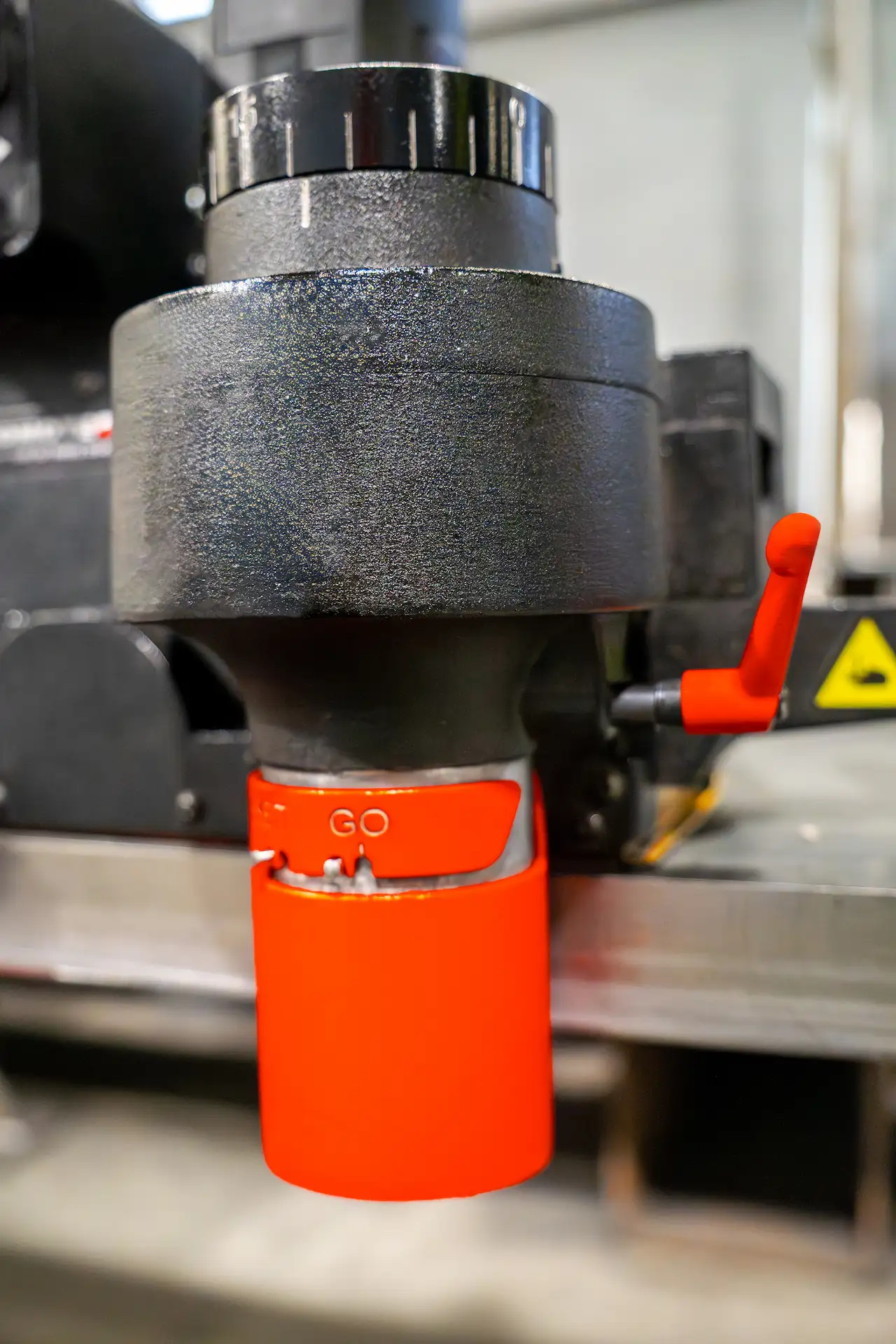

Smooth adjustment of the milling head position with an accuracy of 0.1 mm.

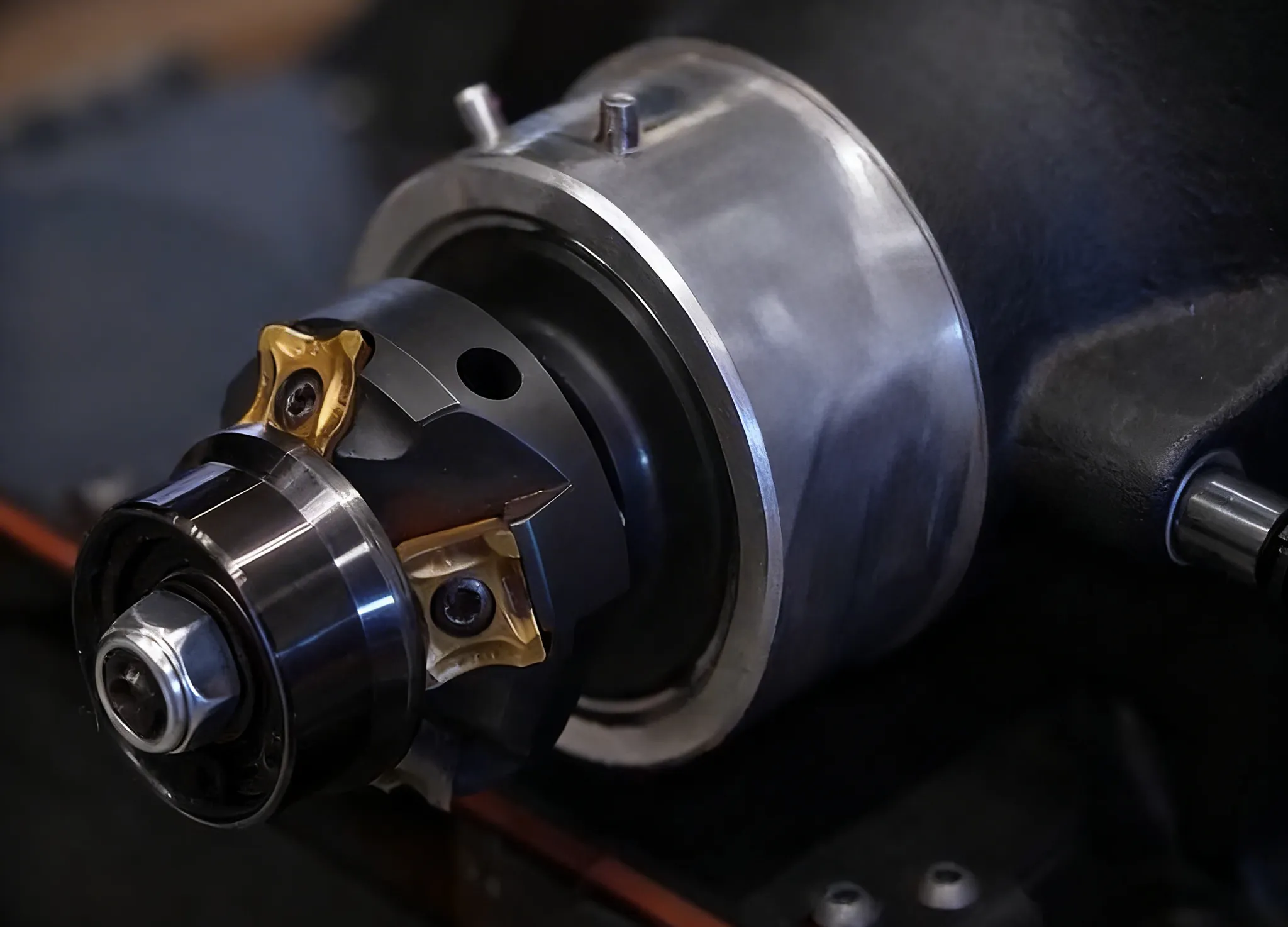

Smart overload system protect inserts and maintain quality.
Automatic stop and retraction of the machine at the end of the work to keep the milling head away from the material.
Compact size and ergonomic design make it easy to carry and set up.
2 years of warranty.

Technical Specifications

Voltage	1~ 220-240 V, 50-60 Hz, 1~ 110-120 V, 50-60 Hz
Power	1080 W
Spindle speed (without load)	5900 rpm
Spindle speed (with load)	3950 rpm
Feed speed	2.0 m/min

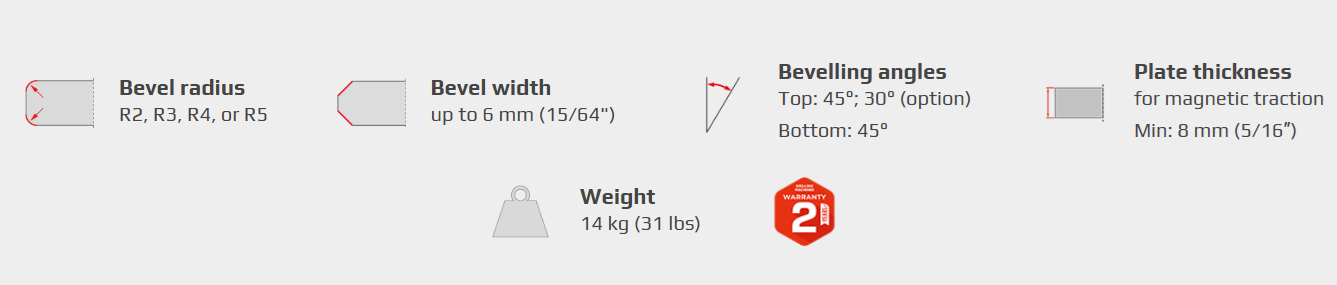

Maximum bevel width (b)	6 mm (15/64")
Bevel angle (ß) on the upper edge	45°; 30° (option)
Bevel angle (ß) on the lower edge	45° only
Minimum plate thickness	8 mm (5/16″)
Maximum plate thickness	30 mm (1 3/16”)
Minimum workpiece width	150 mm (5 57/64″)
Rounding edges (both upper and lower edges)	R2, R3, R4, R5; 2 mm, 3 mm, 4 mm, 5 mm, (5/64, 7/64, 5/32, 3/16”)
Dimensions (L x W x H)	408 x 235 x 355 mm
Weight	14.0 kg (31 lbs )
Product code 220-240 V, 50-60 Hz	UKS-0762-10-20-00-0
Product code 110-120 V, 50-60 Hz	UKS-0762-10-10-00-0
