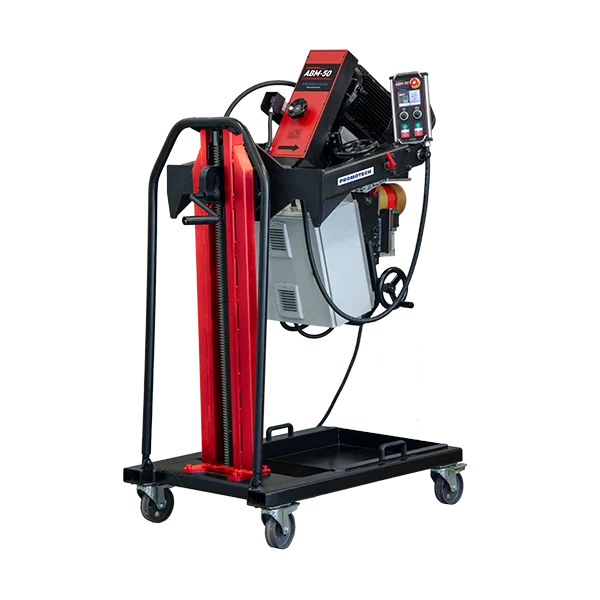

ABM-50 Auto feed bevelling machine

Features and Advantages

auto-feed machining to increase ergonomics, comfort, and productivity
bevel width up to 50 mm (2″) at 45 degrees

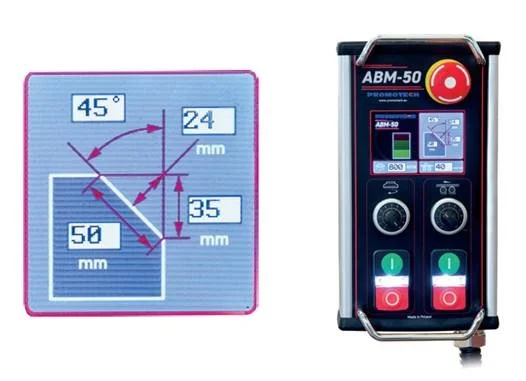

LCD shows exact bevel geometry and cutting parameters in real time
precise adjustment of spindle speed and feed rate according to material grade, including stainless steel, duplex, aluminum, etc.
180° inversion allows for the creation of a double-sided bevel – no need to rotate or flip heavy material reduces material handling time and expense
versatile and transportable on its own trolley
2 years of warranty

Technical Specifications

Voltage	3~ 400 V + PE, 50/60 Hz 3~ 480 V + PE, 50/60 Hz
Power	6.5 kW
Spindle speed ( no load )	300–800 rpm
Feed speed	0–1.2 m/min (47”/min)

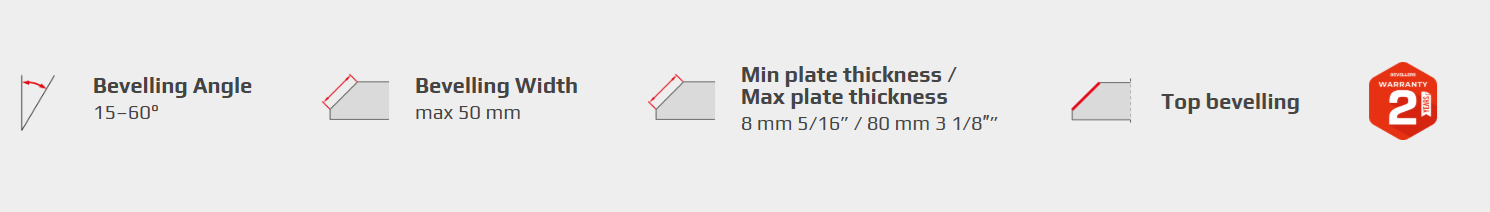

Bevel angle (ß, Fig. 1)	15–60°
Maximum bevel width (b, Fig. 1)	50 mm (2”)
Maximum depth of cut (d, Fig. 1) allowed per single pass	6 mm (1/4)
Plate thickness	8–80 mm (5/16–3-1/8”)
Required ambient temperature	0–40 °C (34–104°F)
Weight	320 kg (700 lbs)
Product Code:	UKS-0627-10-40-00-0
