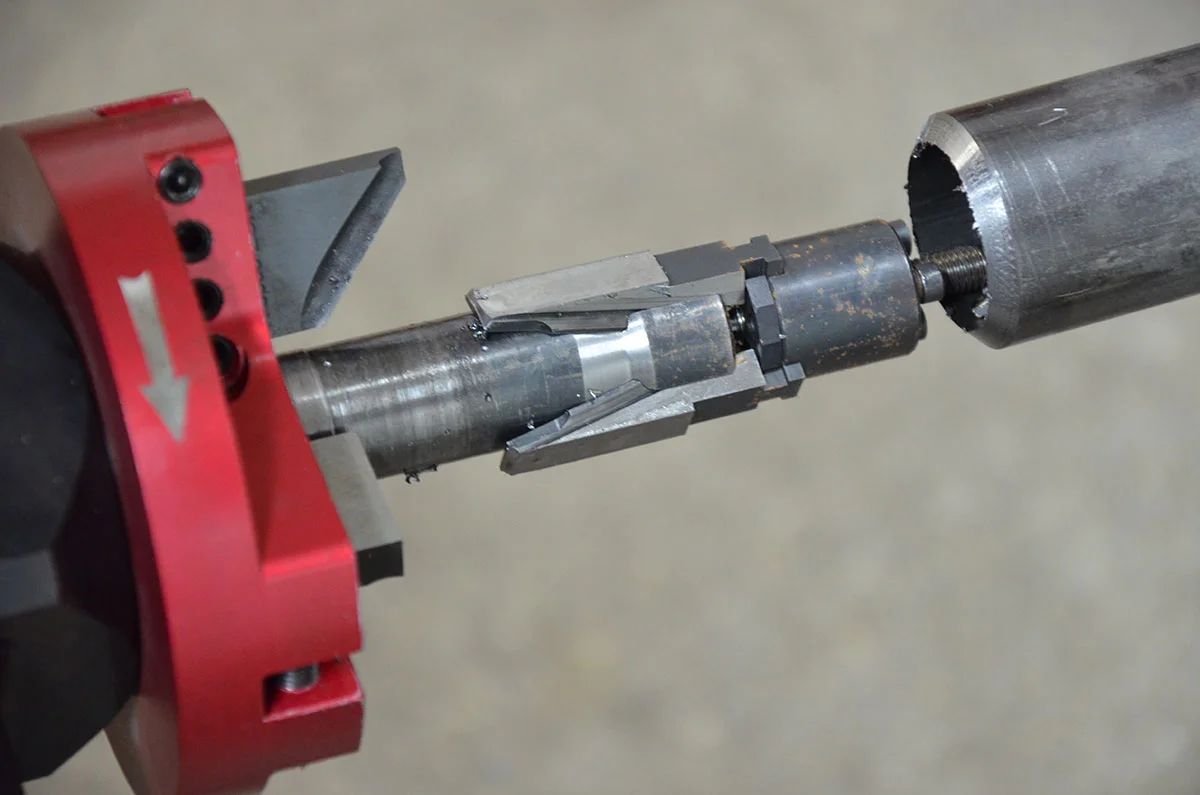

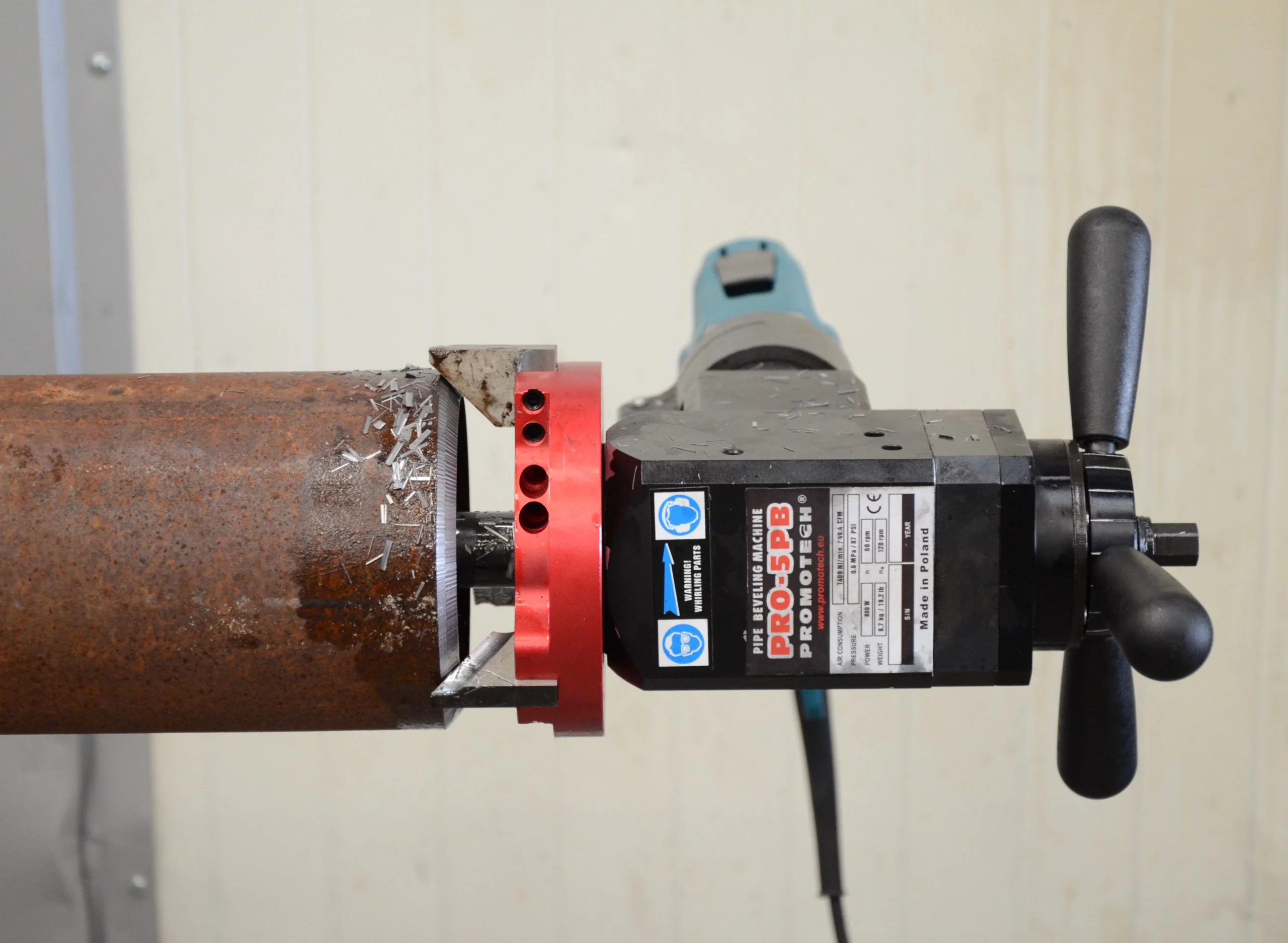

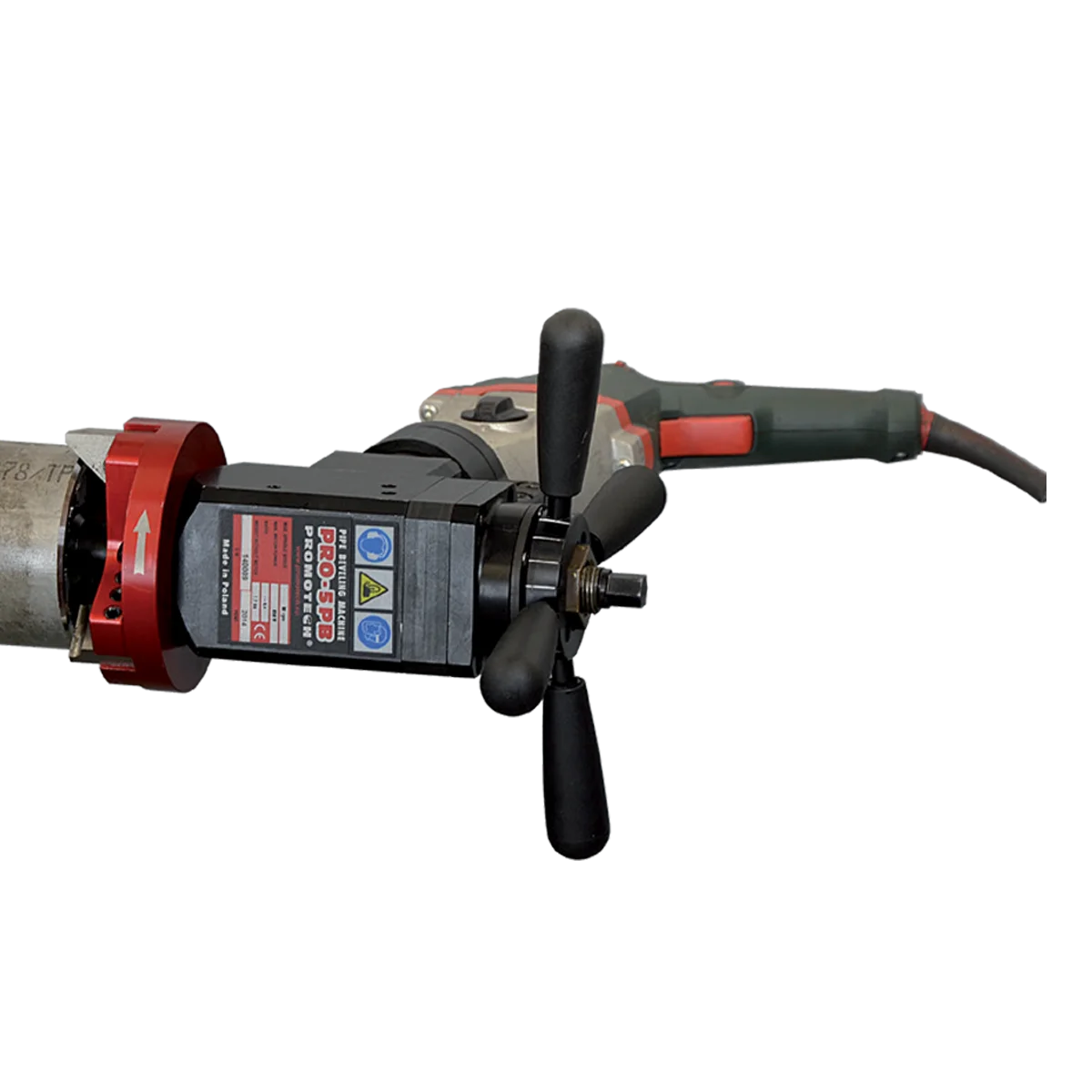

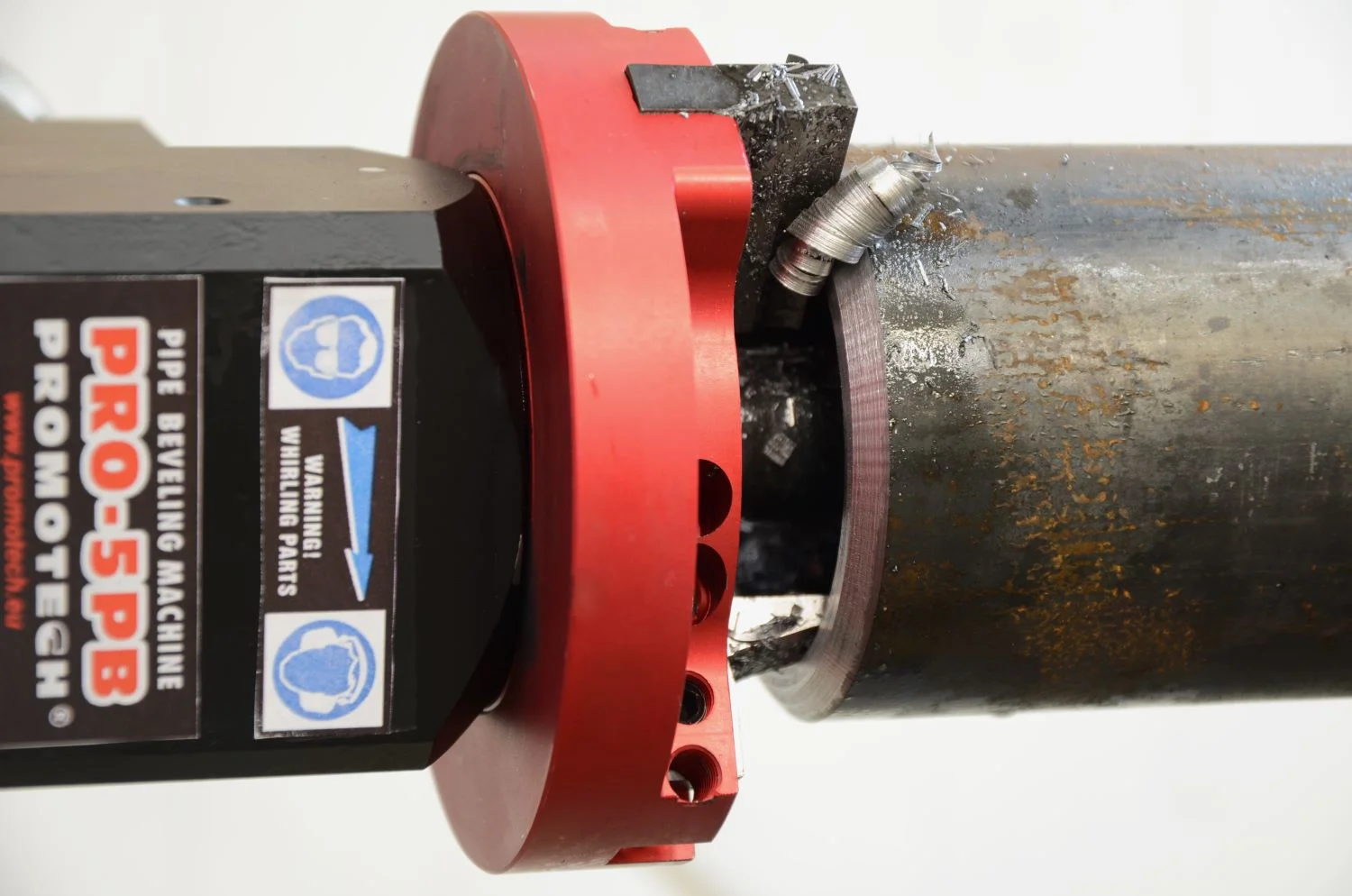

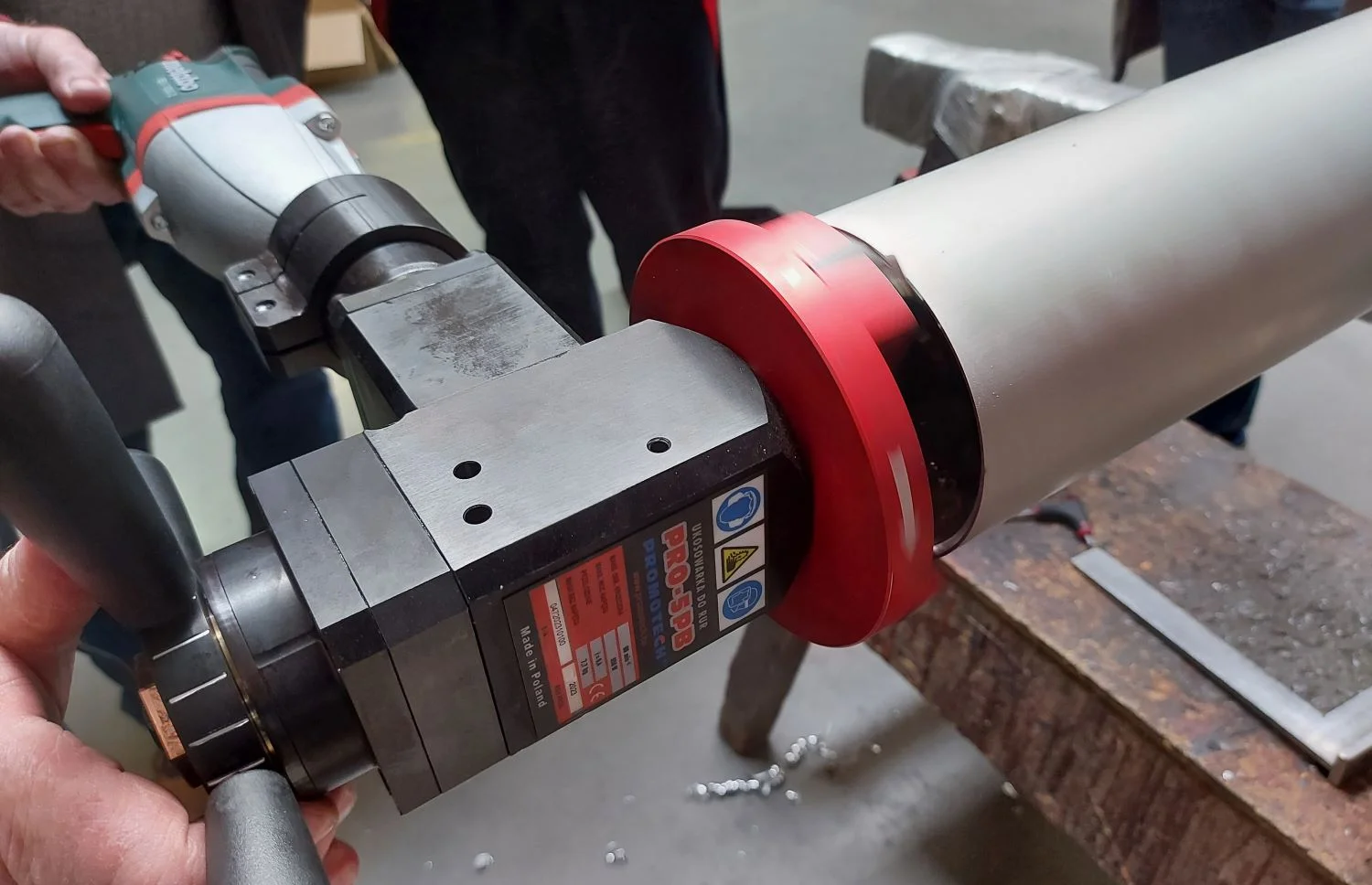

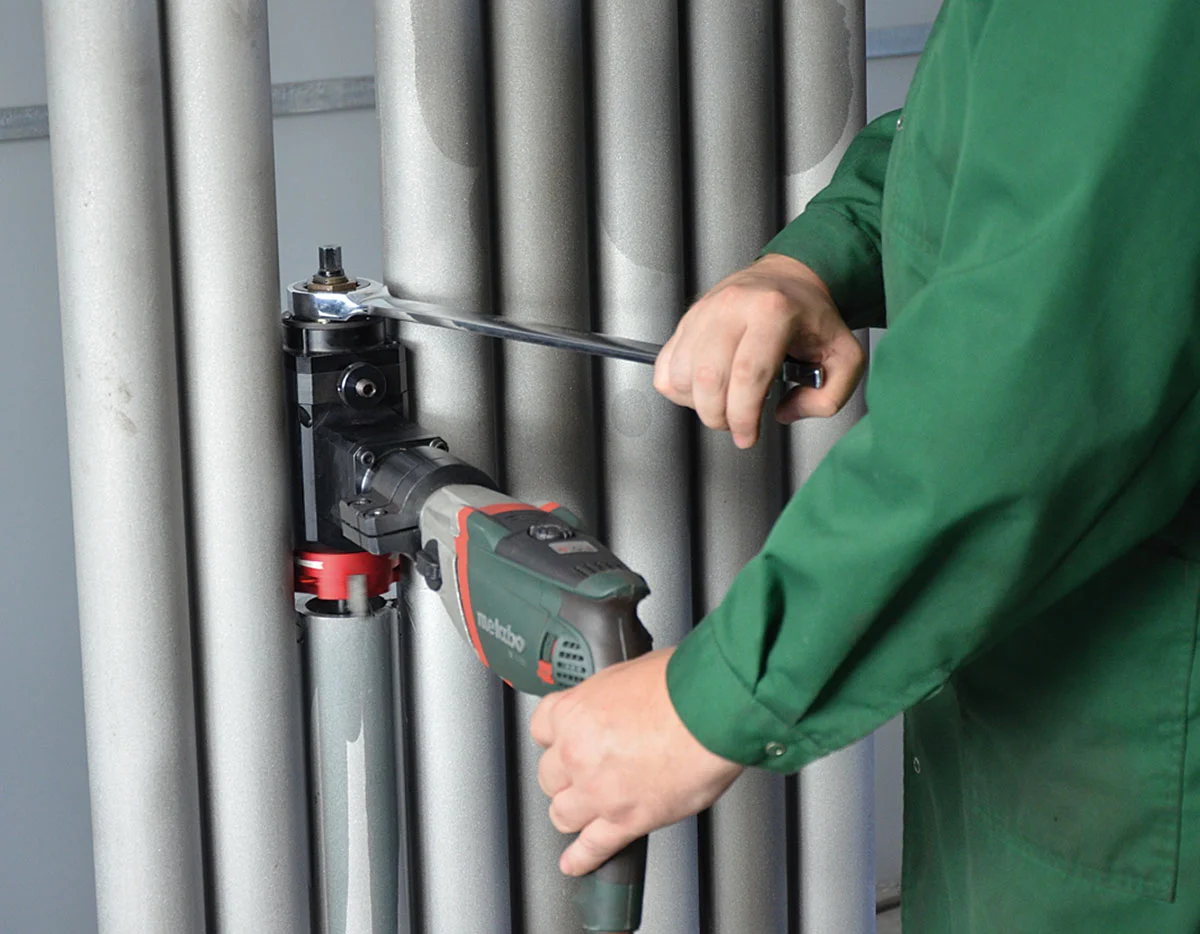

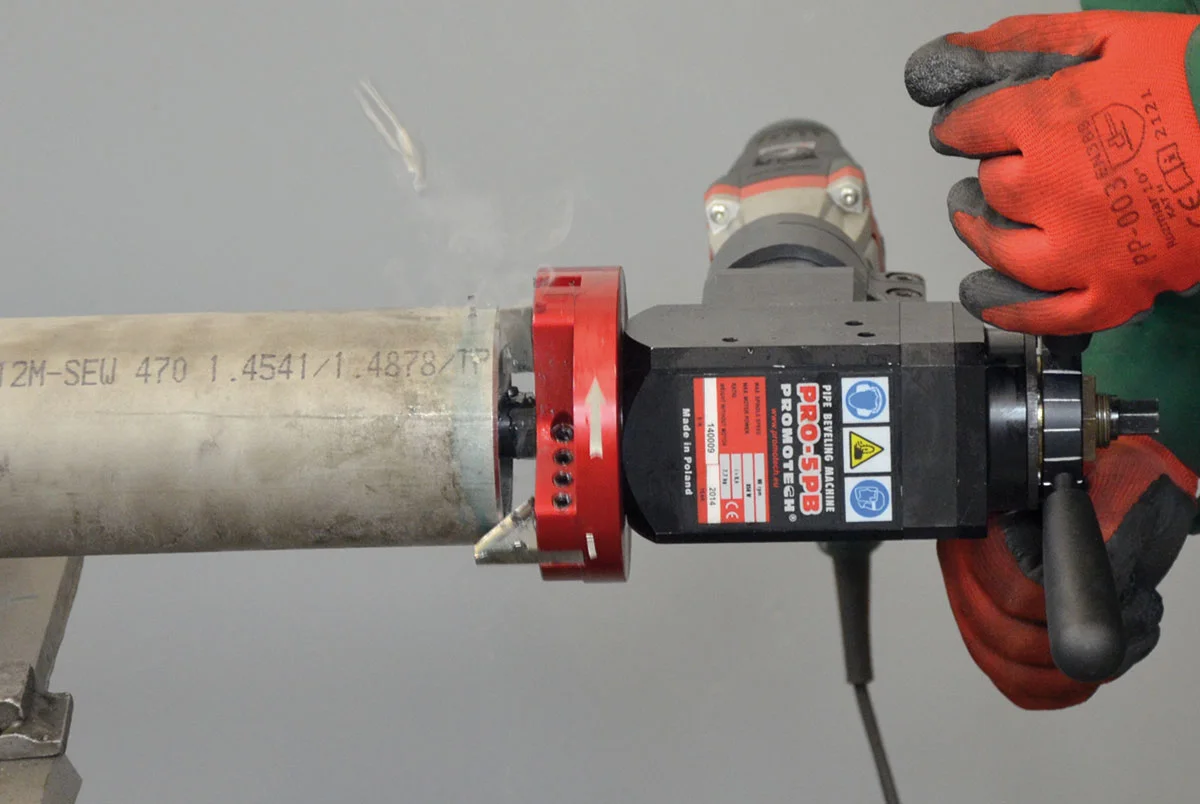

PRO-5 PB is handy and lightweight portable beveller designed to create a perfect weld prep edge on pipes made of carbon and stainless steels, aluminum alloys and copper-nickels. Available with either pneumatic motor, electric motor or battery drive the beveller can be mounted in pipe or tubing with a minimum inside diameter of 32 mm (1.25″) and bevel outside diameters up to 140 mm (5.51”). Designed with three tool holders, PRO-5 PB can simultaneously mill the OD bevel, root face and ID counterbore to create consistent wall thickness around the joint and ensure complete weld penetration. By utilizing a self-centering mandrel which mounts internally to the open end of the tube or pipe, the beveller enables highly repeatable and consistent fit-up and can be rapidly deployed from one pipe to another to reduce cycle times and improve work flow.
PRO-5 PB PRO-5 PB PRO-5 PB

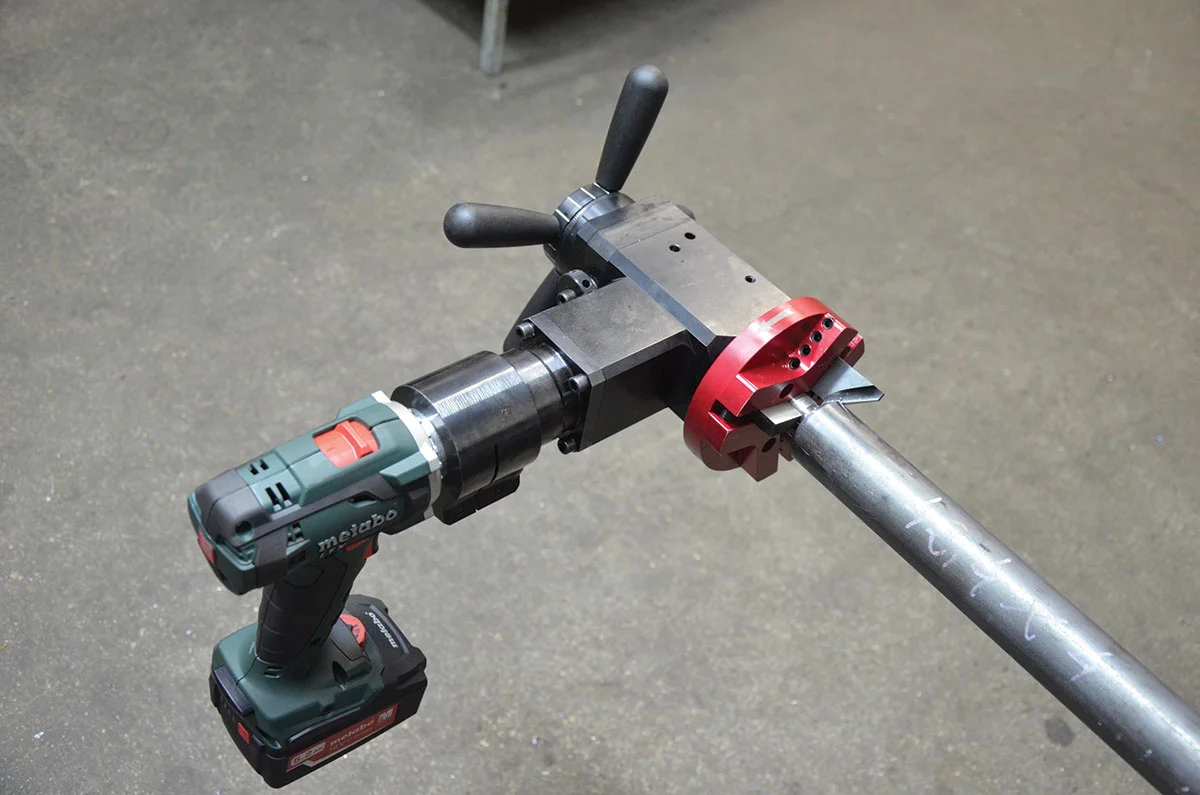

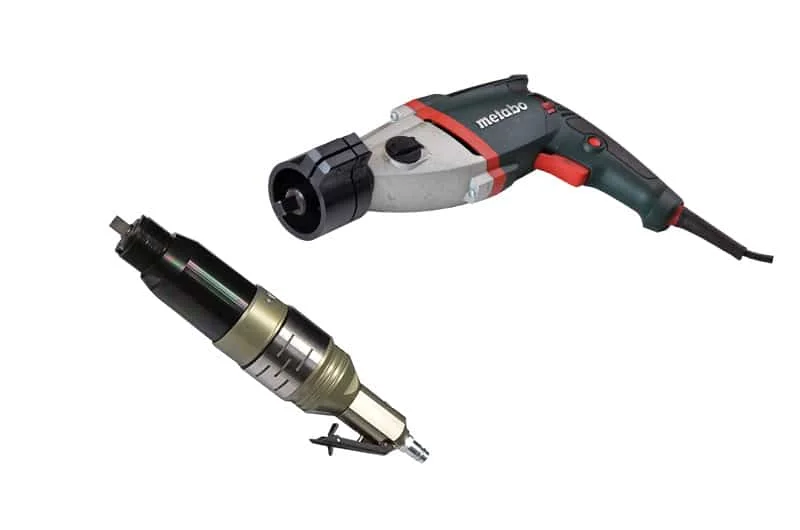

with electric motor with pneumatic motor with battery motor
110-120 V / 50-60 Hz
220-240 V / 50-60 Hz
gear 1 – 0 to 113 rpm
gear 2 – 0 to 318 rpm

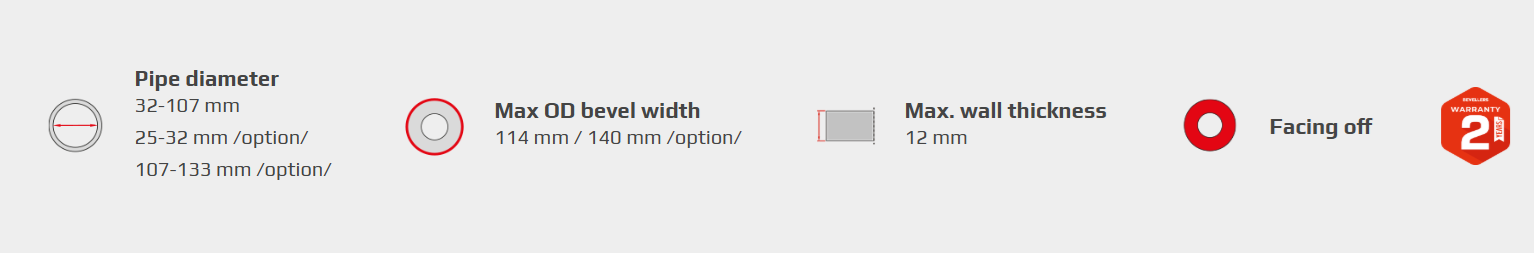

32 mm ID to 114 mm OD (1.26-4.49’’)
ID 25-32 mm (1”-1.25”) /option/
OD 107-133 mm (4.21”-5.24”) /option/
OD up to 114 mm | 12 mm (0.47’’)
114–124 mm* | 10 mm (0.39’’)
124–132 mm* | 8 mm (0.31’’)
132–140 mm* | 6 mm (0.24’’)
* available with the optional 140 mm spindle disk set
