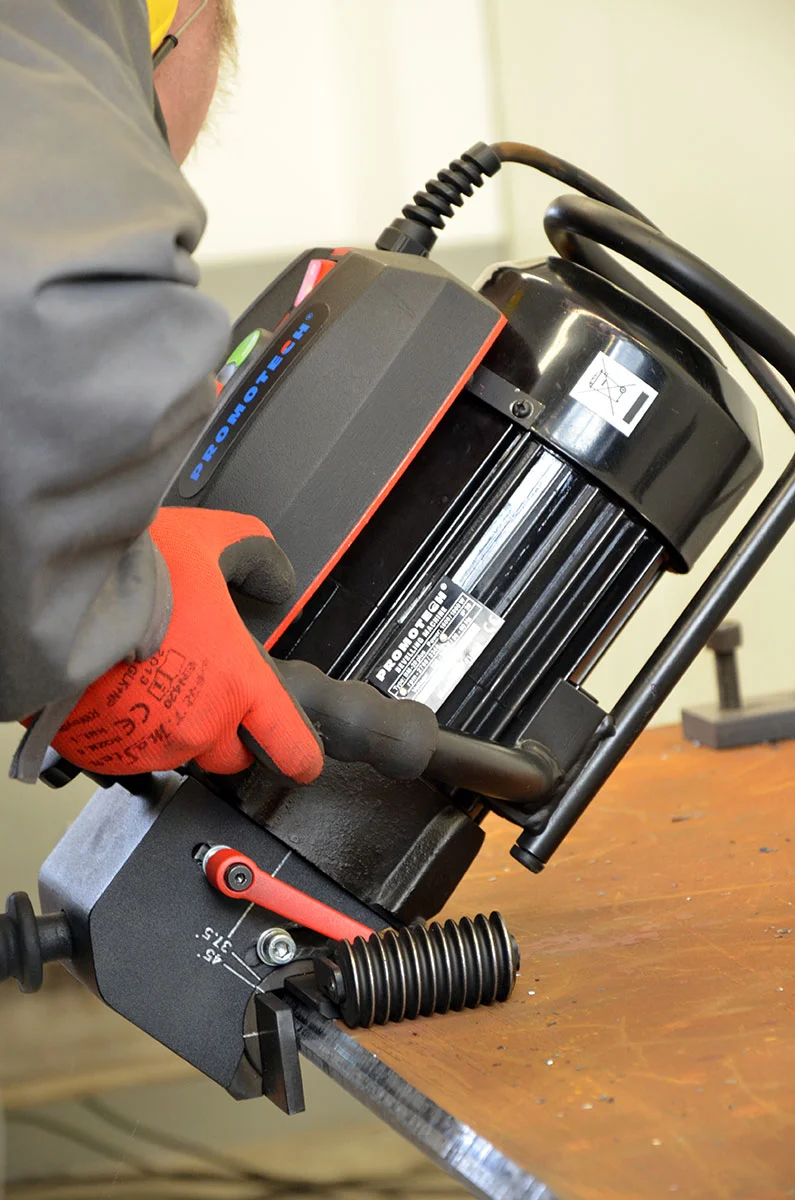

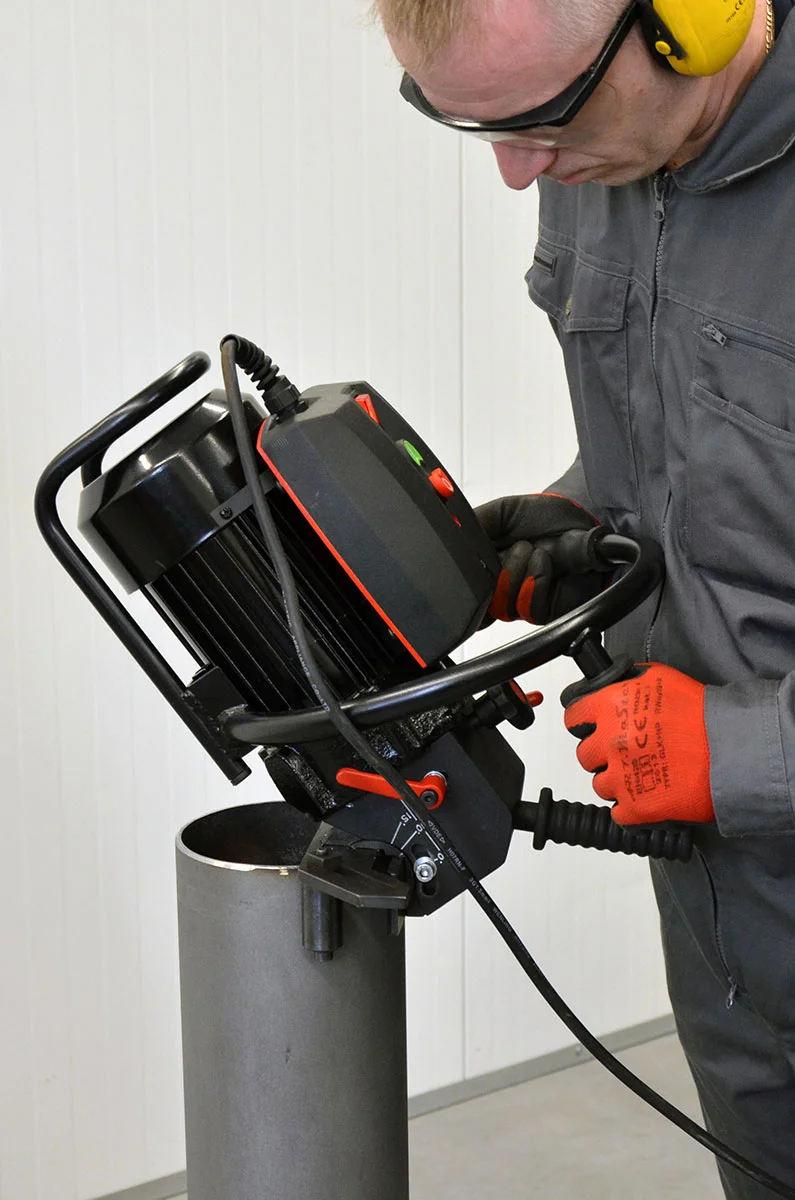

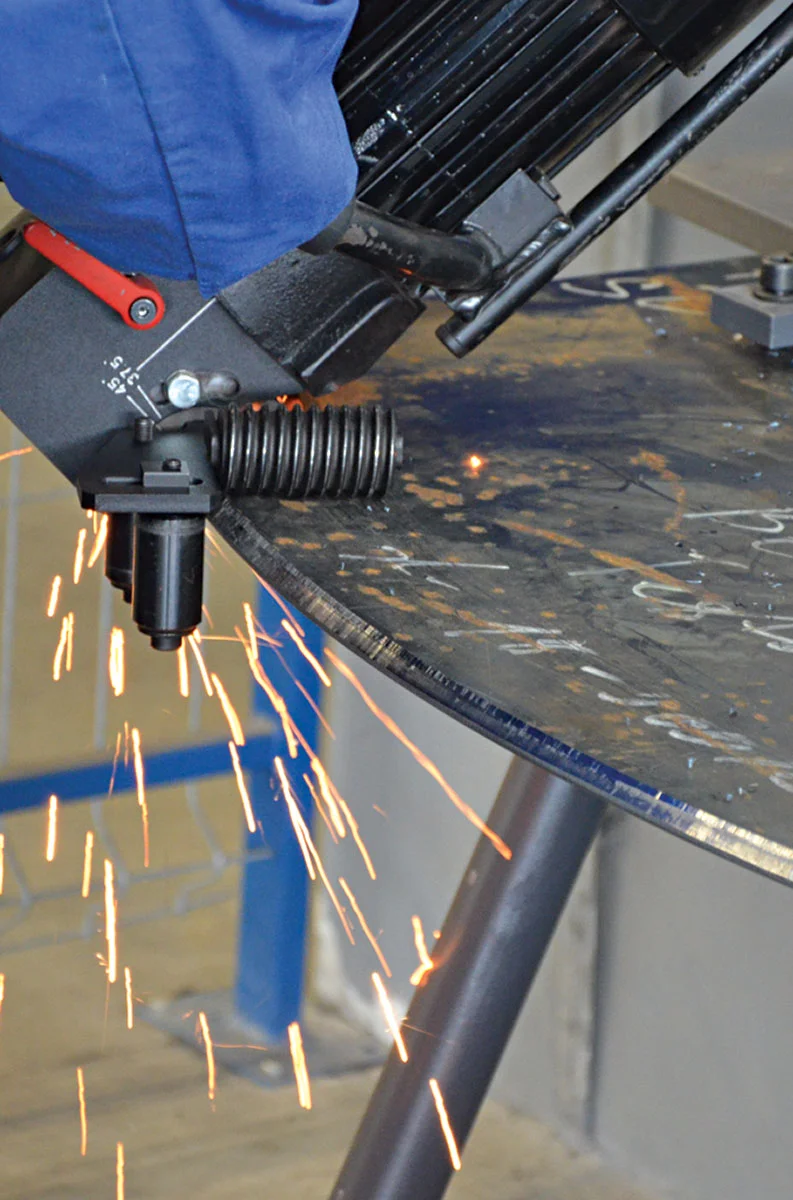

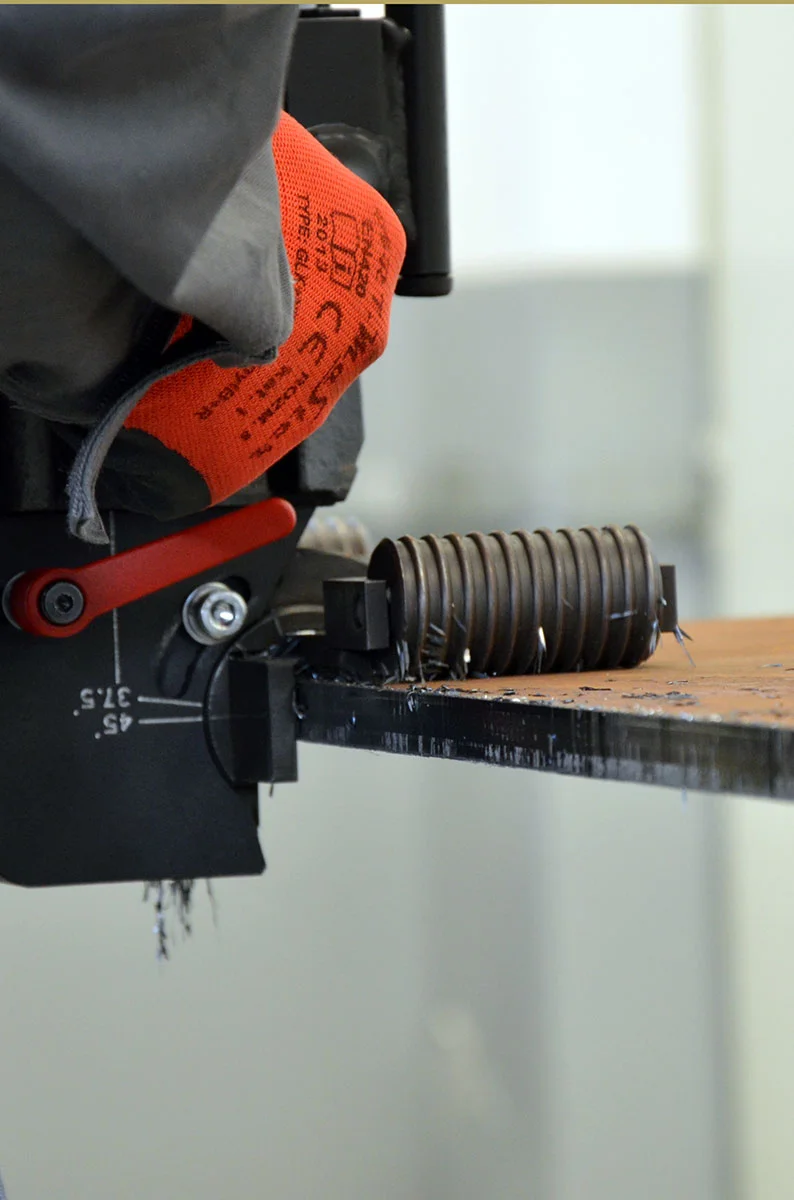

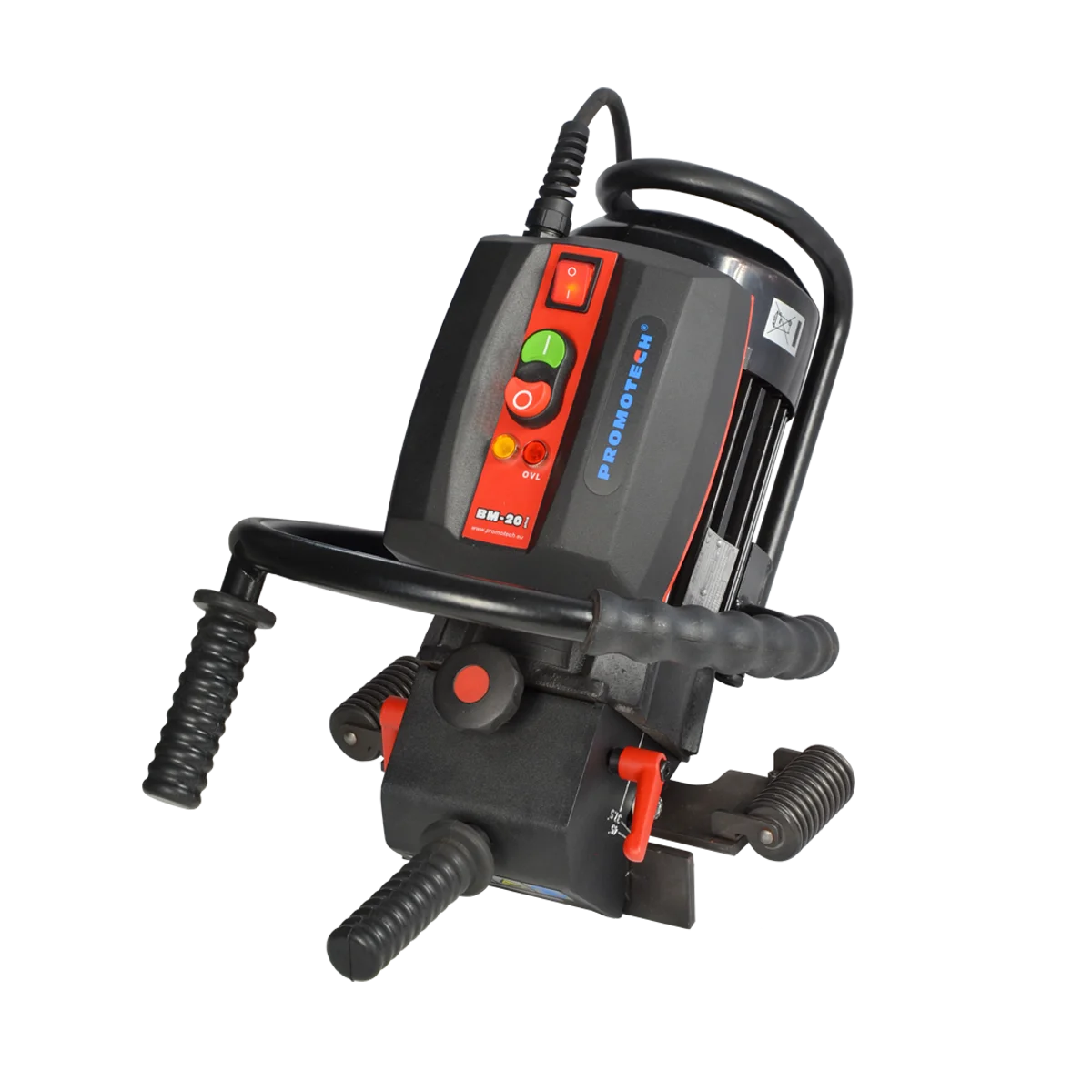

BM-20plus is an easy-to-use, portable heavy-duty machine designed for beveling steel plates and pipes prior to welding. The machine is fitted with two rotary milling heads, each holding five 4-sided indexable inserts, allowing smooth operation and exceptional efficiency. BM-20plus has a state-of-the-art electronic motor overload module protecting the operator, the machine, and the tooling. It is also equipped with guide rolls, which make it easy and light to operate.
1~ 110–120 V, 50–60 Hz
1550/1600 W (for 50/60 Hz, at 220–240 V)
1700/1850 W (for 50/60 Hz, at 110–120 V)
1600 W (for 60 Hz, at 110–120 V)
2780–3340 rpm (at 230 V)
UKS-0539-10-20-00-0 (230V/50Hz)
BM-20plus_Portable-Beveller_21.11-2 Plate-and-Pipe-Bevellers_Product-Catalogue_26.04 Plate-and-Pipe-Bevellers_Product-Overview_25.12
