Features & Benefits

• High-Dynamic Linear Drives: Driven by linear motors that provide extremely high positioning speeds, rapid acceleration, and unprecedented accuracy on complex cutting profiles.

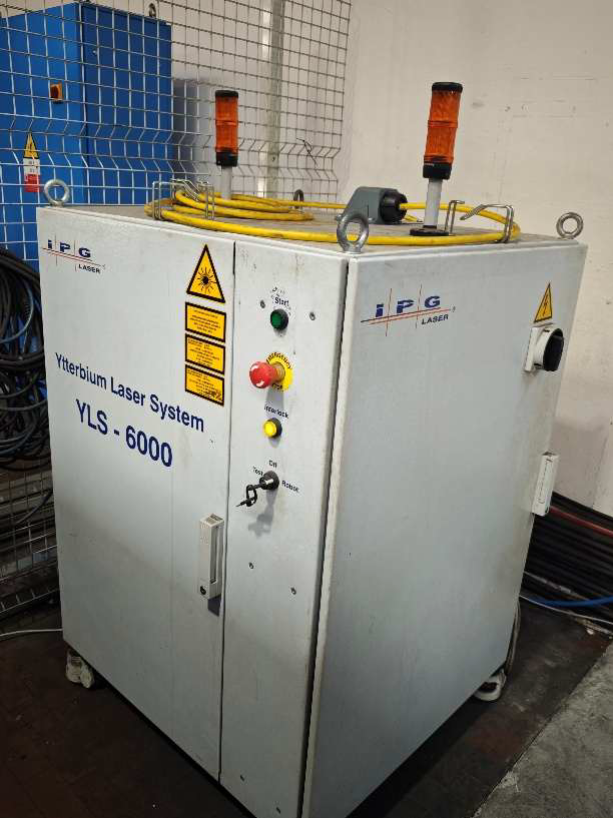

• Powerful IPG Fiber Source: Features the robust IPG Ytterbium Laser System YLS-6000 (6 kW), providing exceptional beam stability and efficiency while allowing flawless processing of highly reflective metals (aluminum, copper, brass).

• Advanced Cutting Head: Outfitted with a standard cutting head that features an independent, programmable focusing lens position (F-axis) and SMART Cut functionality for optimized piercing and cutting performance.

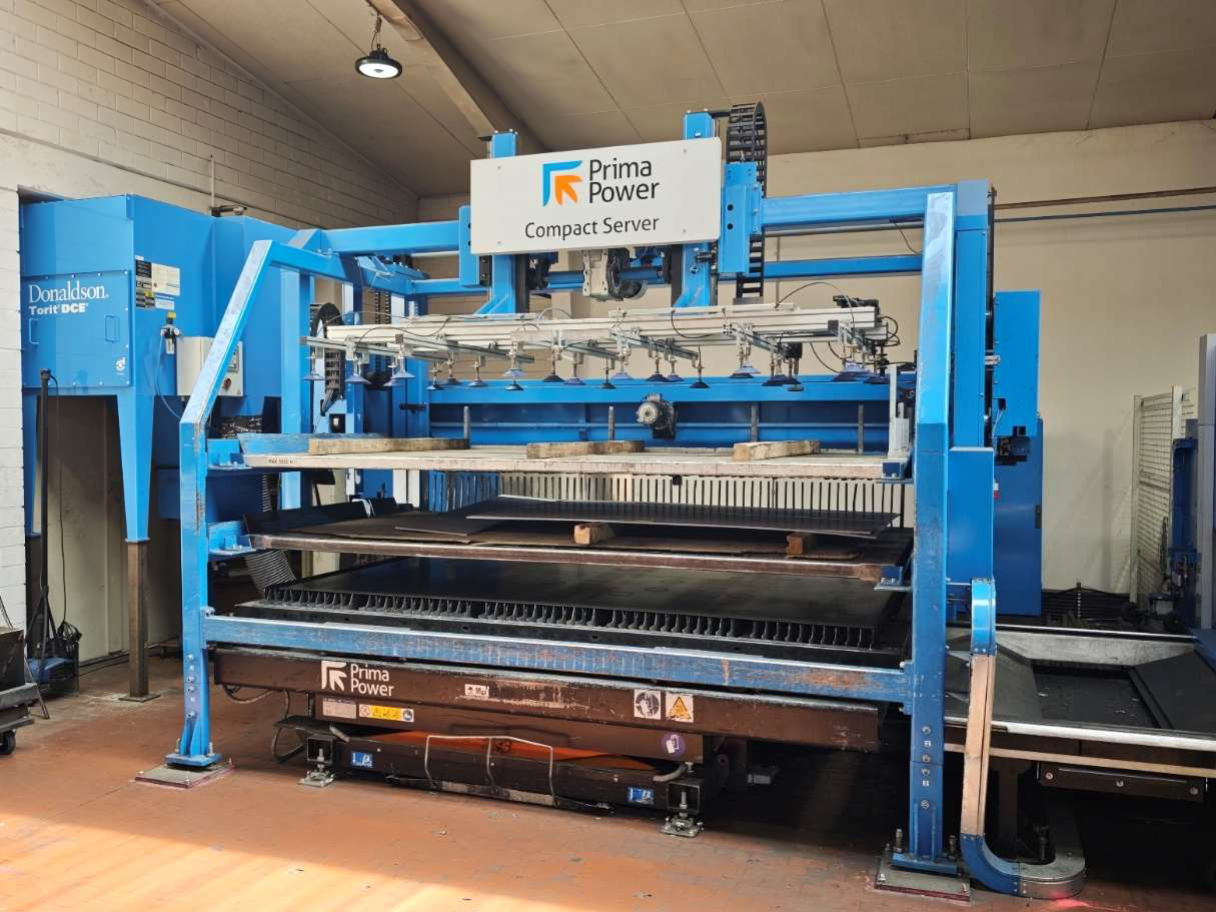

• Integrated Automation: Includes a "Compact Server" automated material loading/unloading station (automatic pallet changer) to minimize idle times and facilitate semi-autonomous factory workflows.

• Cost Efficiency: The high electrical-to-optical efficiency of the fiber laser significantly lowers power consumption compared to traditional, legacy $CO_2$ laser systems.

Equipment

• Standard Cutting Head featuring a 7.5" lens, an integrated collision protection device, and a capacitive height sensor.

• High-Pressure Kit and Gas Selection: Automated switching and delivery system for two cutting gases (Nitrogen N2 and Oxygen O2).

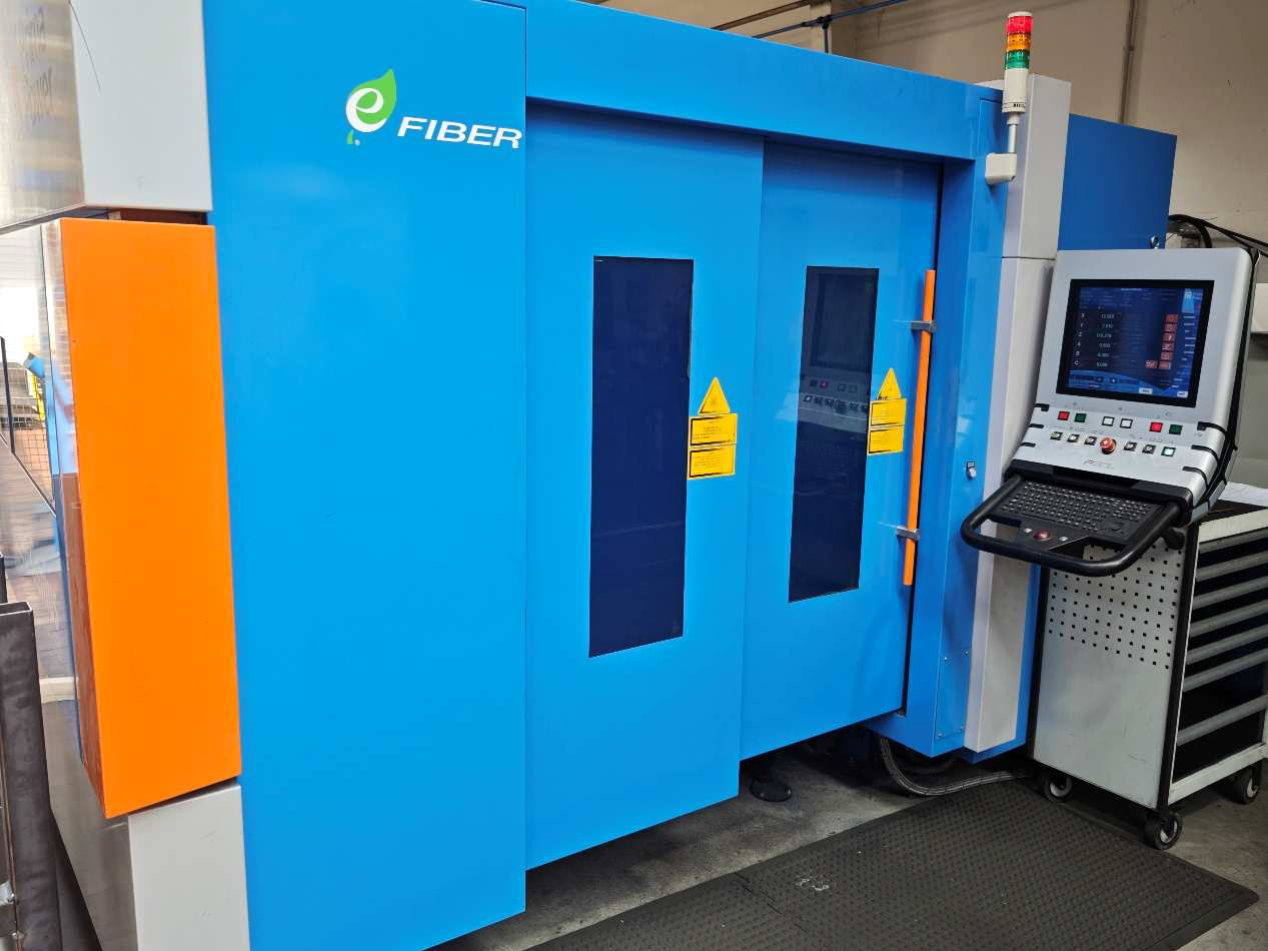

• P30L Control System: Industrial-grade CNC unit operating on a Windows XP Embedded architecture.

• Connectivity & Diagnostic Tools: Equipped with an Ethernet card in the control unit and a Teleservice module (including modem and installation) for remote support.

• Automatic Sheet Alignment: Intelligent sensor-based alignment system to detect sheet orientation and plate angles on the table.

• Air Treatment: Integrated air dryer and filtration system to supply clean, dry air to the pneumatic components.

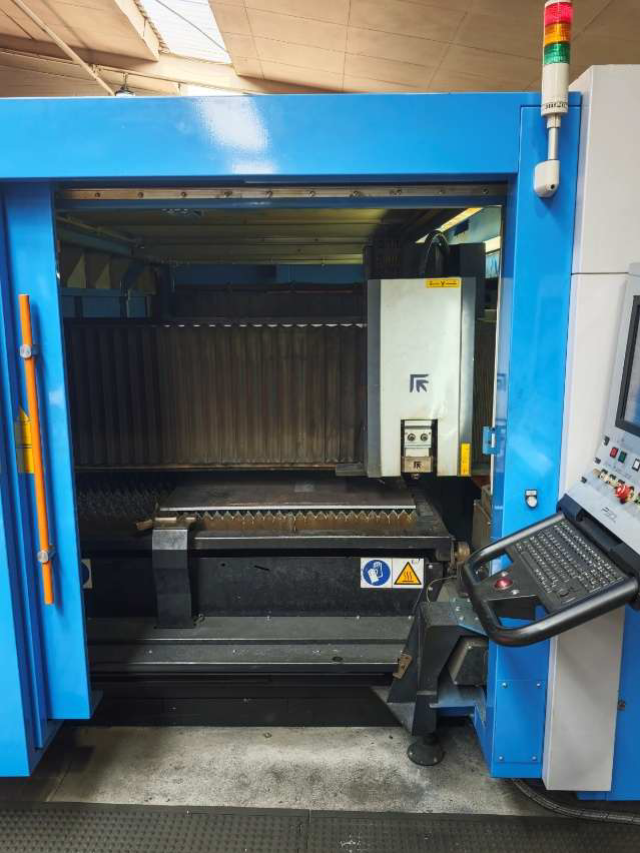

• Work Area Table: Cutting table fitted with a pallet changer and a "fakir bed" pin support matrix, alongside an under-table manually operated scrap/waste loading area.

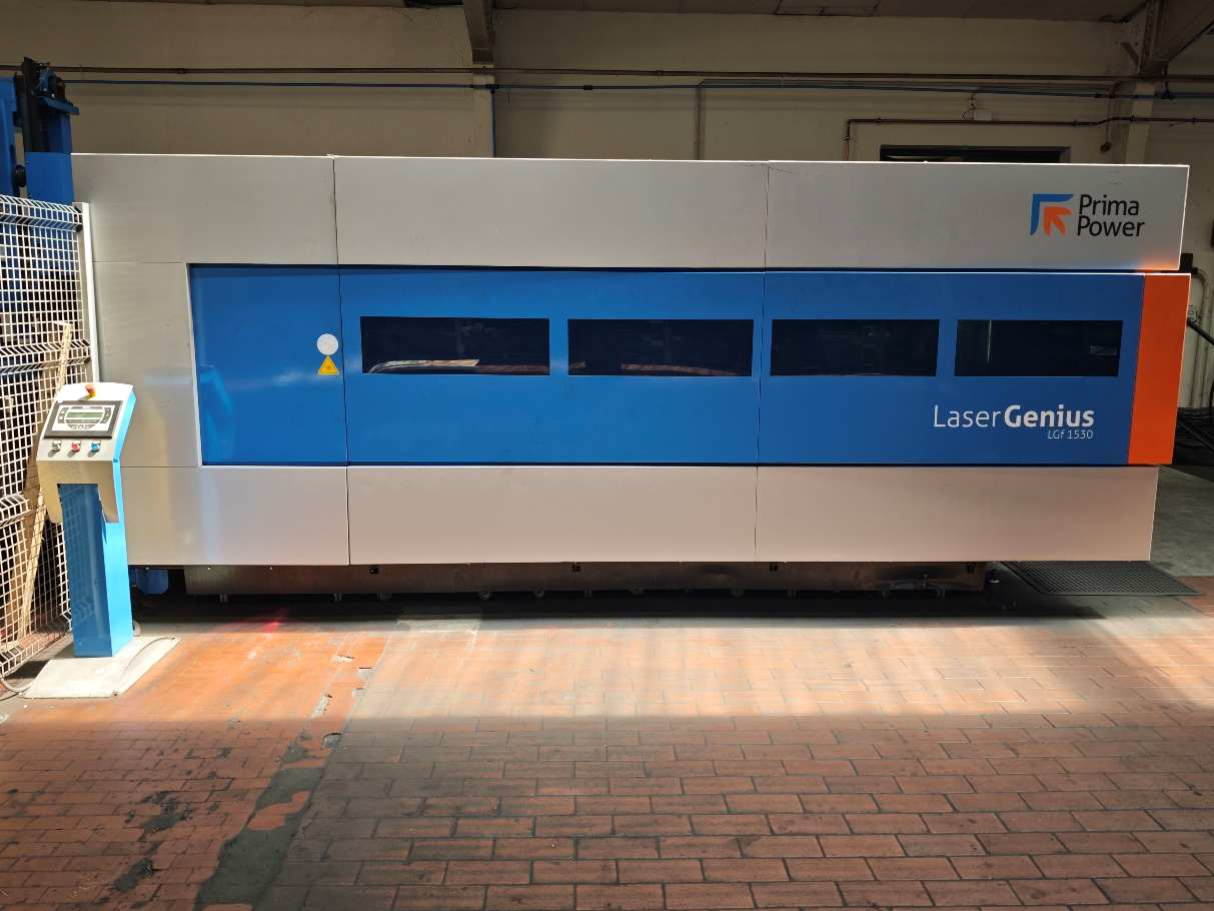

• Safety Enclosure: Fully closed protective housing designed in strict compliance with CE/CDRH safety regulations.

• Automatic Pallet Changer: High-speed shuttle table system completed with safety light barriers to protect operators during external handling.

• CAM PRIMA POWER Windows Software Package: Licensed via a USB hardware dongle (W1.7M) and featuring advanced manufacturing modules:

  • Nesting Module: Automated optimization of parts layout to maximize material utilization.

  • Multi-Format CAD Import: Direct .dwg import and multi-file .dxf import capabilities.

  • Cycle Time Light: Precision simulation tool for calculating exact job execution times.

  • Order Manager: Dedicated production order management software tool (W1.7M30).

  • Store Manager: Real-time material and inventory tracking system (W1.7M82).

  • Common Cut: Shared cutting line functionality (W1.7M10) to reduce cycle times and material scrap.
