Features & Benefits

• Double C-Frame Design: Features a rigid main structure with a decoupled measuring frame, ensuring absolute bending precision completely unaffected by any minor deflection of the main frame under full load.

• Servo-Hydraulic Drive System: Combines the immense force of a 160-ton hydraulic system with high approach and retraction speeds for optimal cycle times.

• Precision CNC Positioning: Offers independent closed-loop electronic regulation of both cylinders (Y1/Y2 axes) and a multi-axis backgauge system.

• Operator Ergonomics: Equipped with a large graphical touchscreen monitor that streamlines workflow by allowing quick programming and intuitive 2D profile visualization.

• Advanced Workplace Safety: Features an integrated laser guard system that protects the operator's hands during high-speed operations without sacrificing production throughput.

Equipment

• Prima Electro Open Control System with graphical 2D control and a primary 17-inch touchscreen monitor (a separate auxiliary screen is also installed).

• Connectivity Interfaces: Network Ethernet port (100 Mb), USB connections, and an internal hard drive for program storage.

• Dual Cylinder Control (Y1/Y2): Fully independent electronic beam tilting/leveling adjustment via CNC.

• CNC Backgauge (X, R): Automated positioning for the X-axis (depth) and R-axis (height adjustment) via the CNC controller.

• Lazersafe Guarding System: LZS 005 laser safety barrier to protect the clamping zone during down-stroke.

• CNC Crowning Table: Automatic crowning compensation controlled via CNC to ensure a perfectly uniform bending angle across the entire 3000 mm length.

• Working Area Lighting: Integrated illumination for the upper and lower tooling zones.

• Workpiece Support: 2 front support arms (500 mm long) adjustable along the lower beam with a step-free height adjustment mechanism.

• 6-Axis Backgauge Upgrade: Advanced multi-axis configuration featuring independent movement of the backgauge fingers to handle complex part geometries.

• WILA Tool Clamping System: Both the upper clamping beam (punches) and lower table (dies) are configured for the premium WILA tooling style, ensuring rapid tool changes and exceptional repeatability.

• Note: Tooling (punches and dies) is not included in the scope of delivery (Tooling: no).

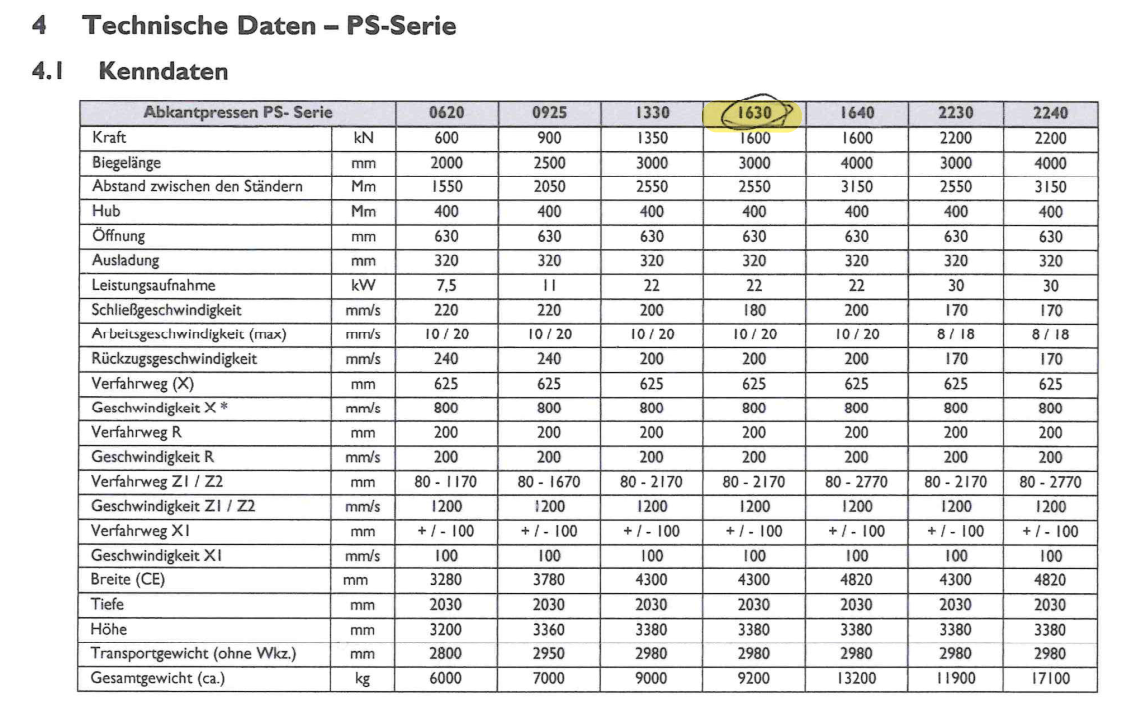

Technical Data
