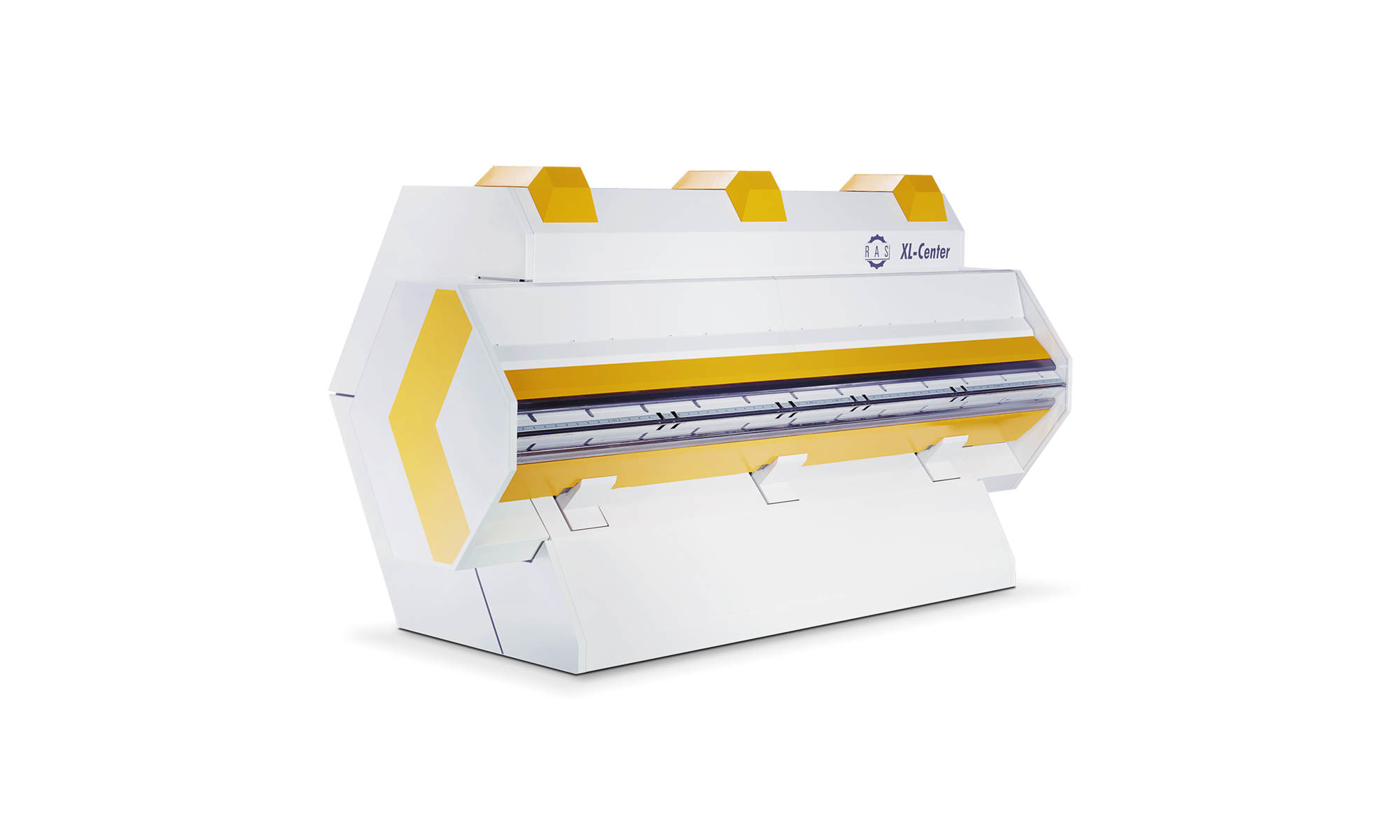

RAS XL-Center 63.30 is a specialized sheet folding center from RAS Systems, designed for manufacturers involved in facade, roofing, and architectural profiles. Its primary features include Up/Down folding capability, 3D software control, a long working folding length, and precise positioning for bending operations, even for complex geometries and large facade elements. It is intended for companies prioritizing fast setup times, minimized manual handling, precision, surface quality (especially for pre-coated sheets), and the manufacturing of complex shapes (e.g., facades, gutters, box profiles).

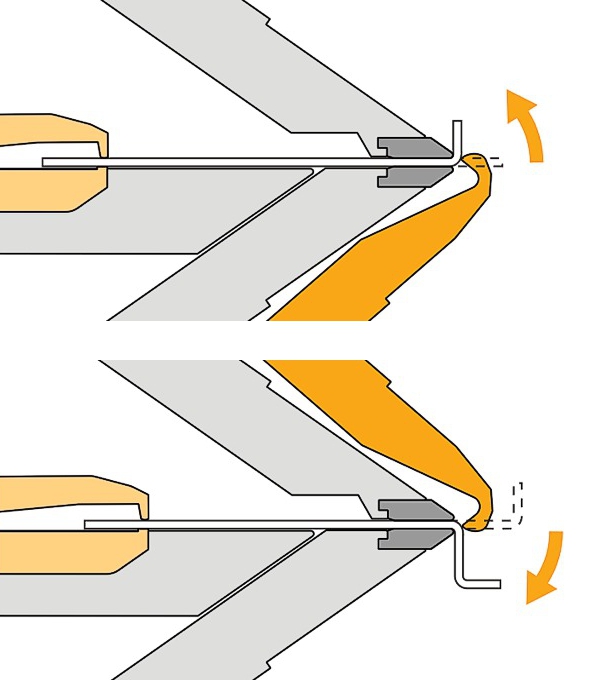

Up/Down Folding Beam Operation: Folding can be performed both upwards and downwards without manual part flipping, increasing efficiency and reducing handling risks.
Long Folding Length: 3,200 mm working length, suitable for medium and large profiles.
Max. Steel Thickness (Mild Steel): Approximately 1.5 mm (at 400 N/mm2) — optimal for facade panels, roofing profiles, and wall cladding.

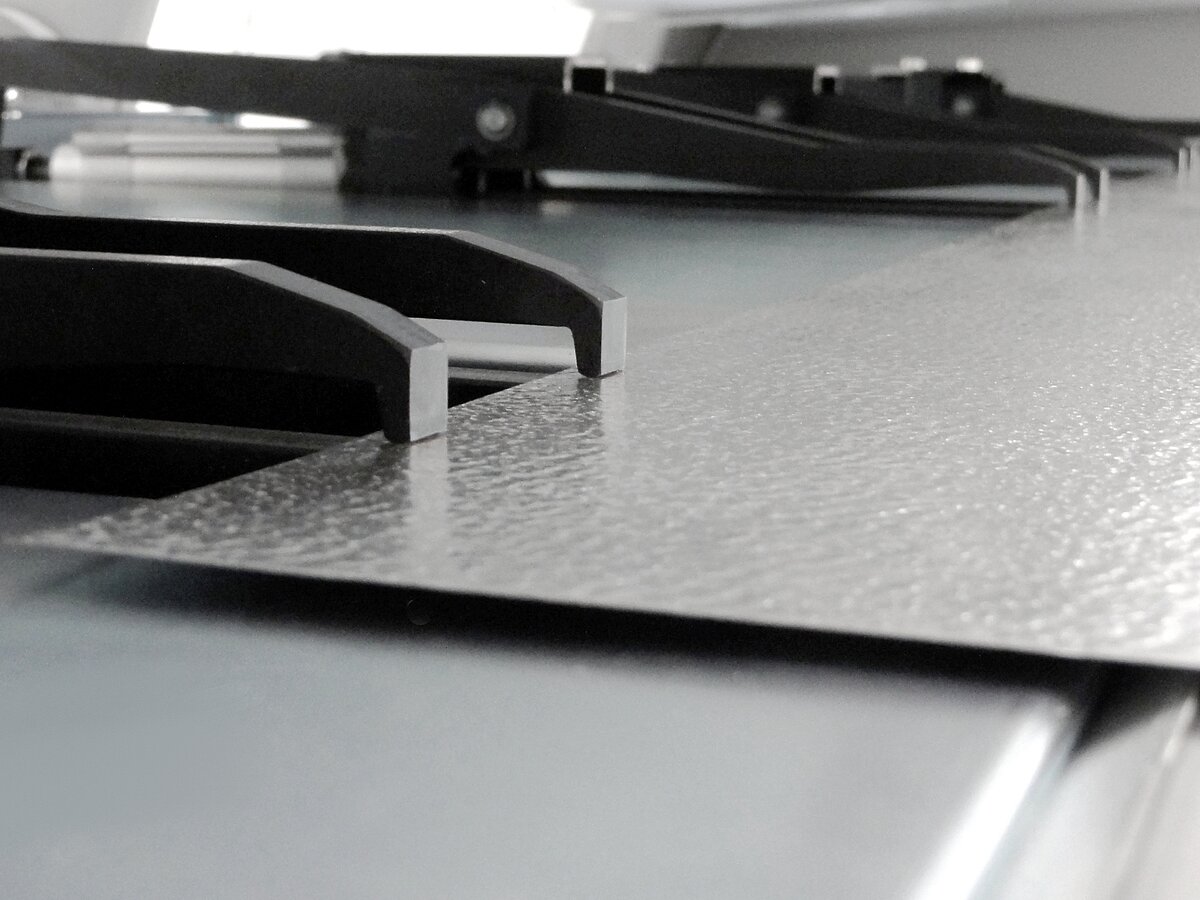

Gripper Positioners: Specialized grippers position the part to ensure accurate flanges and a rapid folding process.

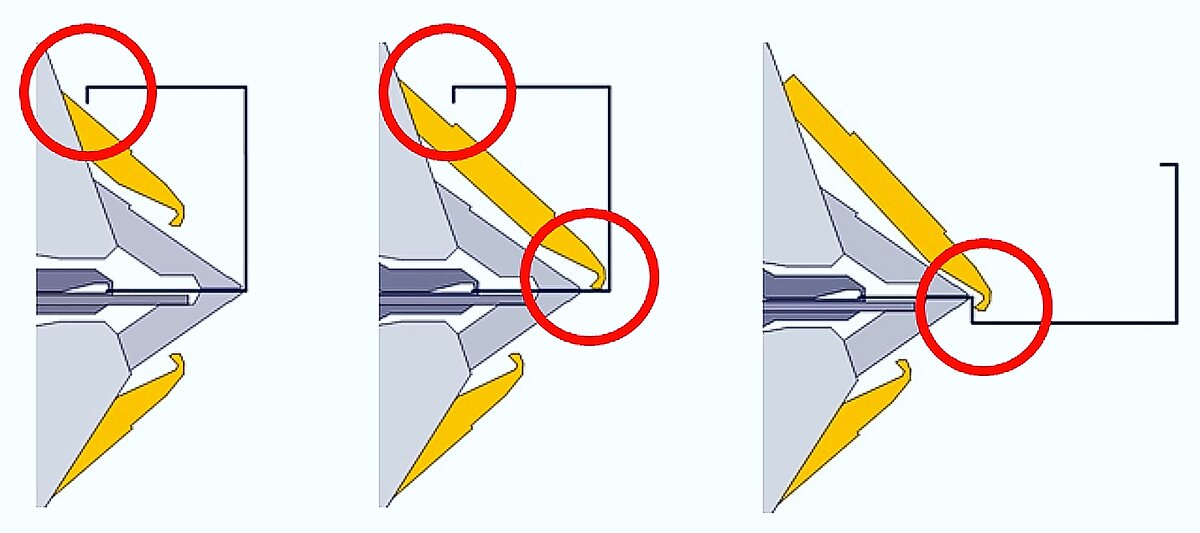

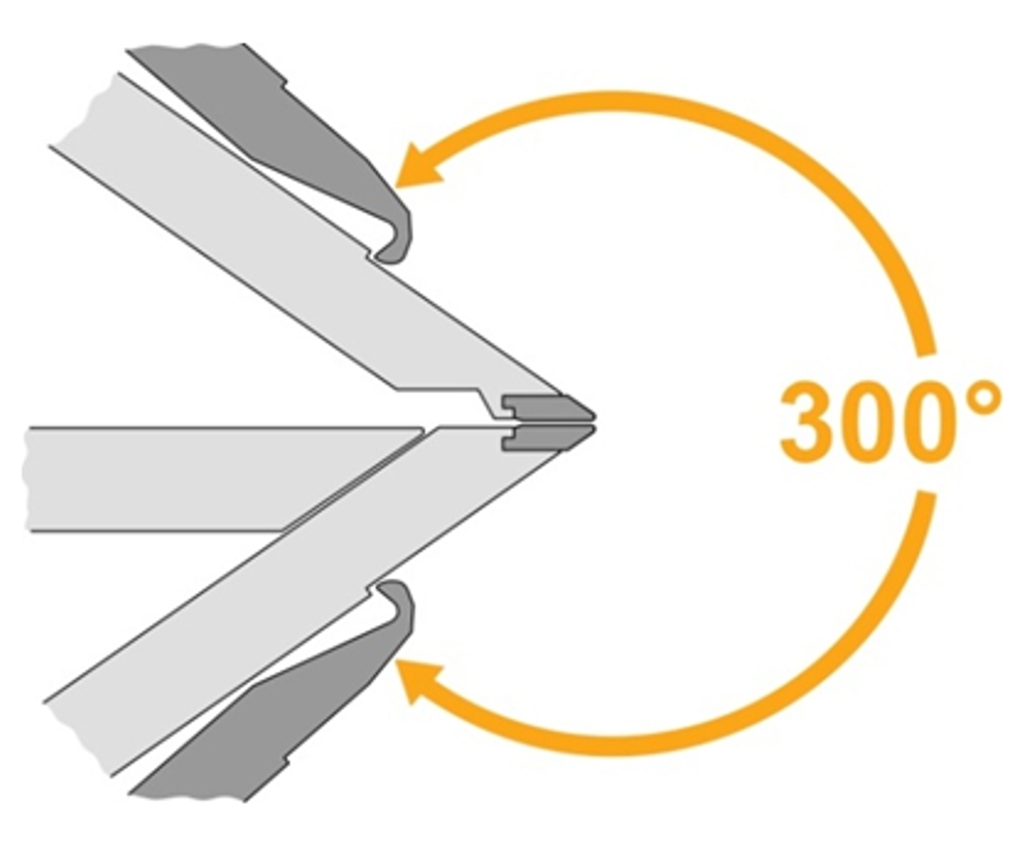

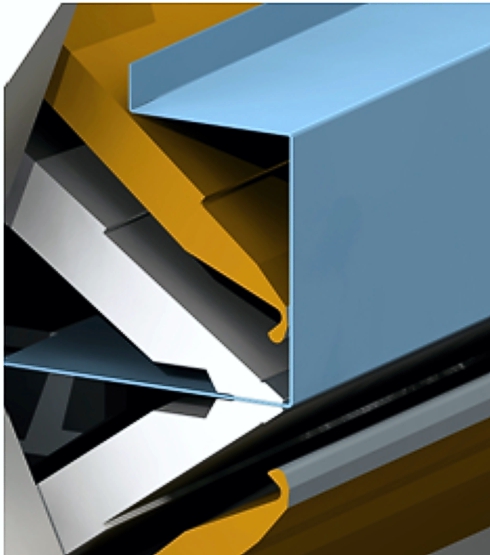

300-Degree Free Space: A large free space in front of the folding beam provides wide freedom in part design and profile shaping.

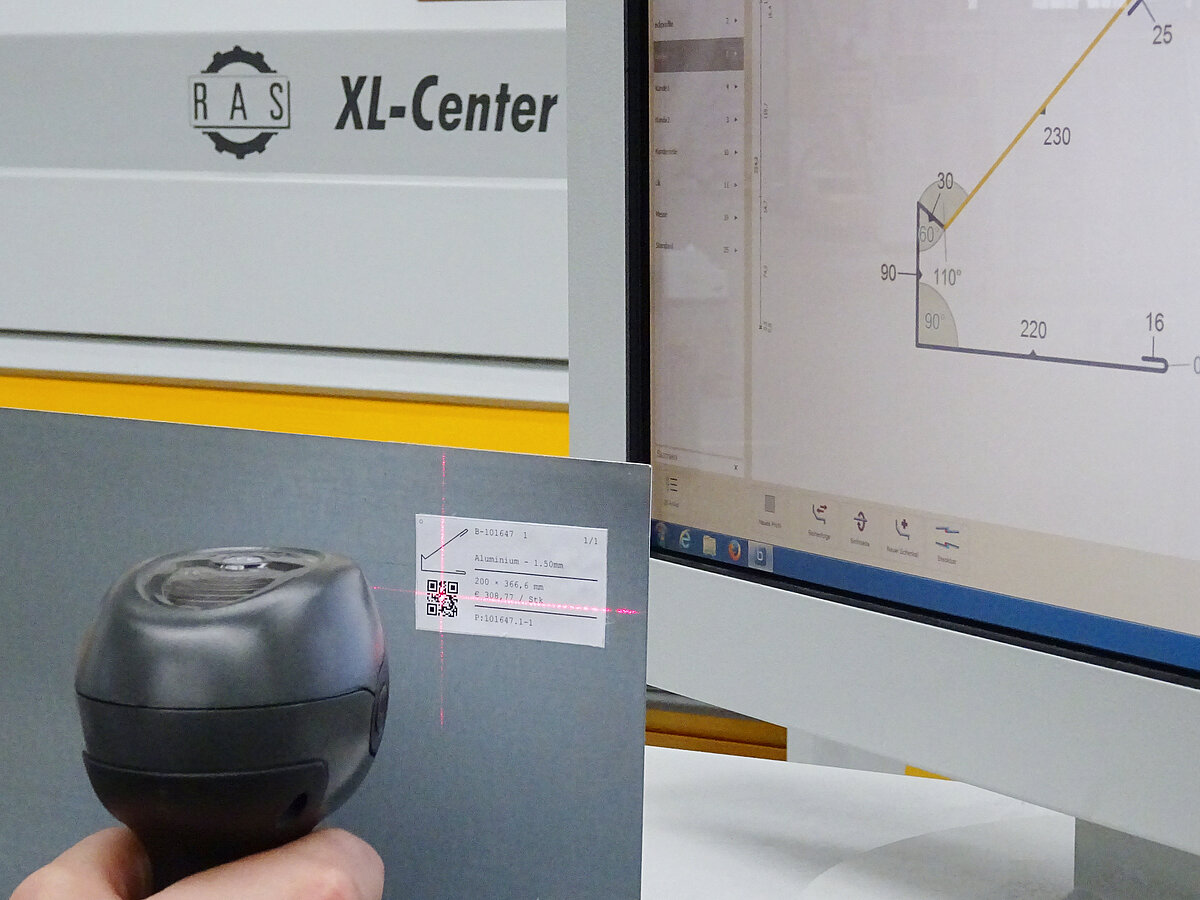

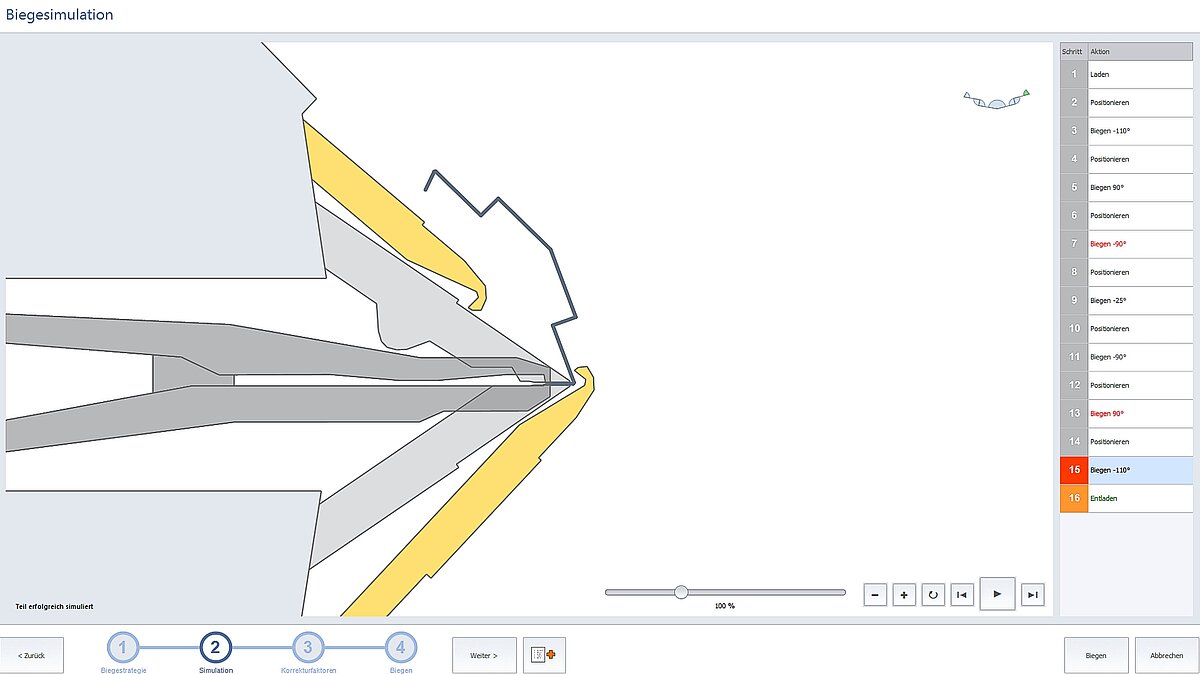

Bendex 3D Software: Features automatic suggestion of optimal folding sequences and 2D/3D simulation, saving time and preventing collisions.
Productivity and Ease of Control: "One-click" programming allows even less-skilled operators to quickly start production cycles.

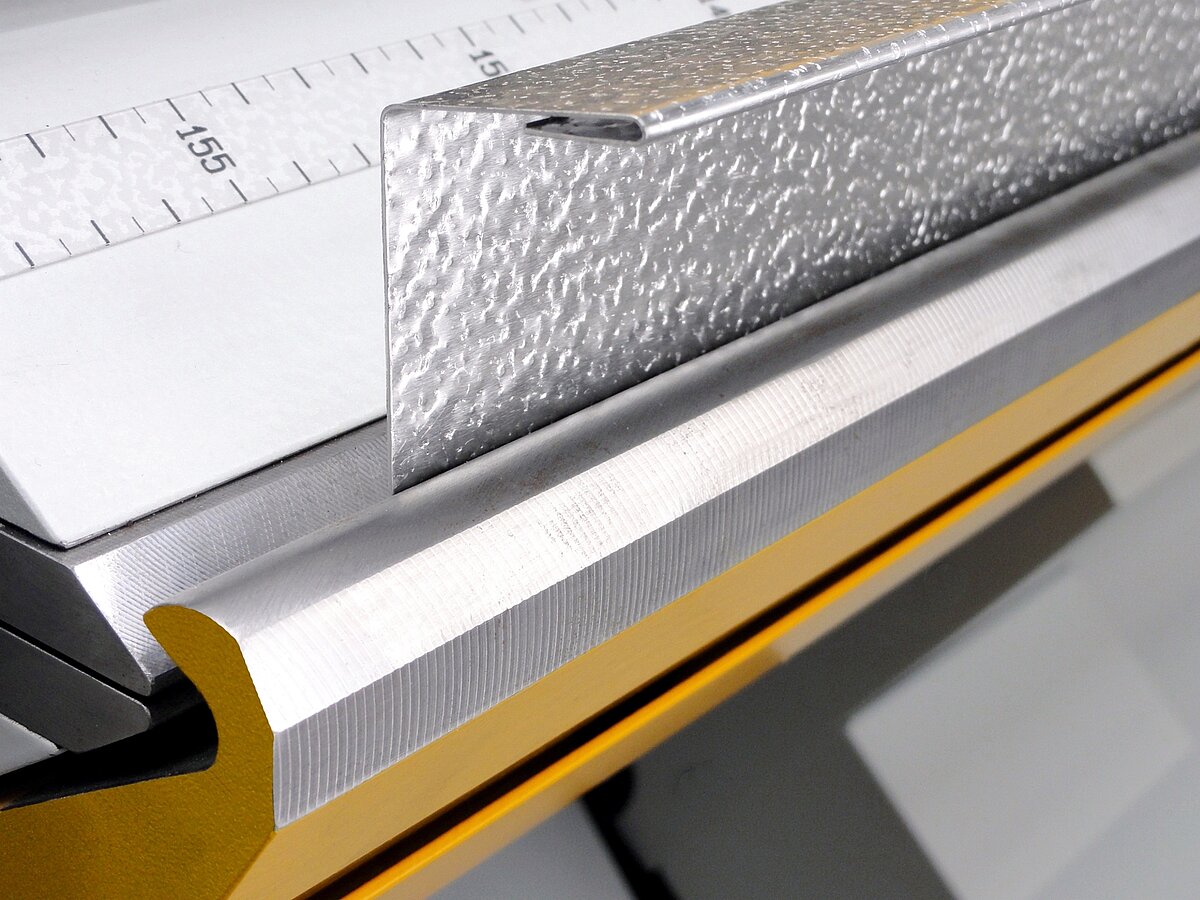

Gentle Folding of Coated/Painted Materials: The folding beam tool moves to avoid damage to the flanges, ensuring a high-quality surface finish (scratch-free).
Folding Beam: With Up/Down folding capability.
Grippers (Gripping Elements): For sheet positioning and flange support.

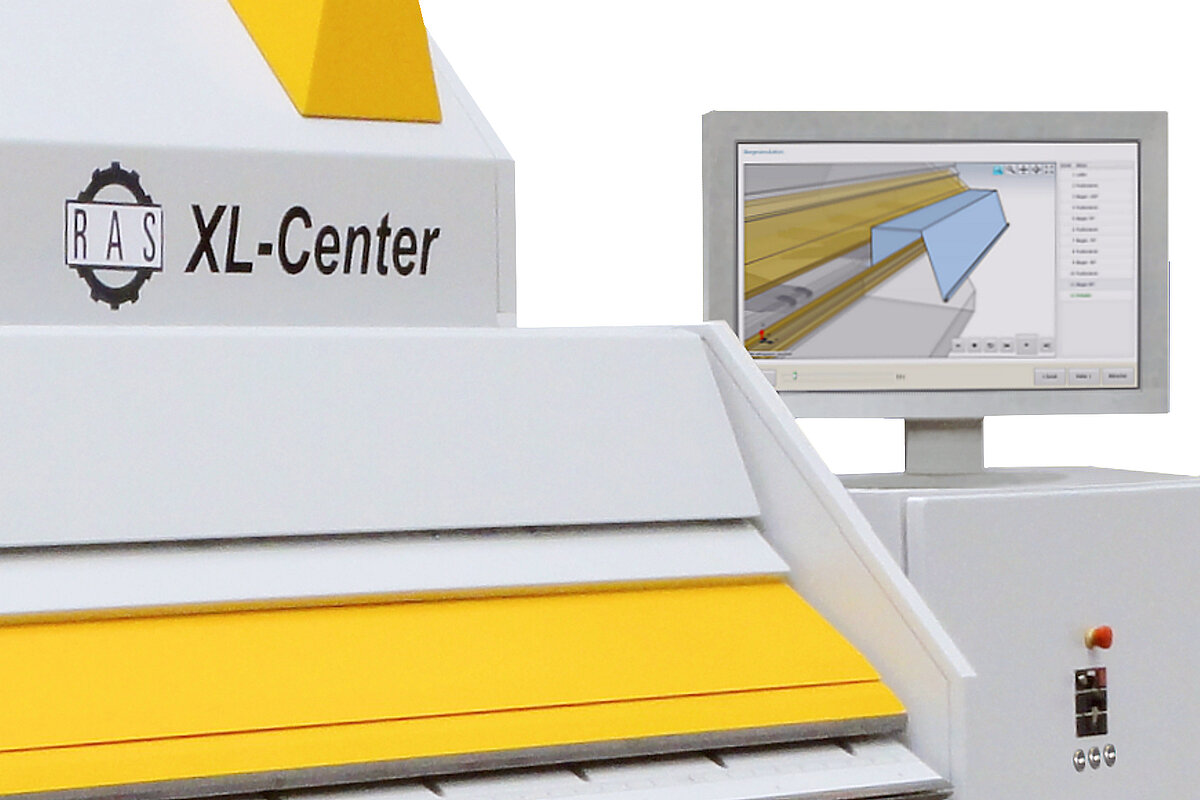

Bendex 3D Software: With simulation and automatic selection of the best folding sequence.

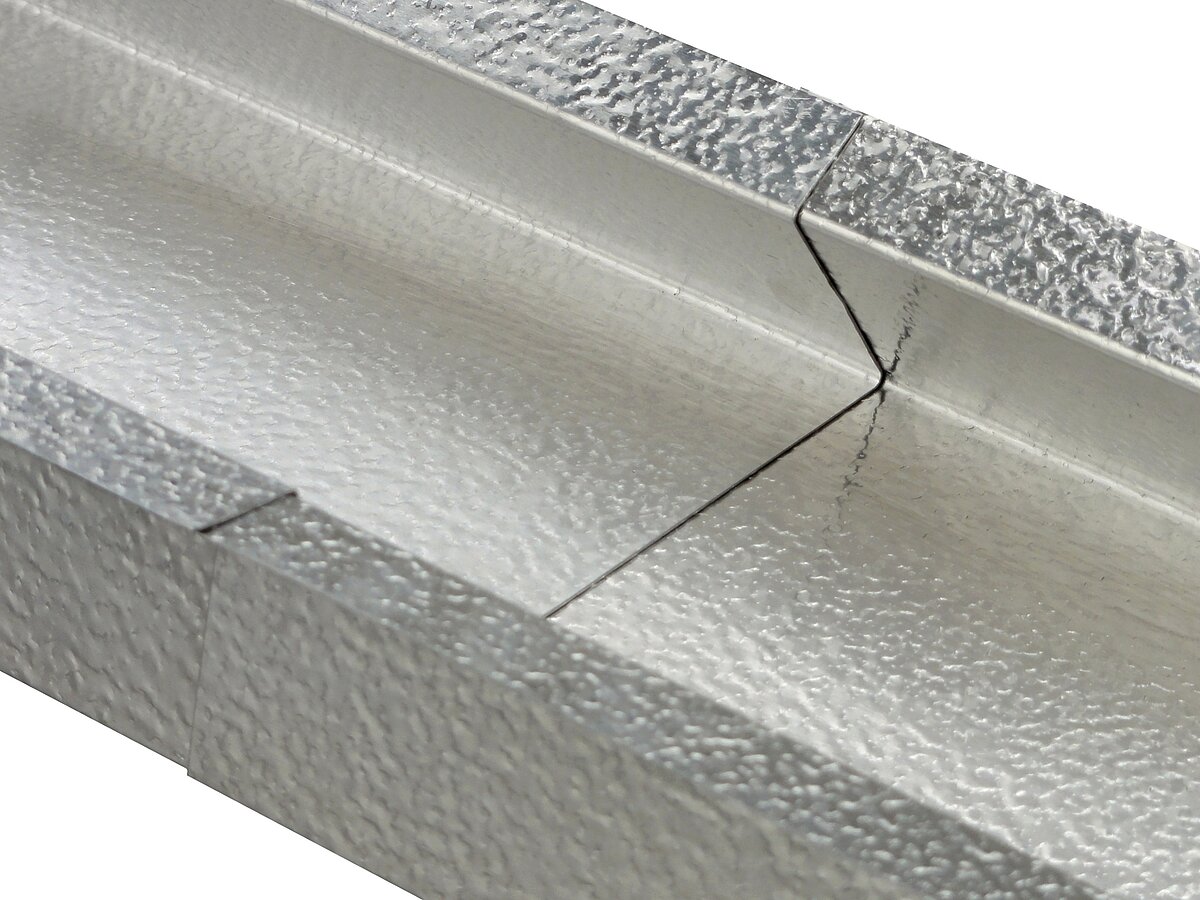

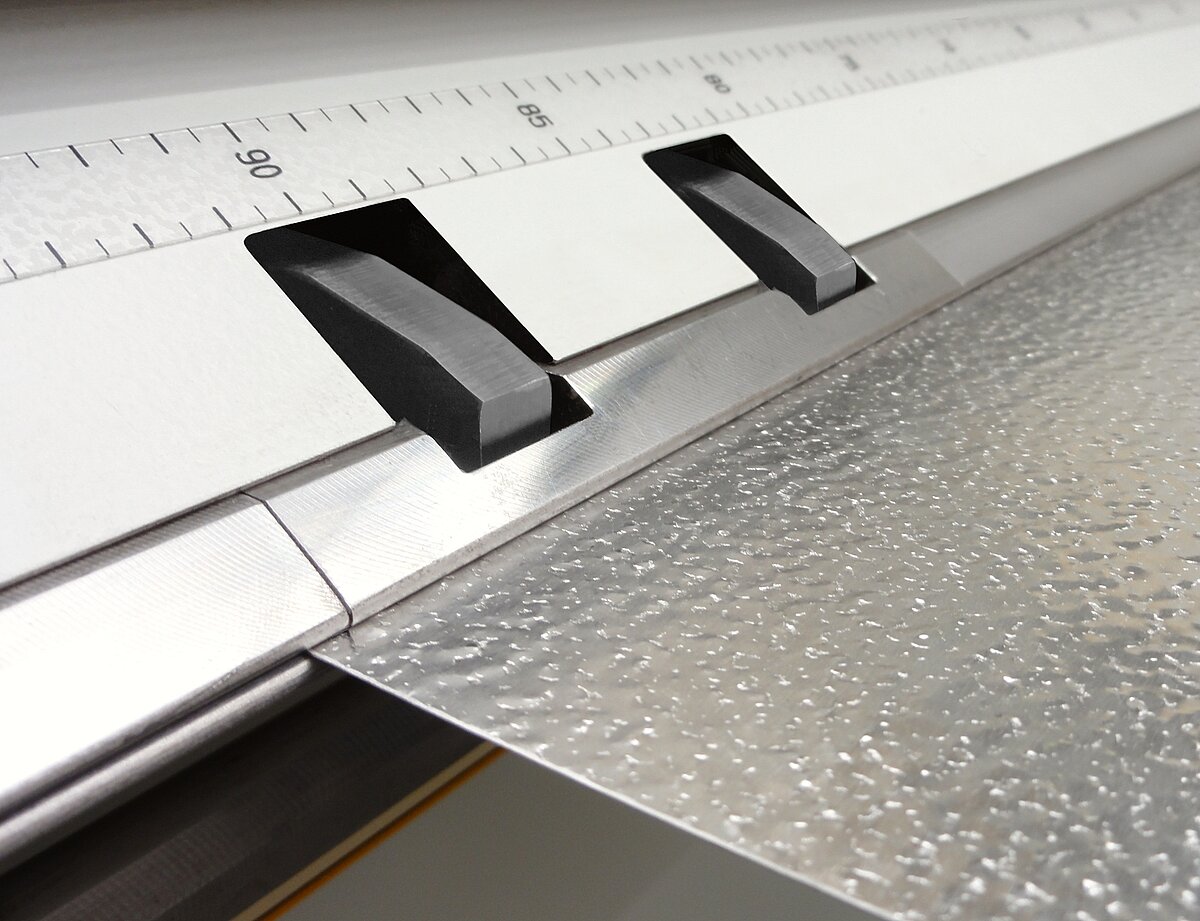

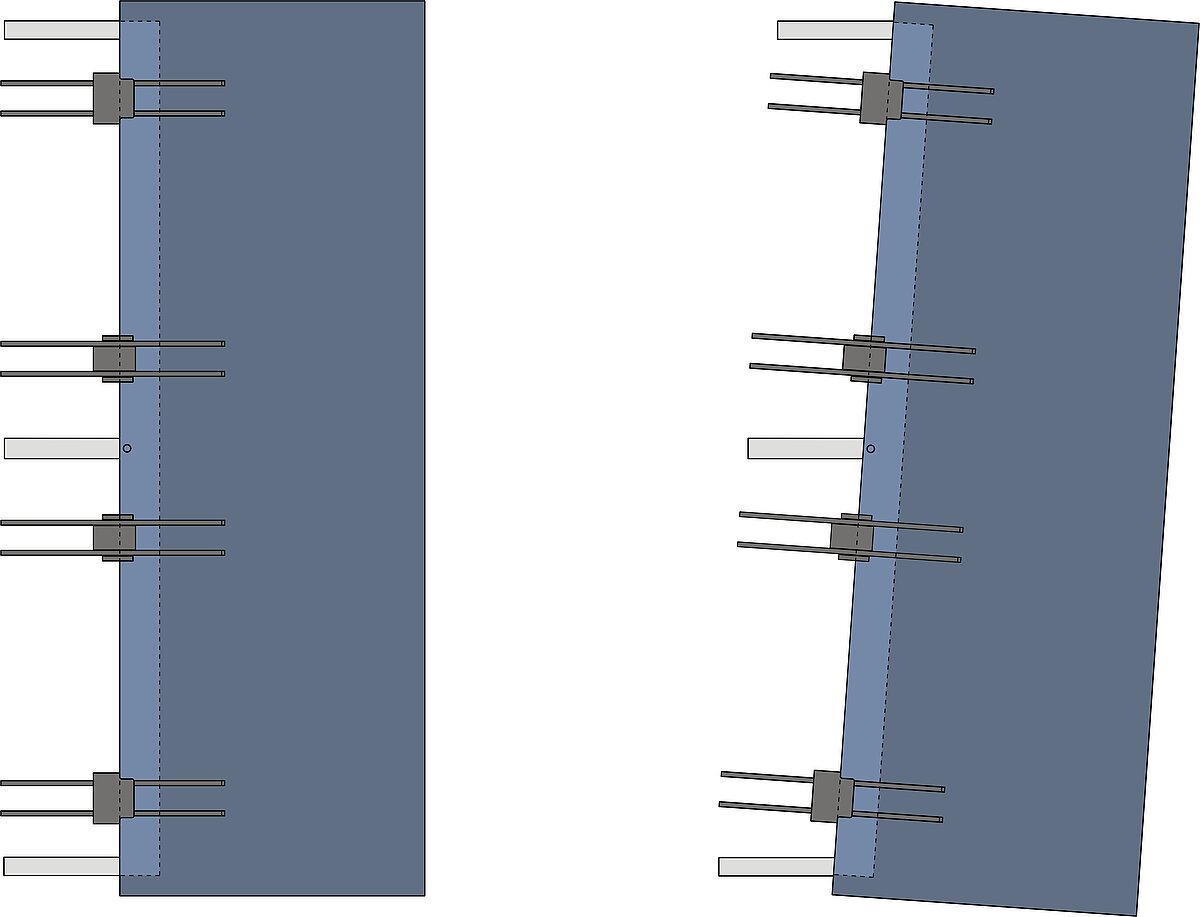

Gauging System / Back Gauge: With the capability to produce tapered profiles.
Processing of Long Profiles: Up to 3,200 mm.

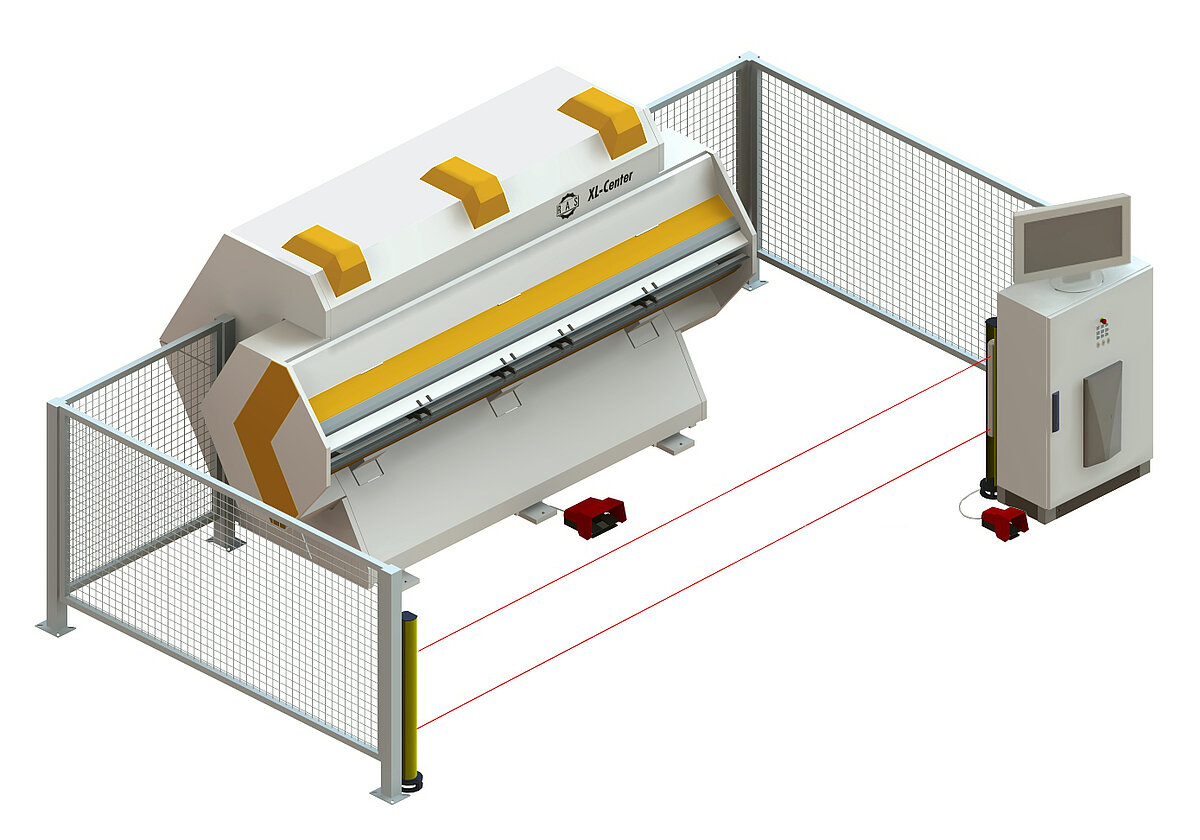

Safety Elements, Stable Construction, and Assembly Precision: (Basic rigid elements, control, and position monitoring).
Extended Grippers: For different sheet/profile shapes (e.g., larger, for various angles).
Automatic Lift/Lower Options: For back gauges or flange supports.
Special Folding Beam and Flange Tools: To work with large-radius parts or coated materials where folding accuracy is critical.
Additional Control Sensors: (Material thickness checking, automatic crowning) — if required for high quality standards.
Networking Options: Connectivity to the factory network / integration with CAM / ERP for automatic program creation and production tracking.
