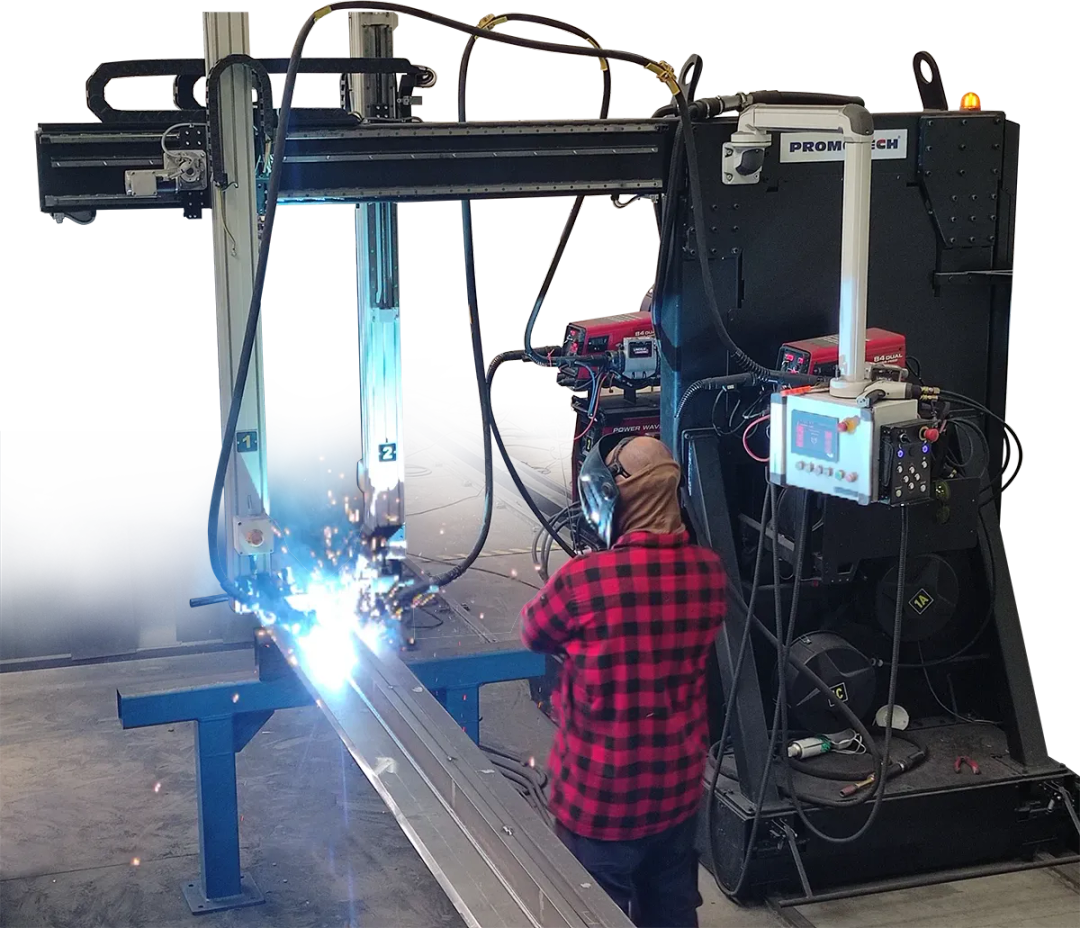

WA 1500 HD / WA 2000 HD Half gantry welding system

WA 1500 HD / WA 2000 HD Half gantry welding system


Automatic longitudinal top quality MIG-MAG or SAW welding of long structural Box beams and H, I, T, HKS, HSQ also automotive chassis for long truck/train beams. Single or multipass automatic fillet/butt welding with an electromechanical joint tracking system. Minimized welding defects and reduced non-productive time and it’s one-man operation!

Advantages and Features
  • Automatic fillet and butt welding with joint tracking
  • Multipass welding
  • One-man operation
  • Reduction of costly over-welding and decrease of filler metal usage
  • User-friendly interface – multiple languages
  • Accepts most of MIG-MAG and SAW welding power sources
Technical Specifications
Length of track / welding 13 m / 10 m

Customized length upon request

Max workpiece height 1.5 m (60”)
Max welding speed Up to 1 m / min.
Possibility to implement additional functionality e.g. welding length, intermittent welds YES
Max. welding current 700 A
Possibility of changing welding parameters during welding process “on the fly” Option
Basic flux recovery system Yes
Advanced flux recovery system Upon request
Video not found.

wa-1000-1500-2000-mig-mag-saw-sd-hd-en Cutting-Welding-Automation_26.05
