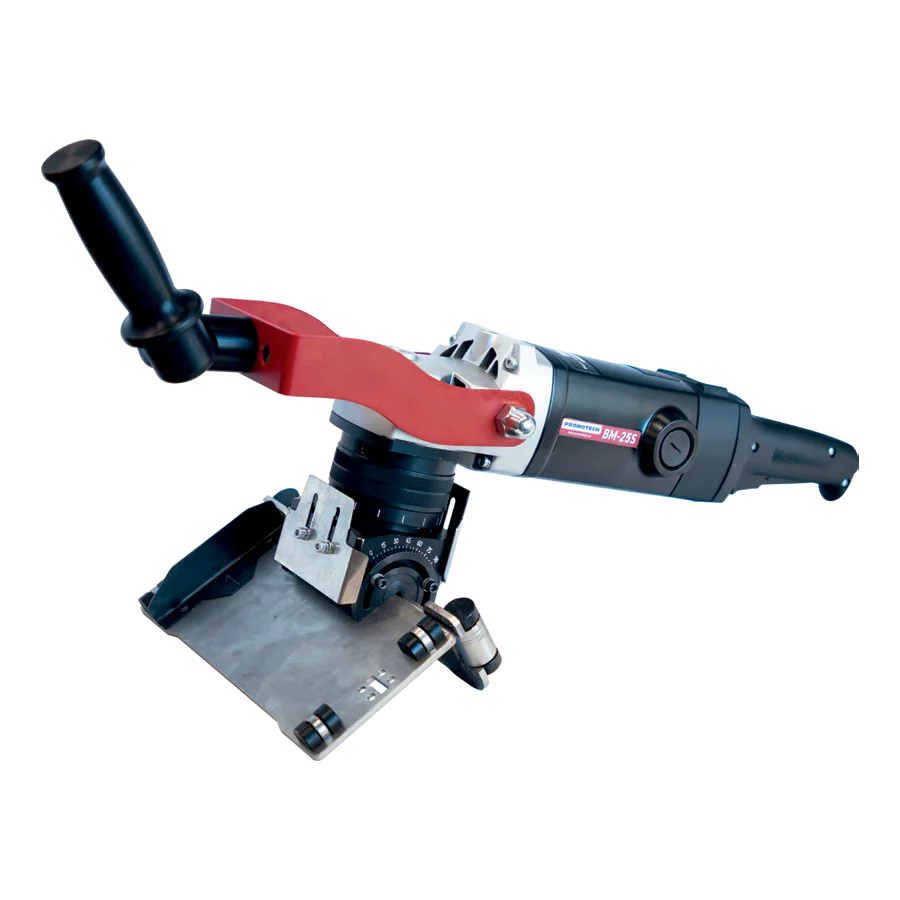

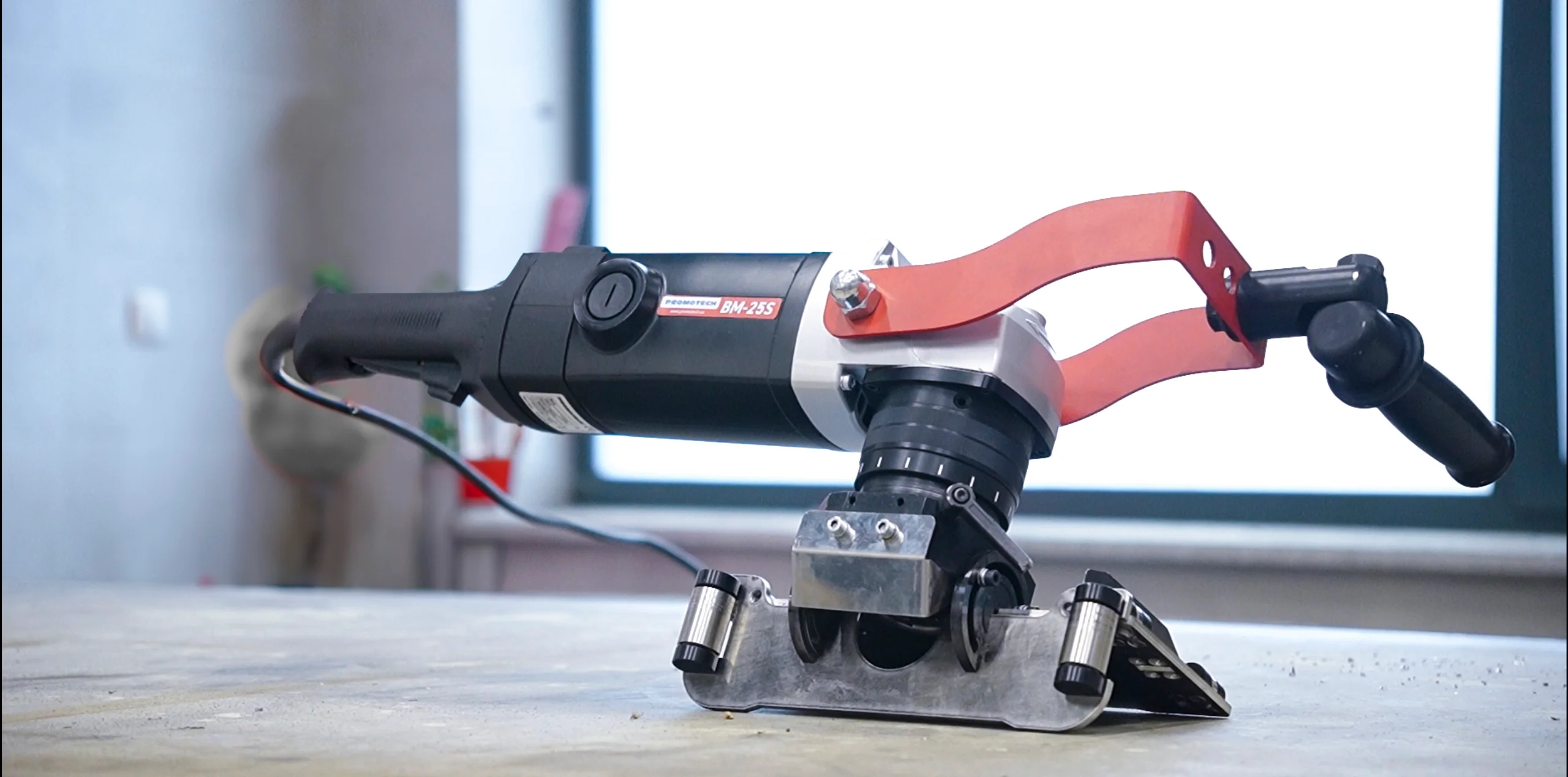

BM-25S Stainless Steel Plate Beveller

BM-25S Stainless Steel Plate Beveller

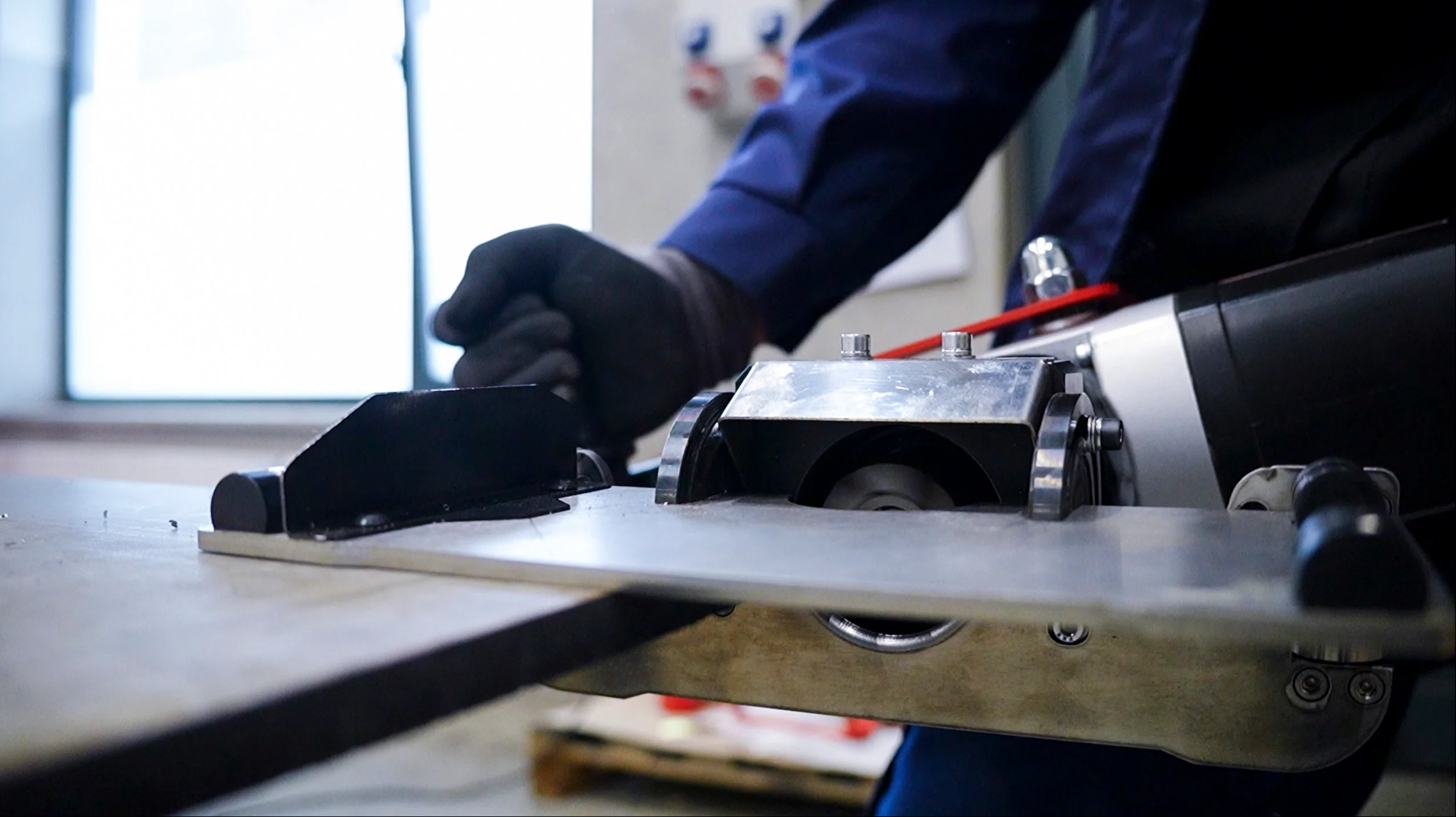

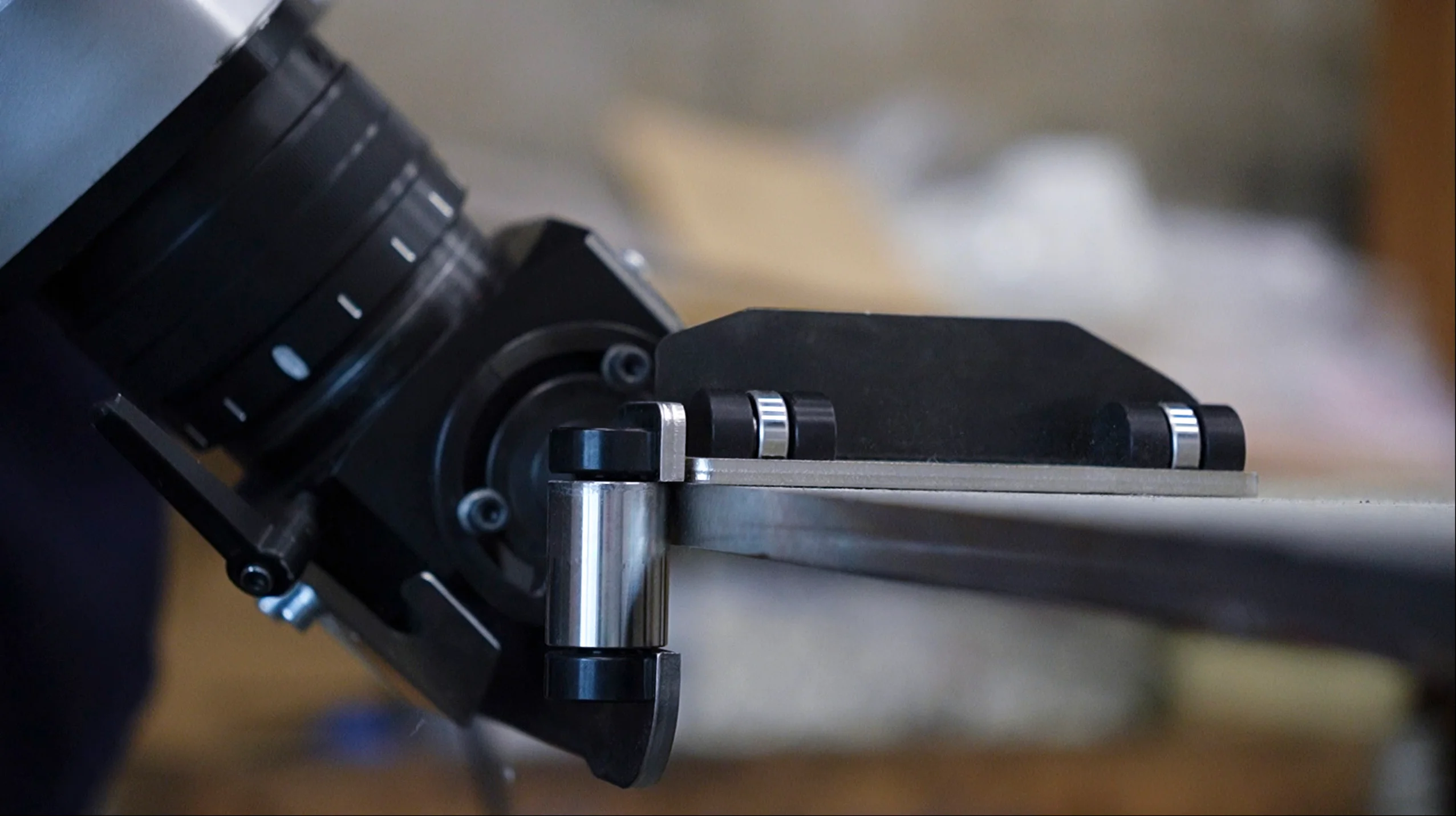

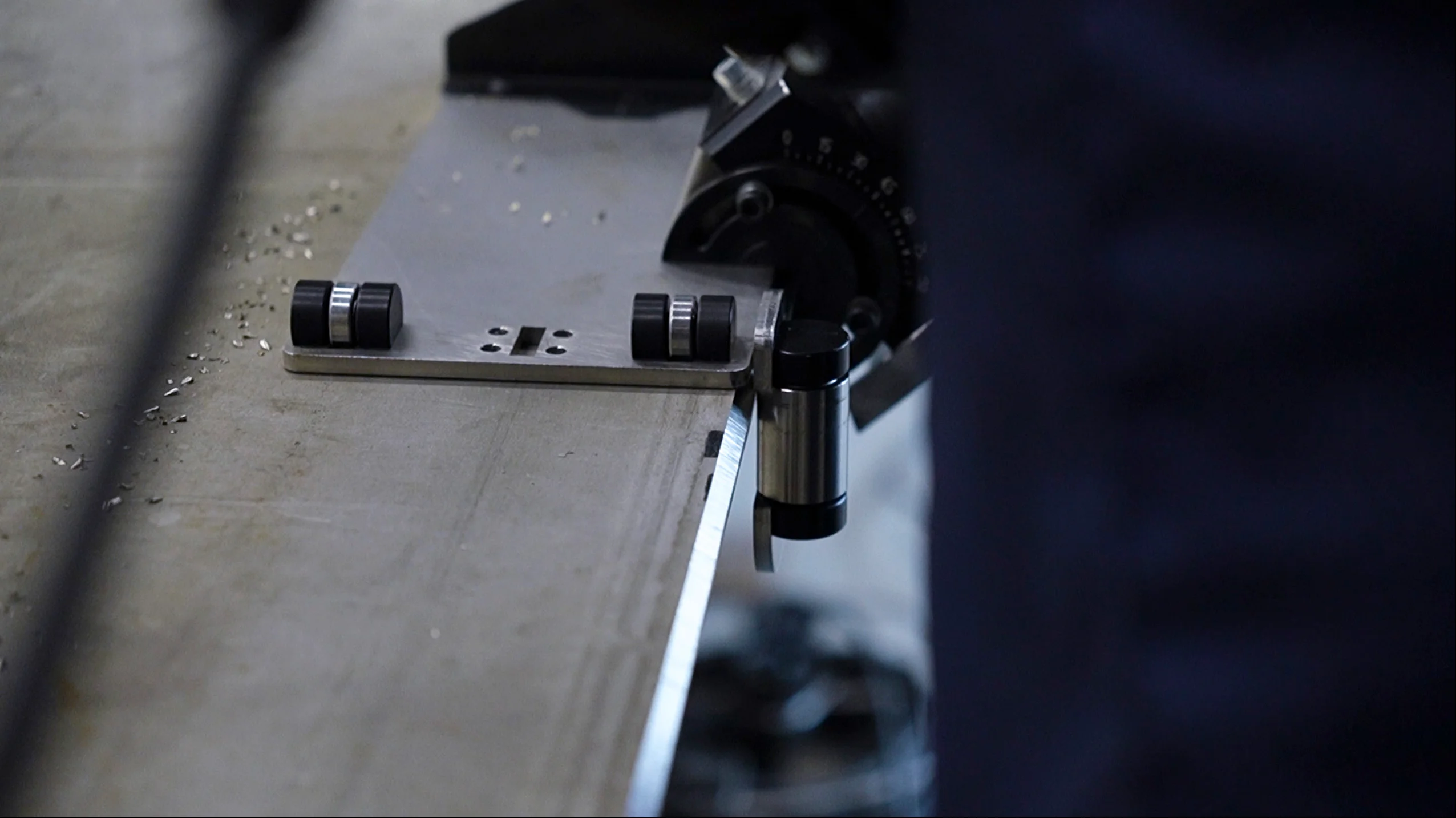

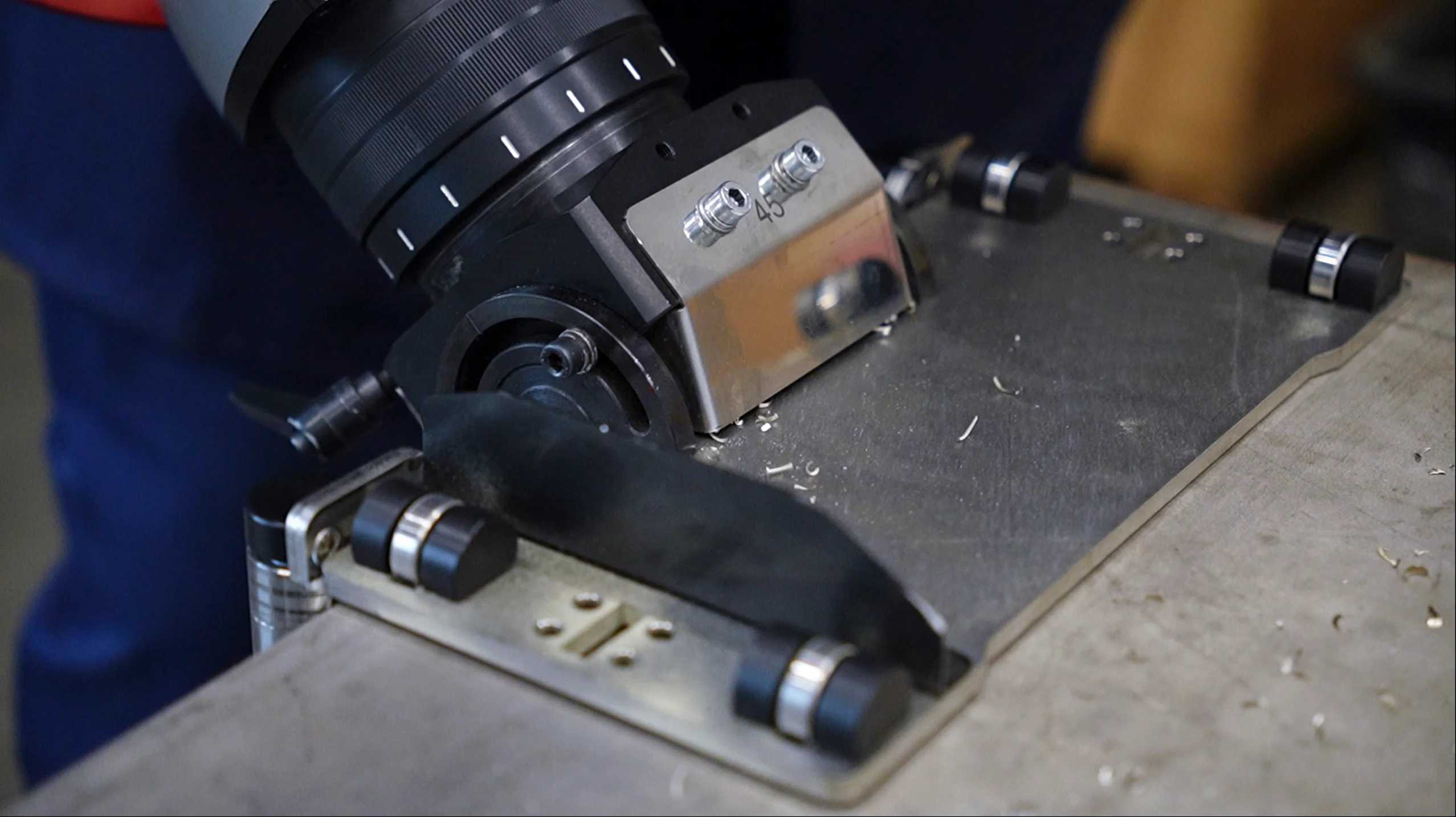

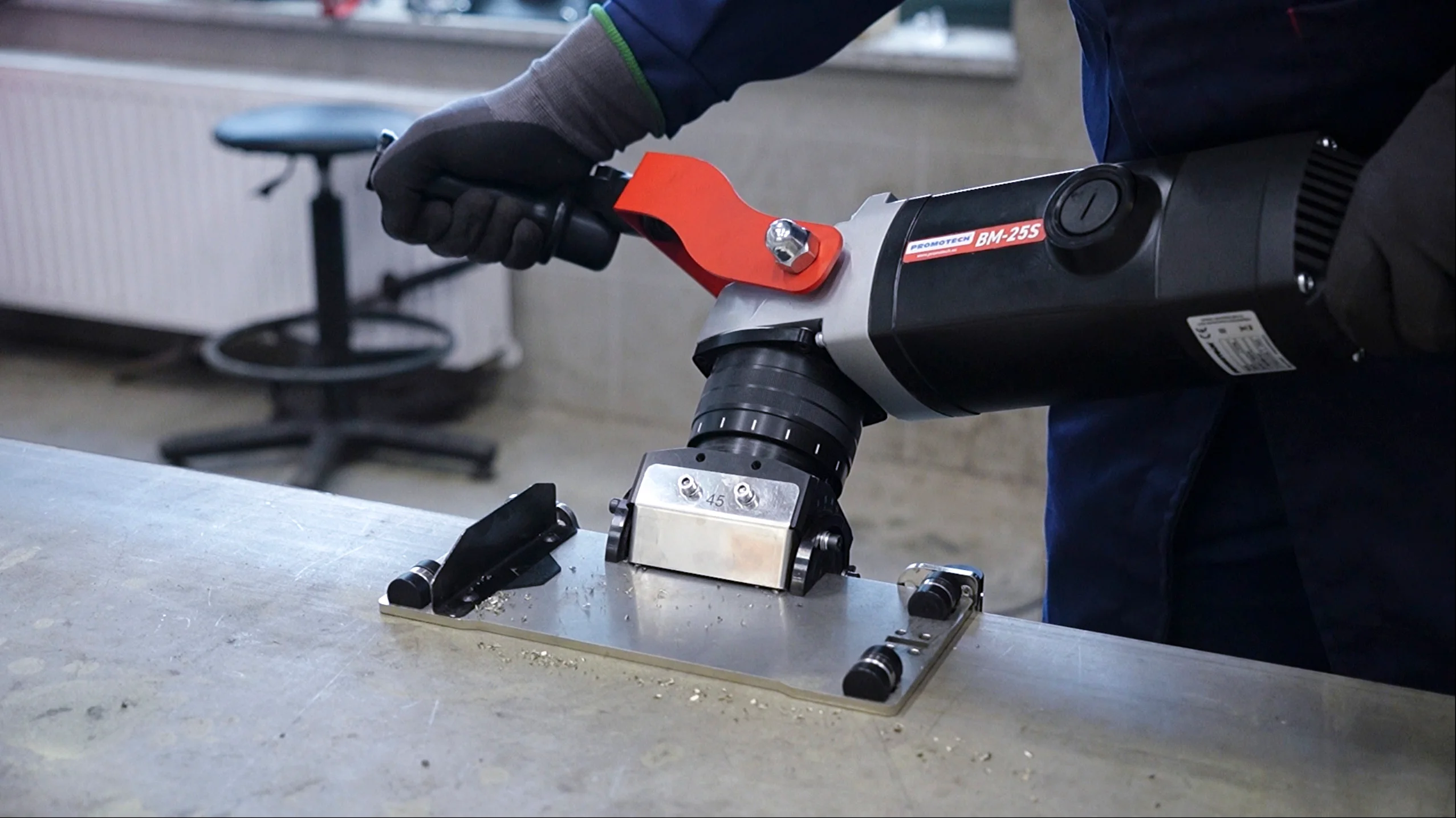

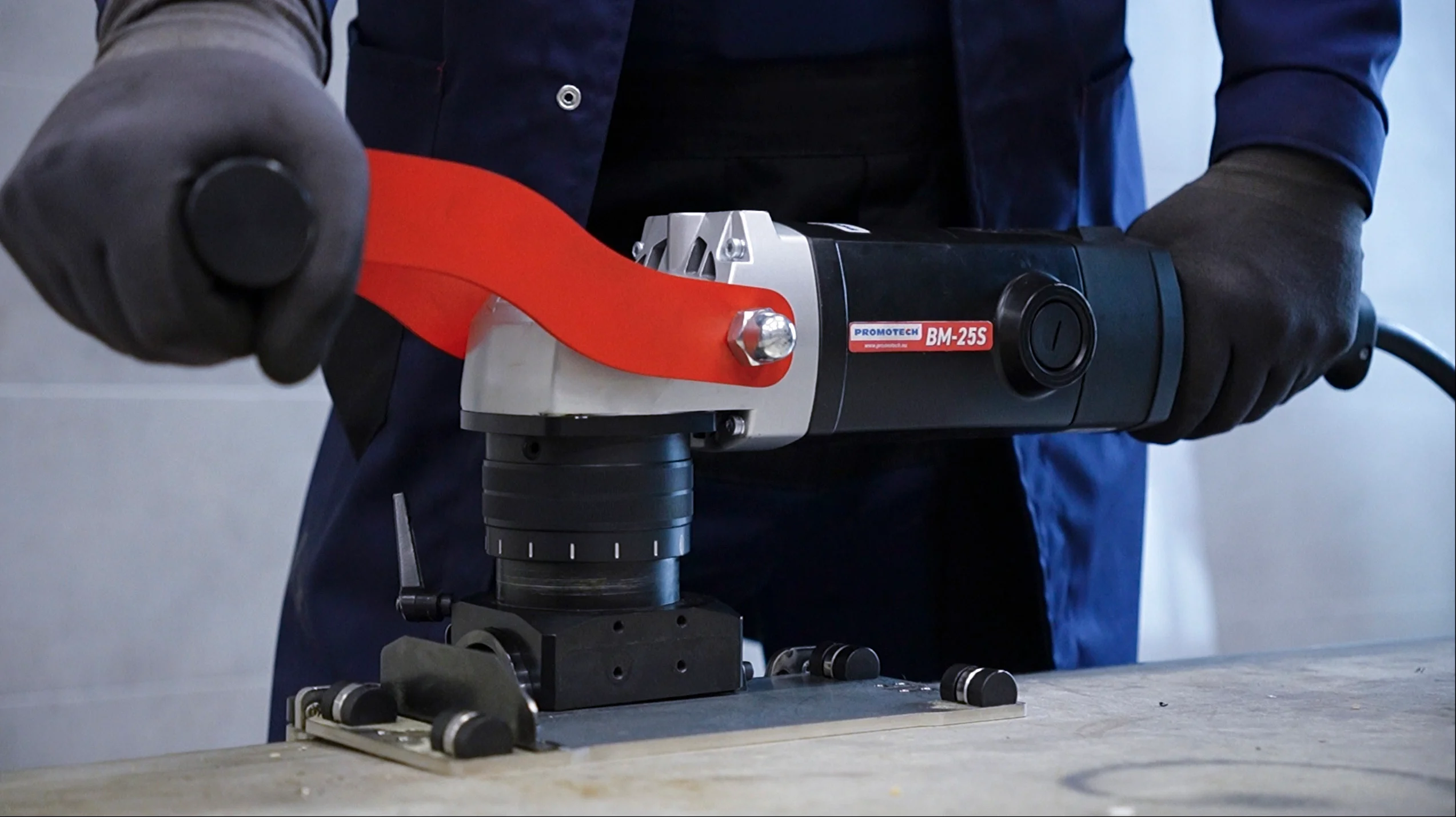

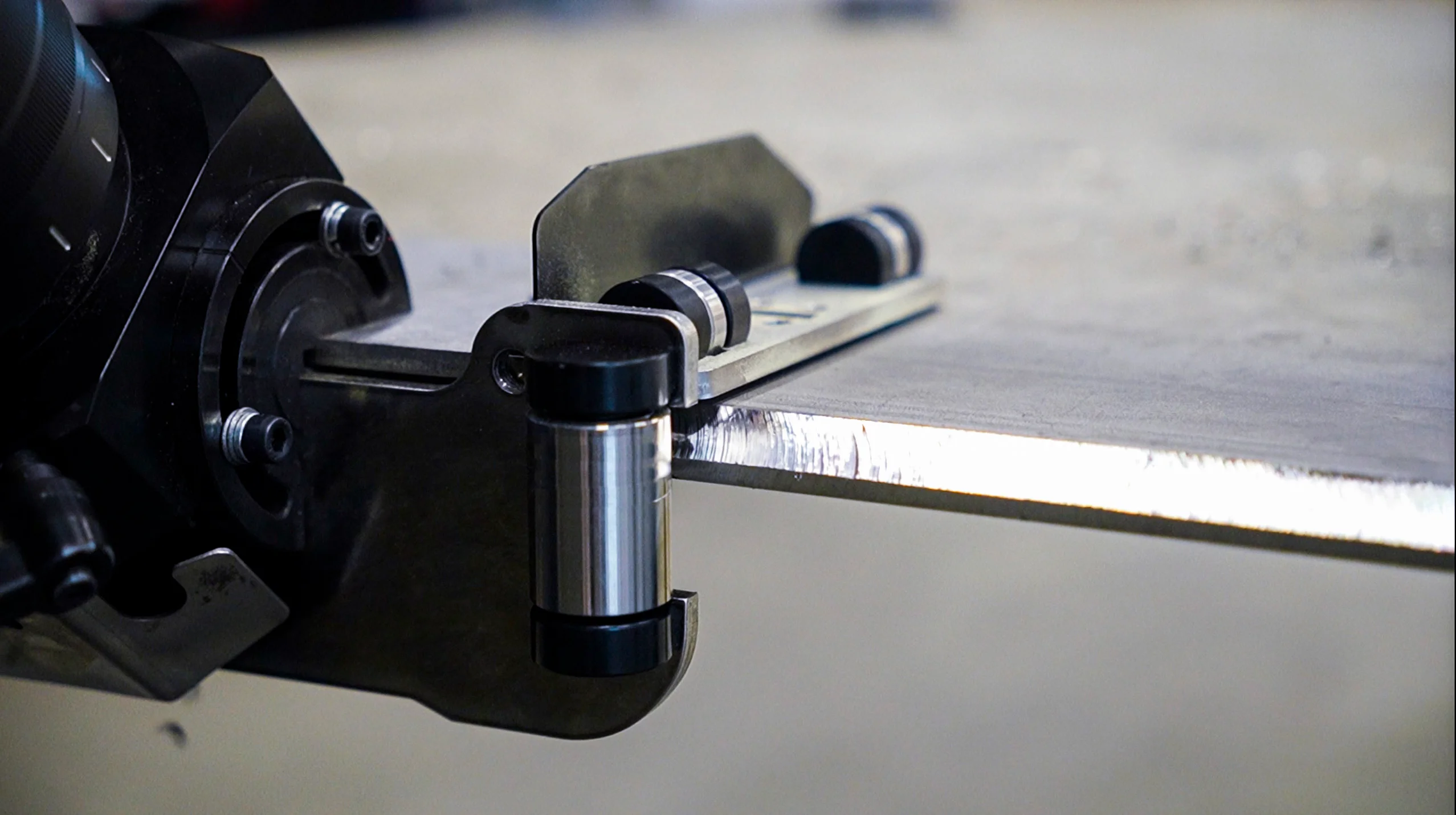

The BM-25S is an easy-to-use, portable heavy-duty machine designed to machine stainless steel. The beveller is equipped with a powerful motor and fitted with face milling beveling head allowing smooth operation and exceptional efficiency. BM-25S allows milling of straight edges with a bevel width up to 25 mm, and the variable spindle speed makes it easy to optimize cutting conditions. Continuously adjustable bevel angle between 0 and 90 degrees and milling depth for full control of the milling process. The beveller is equipped with a roller guide, which makes it easy and light to operate. All components of the guide are made of stainless steel to protect against contamination.
BM-25S has got a state-of-the-art electronic motor overload module protecting the operator, the machine and the tooling.

Features and Advantages
  • contamination-free stainless steel processing
  • maximum 25 mm bevel width (more than one pass could be required)

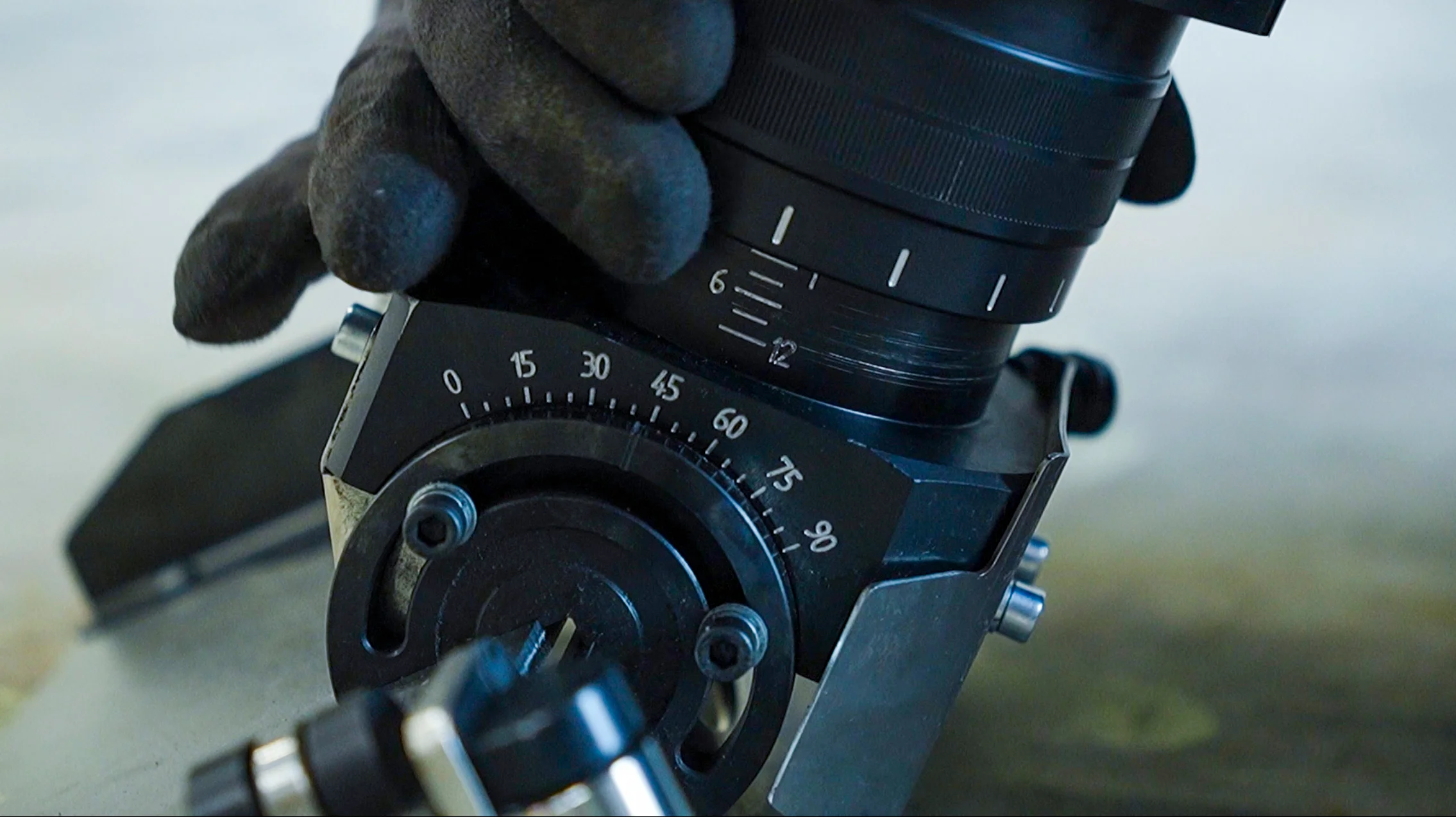

  • the continuously adjustable bevel angle between 0 and 90 degrees – one milling head in use only
  • powerful motor with electronic speed control between 1800–5850 rpm to work with various materials

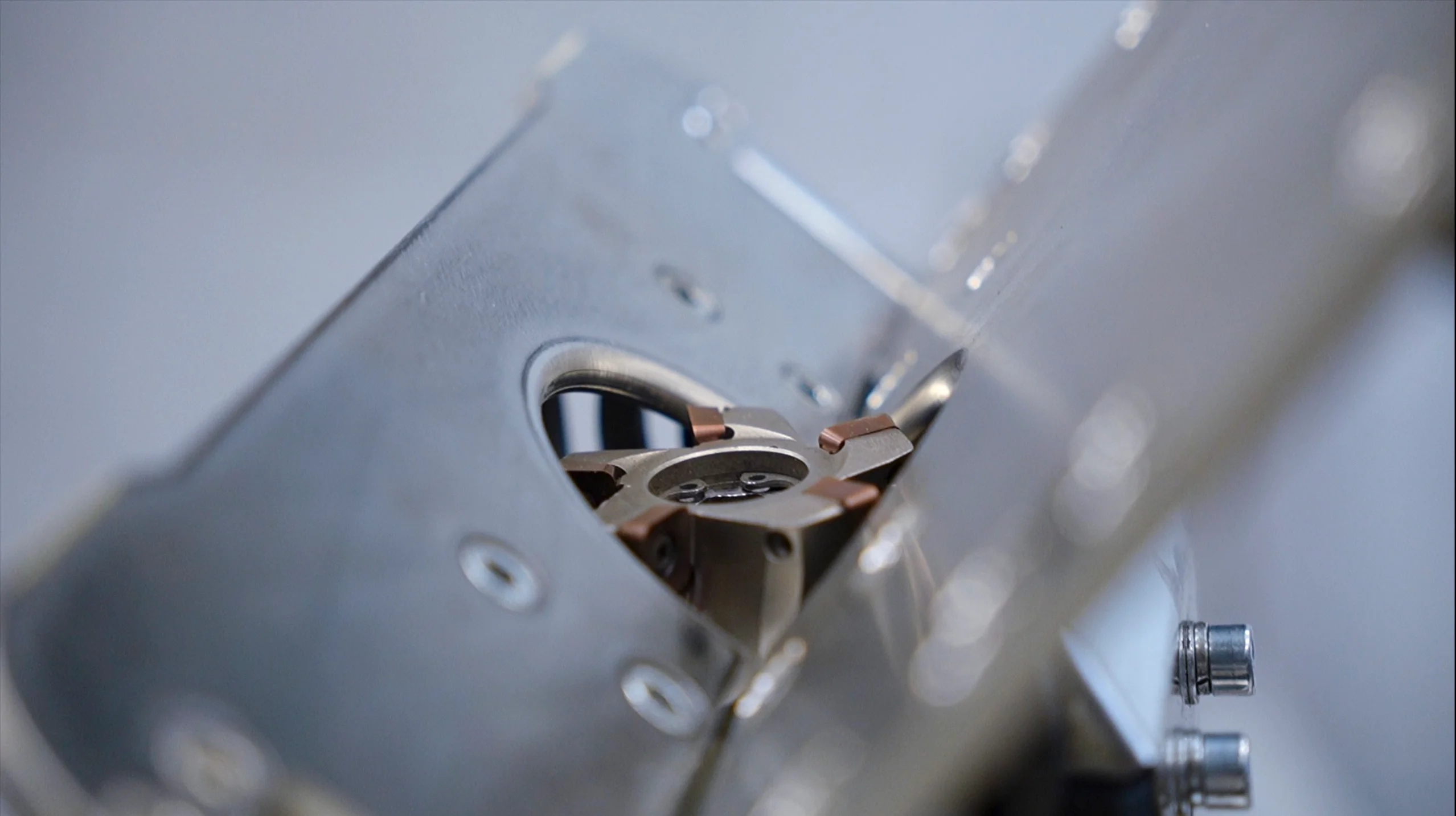

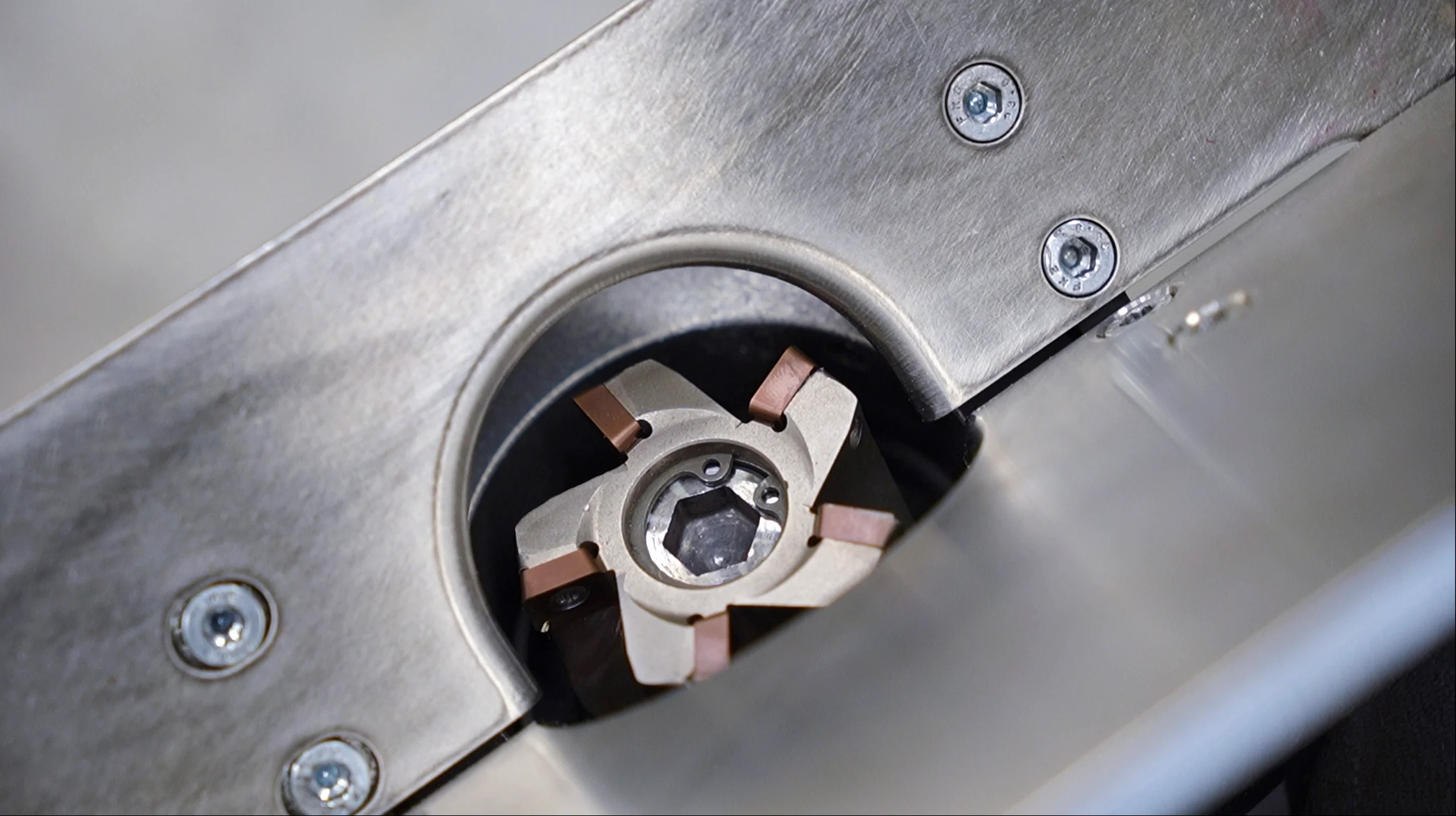

  • a single head works with the face milling method, allowing less milling resistance and effort for the operator
  • overload protection to prevent motor damage
  • 2 years of warranty
BM-25S | Stainless Steel Plate Beveller – Technical Specification
Voltage

1~ 110-120 V, 50-60 Hz

1~ 220-240 V, 50-60 Hz

Power 2200 W
Spindle speed (without load) 1800-5850 rpm

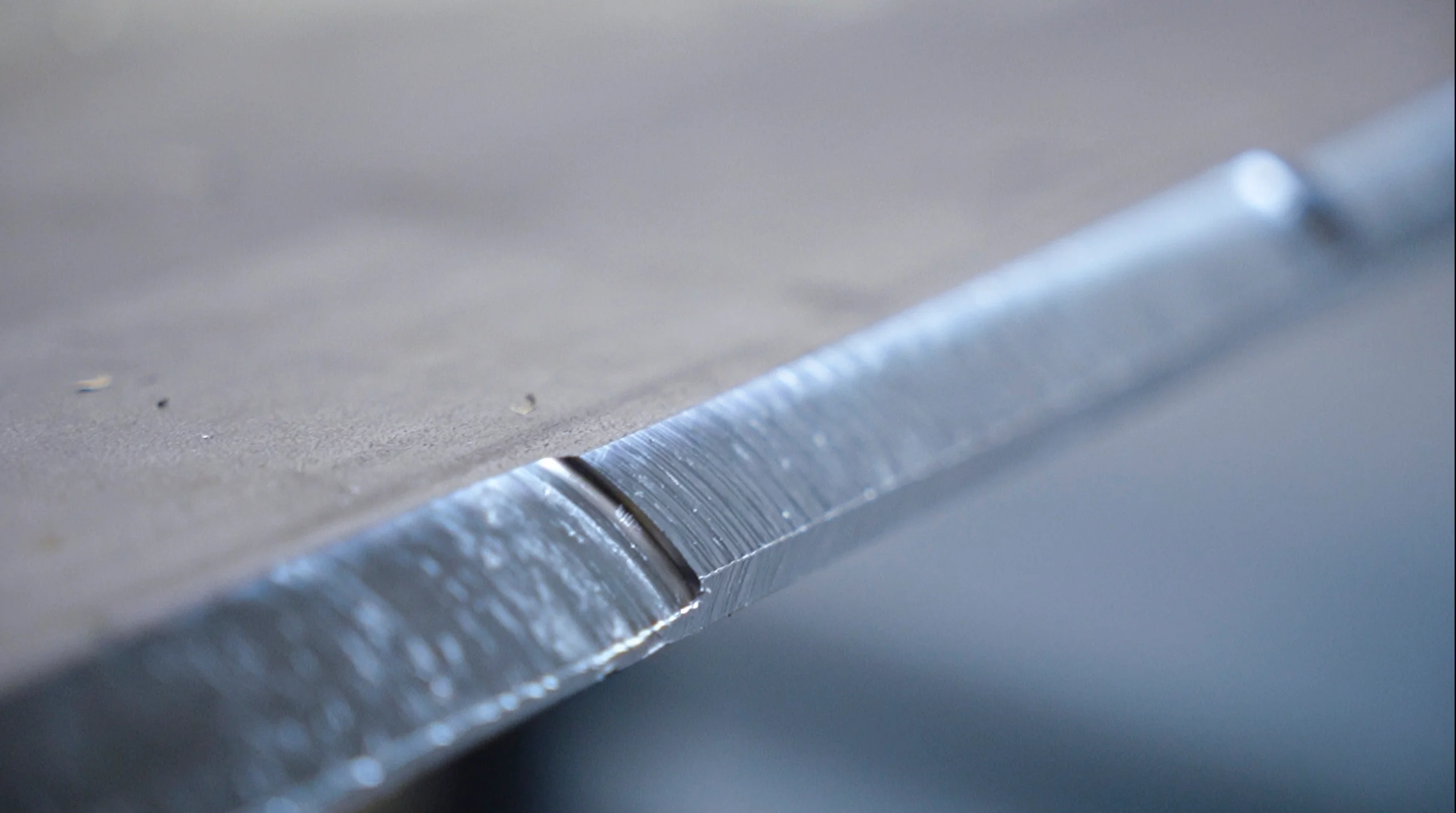

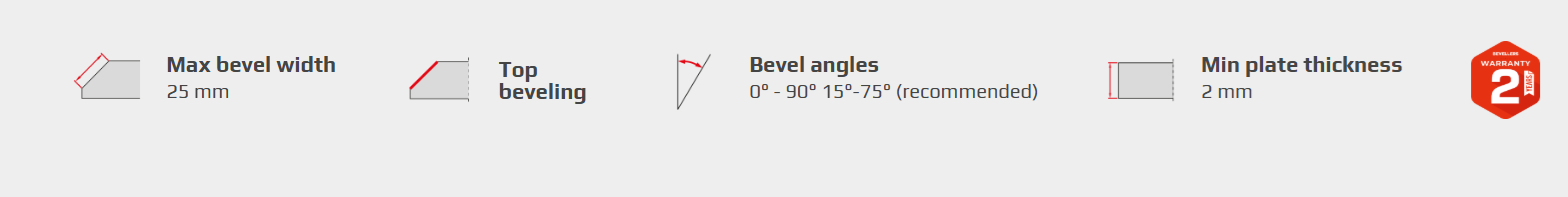

Maximum bevel width (b) 25 mm (1")
Maximum depth of cut (d) 12,5 mm (1/2")
Bevel angle (β)

0°-90°

15°-75° (recommended)

Minimum workpiece thickness 2 mm (0.08”)
Weight 12,5 kg (27 lb)
Product Code 110-120 V, 50-60 Hz UKS-0825-10-10-00-0
Product Code 220-240 V, 50-60 Hz UKS-0825-10-20-00-0

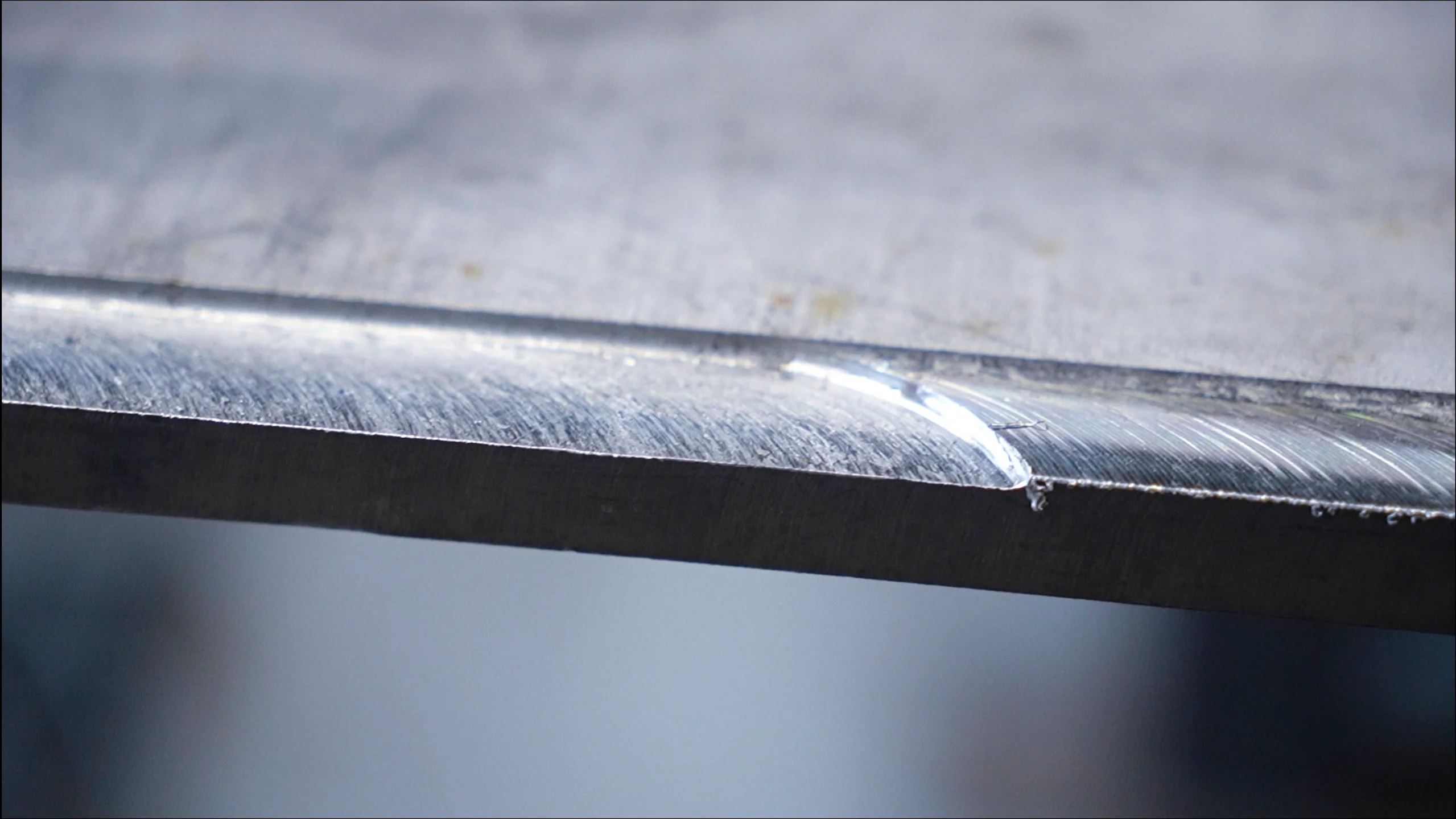

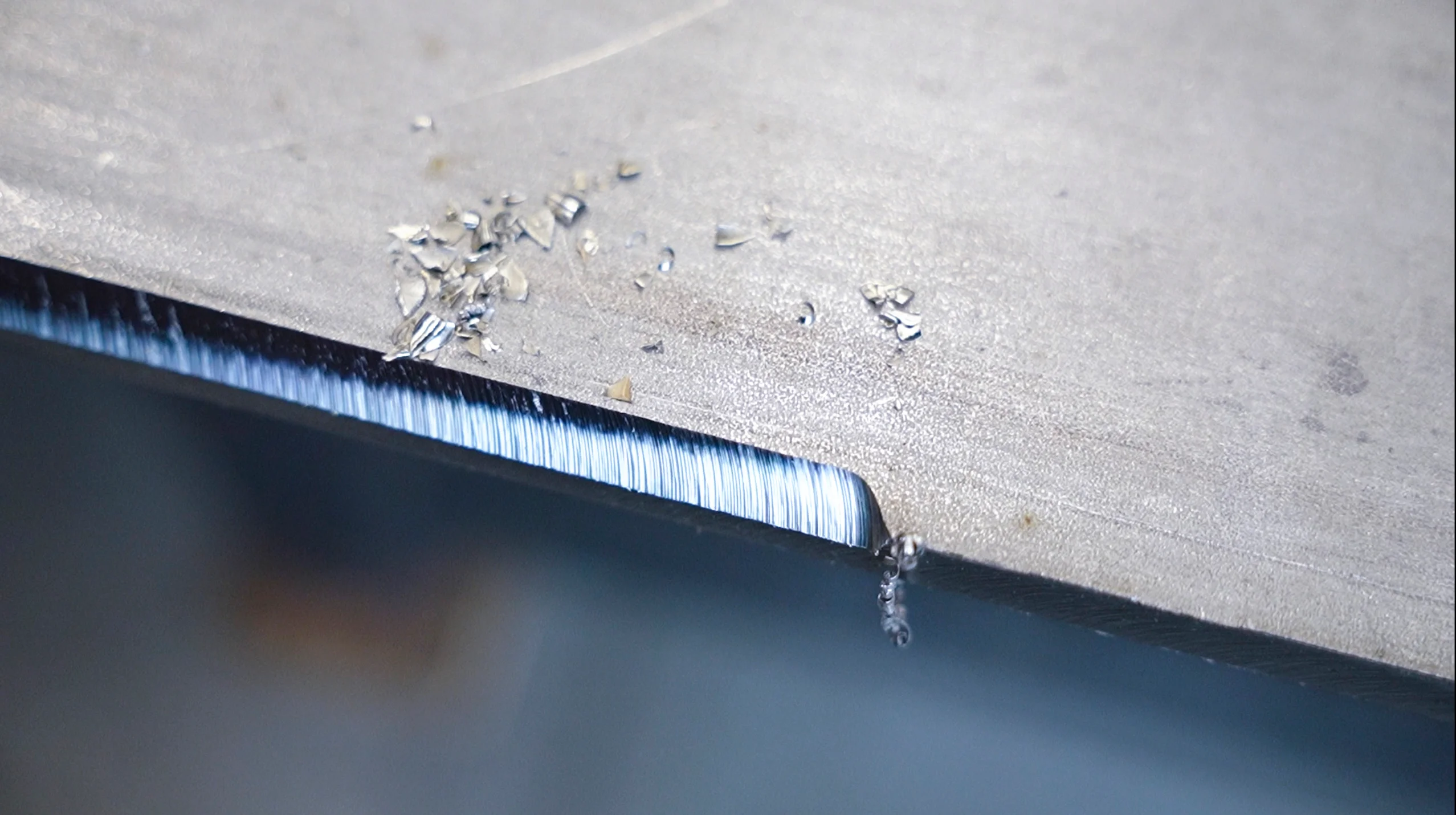

BM-25S – recommended way of working with stainless steel
Pass no. Max. In-depth progress of milling head [mm] Bevel width obtained [mm]
3.0 6.0
2.3 10.6
2.0 14.6
1.6 17.8
1.4 20.6
1.2 23.0
1.0 25.0

BM-25S_Stainless-Steel-Plate-Beveller_25.03 Plate-and-Pipe-Bevellers_Product-Catalogue_26.04 Plate-and-Pipe-Bevellers_Product-Overview_25.12
