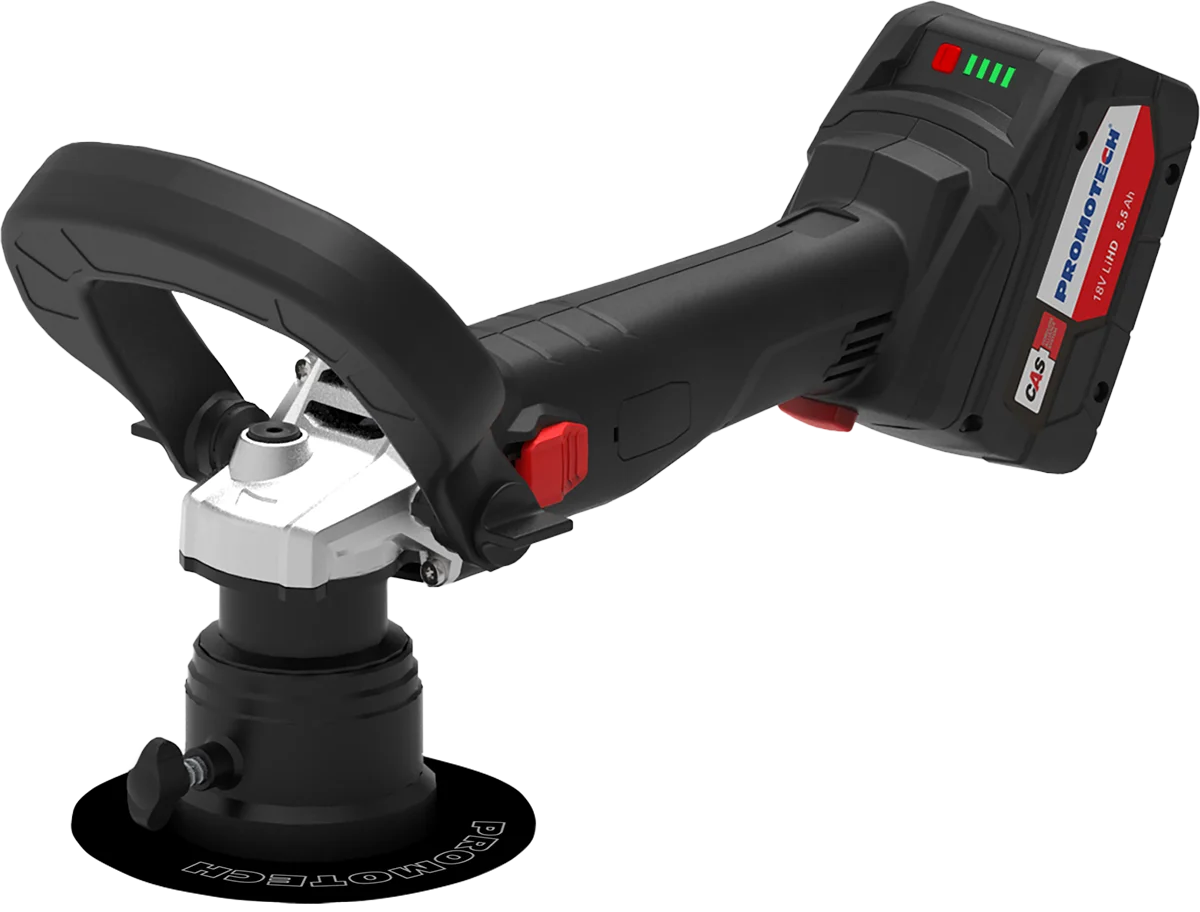

BM-6 Battery Cordless Compact Beveller

Features and Advantages

Continuous bevel width adjustment up to 6 mm at 45 degrees (30 degrees – option)

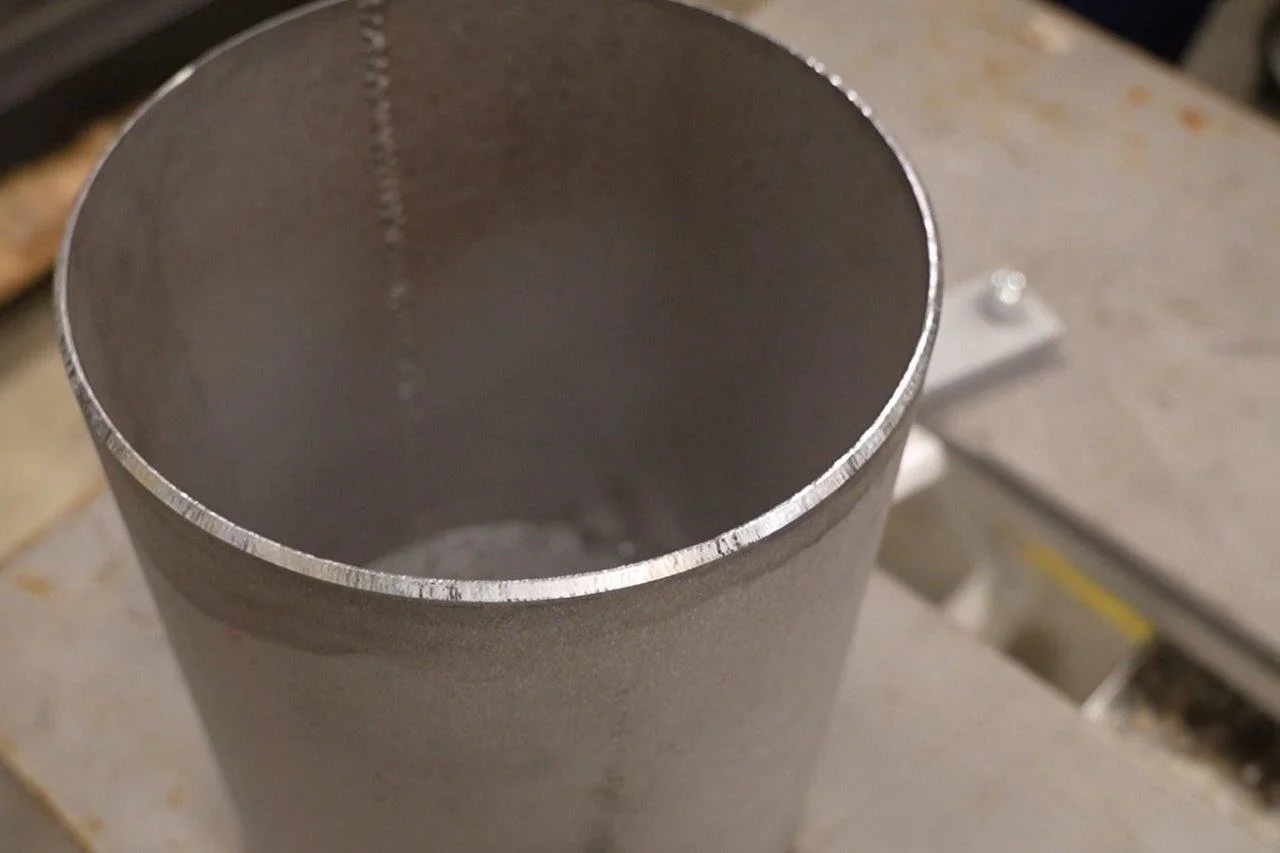

Creates a perfect radius R2, R3, R4 or R5 in just one pass, saving time & money over conventional grinding methods

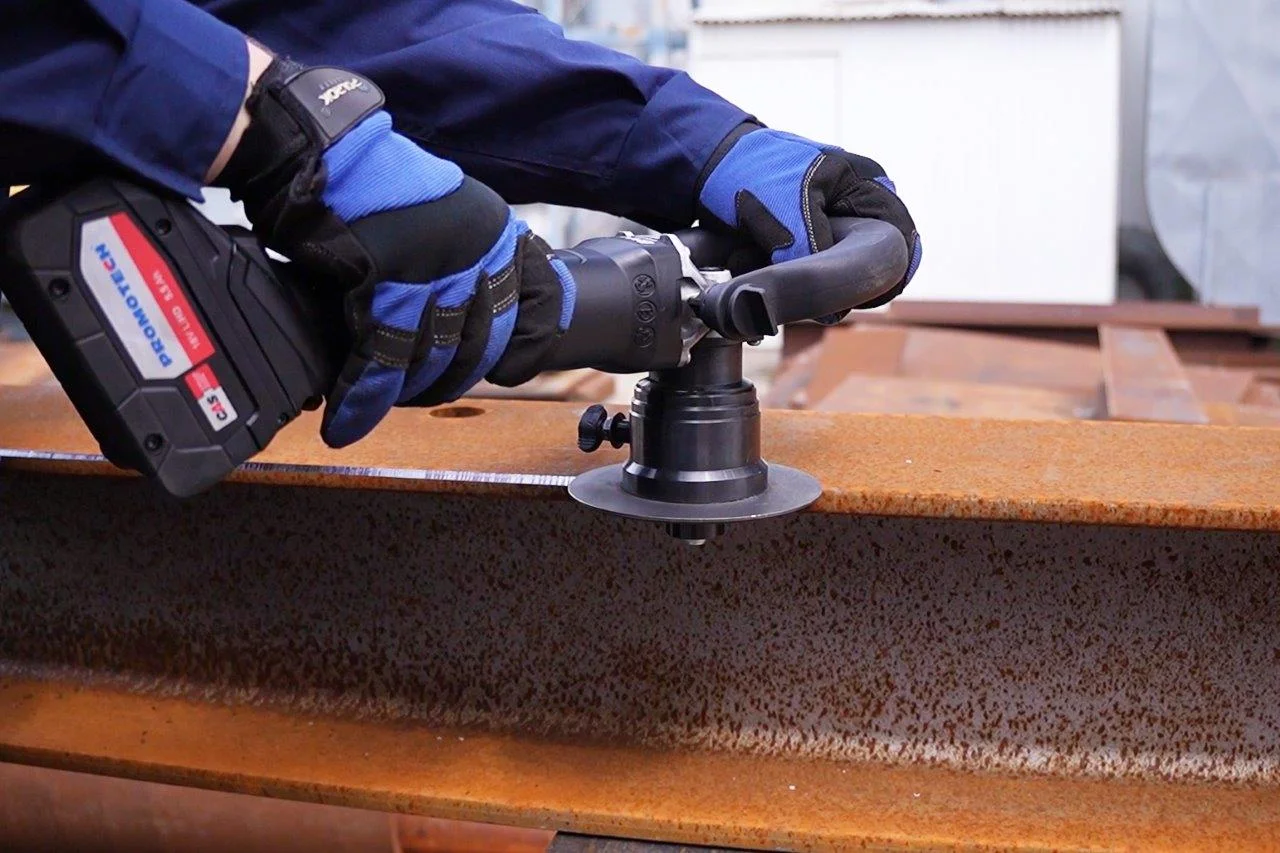

Ideal for use in the field – no need for mains power and no cable to carry around
Conveniently powered by an 18-volt DC battery, the same CAS battery as other cordless PROMOTECH machines
The LiHD battery ensures maximum power availability
Single 45-degree milling head for both radius and V bevels

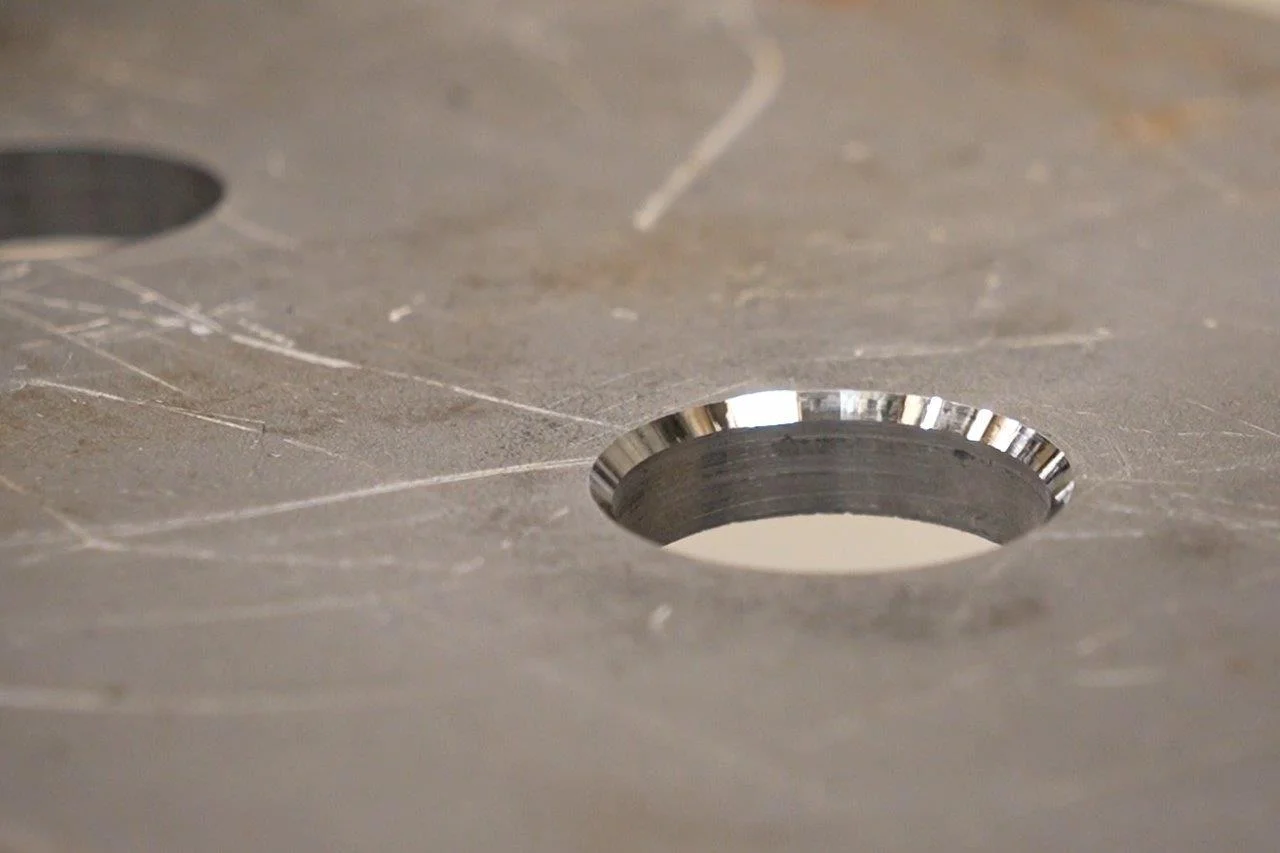

Countersinking of holes with a minimum diameter of 40 mm
Overload protection to prevent motor damage
2 years of warranty

Technical Specifications

Voltage	18 V DC
Power	900 W
Spindle speed (without load)	7800 rpm

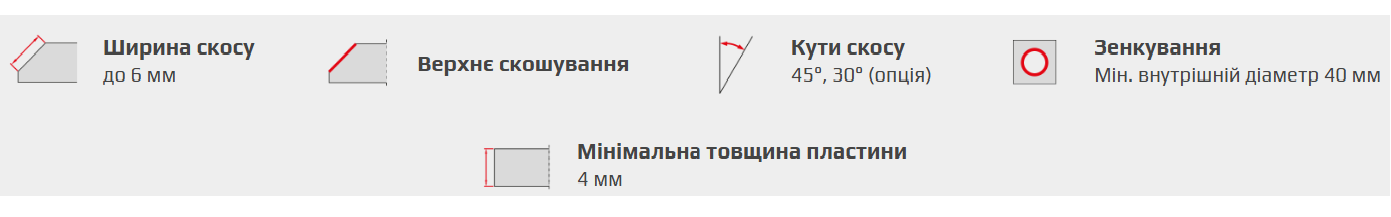

Maximum bevel width (b)	6 mm (15/64")
Bevel angle (ß, depends on the milling head)	45°; 30° (option)
Minimal diameter of countersinking	40 mm (1-9/16”)
Minimum workpiece thickness	4 mm (5/32”)
Rounding edges	R2, R3, R4, R5
Dimensions (L x W x H)	339 mm x 135 mm x 319 mm
Weight (incl. milling head)	3.7 kg (8.2 lbs)
Product code (beveller only)	UKS-0763-10-00-00-0
Product code (beveller + 2 batteries 5.5 Ah)	UKS-0763-10-00-01-0
