Features and Benefits

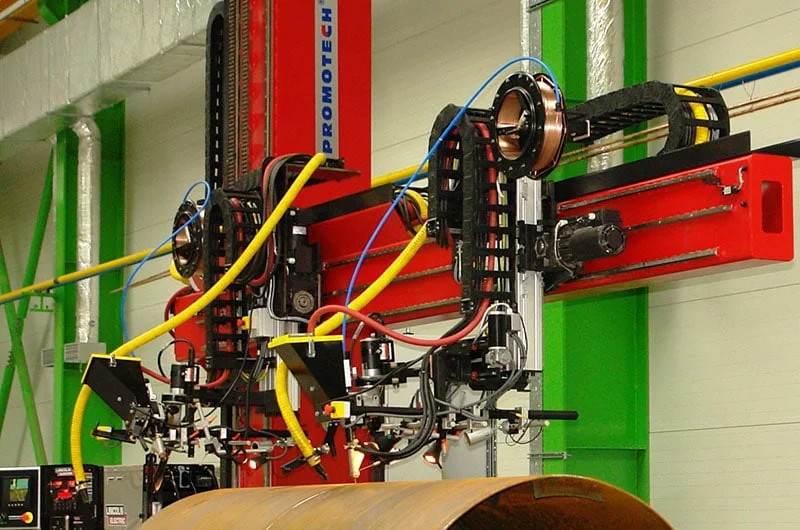

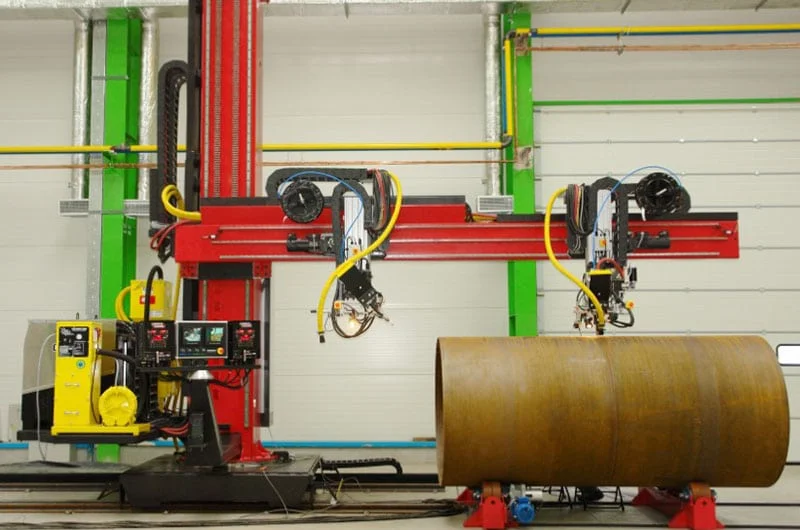

• Designed for automatic welding of large-diameter and long-length workpieces.
• Compatible with SAW Single Wire, SAW Tandem, MIG/MAG, TIG, and Plasma welding processes.
• Heavy-duty, rigid steel construction ensures excellent stability of the welding head even at maximum boom extension.
• Available in both standard and fully customized configurations according to customer requirements.
• Can be integrated into fully automated welding production lines.
• Passive safety system equipped with safety chain protection and automatic drive braking in the event of power failure.
• Compatible with welding power sources, roller beds, welding positioners, seam tracking systems, and other automation equipment.

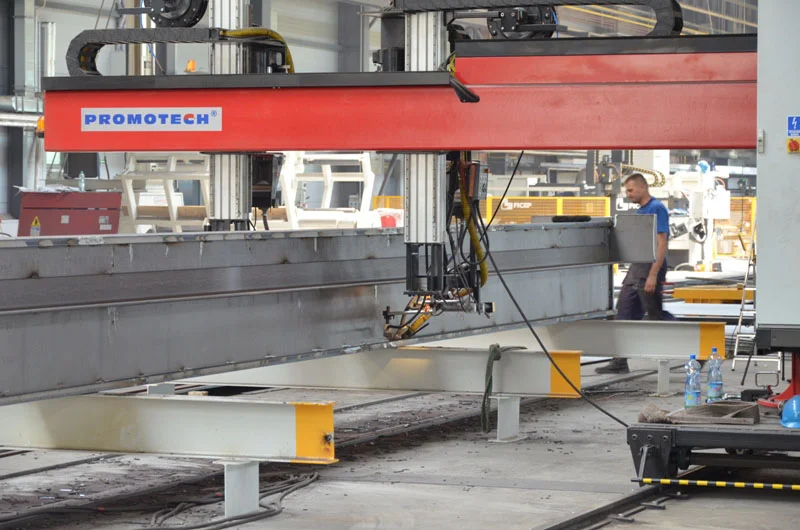

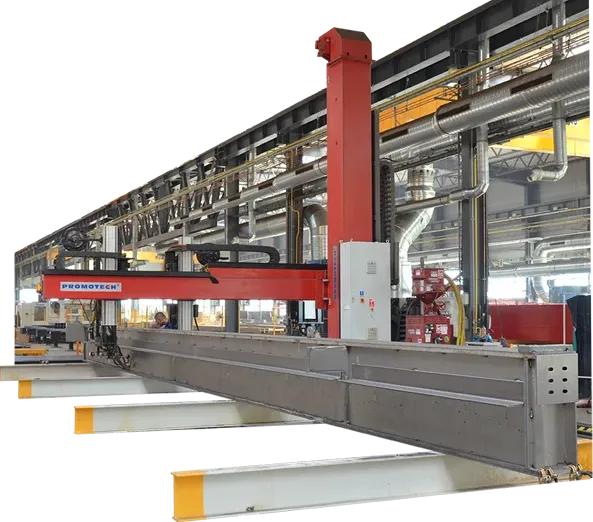

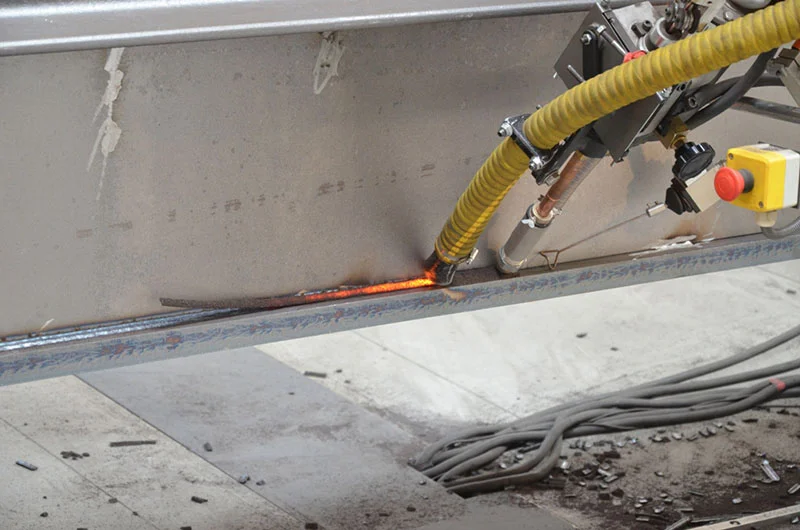

• Suitable for welding pressure vessels, pipelines, storage tanks, structural steel beams, box sections, T-beams, I-beams, and other welded structures.
• High positioning accuracy throughout the complete welding cycle.
• Manufacturer's warranty: 24 months.

Standard Equipment

• Column and boom assembly.
• Electromechanical vertical travel drive.
• Electromechanical horizontal travel drive.
• Variable speed travel control.
• Vertical lifting mechanism.

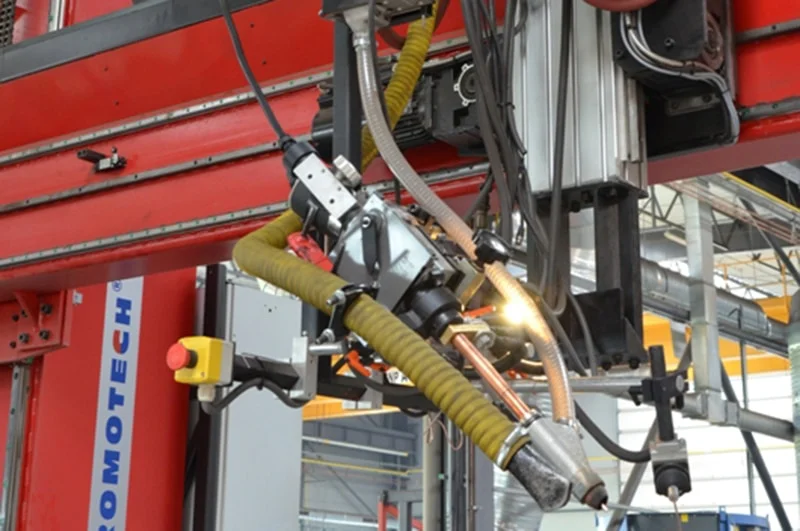

• Welding head carriage.
• Cable carrier for power cables, hoses, and control wiring.
• Passive safety system with safety chain.
• Automatic drive brake activated during emergency power loss.
• Electrical control cabinet.
• Operator control panel.
• Complete installation and operating documentation.
• Factory Acceptance Test (FAT) performed prior to shipment.
• Installation, commissioning, and start-up at the customer's facility.

Optional Equipment

• Semi-automatic cross-slide with automatic seam tracking system.
• Welding head rotation unit.
• SAW video monitoring system with industrial camera.
• GMAW (MIG/MAG) video monitoring system with industrial camera.
• Laser alignment and positioning system.
• 6 m rail travel system.
• 12 m rail travel system.
• Integration with welding roller beds.
• Integration with welding positioners.
• Integration with welding power sources from various manufacturers.
• Mobile or stationary execution.
• Custom-designed systems for specific production applications.
